12V Marine GPS Receiver Antenna RS232 GPS NMEA0183 4800 Baud Boat GPS Raymarine Garmin NMEA 0183 GPS Programmable Flash Memory

Overview

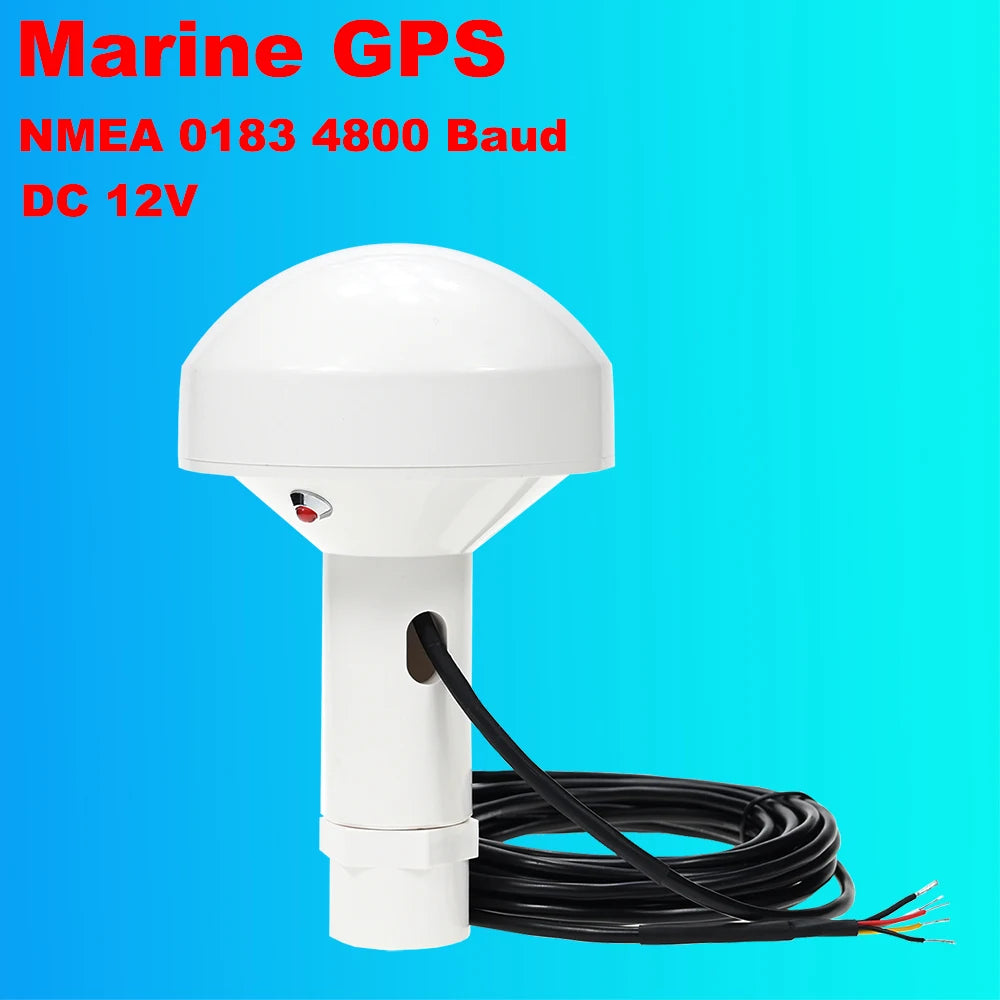

QU232U7 is an external GPS receiver, the protocol is NMEA 0183, the default baud rate is 4800. Supports GPS/WAAS+QZSS+SBAS, supports up to 56 satellite tracking channels, and with satellite-based enhanced satellites, the horizontal positioning accuracy can reach 2 meters.
QU232U7 also supports SBAS (Satellite-Based Augmentation System) which is the generic name given to the differential signal transmitted by various local geo-stationary satellites. SBAS allows GPS receiver to remove errors in the position due to environmental conditions and improves accuracy down to <2m. Using WAAS in the US and EGNOS in Europe the QU232U7 will automatically switch to differential SBAS mode when available.
This product is compatible with Garmin, raymrine and other GPS sensors. Please make sure your device has an NMEA 0183 interface and operates at 4800 baud before purchasing.
Users can also personalize the GPS receiver configuration via PC software:U-center to meet the needs of different devices. Including baud rate, NMEA messages, protocol, navigation rate, PPS LED status, etc.

Factory configuration:
Baud rate: 4800 bps
NMEA messages: GGA RMC GLL VTG GSV GSA ZDA

If you need to change the configuration, please inform the customer or leave a message before placing an order.

Specifications

Chipset：UBX-7 engine
Working mode：GPS/WAAS+QZSS+SBAS
Support GNSS：GPS,GLONASS,SBAS,QZSS,WAAS
Channels：56 Channel
Horizontal Accuracy：2.0m CEP 2D RMS SBAS Enable (Typical open-air)
Speed Accuracy：0.05m/sec 95% (SA off)
Tracking ：-167dBm
Reacquisition：-160dBm
Cold start：-148dBm
Hot Start：26s
Warm Start：2s
Cold Start：1s
Support Baud：4800bps-921600bps，Default 4800bps
Signal Level：RS232
Protocol：NMEA 0183 ver2.3
NMEA Sentence：GGA, RMC,GLL,VTG,GSA, GSV, ZDA
Nav Rate：Max 10Hz,Default 1Hz
Flash Memory：Support
Altitude：＜50000m
Velocity：＜515m/s
Acceleration：＜4G
Voltage：7-28V,Typical:12.0V
Current：20mA/12V
Dimension：D10.5cm*H16cm
Weight：300g
Operating Temp：-45℃-+85℃
Storage Temp：-45℃-+105℃
Waterproof Level：IP67

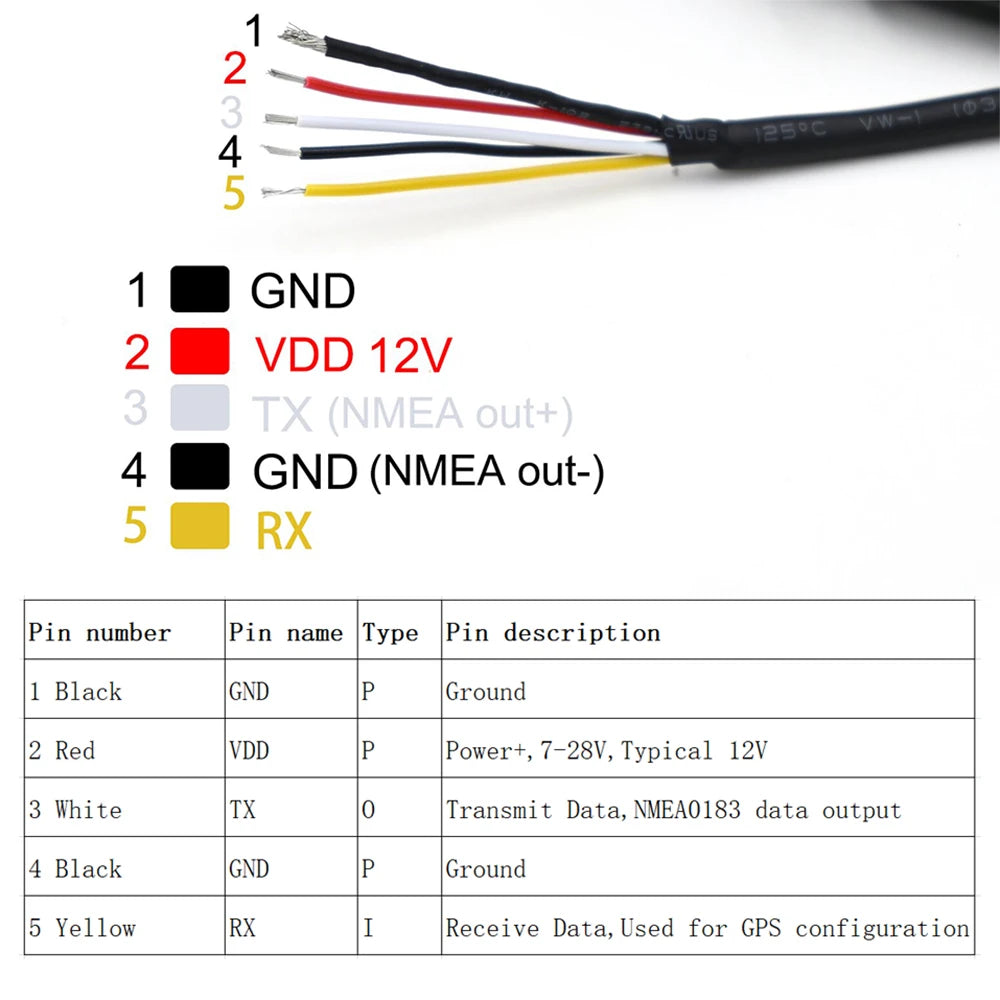

Please note that do not connect the GPS signal wires (TX RX) to the positive pole of your power supply, otherwise it will immediately damage the antenna.

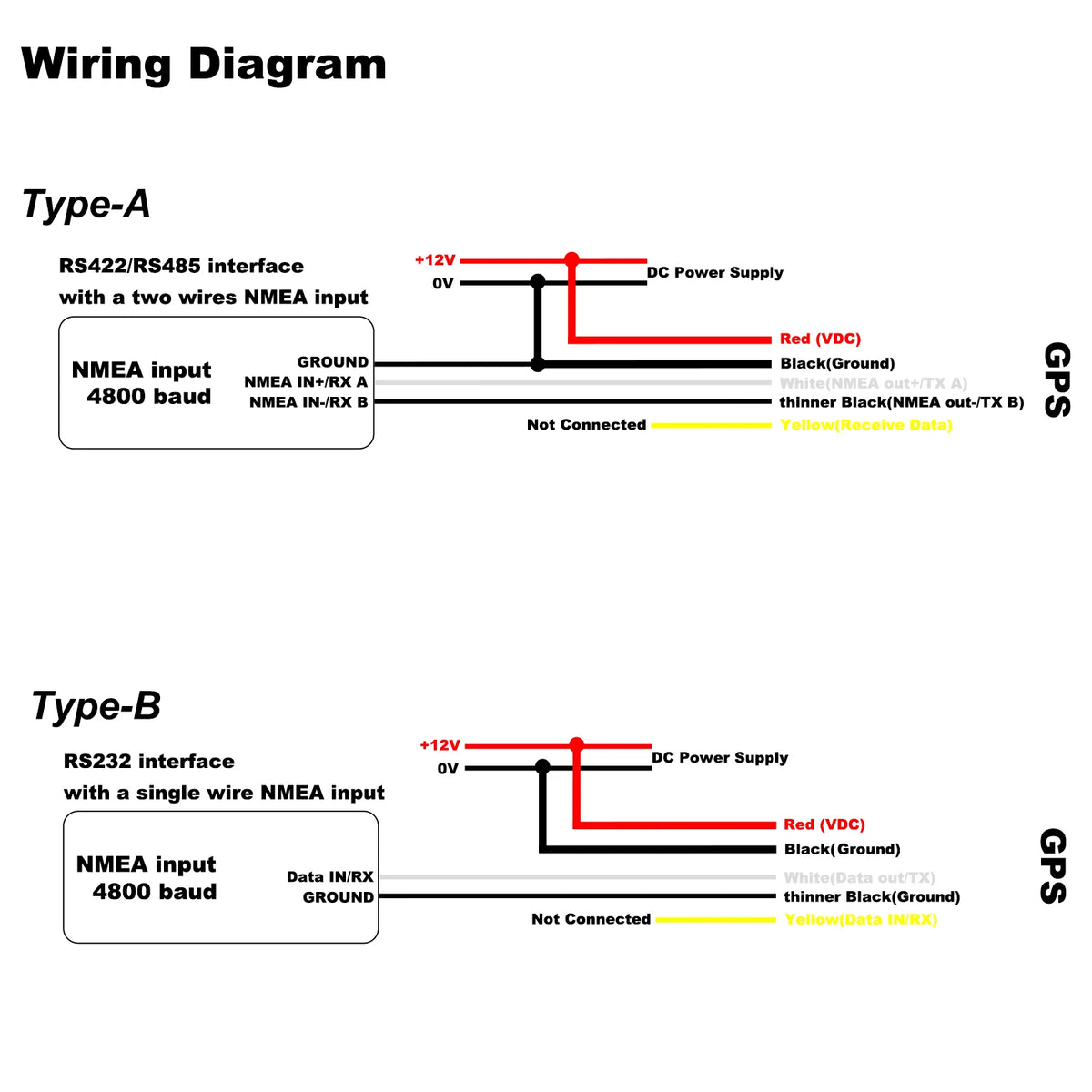

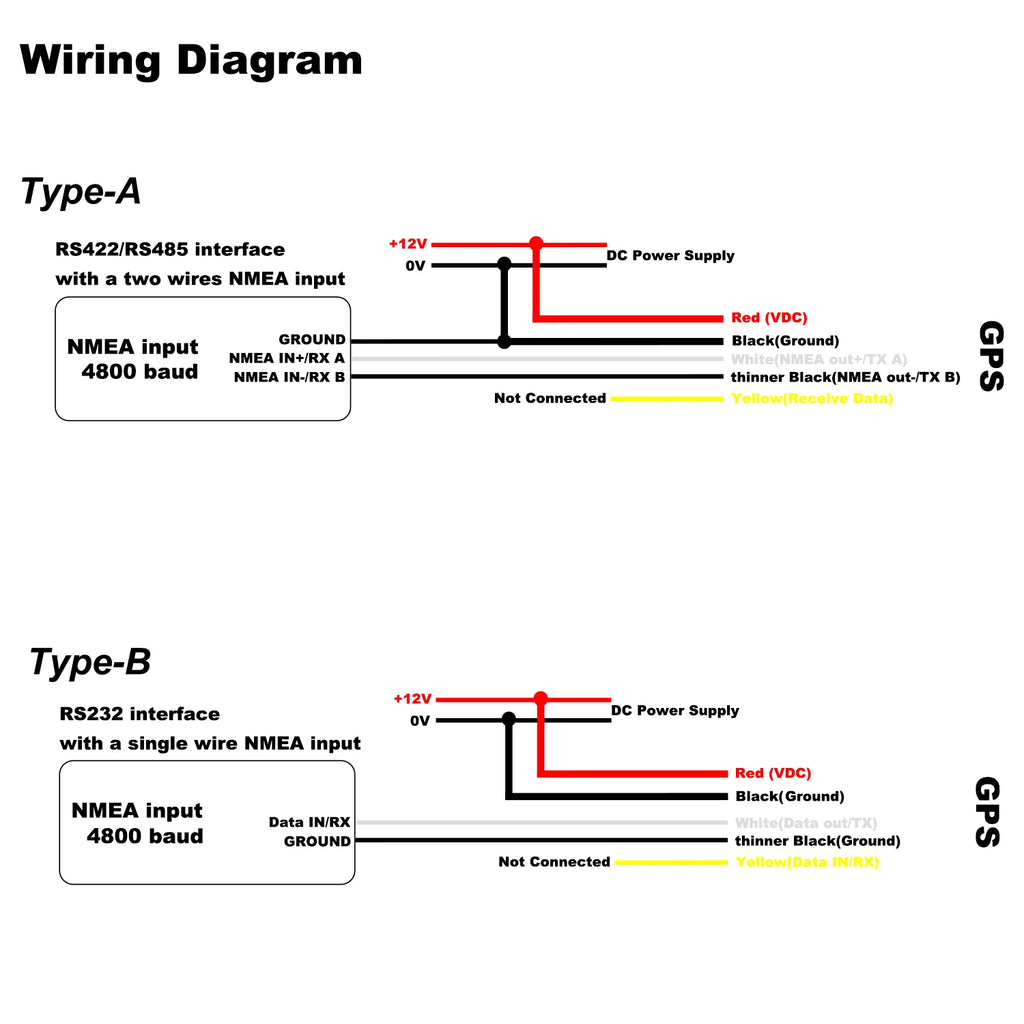

If you don't know how to connect wires, please provide the NMEA 0183 interface description of your device to customer service and request assistance.

In the default configuration, the NMEA-GSV GSA ZDA messages are sent at 4-second intervals to avoid overflow in the TX buffer.
