1500W High Power Subwoofer Crossover Frequency DIY Audio Speaker Amplifier Divider Bass Woofer Crossover Filters Hifi Stereo

Divider is a circuit within the speaker device, different bands (treble, in the bass) sound signal to distinguish, respectively, to the amplification, and then sent to the corresponding band of speakers and then replay.

Features

1. Maximum power: 1500W

2. Impedance: 4-8 ohm

3. Frequency response: 260HZ-290HZ

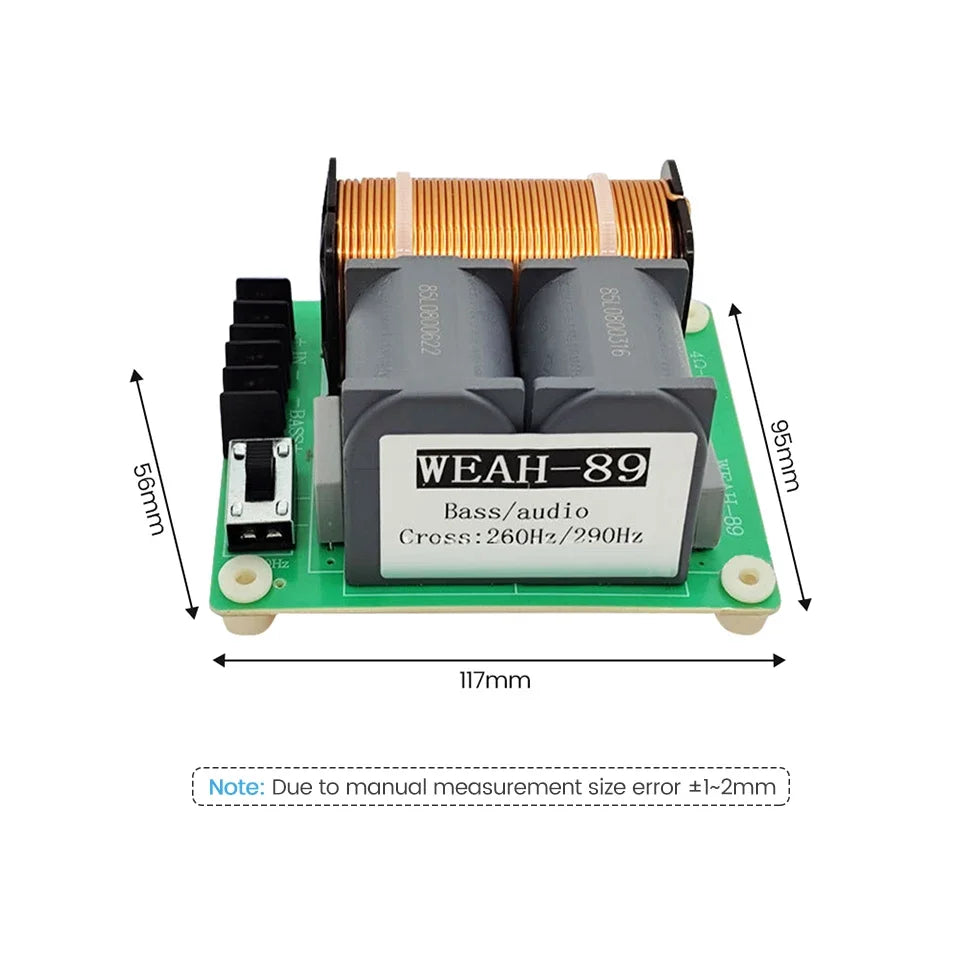

4. Size: 117*95*56 mm

5. Suitable woofer/Subwoofer speakers.

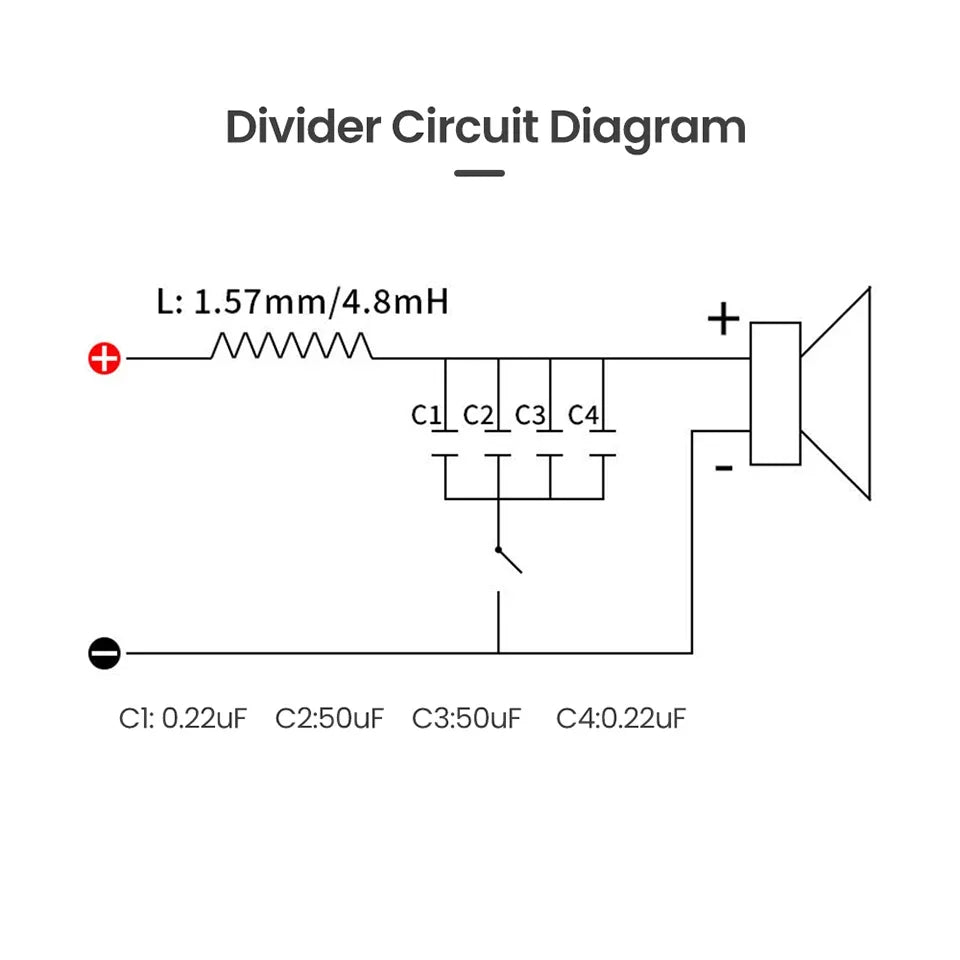

There are switches on the board to adjust the capacitance

Package included:1*Frequency Divider

Advantage:

1: Audio-specific anti-interference, high-power, high-current, high-voltage dual 50uF large capacitors, filtering treble, midrange and low frequencies above 290Hz.

2: The inductance length is close to 8cm, 4.8mH large inductance, and the wire diameter is 1.57mm high temperature resistant enameled wire

3: The high-current switch can be adjusted to about 30Hz.

Package Included : 2 pcs
