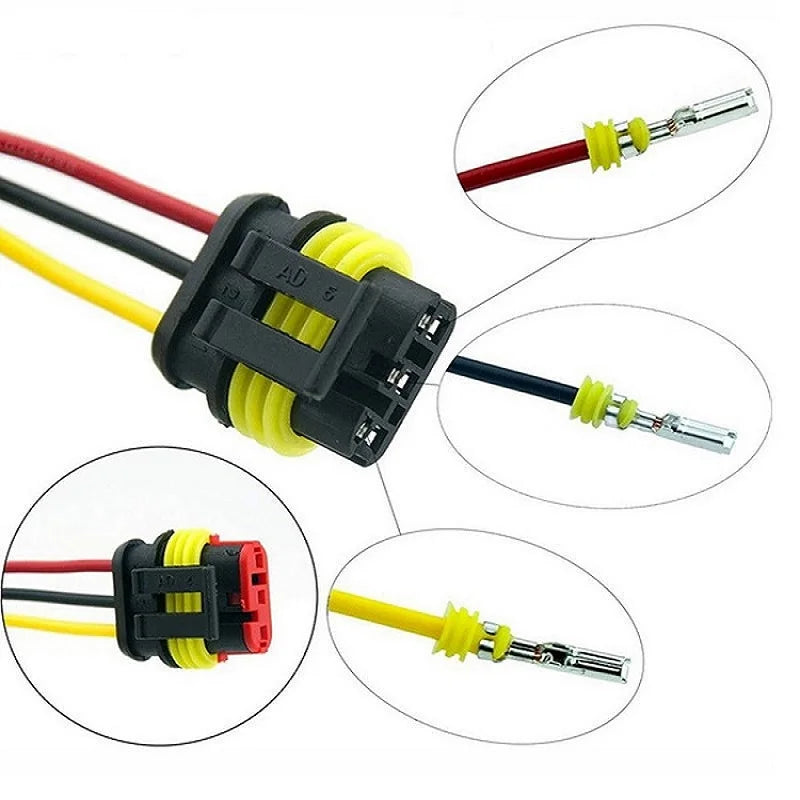

240/352/708/1004pcs boxed car waterproof connector kit male and female pair terminal wire harness plug connector 1-6 holes

Description

240/352/708/1004pcs boxed car waterproof connector kit male and female pair terminal wire harness plug connector 1-6 holes

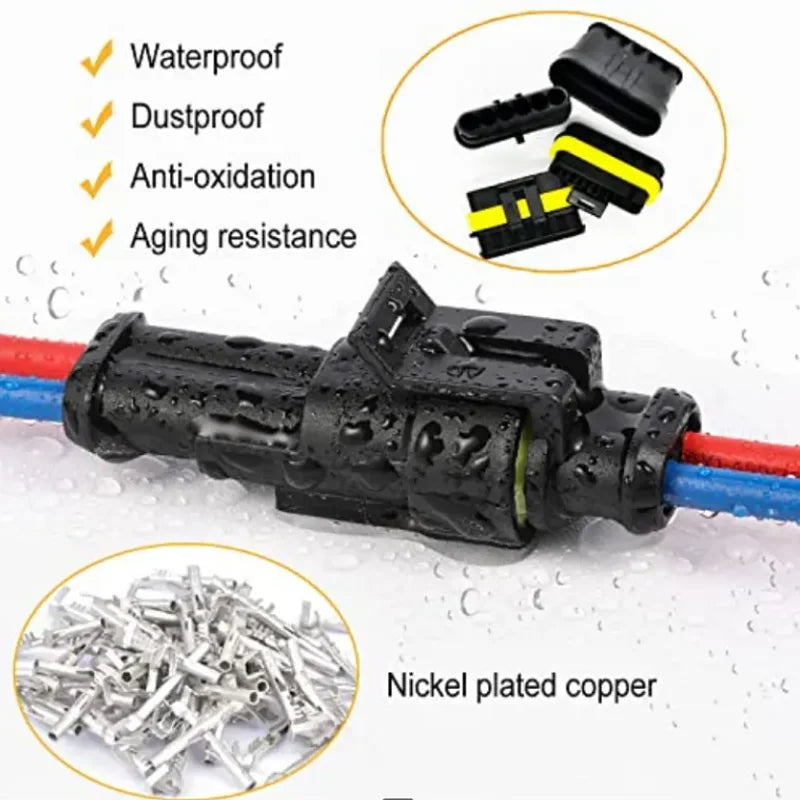

Features: Shell and Insulating Components: The shell of the waterproof connector serves as the outer cover, with an insulation installation module and mechanical protection device inside, allowing the plug and socket to smoothly and accurately connect and be fixed on the device in use. Insulating components such as bottom bases or mounting plates ensure that the insulation performance between the contact components and the casing is always good.

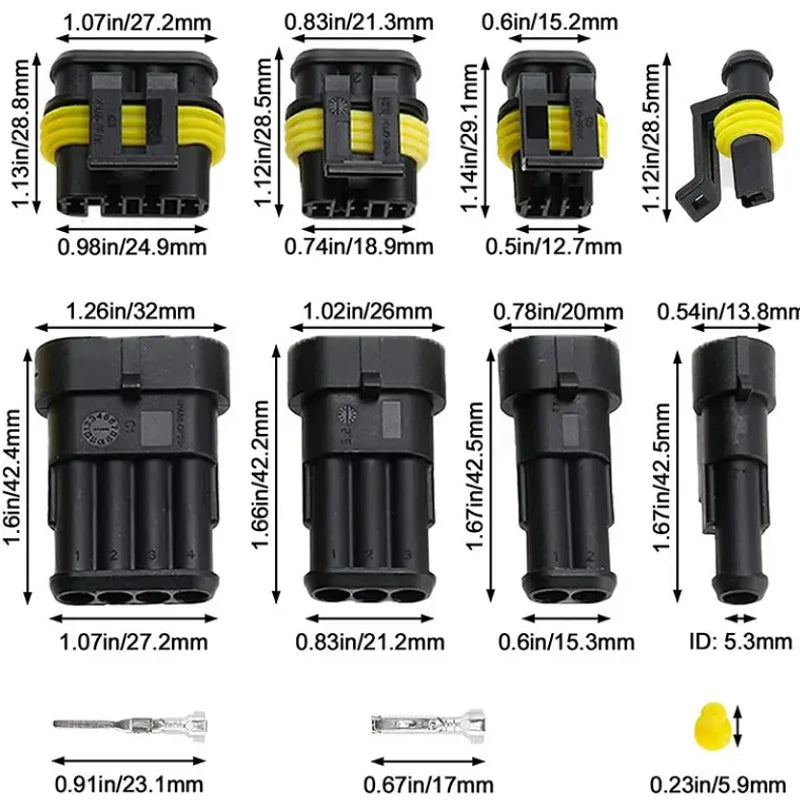

Parameters: Material: Plastic

Size: 240pcs 20cm * 15cm * 2cm

352pcs 22cm * 17cm * 3.5cm

708pcs 27.5cm * 17.5cm * 4.5cm

1004pcs 31cm * 20cm * 6cm

Voltage: 300 V Rated current: 12A -1.5mm terminals

Working temperature: -25~85 degrees Celsius

Waterproof grade: IP68

Product content:

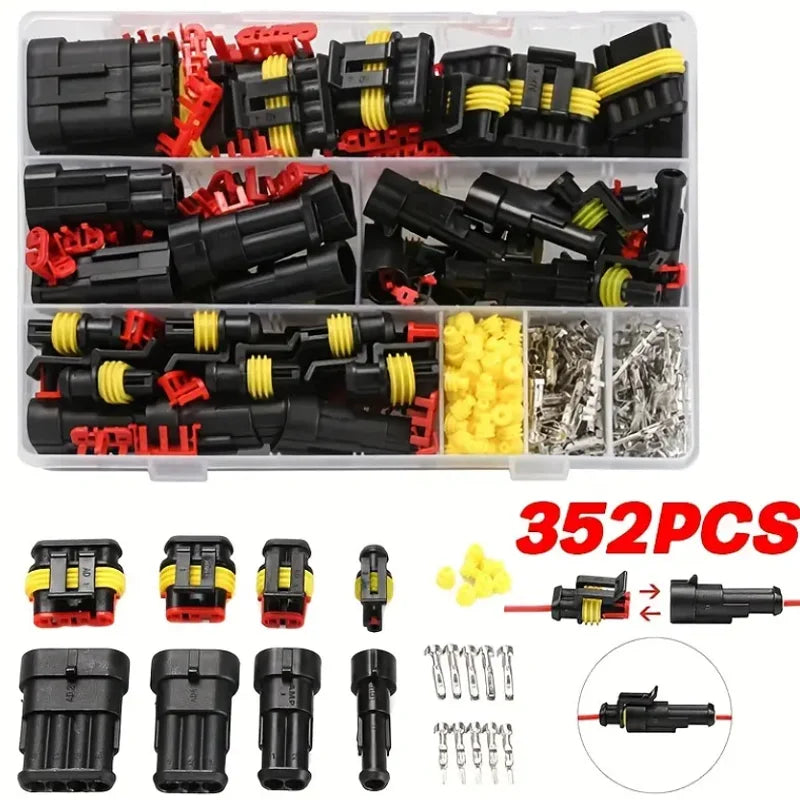

352pcs waterproof connectors:

1 pin: (8 sets) 8 x shell connectors, 8 x female shell connectors, 8 x male pins, 8 x female pins, 16 x waterproof silicone plugs

2-pin: (6 sets) 6 male shell connectors, 6 female shell connectors, 12 male pins, 12 female pins, 24 waterproof silicone pins

3-pin: (6 sets) 6 male shell connectors, 6 female shell connectors, 18 male pins, 18 female pins, 36 waterproof silicone pins

4-pin: (6 sets) 6 x male sleeve connectors, 6 x female shell connectors, 24 x male pins, 24 x female pins, 48 x silicone waterproof plugs

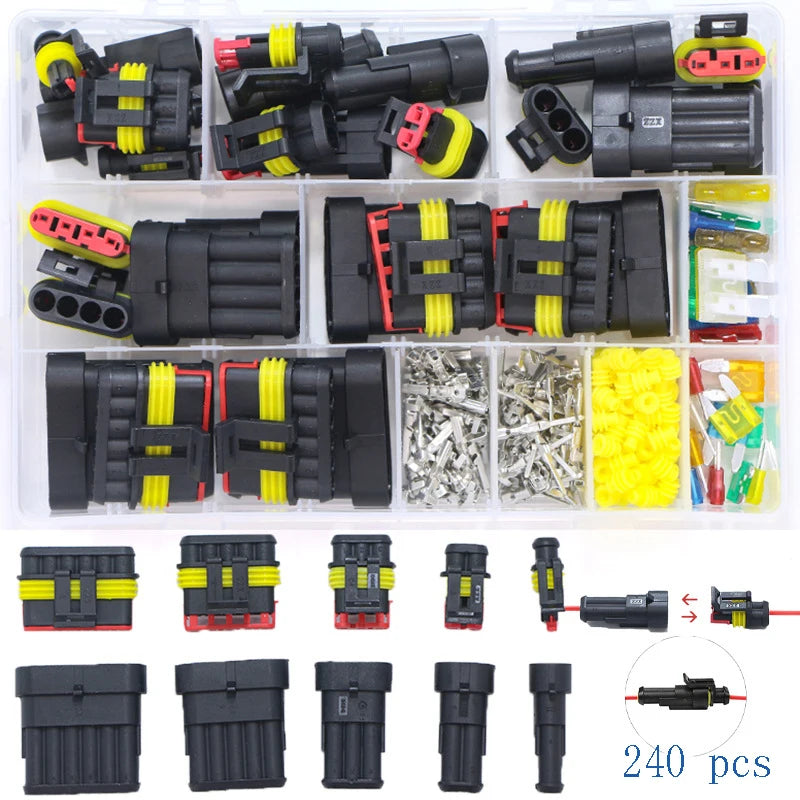

240pcs waterproof connectors:

1 pin: (2 sets) 2x shell connector, 2x female shell connector, 2x male pin, 2x female pin, 4x waterproof silicone plug

2-pin: (3 sets) 3 male shell connectors, 3 female shell connectors, 6 male pins, 6 female pins, 12 waterproof silicone lead pins

3-pin: (3 sets) 3 male shell connectors, 3 female shell connectors, 9 male pins, 9 female pins, 18 waterproof silicone pins

4-pin: (2 sets) 2x male sleeve connector, 2x female shell connector, 8x male pin, 8x female pin, 16x silicone waterproof plug

5-pin: (2 sets) 2 male shell connectors, 2 female shell connectors, 10 male pins, 10 female pins, 20 waterproof silicone pins

6-pin: (2 sets) 2x male sleeve connector, 2x female shell connector, 12 x male pin, 12 x female pin, 24 x silicone waterproof plug

Medium size insurance film:

2 x 7.5 Amp (gray)

2x10Amp (red)

2x 15 Amp (blue)

2x 20 Amp (yellow)

2x 25 Amp (white)

2x 30 Amp (green)

Small insurance film:

2x 5 Amp (orange)

2x 10 Amp (red)

2x 15 Amp (blue)

2x 20 Amp (yellow)

2x 25 Amp (white)

2x30Amp (green)

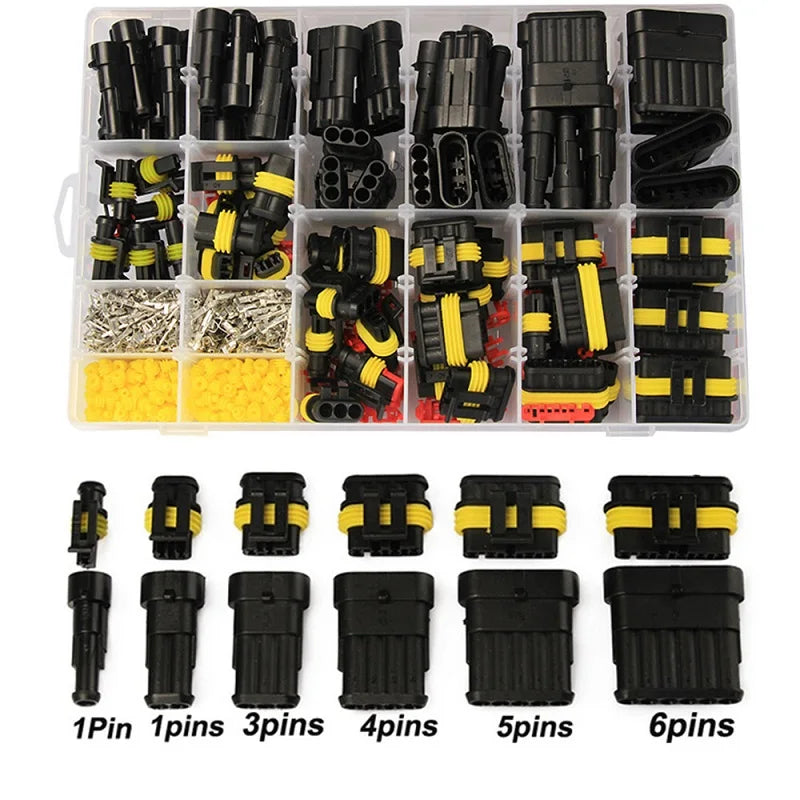

708pcs waterproof connector: waterproof connector 1-hole male rubber shell DJ7011-1.5-11 (black) (10pcs)

Waterproof connector 1 hole red clip DJ7011-1.5-11 (red) (10PCS)

Waterproof connector 2-hole male rubber shell DJ7021-1.5-11 (black) (8PCS)

Waterproof connector 2-hole red clip DJ7021-1.5-11 (red) (8PCS)

Waterproof connector 3-hole male rubber shell DJ7031-1.5-11 (black) (8PCS)

Waterproof connector 3-hole red clip DJ7031-1.5-11 (red) (8PCS)

Waterproof connector 4-hole male rubber shell DJ7041-1.5-11 (black) (6PCS)

Waterproof connector 4-hole red clip DJ7041-1.5-11 (red) (6PCS)

Waterproof connector 5-hole male rubber shell DJ7051-1.5-11 (black) (6PCS)

Waterproof connector 5-hole red clip DJ7051-1.5-11 (red) (6PCS)

Waterproof connector 6-hole male rubber shell DJ7061-1.5-11 (black) (5PCS)

Waterproof connector 6-hole red clip DJ7061-1.5-11 (red) (5PCS)

Waterproof connector 1 hole female rubber shell DJ7011-1.5-21 (black with yellow) (10PCS)

Waterproof connector 1 hole red clip DJ7011-1.5-21 (red) (10PCS)

Waterproof connector 2-hole female rubber shell DJ7021-1.5-21 (black with yellow) (8PCS)

Waterproof connector 2-hole red clip DJ7021-1.5-21 (red) (8PCS)

Waterproof connector 3-hole female rubber shell DJ7031-1.5-21 (black with yellow) (8PCS)

Waterproof connector 3-hole red clip DJ7031-1.5-21 (red) (8PCS)

Waterproof connector 4-hole female rubber shell DJ7041-1.5-21 (black with yellow) (6PCS)

Waterproof connector 4-hole red clip DJ7041-1.5-21 (red) (6PCS)

Waterproof connector 5-hole female rubber shell DJ7051-1.5-21 (black with yellow) (6PCS)

Waterproof connector 5-hole red clip DJ7051-1.5-21 (red) (6PCS)

Waterproof connector 6-hole female rubber shell DJ7061-1.5-21 (black with yellow) (5PCS)

Waterproof connector 6-hole red clip DJ7061-1.5-21 (red) (5PCS)

Waterproof connector male bare end DJ611-1.5 (copper nickel plated) (134PCS)

Waterproof connector female bare end DJ621-1.5 (copper nickel plated) (134PCS)

Waterproof connector rubber waterproof plug (yellow) (268PCS)

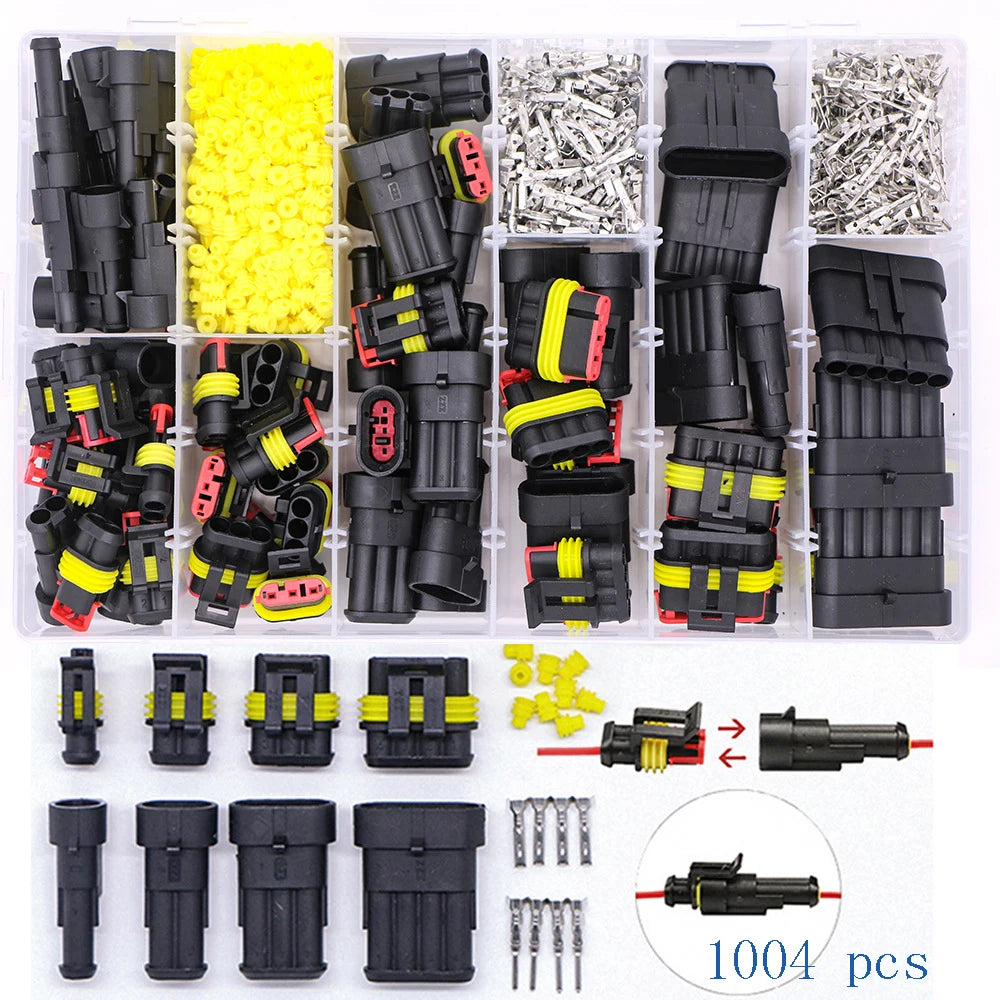

1004pcs waterproof connectors:

1 pin: (8 sets) 8 x housing connectors, 8 x female housing connectors

2-pin: (6 sets) 6 male shell connectors and 6 female shell connectors

3-pin: (12 sets) 12 male shell connectors and 12 female shell connectors

4-pin: (4 sets) 4x male sleeve connector, 4x female shell connector

5-pin: (4 sets) 4x male sleeve connector, 4x female shell connector

6-pin: (3 sets) 3 x male sleeve connectors, 3 x female shell connectors

200 * male bare end 200 * female bare end 530x silicone waterproof plug

Applicable to: automobiles, motorcycles, trucks, RVs, boats, and other marine vehicles

Attention: All dimensions are hand measured, and a difference of 1.2 centimeters is considered normal
