Description

Tips

If you want to switch FPS mode quickly,please watch the teaching video on the Product Homepage.
If you need a complete using instructions, please leave your email address and we will send it to you.At the same time, if you have any questions during the use, please feel free to contact us.

* The core components are industrial-grade package, stable performance, small error.
* Aluminum alloy, stainless steel material, support rod, velocity measurement, energy measure, speed energy, looking through record and view average.
* This product for the speed of 1 to 3000 meters per second projectile with accurate speed.(FPS range 30-9000)
* The utility model has the advantages of large effective induction area, convenient use and high sensitivity.
* Strong adaptability to ambient light( The darker the ambient light, the better the machine performance. If used under strong light, it is recommended to install a hood)
* Can save 80 sets of data, you can see the average.
* It is mainly used to learn and experience the ability of the SCM to process data at high speed, and it can measure the flying speed of various projectiles. Such as: table tennis, badminton, bow, arrows, physical acceleration experiment, projectile free fall experiment, nerf playthings speed measurement, children's soft playthings, etc.

Specifications

Voltage: DC 6V
Battery(not included): 4 * AA battery
Working Temperature: -30℃ - 60℃
Accuracy: test error ≤0.5%
Measuring Range: 1-3000 M/S(FPS range 30-9000)

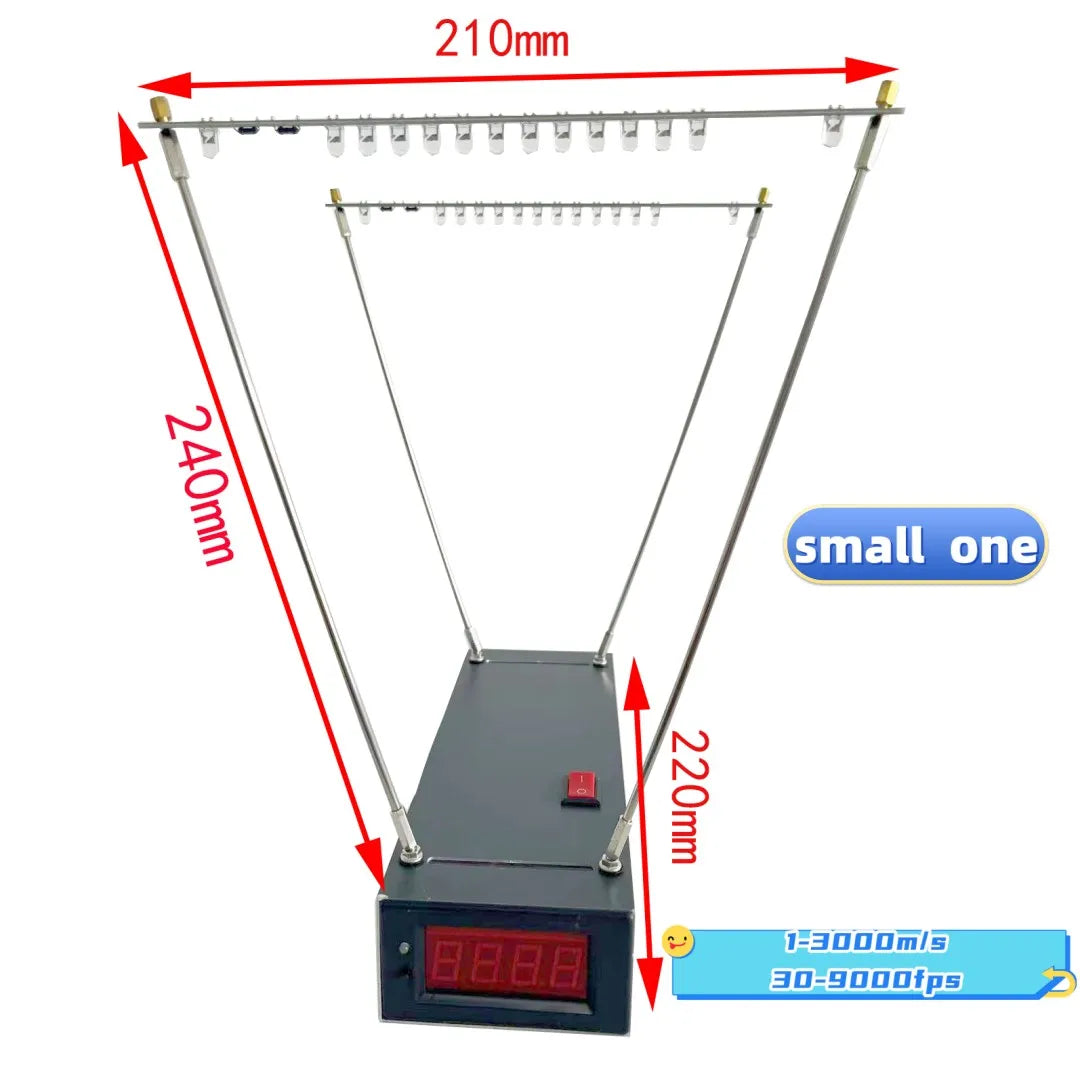

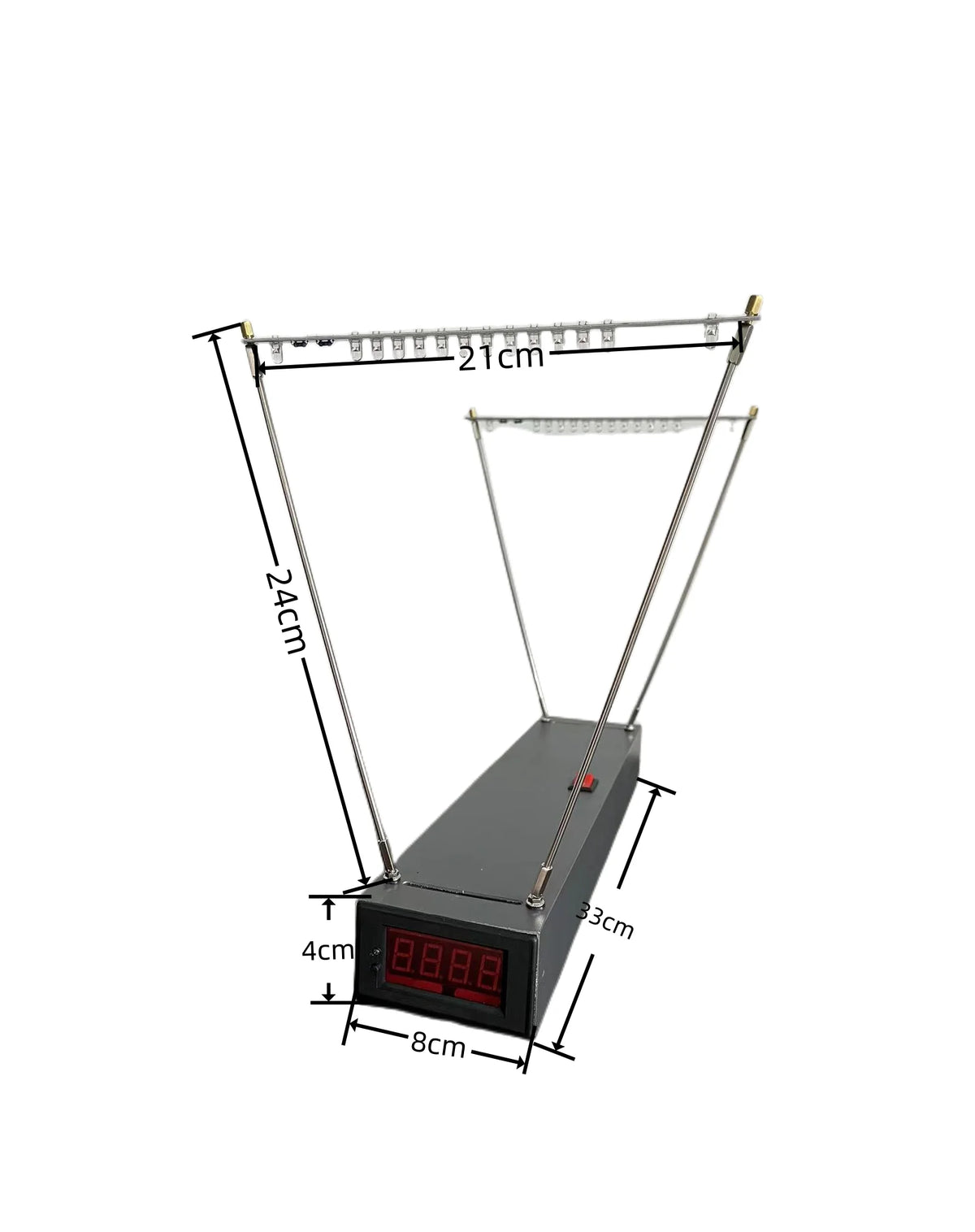

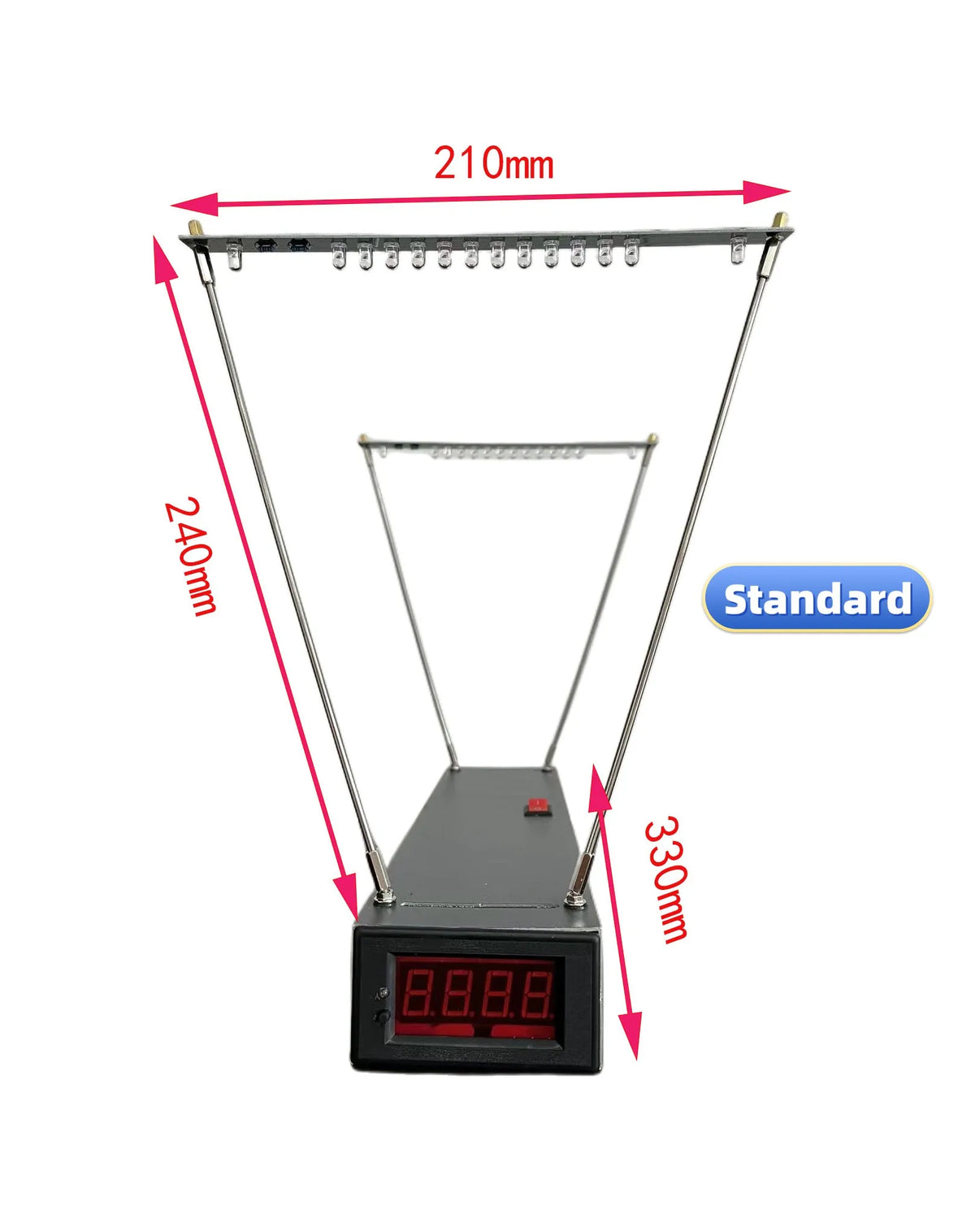

Item Size: 330 * 80 * 44mm / 12.99 * 3.15 * 1.73in
Package Size: 350 * 110 * 110mm / 13.78 * 4.33 * 4.33in
Item Weight: 436g / 0.96lb
Package Weight: 520g / 1.15lb

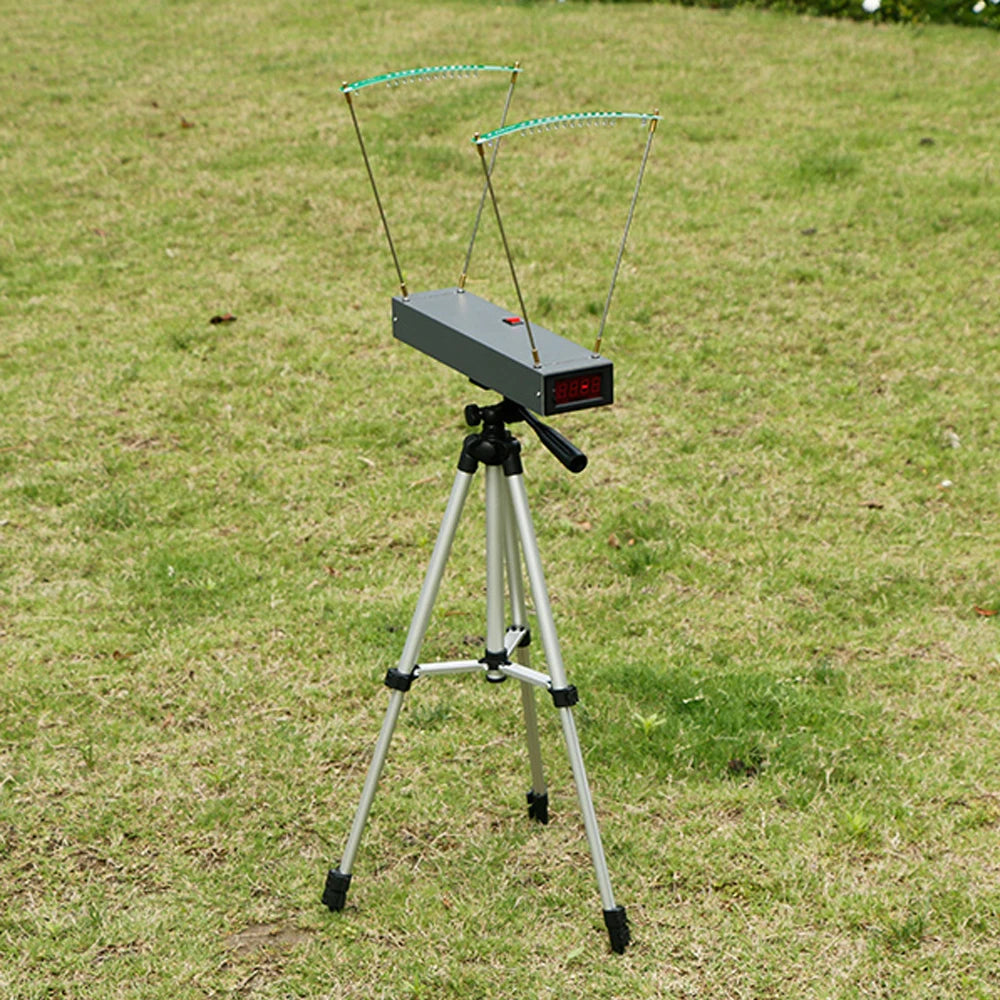

* Standard three tripod can be installed
* This product does not contain tripod and batteries

Please Note

* This product is infrared radiation type, the light source has been integrated in the machine, no external light source. Recommended for use in low light environments. The darker the ambient light, the better the machine performance. For outdoor use and strong light conditions, a light shield must be added.
* When measuring the speed of the projectile with higher speed. Please take appropriate protective measures. In order to avert the rebound of the projectile after hitting the machine and causing damage.
* Observe the marking on the left and right sides of the light bar when installing, and the strip with the light is facing down.

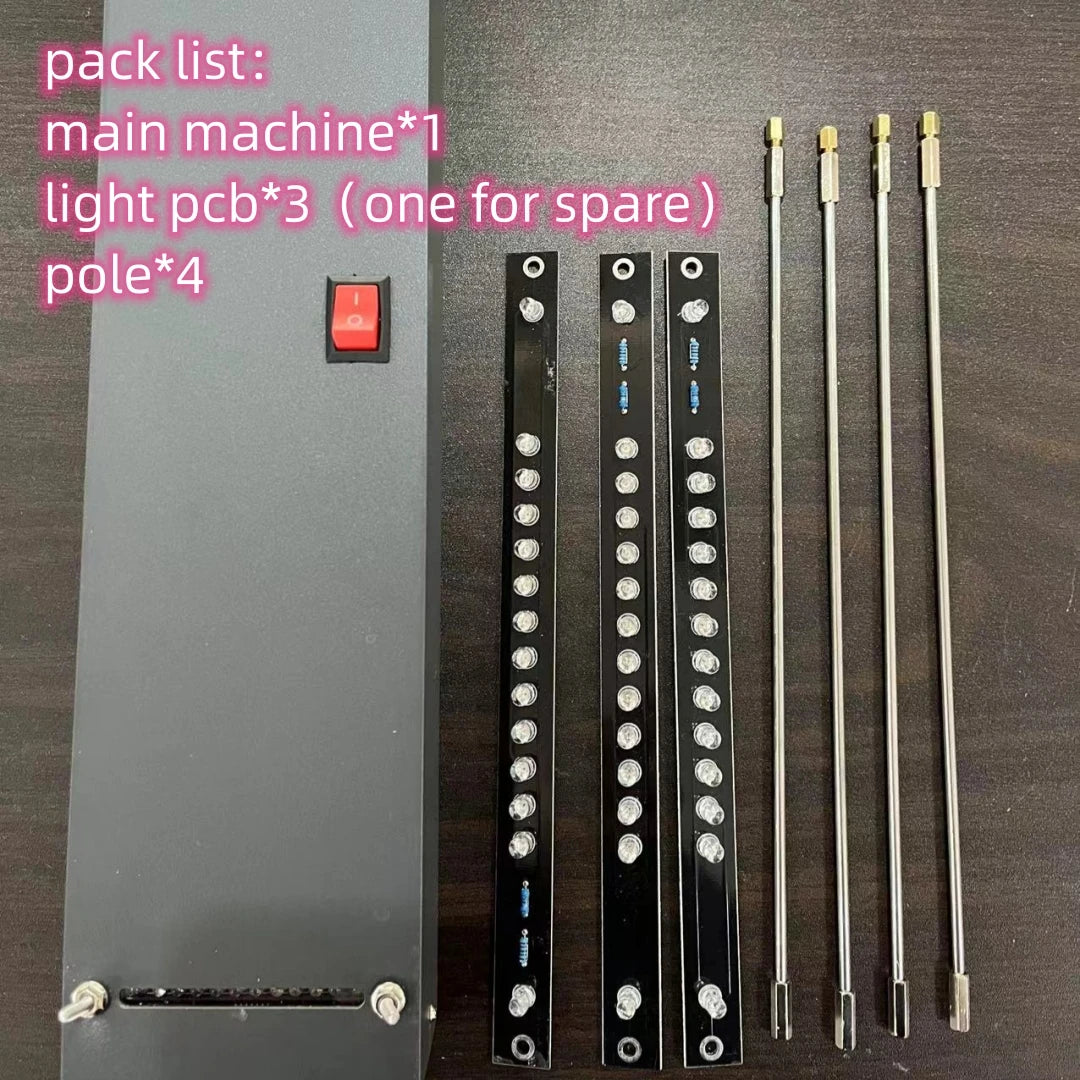

Packing List

Wifi Connect:
(1).You need to connect the USB cable to the machine,the USB cable is just power the
wifi,but no the machine,the machine need 4 aa battery. (2).After connected the USB cable the machine and the USB power,then you need to
open your phone's(or computer’s) wifi to search for signals and find “HT50”,and
connect the “HT50”,and you may need turn off automatic connection to other wifi. The “HT50” wifi’s password is “88888888”
(3)after connected the “HT50” wifi,you can open the browser and enter the website
address”8.8.8.8”.then you can see the interface.that’all.
