48V-72V 45A 3-mode Sine Wave ebike Controller with/without Display for 1000W-2880W Motor

48V-72V 1500W-2880W 45A Sine Wave 3-mode Intelligent Controller with Colorful LCD Display for eBike Electric Bike

Very important Notice:
This controller can only work without display or with our display, please never use it with your own display (because program is different)

Why 3-mode Controller?
Support Hall Sensor Mode (Sine Wave Mode)
Support Non-Hall Mode (If your motor hall sensor burned or not match, controller will still work in square wave mode)
Self-learning Function: Even wrong 3-phase combination between motor and
controller, doesn’t matter, above self-learning process can correct it!

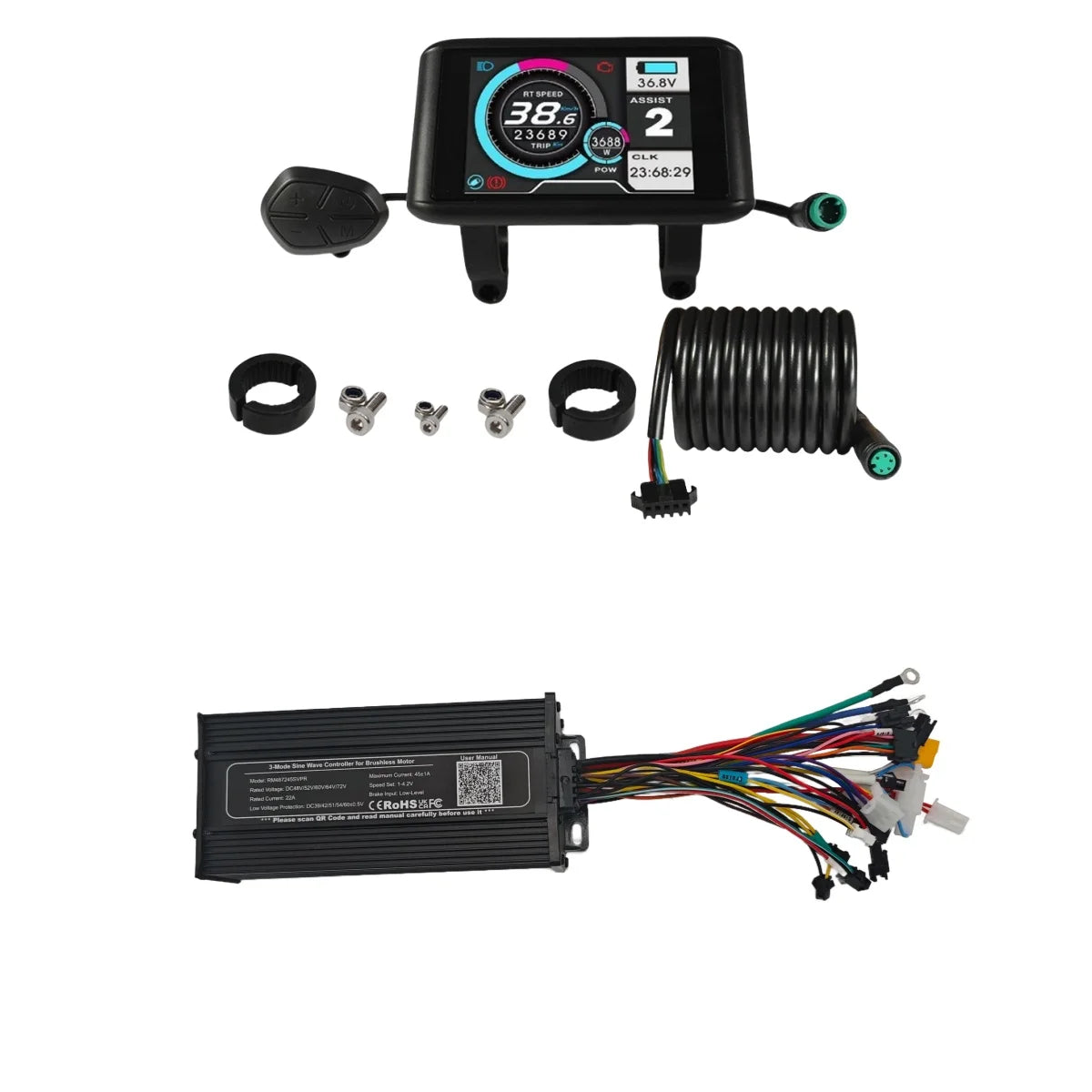

Parts Including:

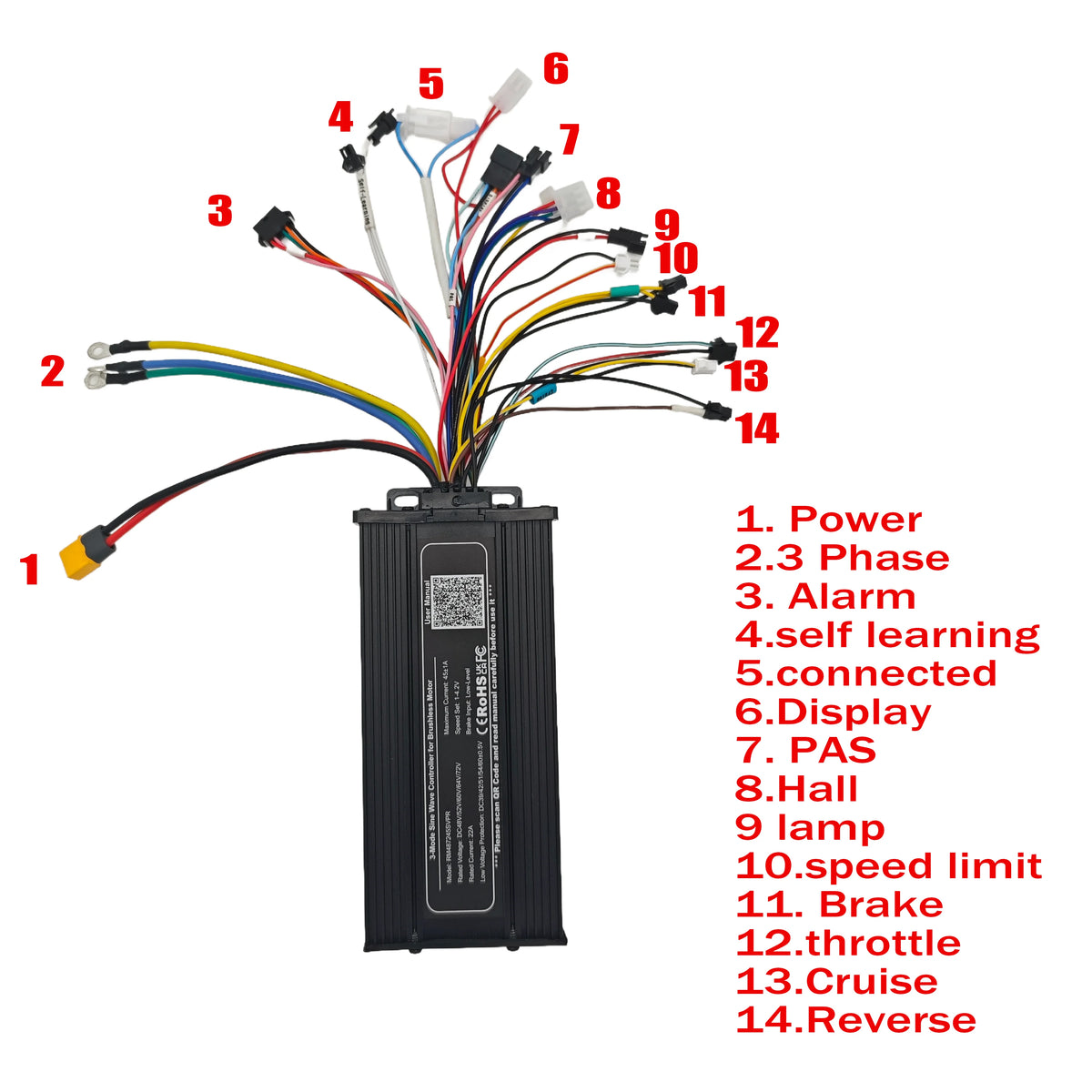

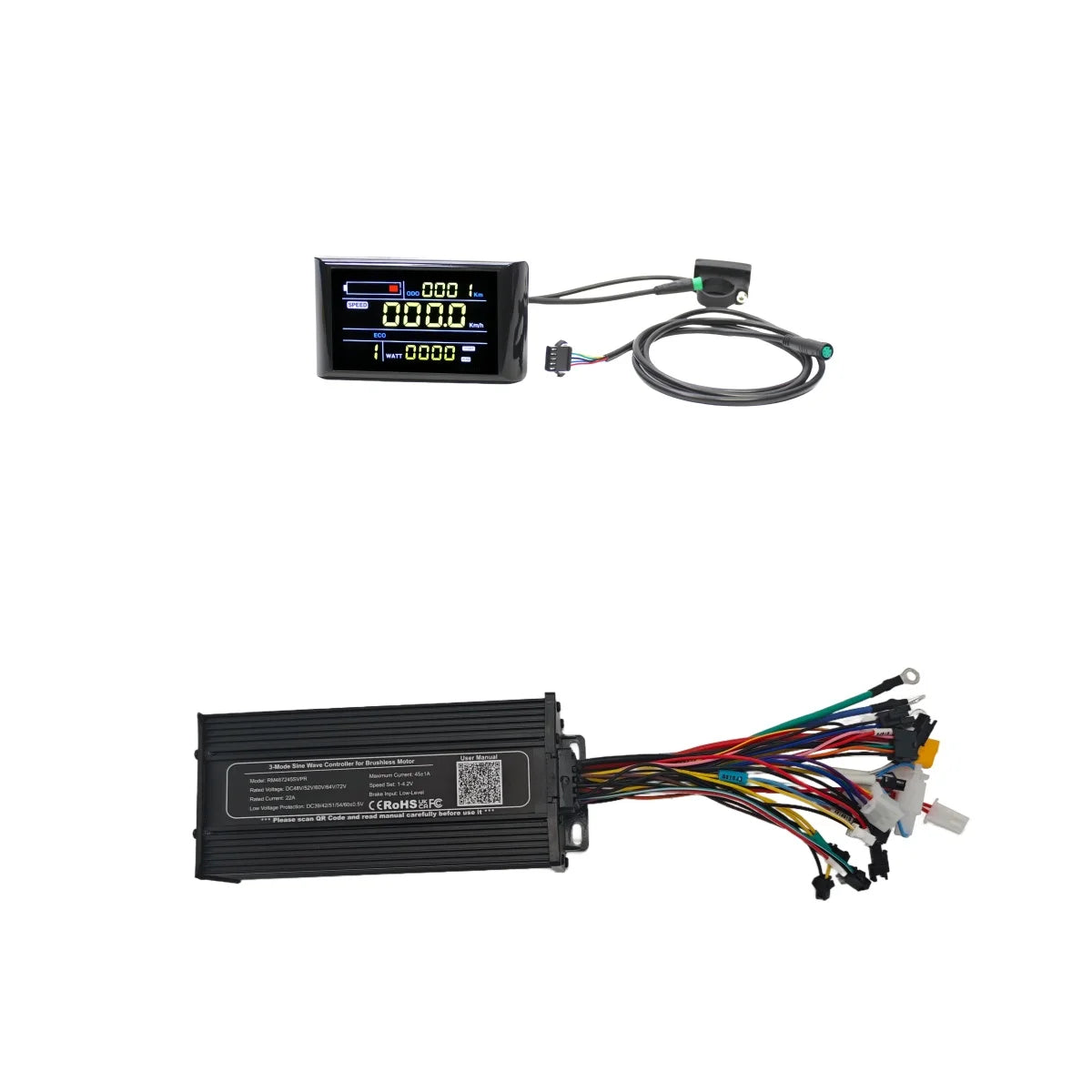

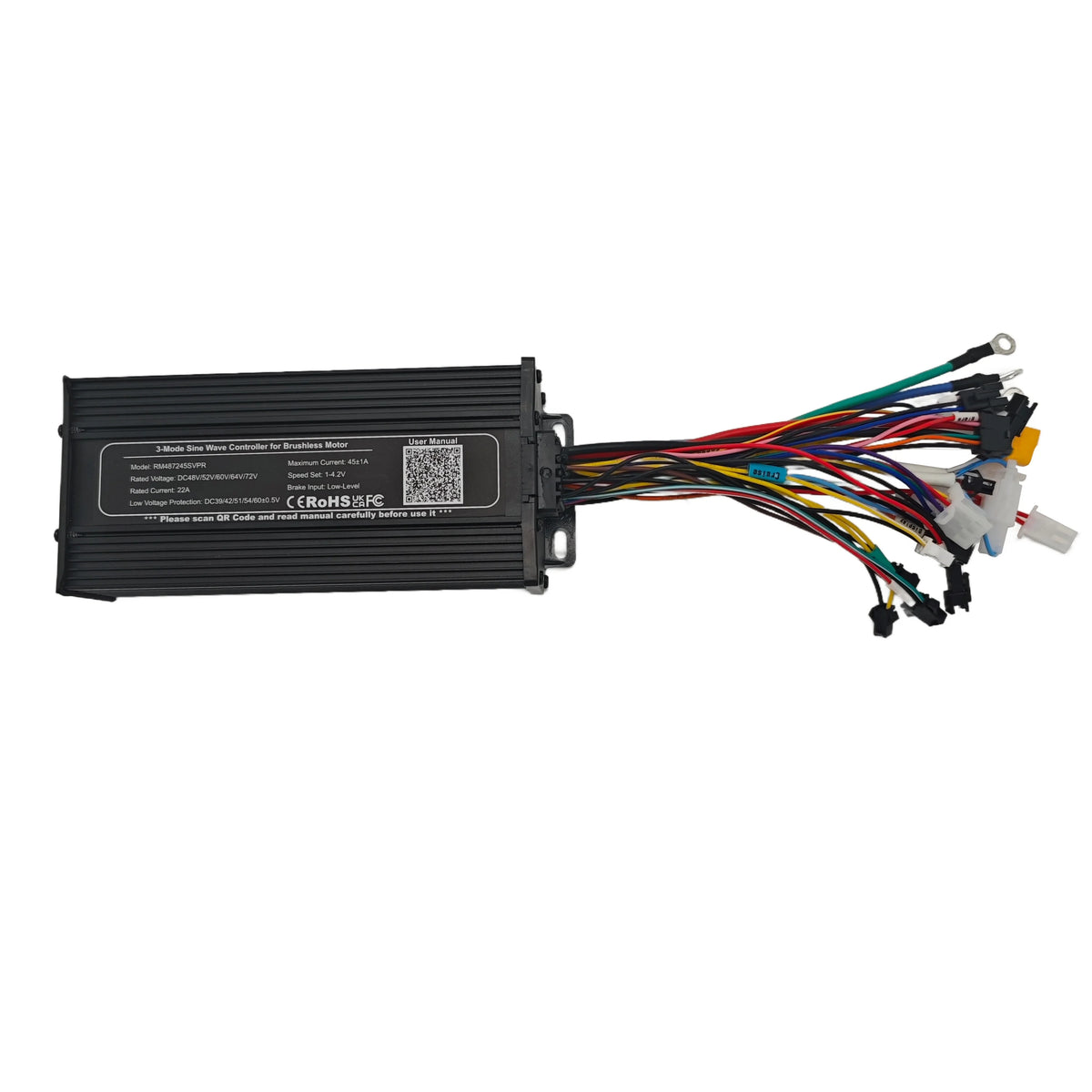

1. 15 MOSFET 45A 48V 52V 60V 72V Universal Voltage 1500W-2880W Intelligent 3-mode Sine Wave Controller

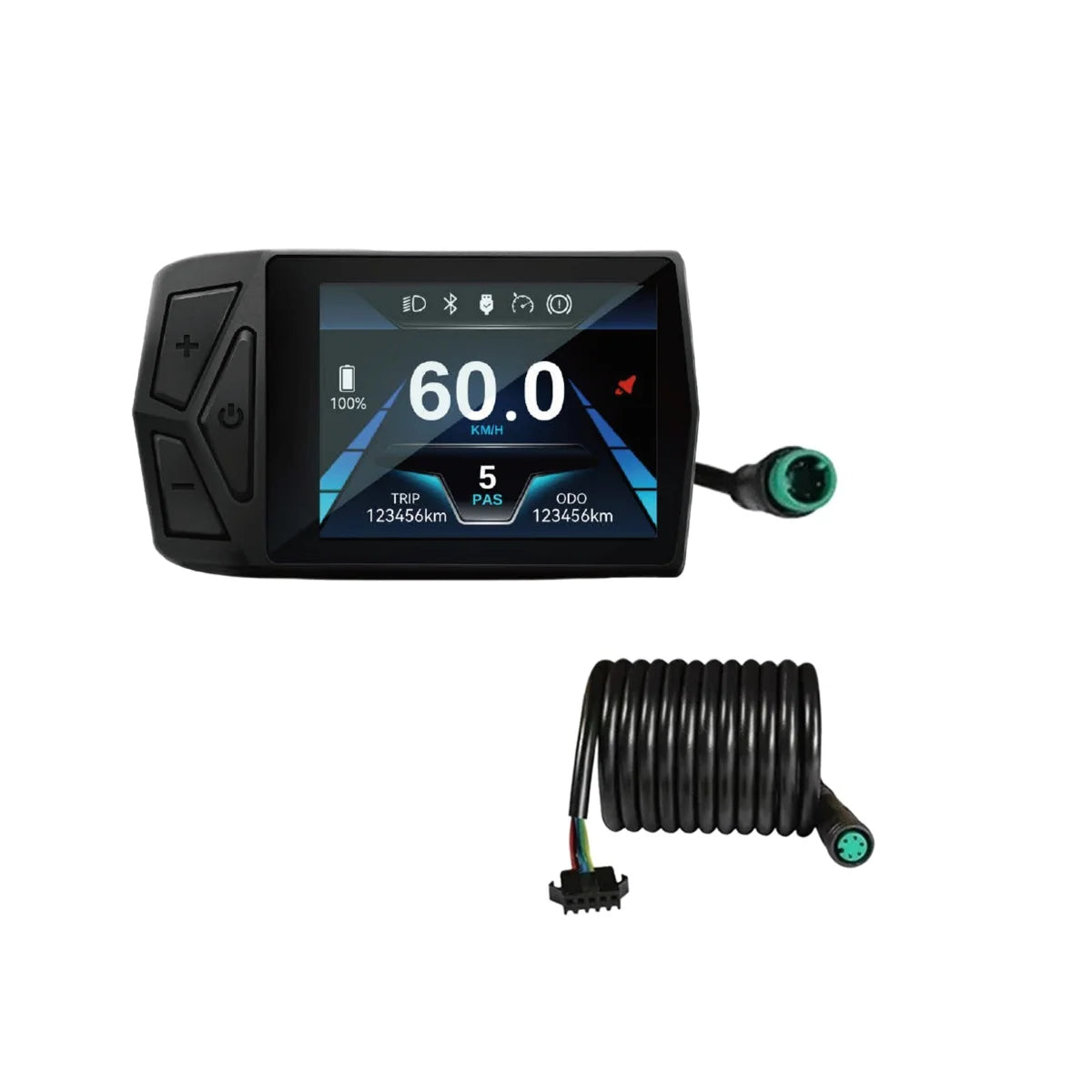

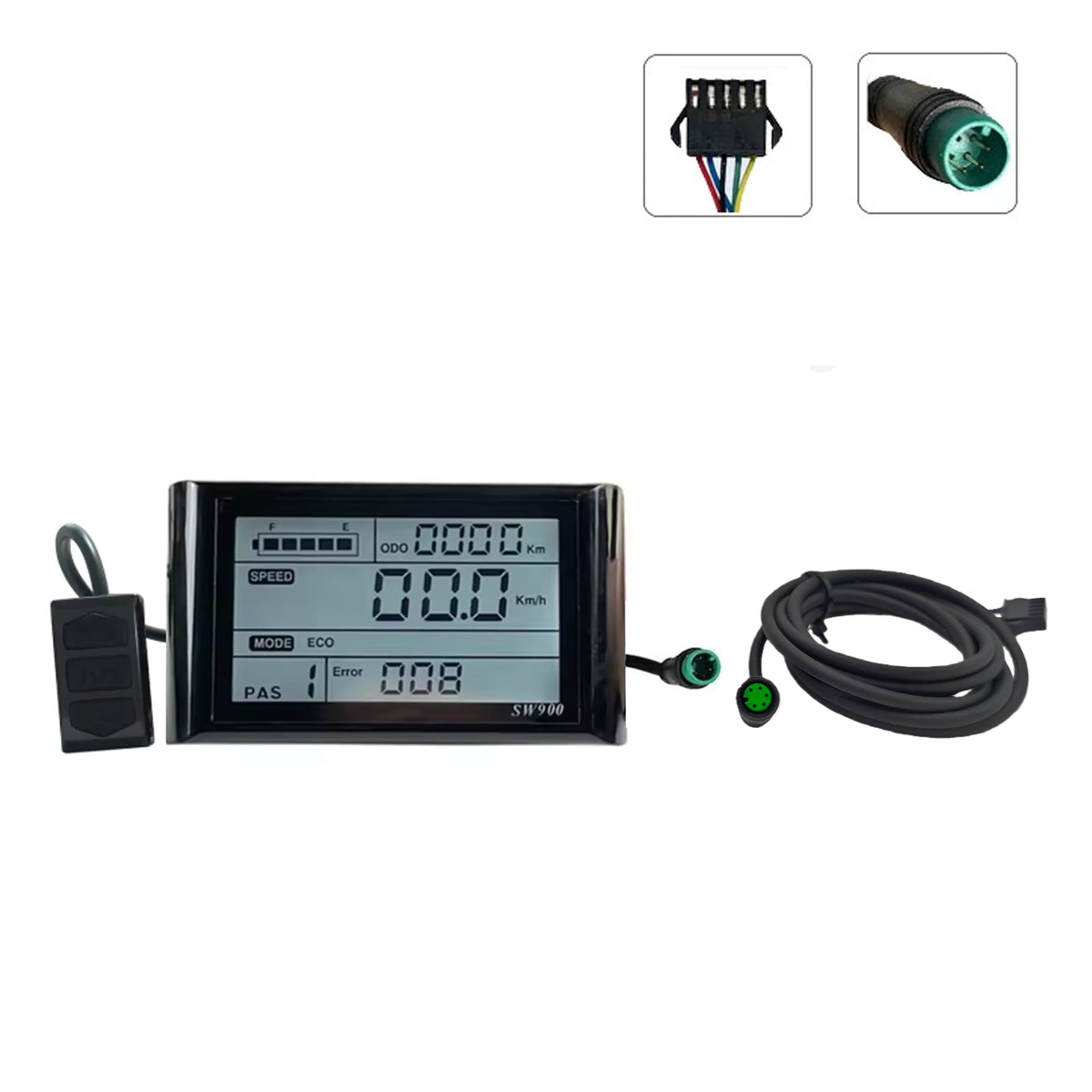

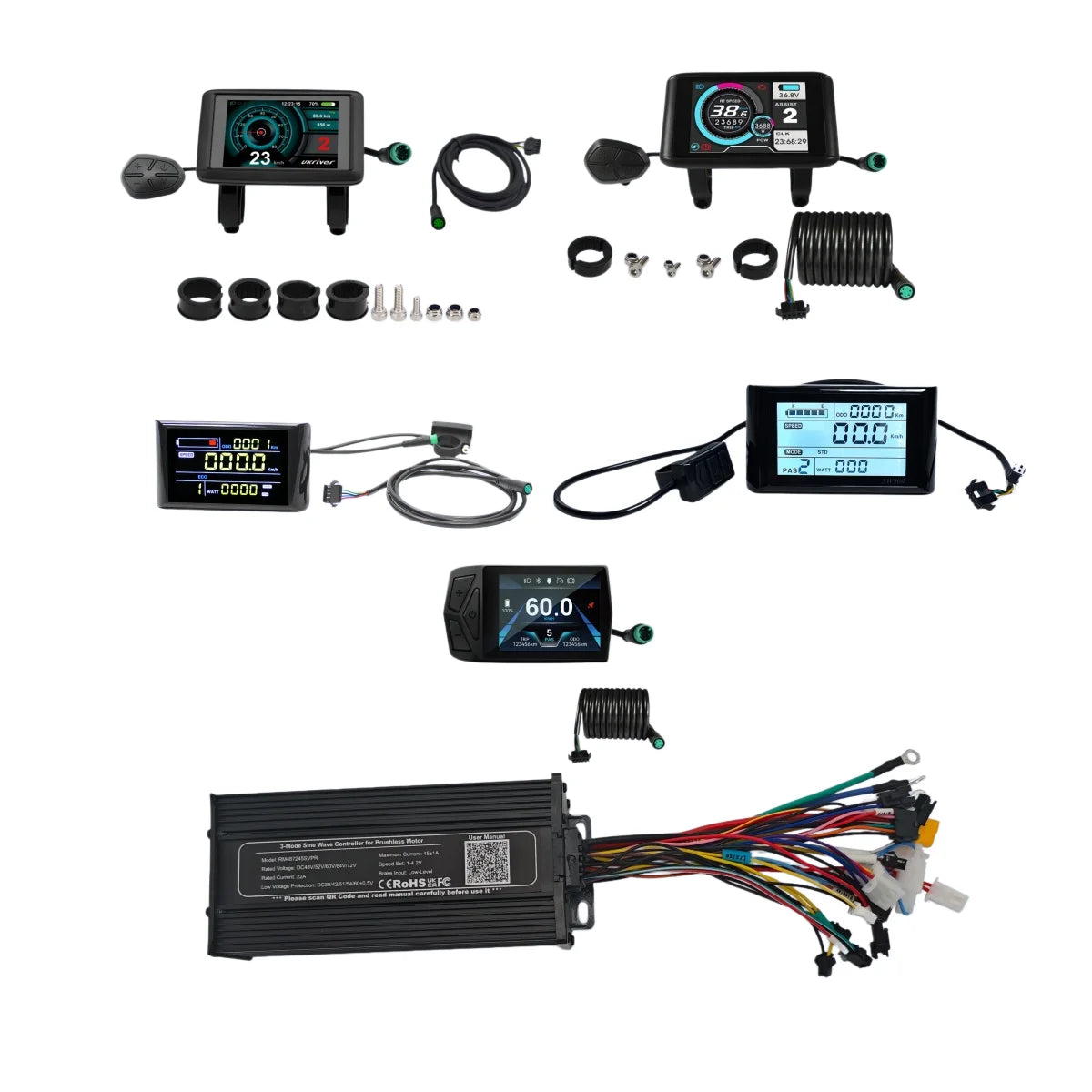

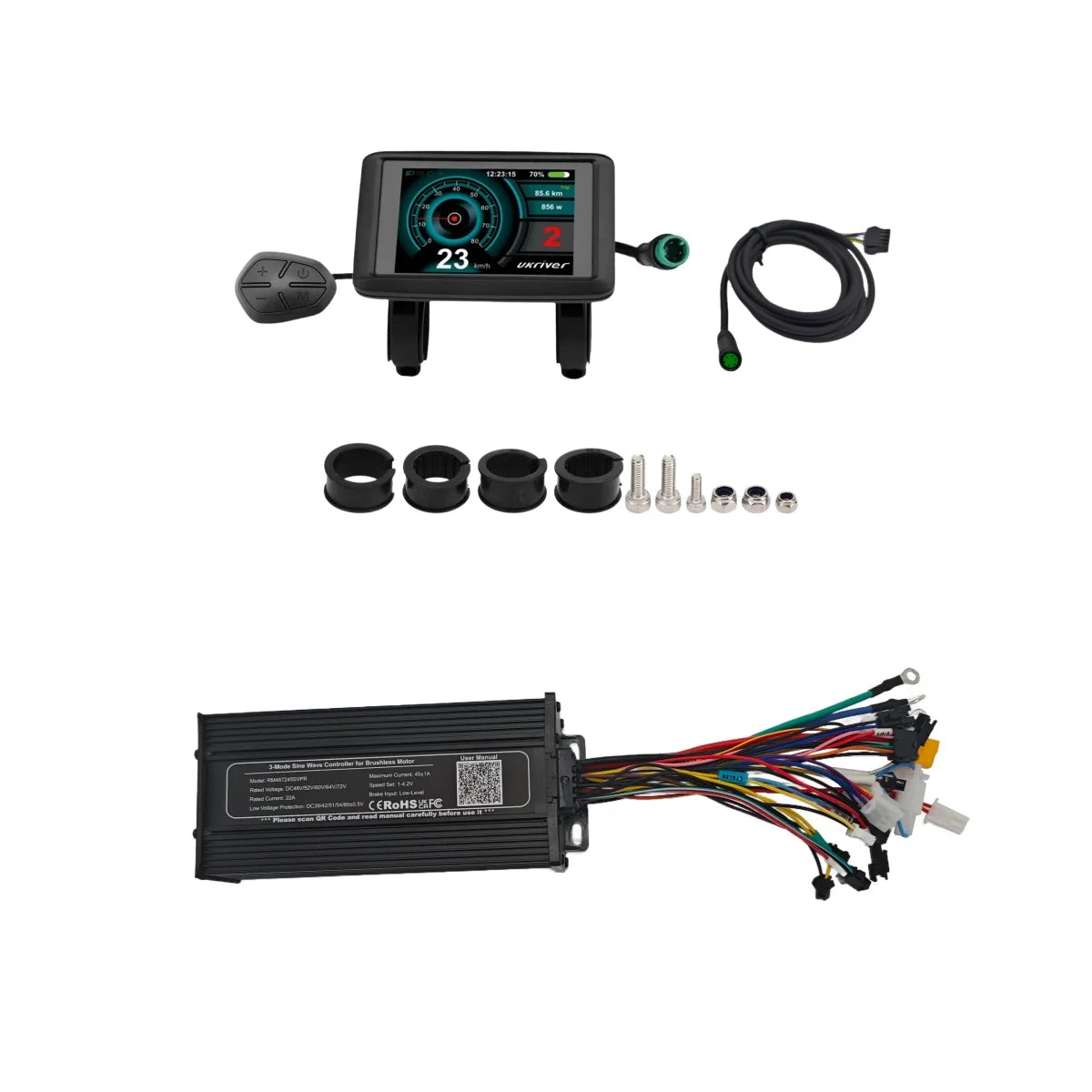

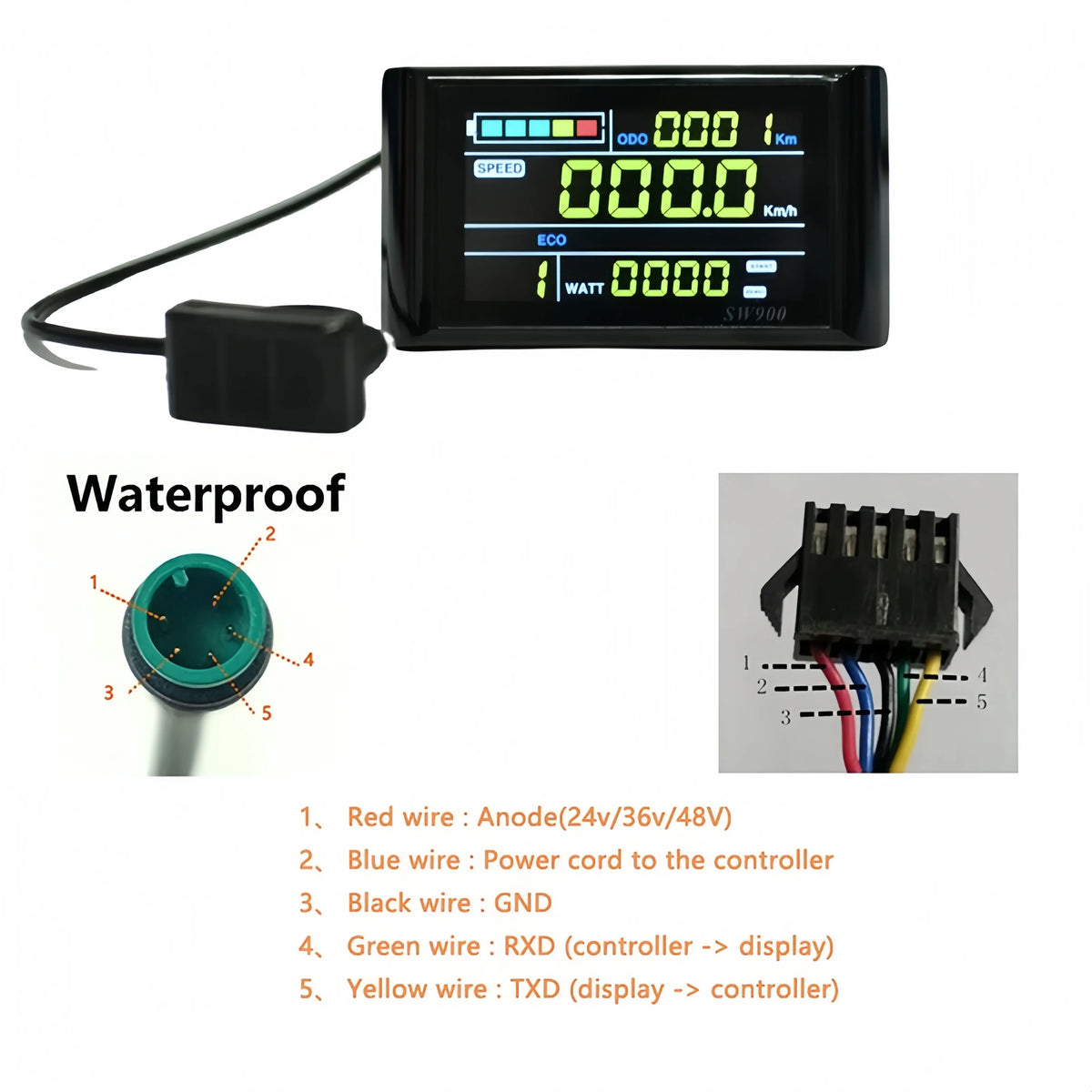

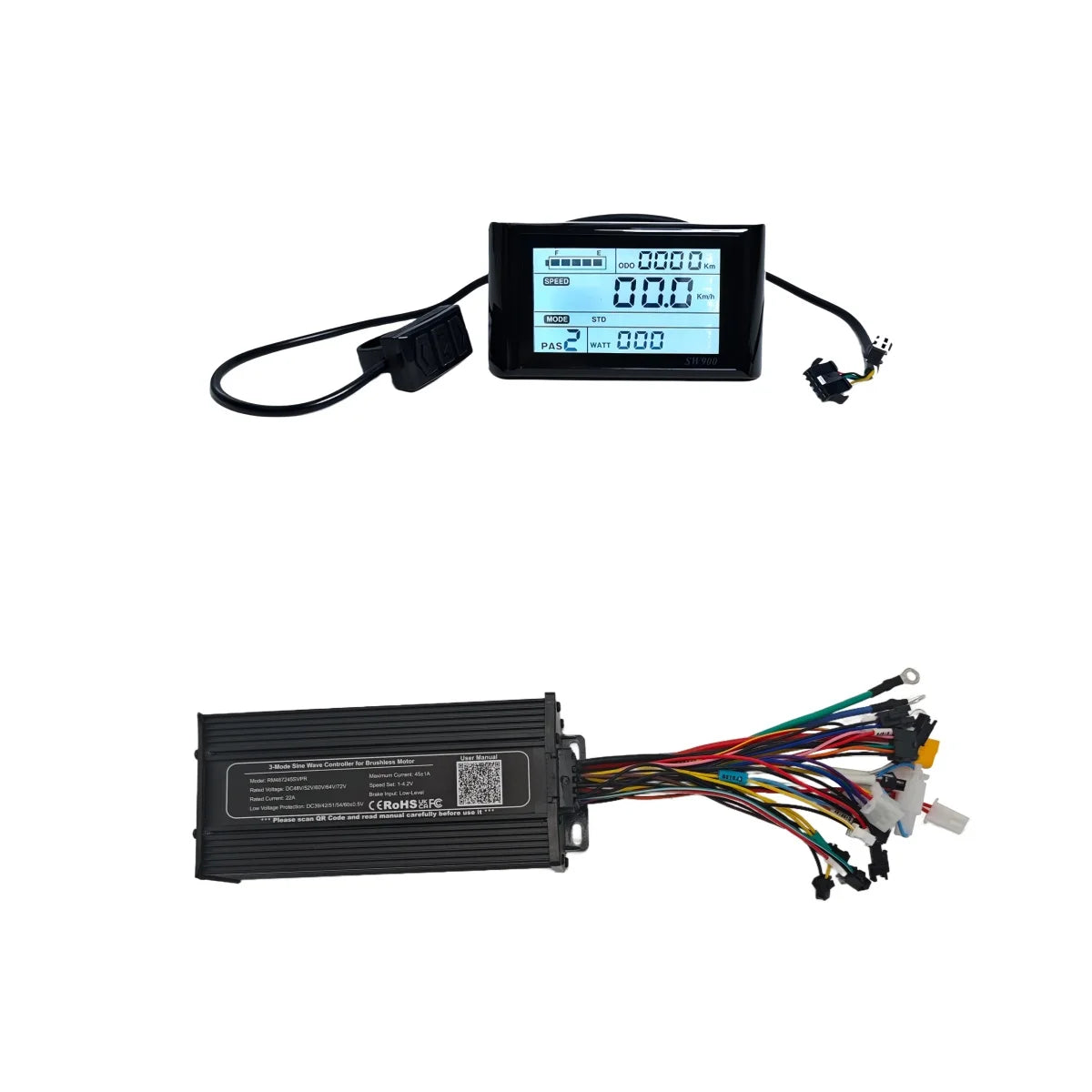

2. 36V, 48V, 52V, 60V, 72V UKC1 Colorful Display or SW 900 Display/ SW 900 color Display or T24 Color Display (Optional)

Advantage:
1. Sine Wave Controller which support 3-mode (hall sensor mode, non-hall
mode, self-learning) and smart match with each motor through
self-learning, works with high efficiency, less noise, and lower energy
consumption, which makes your electric vehicles or electric motorcycles
more comfortable and easier to control, give you best pedal experience
2. Universal Input Voltage Range: 48V/52V/60V/72V
3. Work with or without display
4. Parameter setting via display
5. All protection make it long life and safe: over/under voltage, over
current, over load, over heating, anti-runaway, locked-motor protection
6. Multi functions: Work with hall sensor mode or non-hall mode, smart
match with different motor, 5-speed level for throttle and PAS, Speed
limit, Reverse, Cruise, Push Assistant, Anti-thief, Regenerative
Braking, Electric Braking and etc.
7. Best heat sinking with Aluminium Case
8. Black anodized Aluminium Controller Case against scratch

Technical Data of the Controller:

1. Rated Power: 48V 1056W/ 52V 1144W/ 60V 1320W/ 72V 1584W
2. Peak Power: 48V 2160W/ 52V 2340W/ 60V 2700W/ 72V 3240W
3. Brake: Low Voltage Brake
4. Alarm: Low Voltage Alarm
5. Rotor Position Detecting Method: Hall sensor

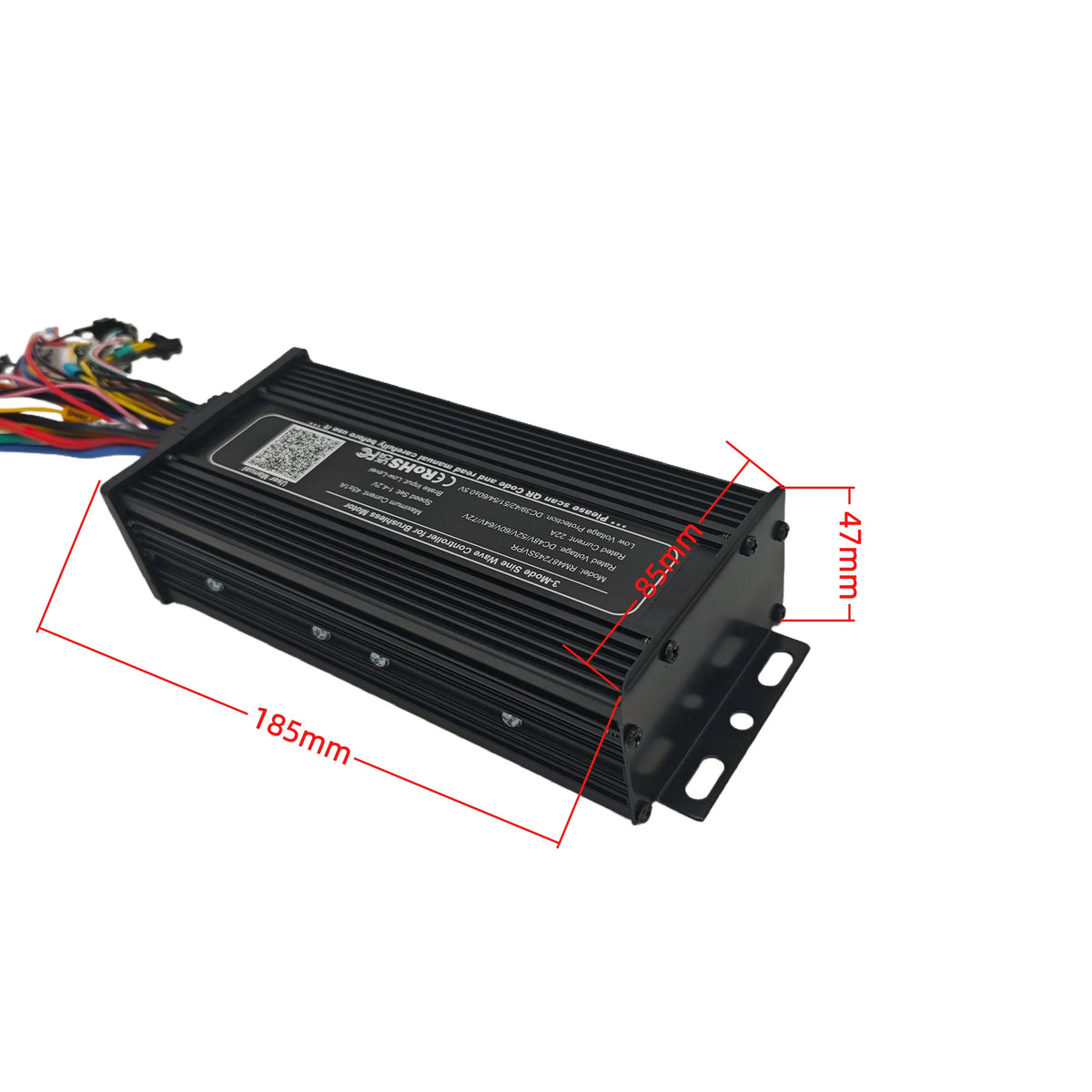

6. Size: 185x85x47mm
7. Net Weight: 700g
8. Waterproof Grade: IP65

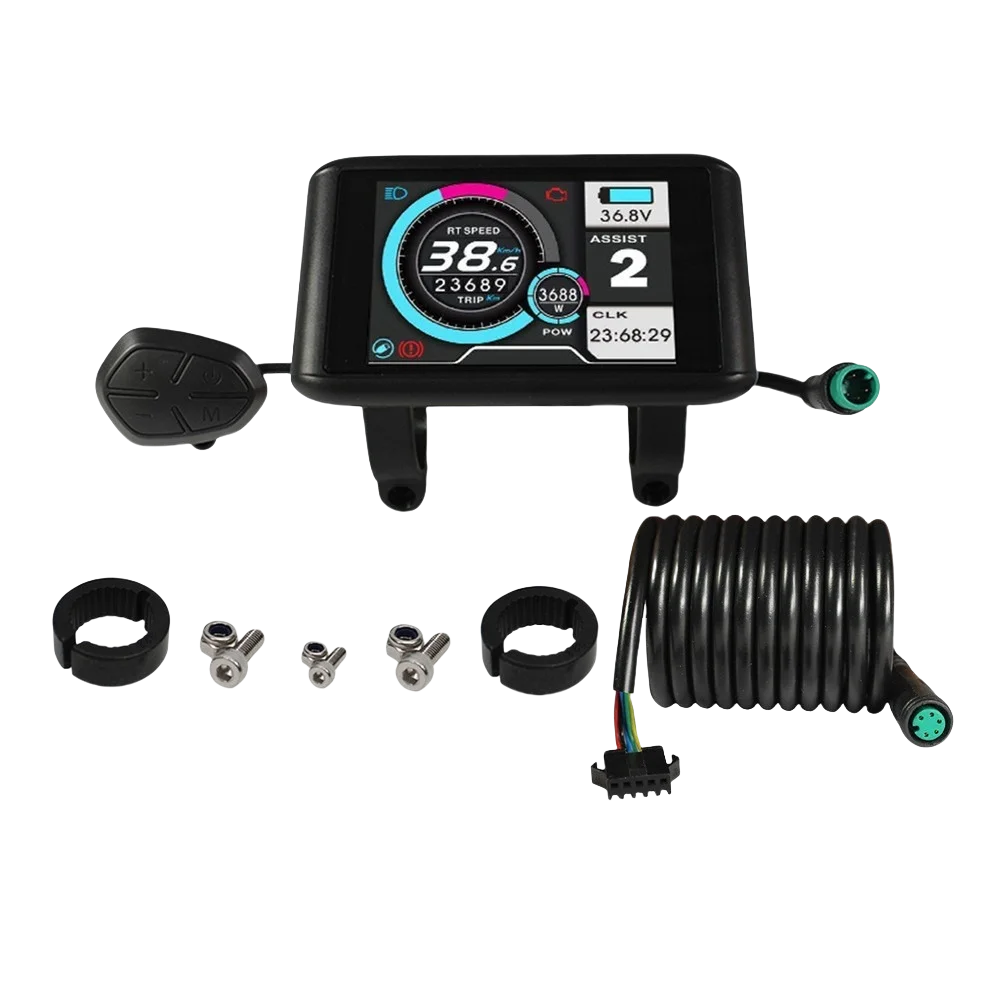

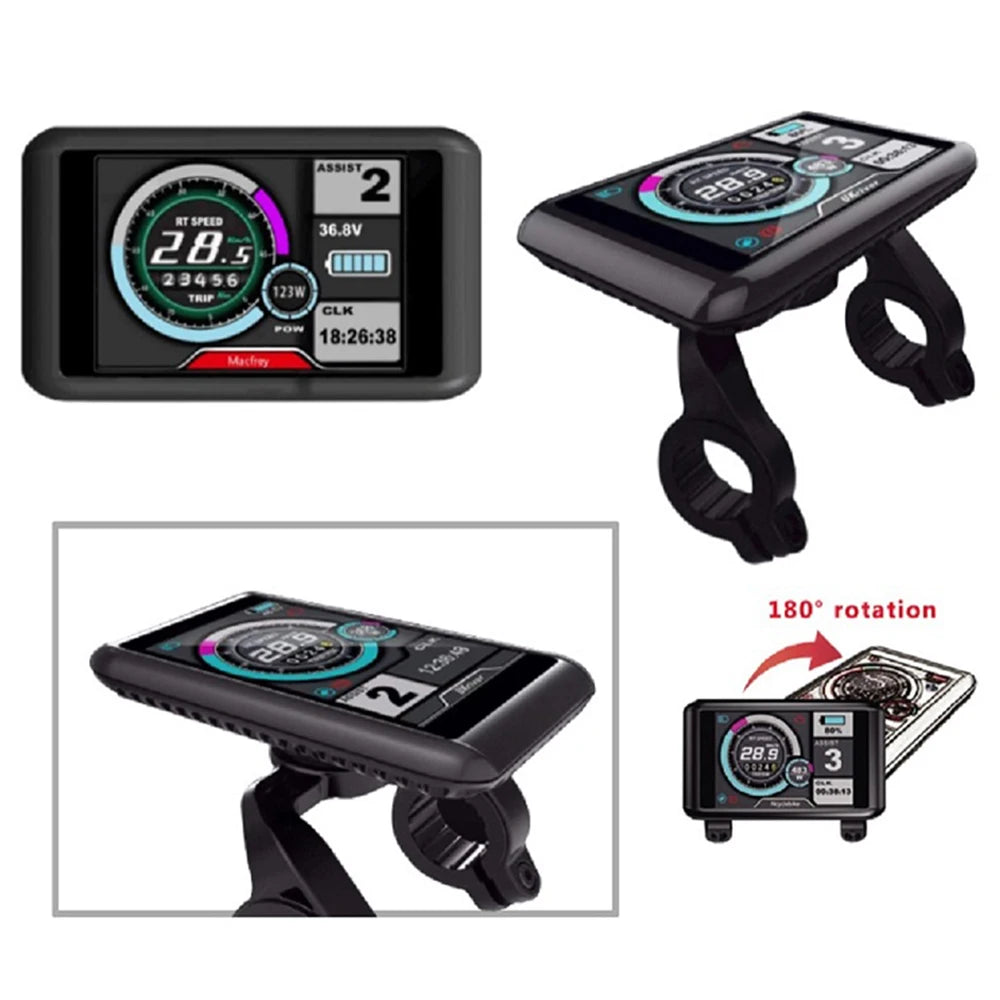

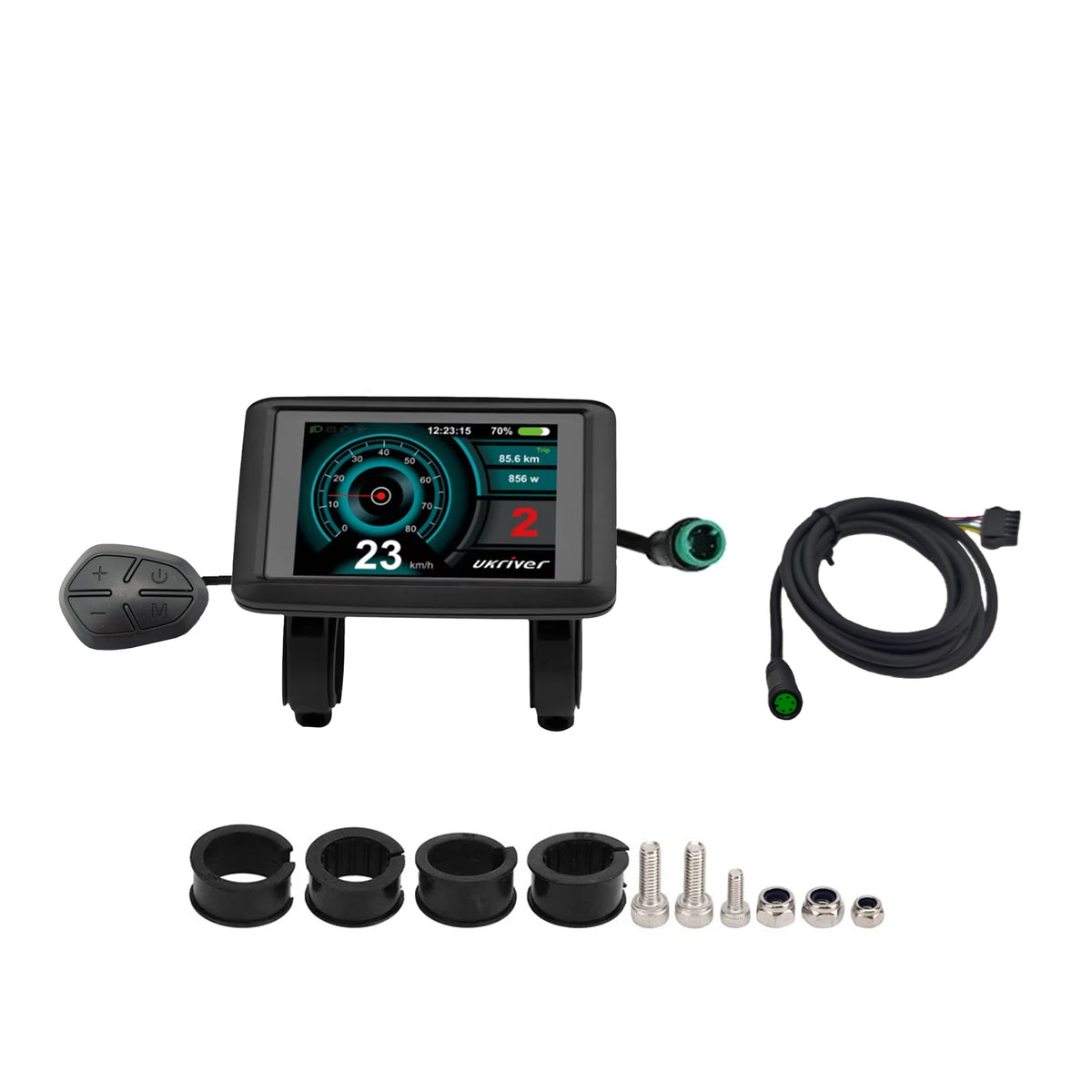

UKC1 LCD Color Display Specification: 3.5 inch IPS screen
1) 24V/36V/48V/52V/60V/72V input
2) Rated operating power : 1W
3) Max operating power : 5W
4) USB charging port : 5V 500mA
5) Off leakage current < 1uA
6) Support current to controller : 100mA
7) Size:111.1*66.8*82.8mm
8) Waterproof grade:IP65
9) Operating temperature : -20~70℃,
10) Storage temperature : -30~80℃

FAQ:
1.  How shall I match my motor for first time use? (Very Important)

(Please checkController Connection Diagram and Manual, Page 1)
1). Lift your motor wheel off ground (very important)
2). If you connect with display, please make sure PAS/Throttle Speed Level is at any level more than 0 level
3). Connect Self-learning plug 6-8 seconds
4). You will see motor wheel rotate slowly
5). Please check whether rotation direction is correct
(a). If correct direction, then keep 6-8 seconds, then disconnect
(b). If reverse direction, then disconnect and plug again till get
correct rotation direction, then keep 6-8 seconds, then disconnect
6). Motor and Controller Pairing finished!

2. Can I use this controller without display?

Yes, you can use this controller without display, just need to connect jumper connector (Please check Controller Connection Diagram and Manual, Page 4, point No.3)

3. How can I limit speed?

In some countries, below 25km/h speed is required on road, you can
switch on/off speed limit function by connecting a simple switch to
controller speed limit plug, or you can even connect jumper connector to
always limit speed (Please check Controller Connection Diagram and Manual, Page 6-7, point No.8)
