Adjust Speed Controller Module Micro Step Stepper Motor Drive Board Switch 2-phase 4-wire 4-phase 5-wire Stepping Motor 5V-12V

Name: Adjust Speed Controller Module Micro Step Stepper Motor Drive Board Switch 2-phase 4-wire 4-phase 5-wire Stepping Motor 5V-12V
Brand: Pin & Tumbler
SKU: ALI-1005004471898440-12000029283631714
Price: 14.95 USD
Availability: InStock

$14.95

Qty Available: 4 Ships from our US warehouse.

Shipping, returns, and payments

Shipping:

Free Standard Shipping.

Located in: United States

Delivery:

Estimated between Sat, Oct 10 and Tue, Oct 13

Returns:

14 days returns.

Shop with confidence

Money Back Guarantee

Get the item you ordered or your money back.

Shipping and applicable taxes calculated at checkout. Shipping details · Return conditions · Ask a question

Description

Basic parameters:

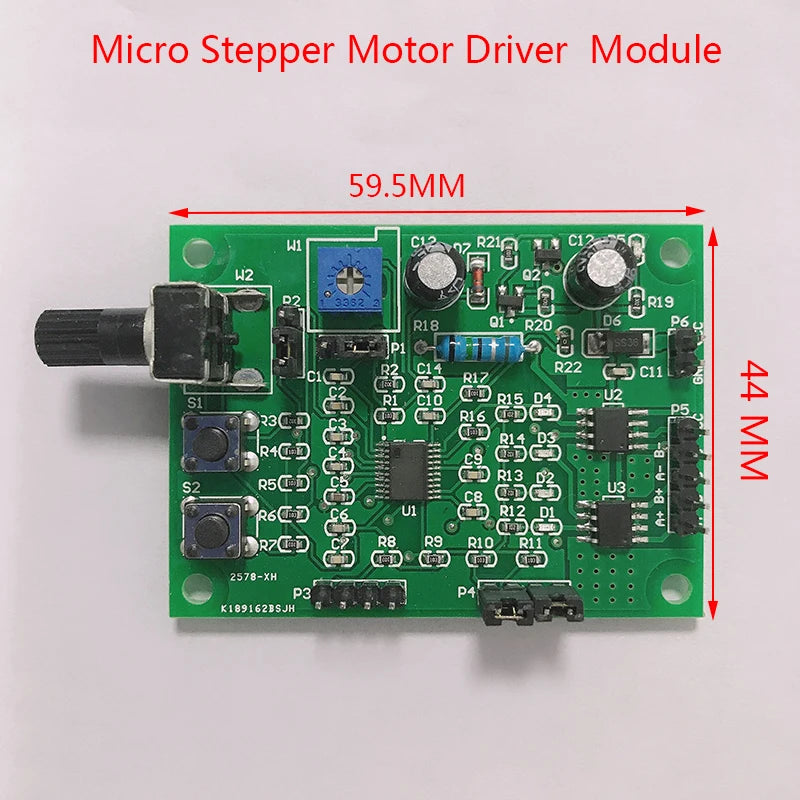

[Size] :59.5mm*44mm

[Voltage range] DC5V-12V

[rated current] ≤ 800mA

[Power reverse connection protection] yes

[Overcurrent protection] yes

[overheat protection] yes

Working mode:

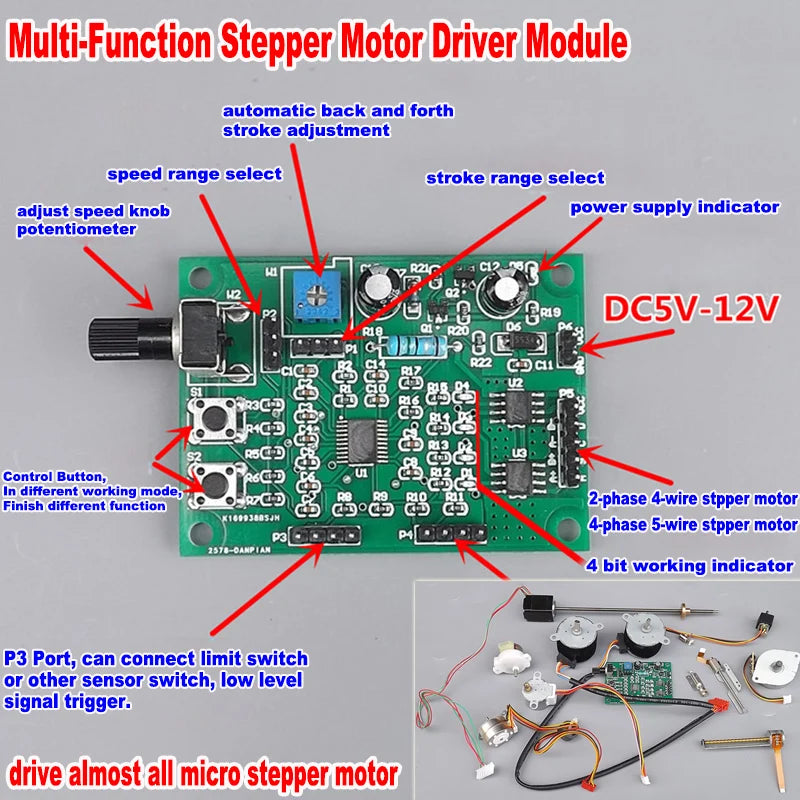

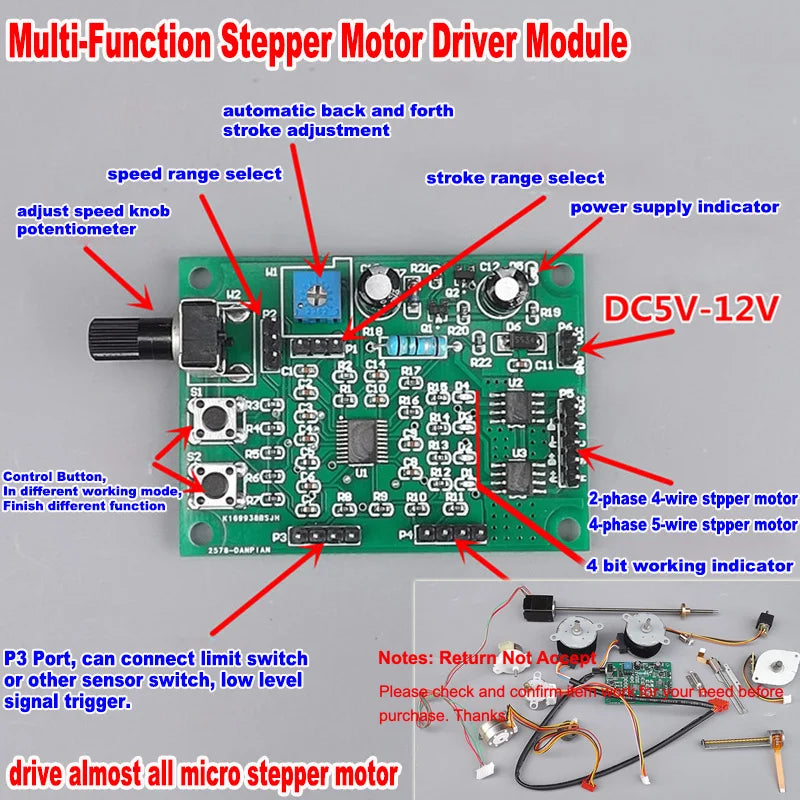

[1] Normal mode 1: S1 start/stop button, S2 forward/backward button, W2 potentiometer speed control. If limit reversal is required, two limit switches can be connected to the P3 pin, and the motor motion shaft is mounted with contacts, so that the motor will reciprocate within the stroke between the two limit switches.

[2] Normal mode 2: Click S1 button to start forwards, S2 backwards, click any button again to stop. W2 potentiometer speed regulation. If the limit stop is required, two limit switches can be connected to the P3 pin, so that the motor will stop moving when it touches the limit switch, and the motor will reverse after the opposite button is clicked.

[3] Jog mode: S1 presses the forward rotation, releases the stop, S2 presses the reverse rotation, releases the stop, and the W2 potentiometer adjusts the speed. If a limit stop is required, the upper limit switch can be connected to P3.

[4] Automatic round-trip mode: S1 starts and stops, S2 is reversed, W2 potentiometer speeds, and W1 potentiometer adjusts the automatic round-trip steps. After starting, the motor automatically runs back and forth within the number of steps adjusted by W1.

Add limited swtich Reference

Package:

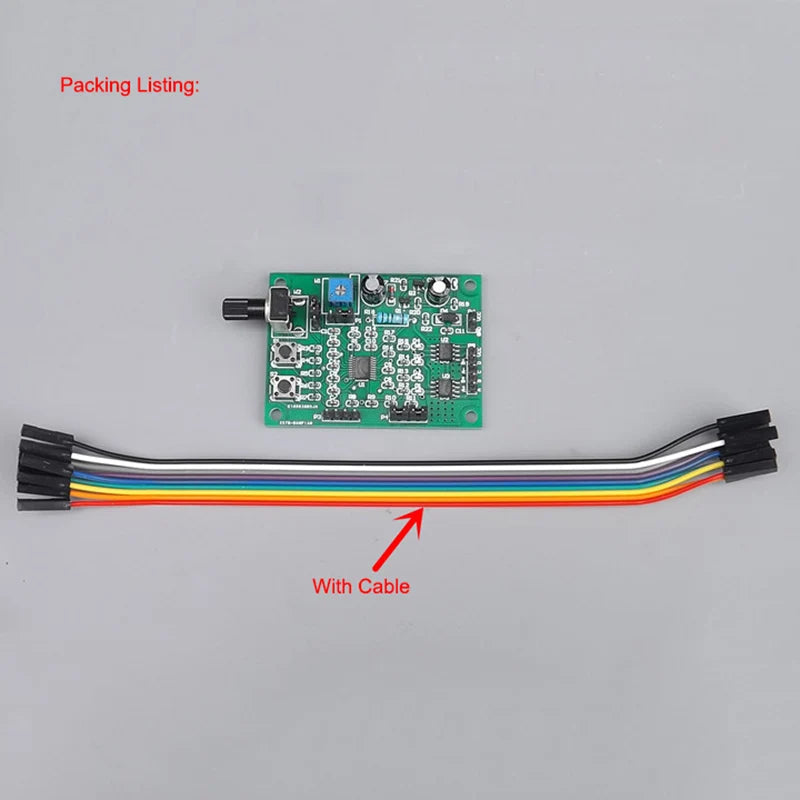

Module x 1
