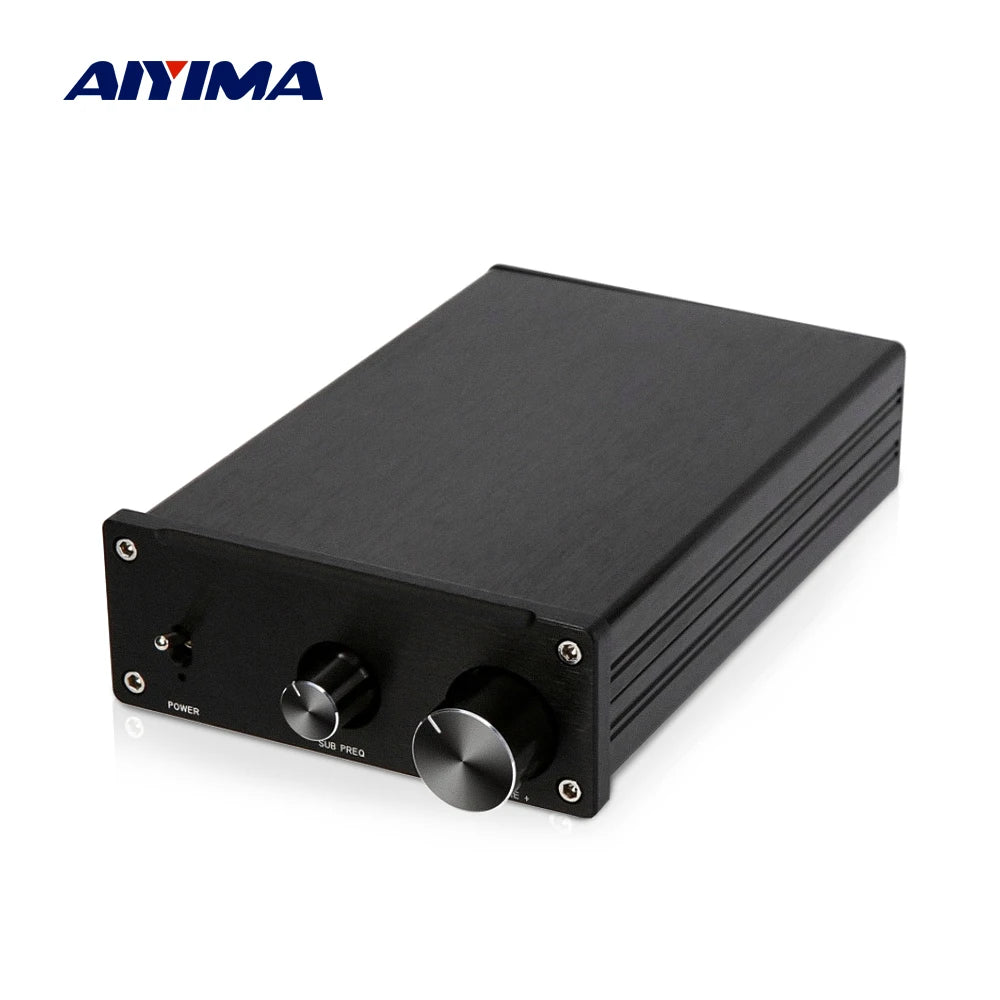

AIYIMA 600W Subwoofer Speaker Power Amplifier TPA3255 Audio Amplifiers Mono Sound Amplificador DIY Home Theater Amp

Name: AIYIMA 600W Subwoofer Speaker Power Amplifier TPA3255 Audio Amplifiers Mono Sound Amplificador DIY Home Theater Amp
Brand: Pin & Tumbler
SKU: ALI-1005002918108075-12000022781726020
Price: 119.36 USD
Availability: InStock

$119.36

Qty Available: 10 Ships from our US warehouse.

Shipping, returns, and payments

Shipping:

Free Standard Shipping.

Located in: United States

Delivery:

Estimated between Sun, Oct 11 and Wed, Oct 14

Returns:

14 days returns.

Shop with confidence

Money Back Guarantee

Get the item you ordered or your money back.

Shipping and applicable taxes calculated at checkout. Shipping details · Return conditions · Ask a question

Description

600W TPA3255 subwoofer Amplifier

Feature:

1. TPA3255D2 is a high-performance class D power amplifier, it has class D efficiency and can bring real high-end sound quality. The device features advanced integrated feedback design and proprietary high-speed gate driver error correction function (PurePath™ Ultra HD). This technology allows the device to maintain ultra-low distortion throughout the audio frequency band while exhibiting perfect sound quality.

2. All parts and components are original authentic, unpretentious and pure in quality; the use of high-quality original parts not only guarantees safety and quality, but also has a long service life, but more importantly, it is a strong guarantee that the actual performance can reach the design goals.

3. Use original TPA3255D2

4. The main filter electrolytic capacitor adopts imported famous brand capacity 1000UF/50V*4 to ensure strong and continuous power support.

5. High-precision chip resistors are selected for the resistors to ensure a good signal-to-noise ratio of the whole machine.

6. Use special inductance for audio to ensure the sound is clear and powerful.

7. The PCB adopts 1.6mm thick double-sided board, 2.0 oz copper thickness, and the whole process of spraying tin to ensure good passing performance of large and small currents. First-class PCB quality.

Basic performance parameters:

Product name: TPA3255 subwoofer amplifier

Power amplifier chip: TPA3255

Power output: 600W

Channel: Mono

Power supply voltage: DC24V-48V, above 7.5A(without supply power)

Load: 4-8 Ohm

Subwoofer frequency adjustment: 20HZ-150HZ

Size: 153*104*40mm (excluding knob and output terminal)

Note:

1. The audio input is an analog full-frequency signal, and a pure bass signal cannot be connected.

2. The 3.5MM interface and the Lotus input can only choose one, and they cannot be input at the same time.
