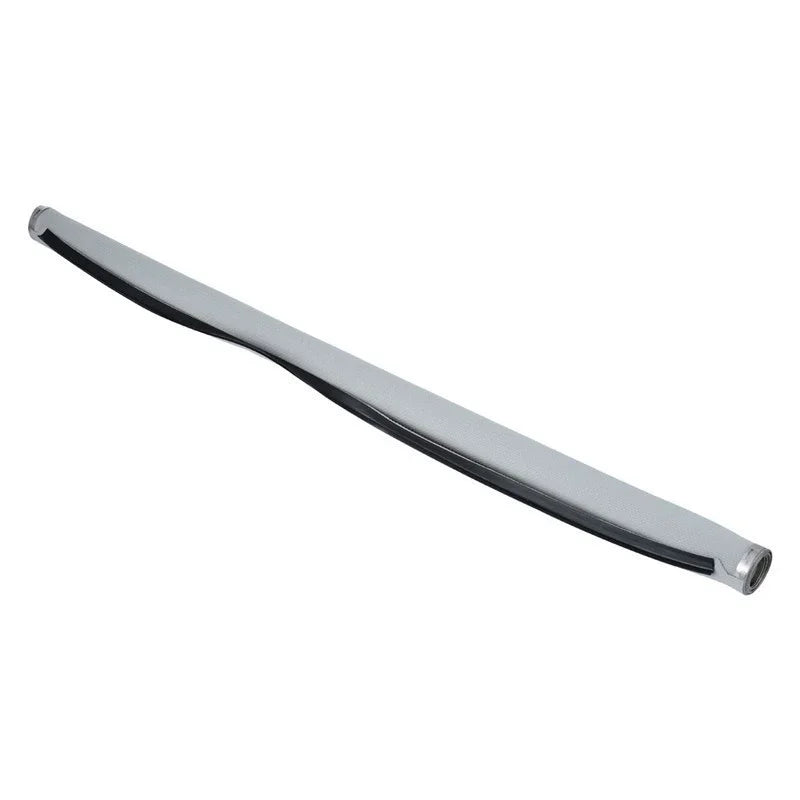

Car Sunroof Shutter for Audi Q5, VW Golf, Tiguan, Passat Variant, Sharan, Santana, 4Motion, Skoda Yeti Superb 1K9877307 A, B, C

Description

Description

Car Sunroof Sunshade Curtain for Audi Q5 VW Sharan Tiguan Golf Passat Variant Santana 4Motion Skoda Yeti Superb 1K9877307B

Applicable models

For Audi Q5 2009-2017

For VW Golf 2007-2014

For VW Jetta 2008-2009

For VW Tiguan 2008-2017

For VW Passat 2011-2015

For VW Variant 2011-2015

For VW Sharan 2011-2017

For VW Santana 2011-2015

For VW 4Motion 2011-2017

For Skoda Yeti 2010-2018

For Skoda Superb 2008-2015

For Seat Leon 2013-2016

For Seat Alhambra 2011-2019

Descriptions:

100% brand new and high quality

Sunroof sunshade clip clip curtain slide block for V-W Sharan New style Tiguan Audi Q5

This Car Window Curtain is made of high quality cloth, heat insulation and sunshade, it can effectively keep car interior temperature. Moreover, it can protect your privacy inside the vehicle. With it's skillfully manufacture and beautiful design, enhance the unique style for your car, elegant and fashionable. Easy to install and convenient to use.Perfectly replaces your old broken one

Material: Cloth+metal

Color: Grey skylight curtains

OE: 1K9877307A , 5ND877307

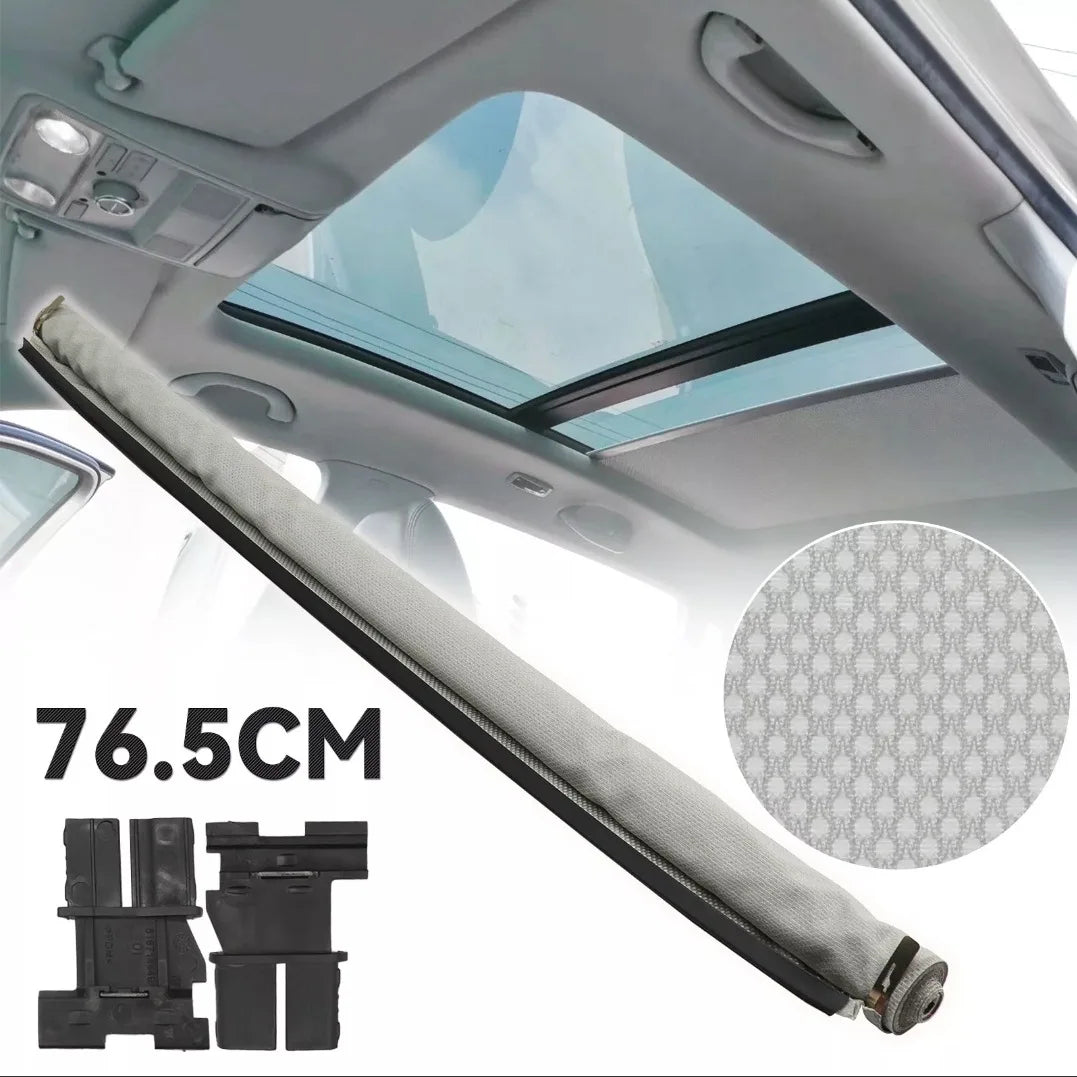

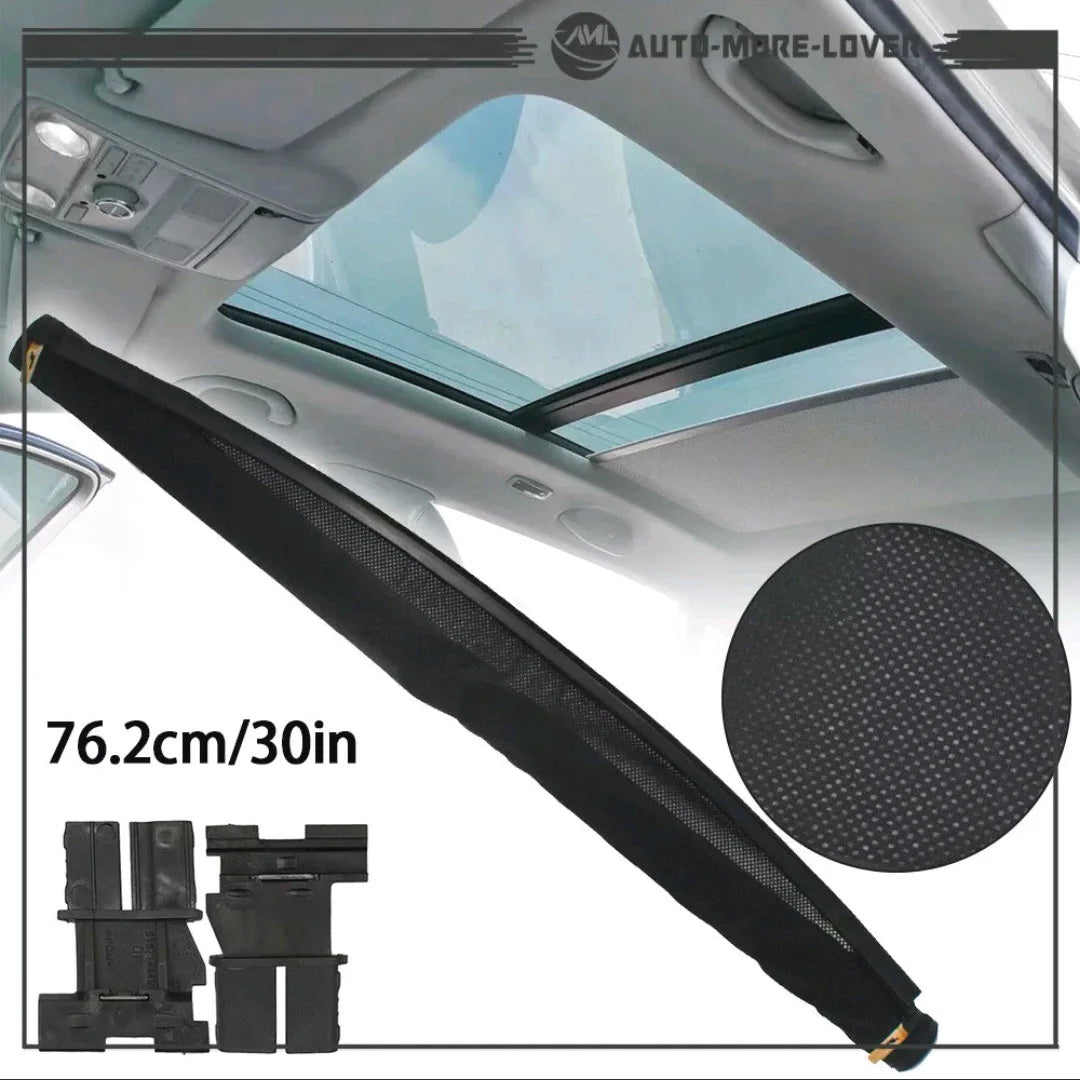

Length (After Rolled Up): 76cm / 29.92in

Package Weight: Approx. 210g / 7.4oz

Note:

Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

If you are a wholesale customer, please contact with me, I can give you a better price.

Installation Steps:

Note：it is not necessary to remove the sunroof frame completely to install the sunroof shutter.

1: Jack up the front glass of the sunroof instead of opening it. There are two screws on the left And right sides between the front and rear glass.

2: Remove the interior ceiling. There are two screws on left and right sides of rear glass. (Figure 1) in the sealing strip, you can see it by breaking it slightly. Remove the rear glass andRemove the two fixing screws on the back.

3: Pull the left and right coil springs of the damaged sunshade back evenly to the back with the naked blue button(Figure 2).

4: Remove the roller shutter, replace it with a new one, with two clips ( Note: the two small Metals inside are removed to fasten the coil spring), and insert the coil spring into the track (Figure 3).

5: Align the buckle with the metal buckle and the blue track buckle, and connect it into the roller shutter(Figure 4).

6: Lock the roller shutter, close the roller shutter to the front, and lock the two screws in the roof sealing strip.

7: Install the glass, the interior, connect everything. Press to reset the sunroof and roller shutter.

Package Included:

1 * Curtain Cloth

2 * Curtain Clips

（no stick in the middle）
