Description

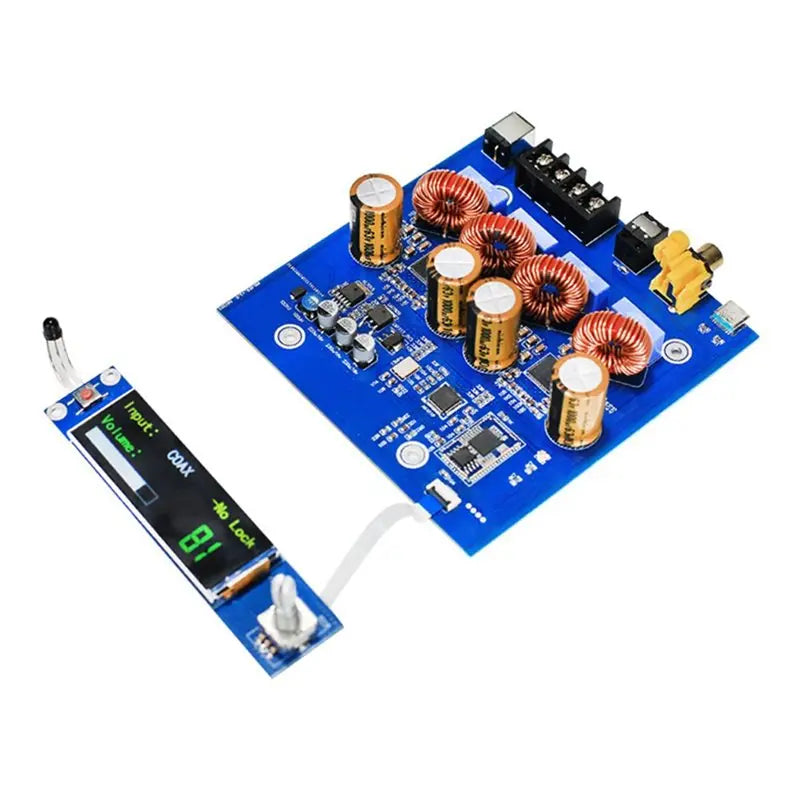

Classic Style A816 Dual-Core ACM8816 High-Power Gan Digital Bluetooth 5.4 Amplifier Board Remote Control Decoding Amplifier

The ACM8816 is an I2S input chip, resulting in an extremely high signal-to-noise ratio. It supports optical, coaxial, USB, and Bluetooth inputs, offering a full range of functions. It features a display screen and remote control functionality for ease of use.
The filter capacitors are audiophile-grade capacitors, and the Bluetooth module is a QCC3084, supporting LDAC lossless transmission, ensuring superior sound quality compared to wired transmission.
Using the QCC3084 Bluetooth 5.4 high-performance chip, it supports lossless high-definition audio transmission, low power consumption, and low latency, easily achieving a high-quality wireless Hi-Fi listening experience.

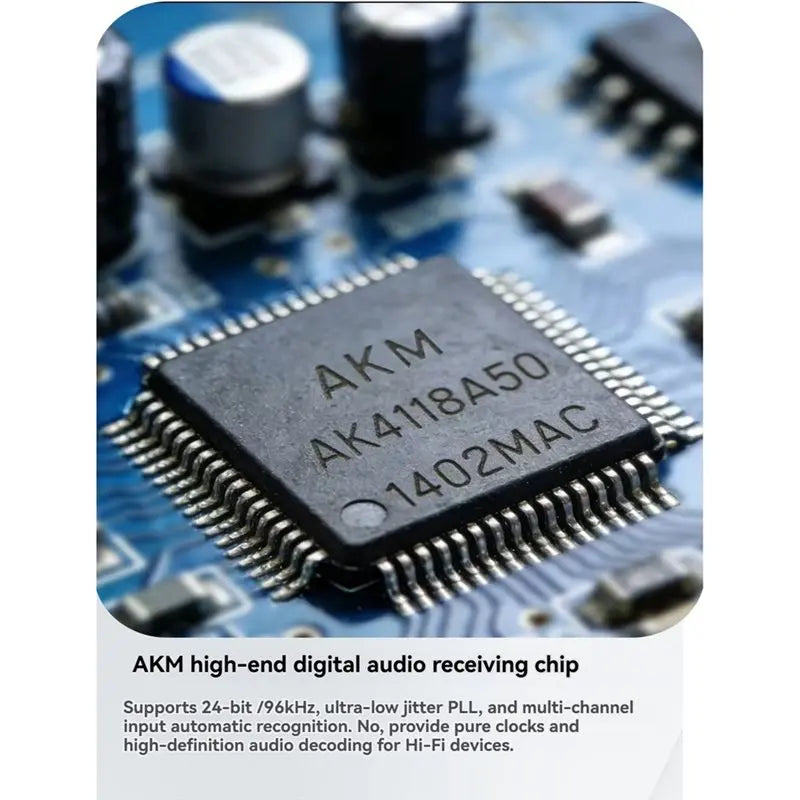

The fiber optic and coaxial receivers use the AK4118 chip, supporting 16-24bit and 44.1-96kHz sampling rates, offering excellent performance. The AKM high-end digital audio receiver chip supports 24bit/96kHz, features ultra-low jitter PLL, automatic multi-input identification, and provides a clean clock and high-definition audio decoding for Hi-Fi devices.
The ACM8816 is a mono amplifier chip. Our amplifier board uses two ACM8816 chips, one per channel, capable of outputting 300 watts * 2/4 ohms. The ACM8816 chip produces a delicate, smooth, warm, and richly detailed sound, without the dry, cold, and harsh quality of ordinary digital amplifiers.

Specifications:
Product Model: ACM8816 2.0 Power Amplifier Board
Input Methods: OPT Optical, COAX Coaxial, Bluetooth BT, USB
Power Amplifier Chip: ACM8816x2
Receiver Chip: AK4118
Bluetooth Version: Bluetooth 5.4
Optical/Coaxial Support: 16-24BIT, 44.1-96KHz
Frequency Response: 20-20KHz@1kHz±0.3dB
Bluetooth Chip: QCC3084
Bluetooth Support: SBC/AAC/APTX/APTX-LL/LDAC 16-24BIT 44.1-96kHz
USB Support: PCM 24BIT 96KHz
Output Power: 300W*2/4Ω
Total Harmonic Distortion: 0.02%
Signal-to-Noise Ratio: 108dB
Power Supply: DC24-48V
Power Socket Specifications: 5.5x2.5
Color: Blue
Material: PCB

Package Contents:
1 * amplifier board

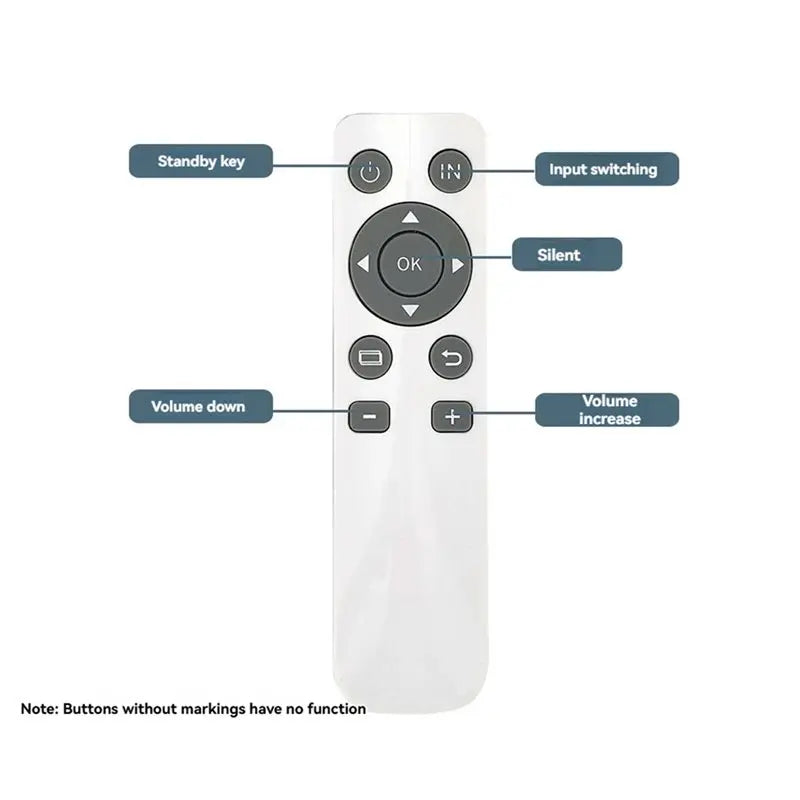

1 * Remote Control

Only the above package content, other products are not included.
