FNIRSI LCR-P1 Transistor Tester Diode Triode Capacimeter Resistance LCR ESR Meter MOSFET NPN PNP SMD Multifunction Tester

$47.85

Choose your option below. Each model or pack is sold separately. Check the selected photo and product details for the contents.

Qty Available: 6 Ships from our US warehouse.

Shipping, returns, and payments

Shipping:

Free Standard Shipping.

Located in: United States

Delivery:

Estimated between Sat, Oct 10 and Tue, Oct 13

Returns:

14 days returns.

Shop with confidence

Money Back Guarantee

Get the item you ordered or your money back.

Shipping and applicable taxes calculated at checkout. Shipping details · Return conditions · Ask a question

Description

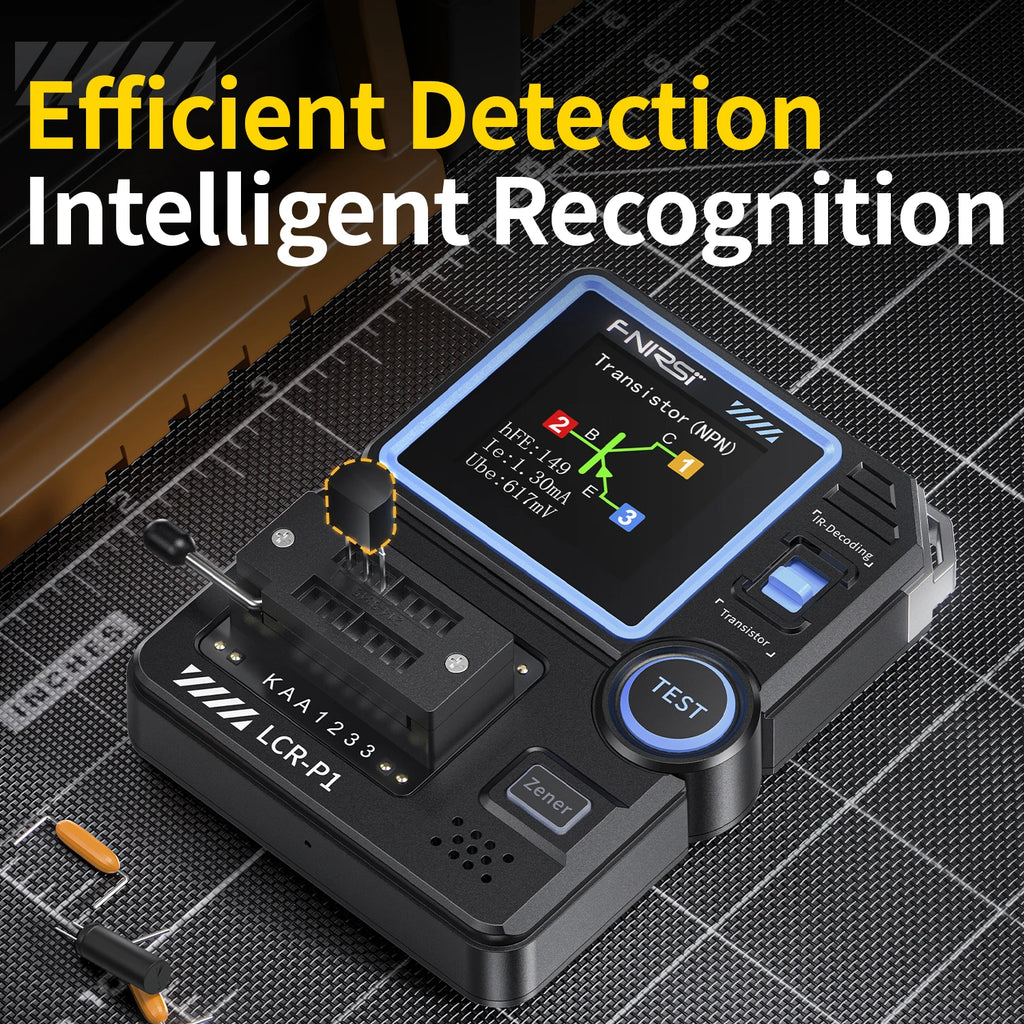

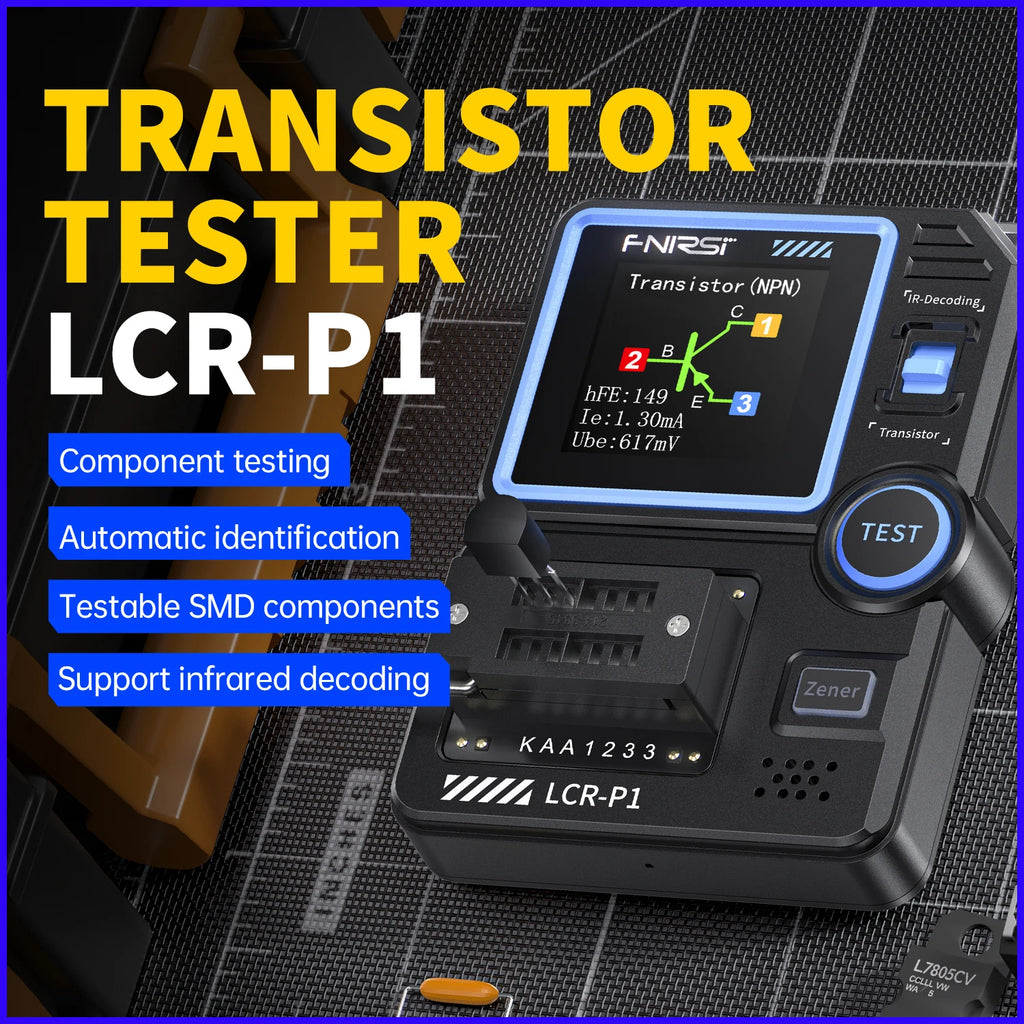

The LCR-P1 Transistor Tester is a high-precision, multifunctional electronic testing device designed specifically for electronic engineers, technicians, and enthusiasts.This device is intended for detecting and analyzing the performance and characteristics of semiconductor components such as transistors, diodes, triodes, and field-effect transistors (FETs).Equipped with a color screen, it allows for multi-parameter measurement of various components, automatically identifies the type and pin arrangement of the tested component, simplifying the operation process and enhancing testing efficiency.

Key Features:

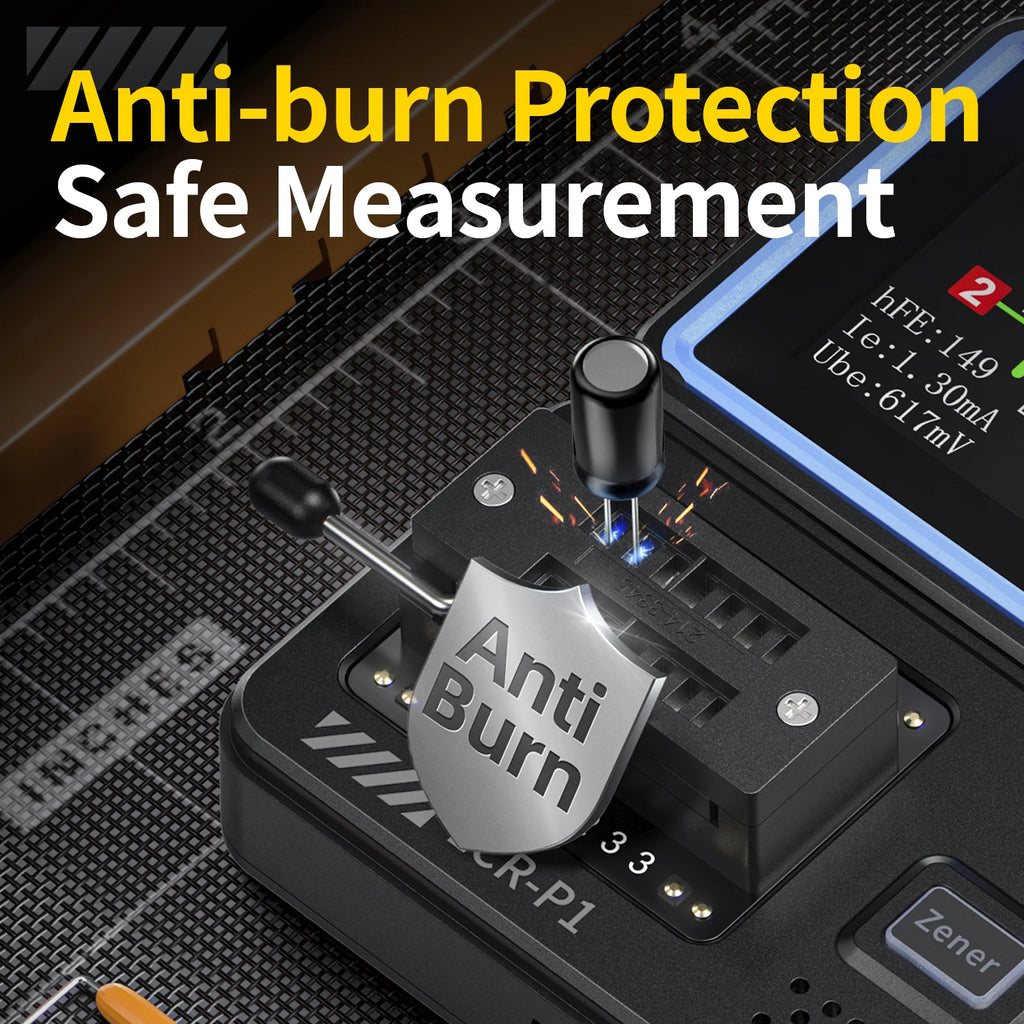

1. Intelligent anti-burning design: Uncharged capacitors automatically discharge upon insertion, with a user-friendly protection mechanism to prevent damage.

2. Data export: Supports connecting to a computer to export data, easily transferring the collected measurement data to facilitate further in-depth analysis on the computer.

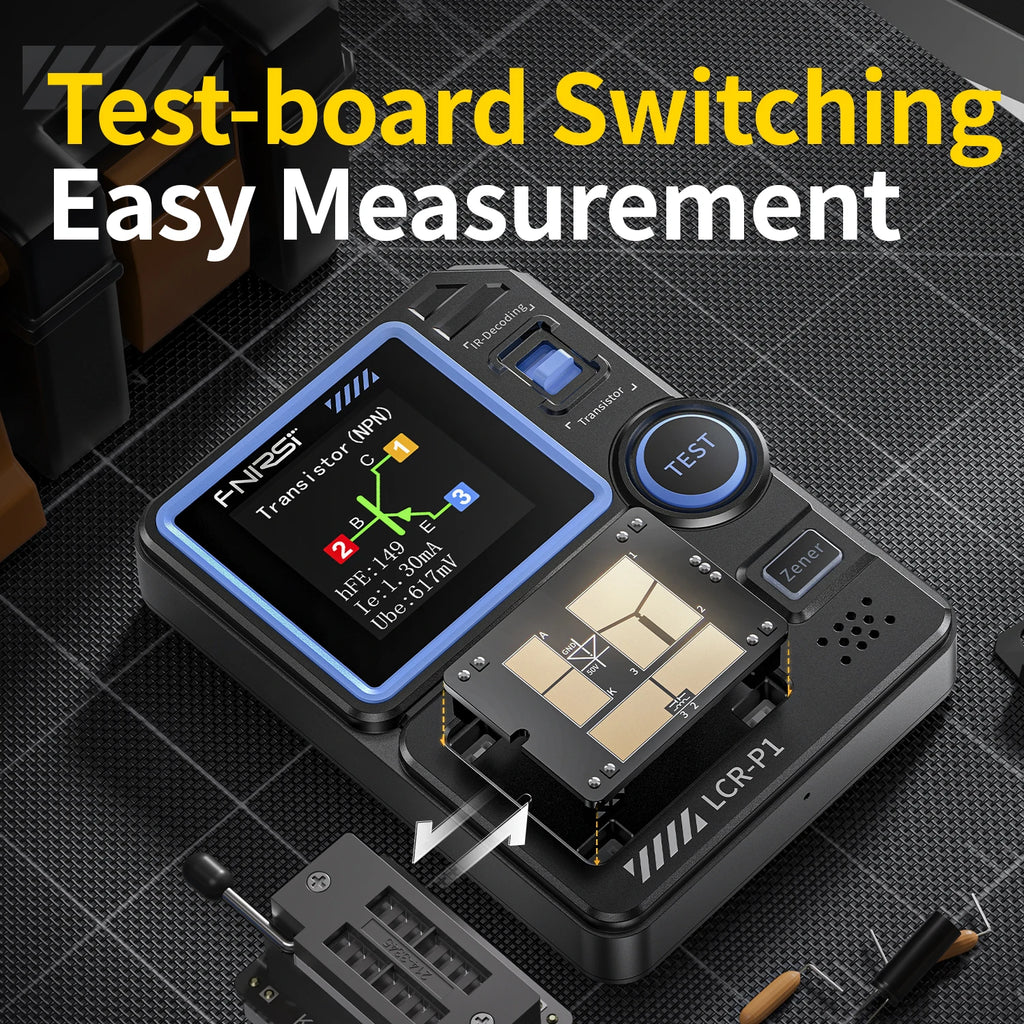

3. Alternate Measuring Modes: Innovatively incorporates replaceable test boards, easily tackling diverse test needs for unprecedented convenience and efficiency.

4. Intelligent Recognition Components：Simply Plug & Clamp, One-Button Quick Identification of Component Parameters, Saving Time and Effort.

5. Zener diode independent measurement: Independent measurement channel for measure diodes, measuring 0.01-32V with pre-measurement power supply for precise results.

Feature

1．Product Model：LCR-P1

2．Screen Display：1.44 Inch Color Screen

3．Charging Specification: USB Type-C, 5V/1A

4．Power supply: 300mAh lithium battery

5．Operating Temperature：0~40℃

6．Resistance: 0.01Ω-50MΩ

7．Capacitance: 25pF~100mF

8．Inductance: 10uH-1000uH

9．Transistor: 10＜β＜600

10．Diode: Forward voltage drop＜4.5V

11．Voltage Regulator Diode: 0.01-4.5V, 0.01-32V
