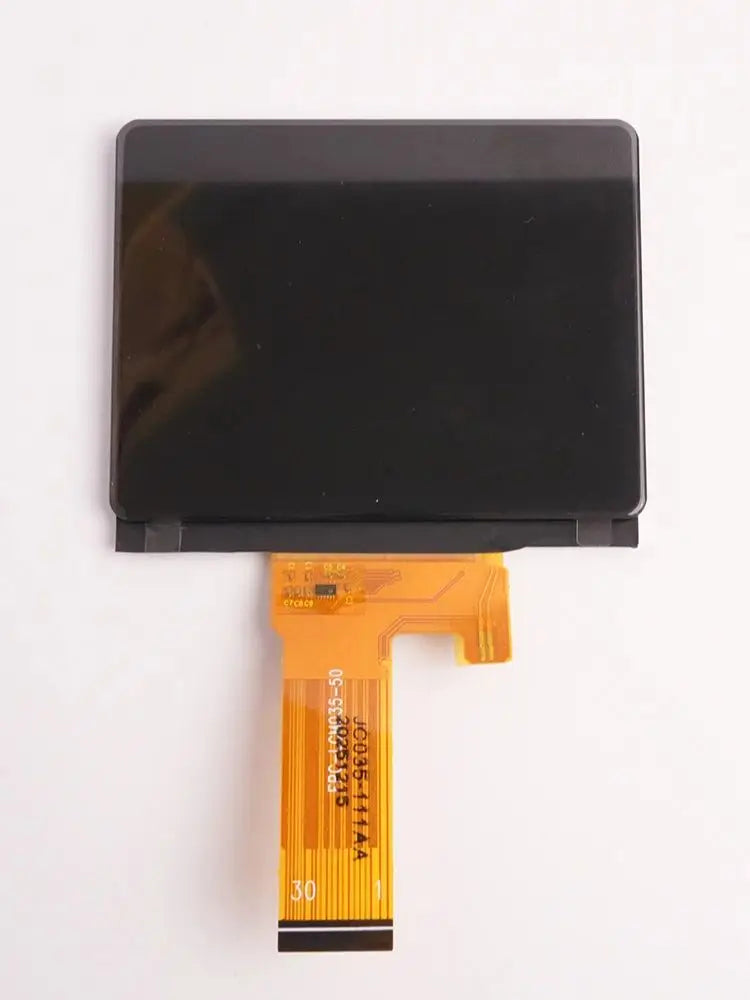

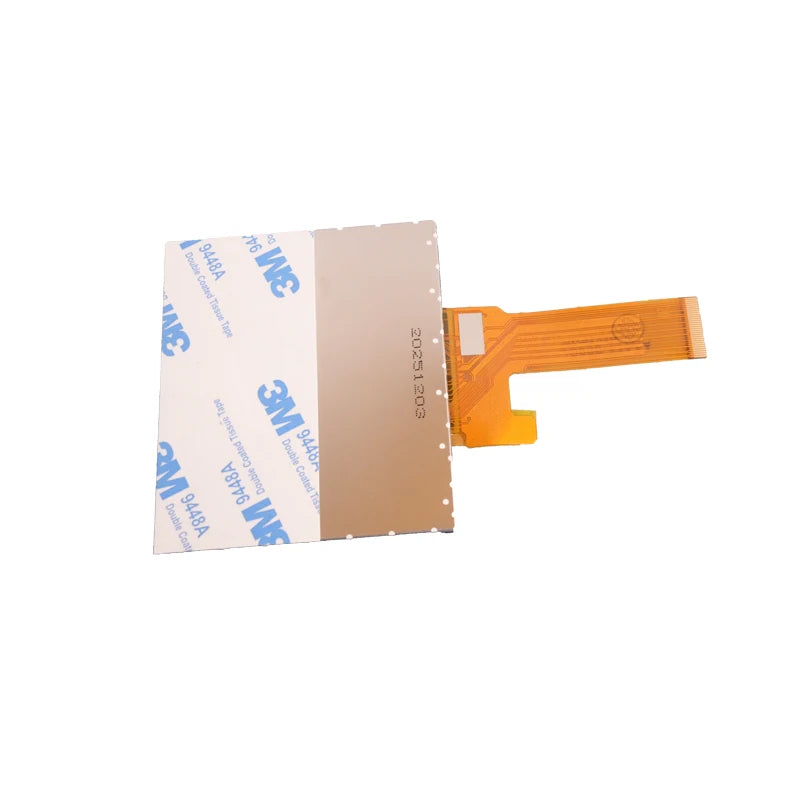

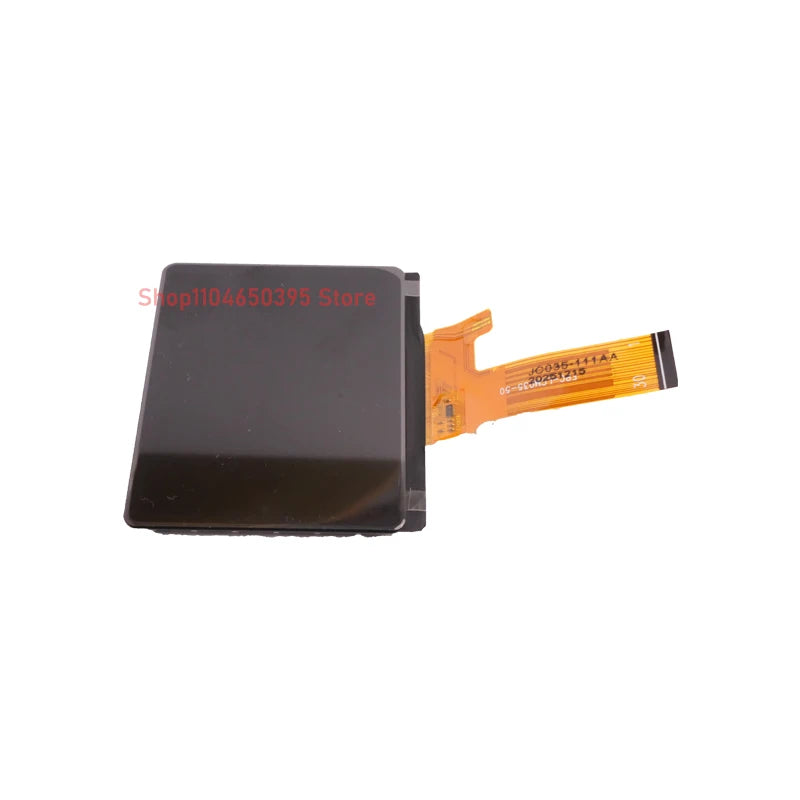

R36S-V2 LCD Screen Display Replacement 3.5-inch for R36S Panel 4 Y3506 Only

$33.53

Qty Available: 10 Ships from our US warehouse.

Shipping, returns, and payments

Shipping:

Free Standard Shipping.

Delivery:

Estimated between Fri, Nov 6 and Mon, Nov 9

Returns:

14 days returns.

Shop with confidence

Money Back Guarantee

Get the item you ordered or your money back.

Shipping and applicable taxes calculated at checkout. Shipping details · Return conditions · Ask a question

Description

IMPORTANT NOTICE FOR R36S DISPLAY PANEL 4

FOR R36S PANEL 4 (Y3506 / SOY SAUCE) ONLY ⚠️

1. COMPATIBILITY WARNING

- ONLY fits R36S Panel 4 (Y3506) version

- NOT compatible with Panel 0/1/2/3/4, R35S, R36S Plus, other consoles

- WRONG PANEL = SCREEN GARBLING / BLACK SCREEN / WHITE SCREEN / NO DISPLAY

- NO RETURN/REFUND if bought wrong model by mistake

2. HOW TO VERIFY YOUR DEVICE

- Check DTB file: rk3326-gameconsole-panel5.dtb

- Check screen label: JD350, Y3506, Panel 5, Soy Sauce

- DO NOT buy if not matching

3. SPECIFICATIONS

- 3.5 inch 4:3, 640×480, IPS, 30/40pin RGB (reverse)

- Special driver for Panel 5

4. BEFORE ORDERING

1. Confirm your DTB is panel5

2. Open console to check screen model

3. Message us photos if unsure

4. Leave note: R36S Panel 5 / Y3506

5. INSTALL NOTE

- Must flash Panel5 firmware/DTB after replacement

- Wrong firmware still causes black screen

Note: If the screen does not display correctly or shows colored lines after installation, please

try the method below.

R36S Screen Driver Replacement Steps (ArkOS 2.0)

1. Download Driver Files

Visit the GitHub repository: https://github.com/AeolusUX/R36S-DTB/tree/main/R36SNavigate to the folder corresponding to your specific screen model (e. g. "Panel 3" download files from other "Panel" folders as needed).

2. Backup & Replace Files in the BOOT Partition

Insert the SD card into your computer and open the BOOT partition.Back up all dtb files and boot ini located in the root directory of the partition (copy them to your computer for safekeeping)

Delete these original files from the partition.

Copy and paste all files from the new driver folder into the root directory of the BOOT partition.

3. Completion

Safely eject the SD card - Insert it into your R36S and power on the device.

Alternative Method (Recommended to Try First)

During startup (once you see the indicator light turn on), simultaneously hold down the R1 buton and the Down button on the D-pad. Wait a fewseconds; the system will automatically detect and configure the correct screen panel type. If this method works, manual fle replacement is not required
