GHXAMP 6-Digit Universal Glow Nixie Clock Tubes Control Motherboard MAX1771 Remote Control IN12 IN14 IN18 QS30-1 Home audio DIY

Now send New version .If you need a manual, please let me know your email address when placing an order. Thank you

Tips:There is no backlight LED function, the remote control is universal, the above LED button is only useful for the 4-digit QS30 model

Use 9V 12V, 500MA or more Power Adapter, the interface is DC5.5*2.1.

This board is a general-purpose glow clock core board. It integrates all the functions of the glow clock including the boost module. As long as one board plus a glow tube can make a complete 6-bit glow clock. When using remote control, turn on / off the machine. And with an external infrared and power interface, easy for users to make the shell.

The clock adopts DS3231M, built-in crystal oscillator, accurate timing. The booster section uses the MAX1771 high-efficiency solution with low heat generation (inductive hands can be in contact for a long time). STC15W408AS for single-chip microcomputer, with anti-cathode poisoning program, delayed shutdown, timing switch on and off and other functions. Small size makes it easy to fit into a smaller case. Distribution of all wires.

Since this product needs to be welded with a glow tube or socket, and made of a shell, etc., the buyer is required to have a certain degree of hands-on ability.

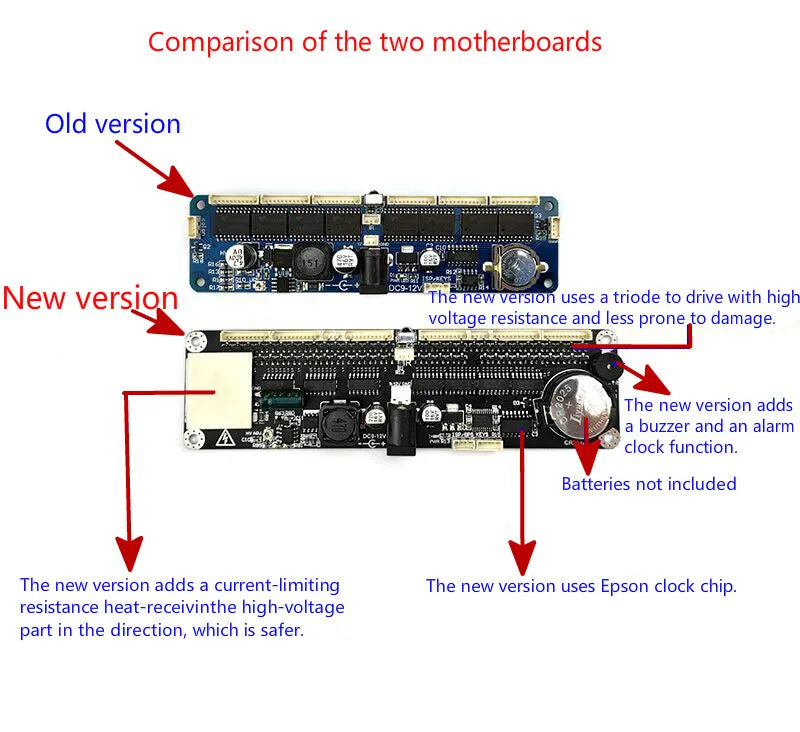

Tips:The product has been updated. Please check the picture below, there is a comparison of the updated products in the picture.

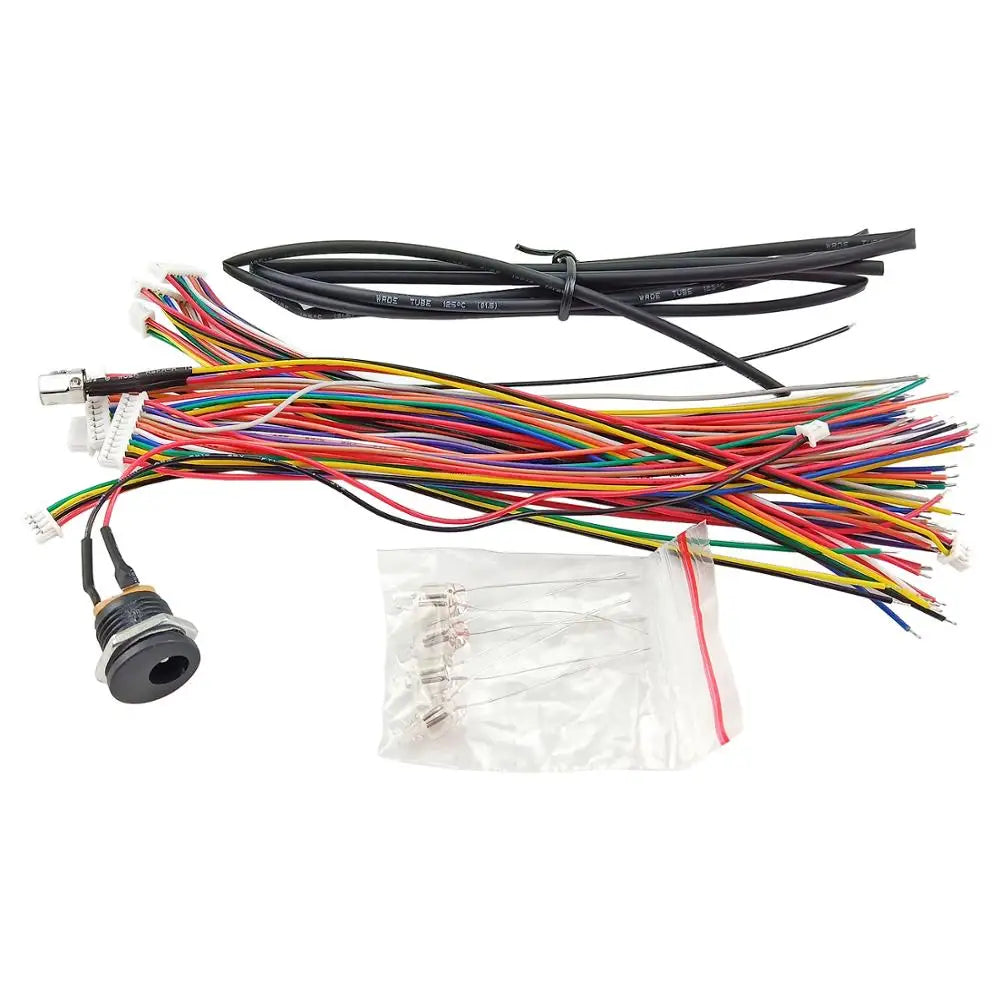

Package
