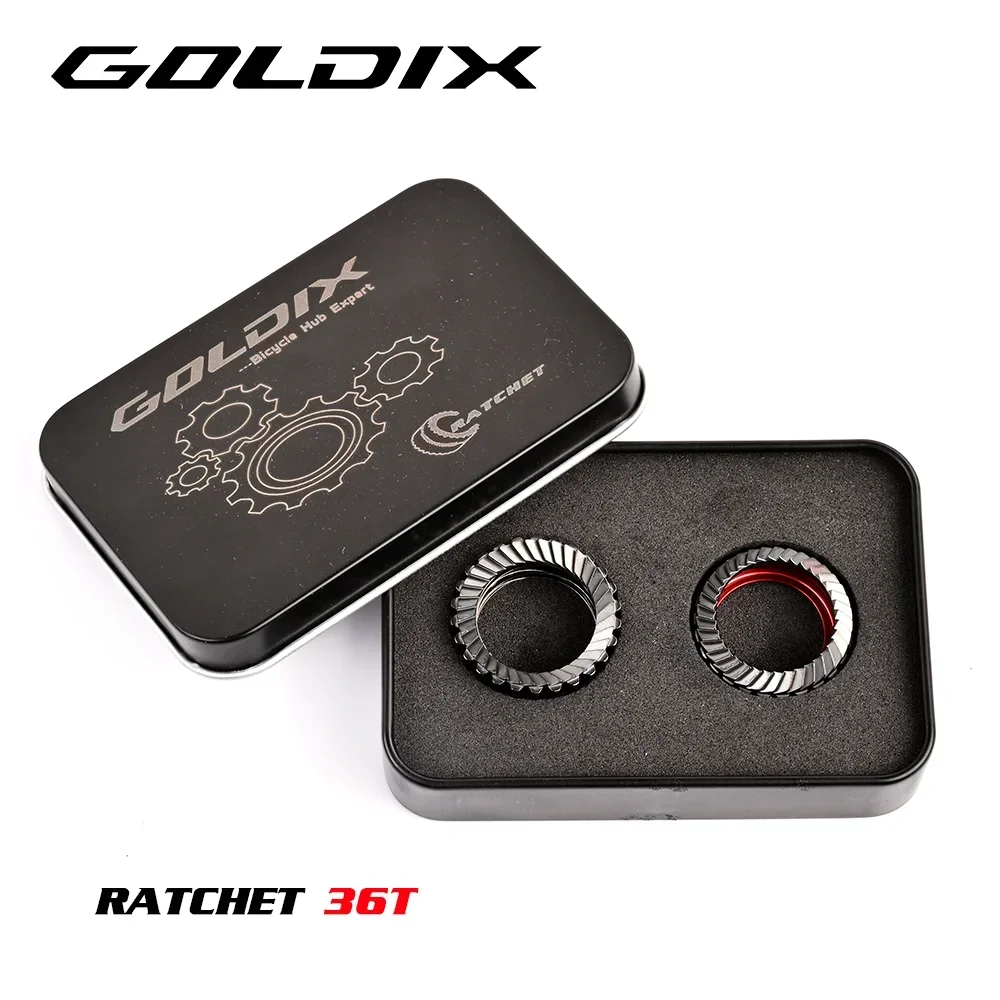

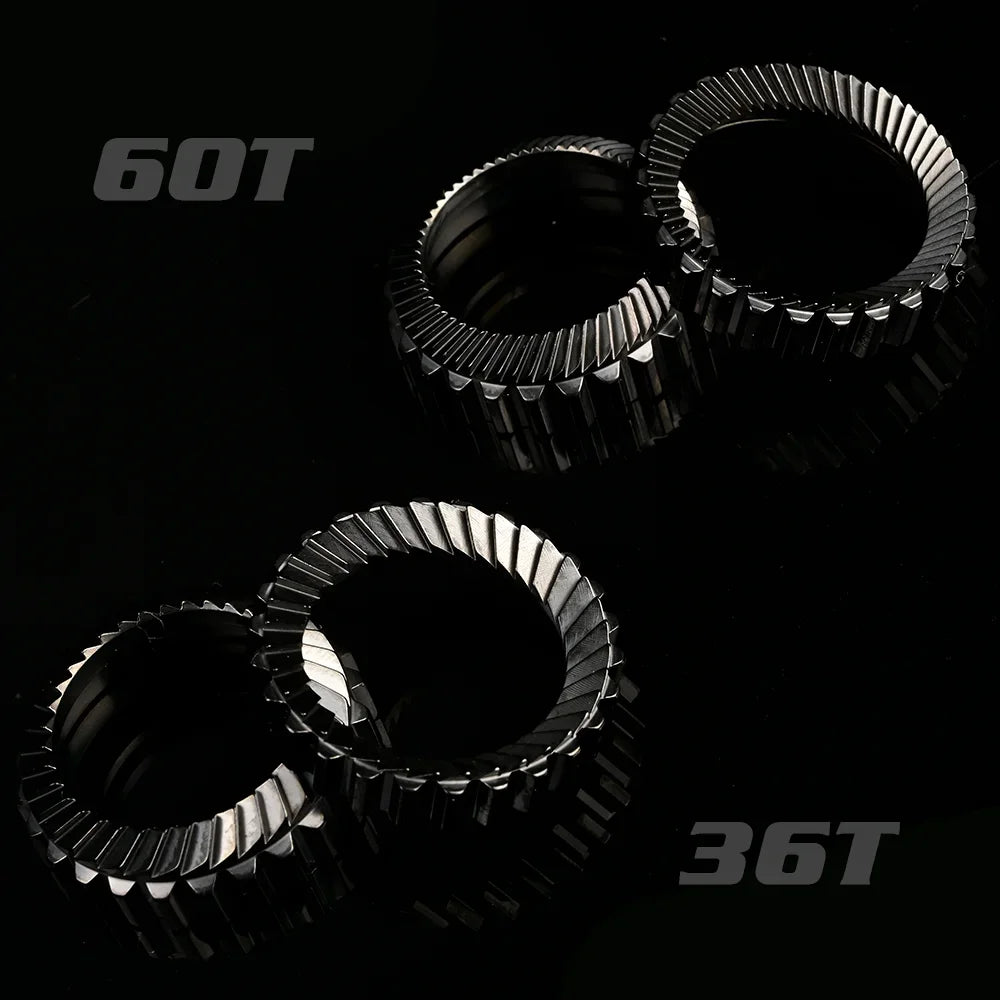

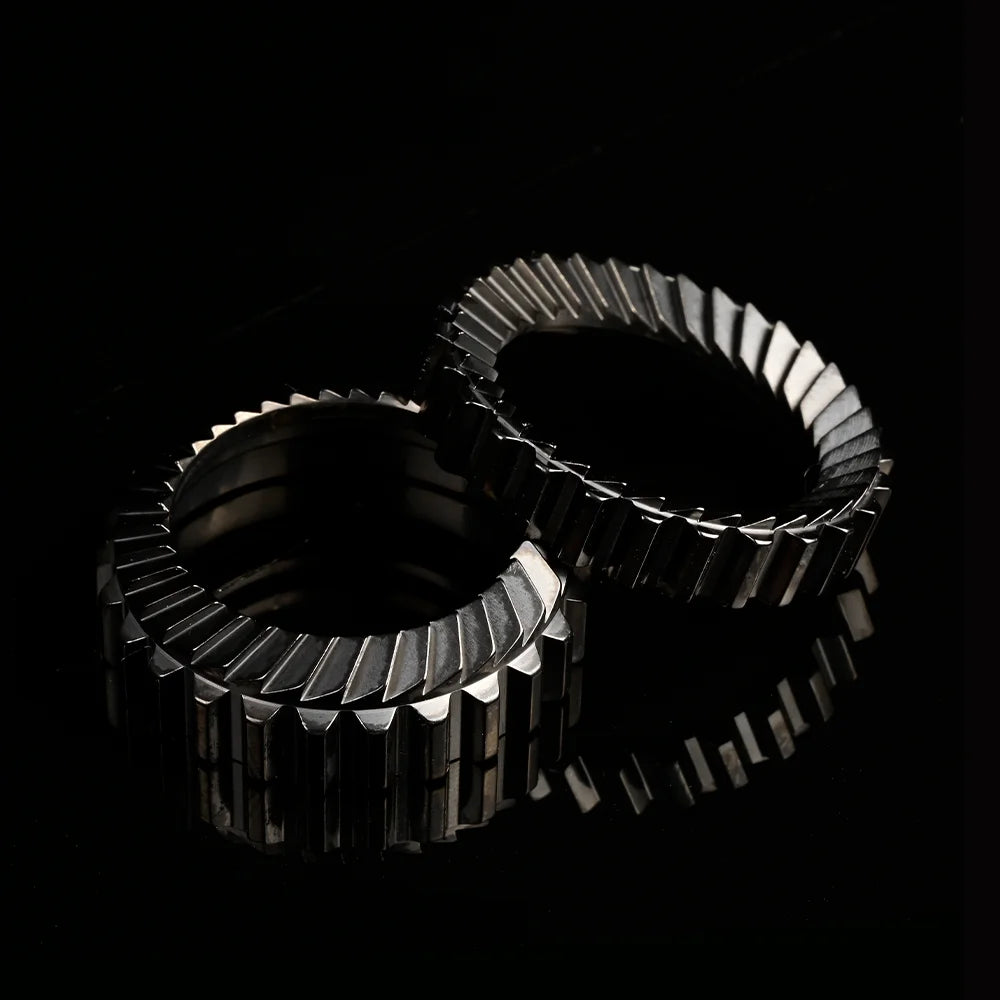

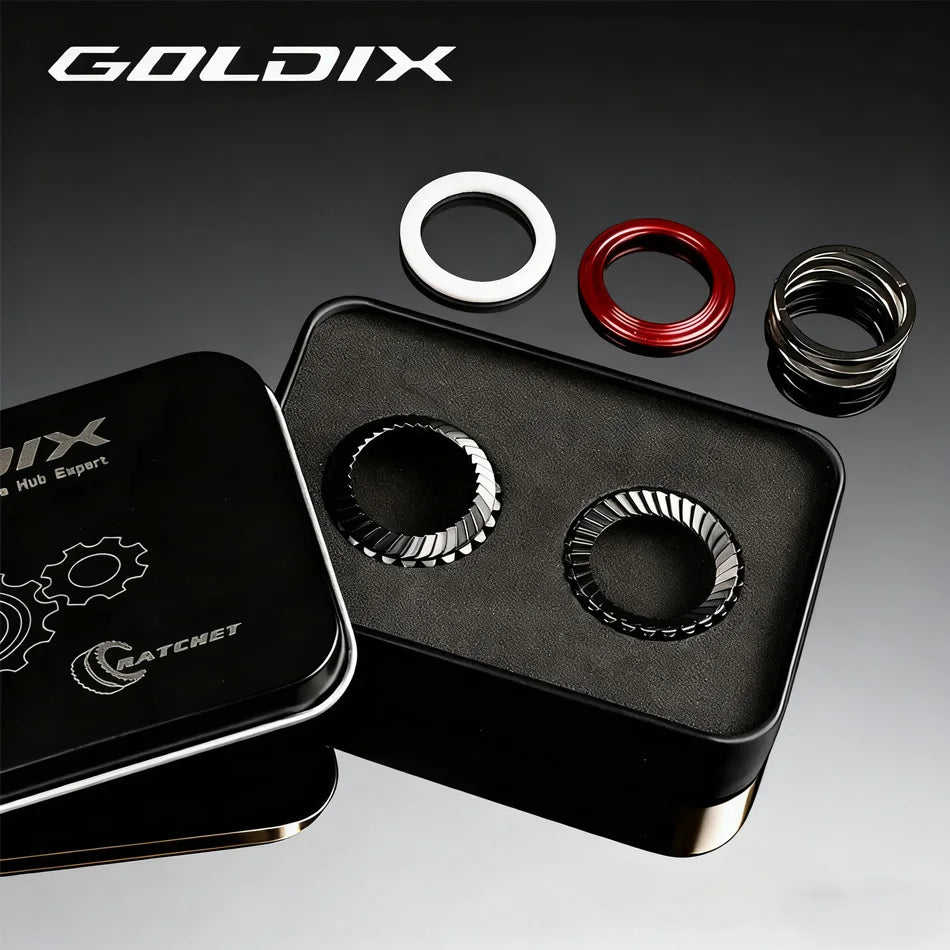

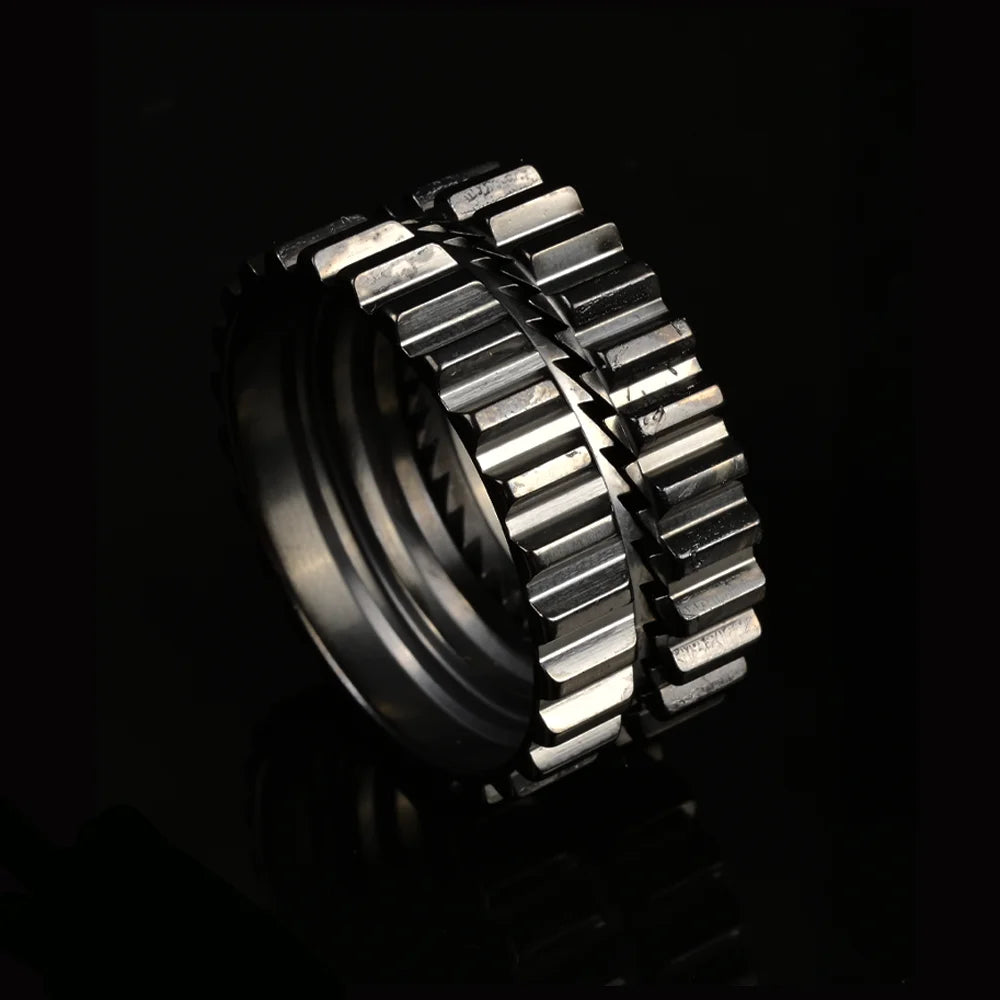

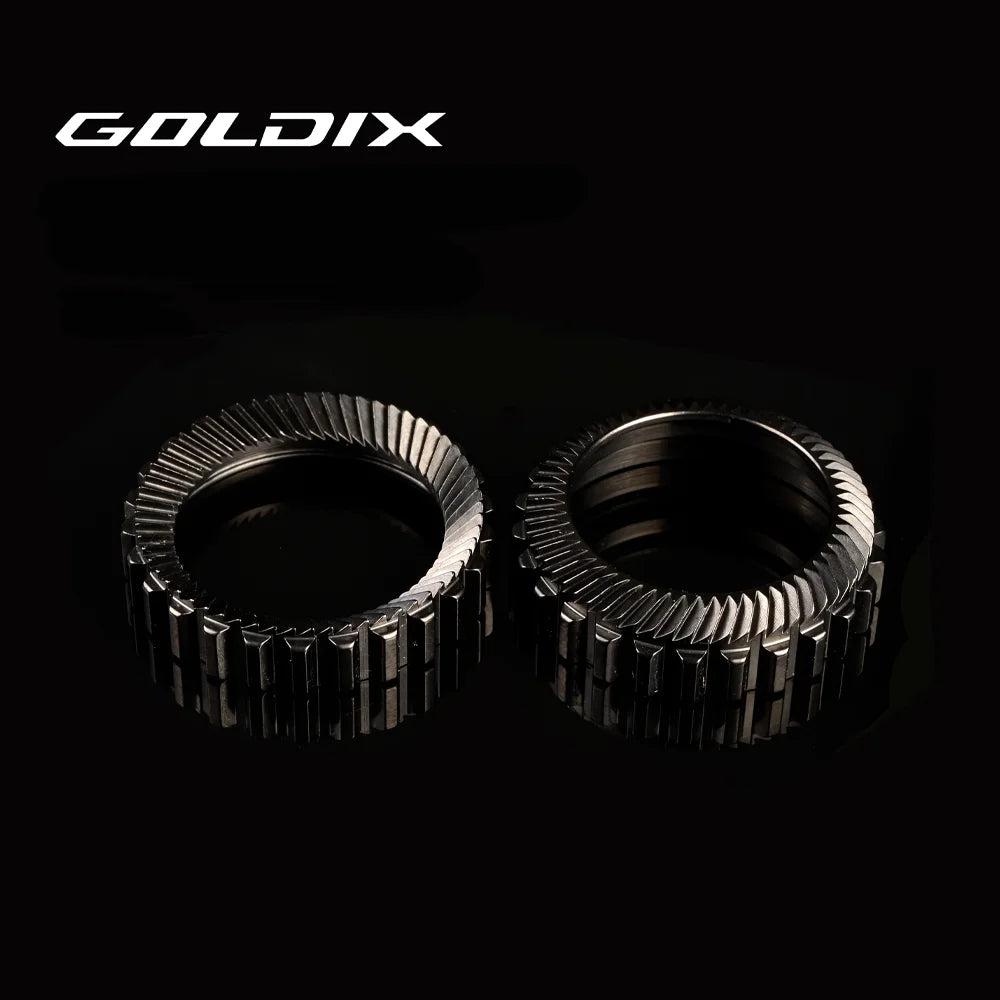

GOLDIX bicycle hub ratchet meshing spiral for 370/350/310/180/160 hubs, 36T or 60T

Brand: Goldix

Ratchet: 36T/60T

Weight: See scale (for reference only)

Material: Alloy Steel

Ratchet Engagement Surface: Approximately 3.6mm²

Ratchet Engagement Depth: Approximately 9.78mm

Threshold Torque: ≥ 450 Nm

Fatigue Strength: ≥ 150,000 cycles (250 Nm)

Warranty: 2 years or 30,000 km

Features: The surface coating has been changed to a thicker chromium nitride coating to improve adhesion to the substrate and enhance wear resistance. This guiding design allows the pawl to engage more smoothly and precisely in the tooth groove, accelerating the engagement process, significantly reducing lost motion, and achieving a more direct power response. The new ratchet structure automatically returns to a concentric position, ensuring stable movement along the same axis during transmission, effectively reducing ratchet deflection and improving engagement stability. When a torque of 230 N·m was simulated on the tooth surface, peak stress was reduced by approximately 32%. Under the same equivalent conditions, the service life of 36T bevel gears is significantly longer than that of 36T flat gears. While maintaining the same weight, the meshing area is increased by approximately 38%, significantly improving the planetary gear's load-bearing capacity and ensuring more stable and reliable power transmission. Furthermore, the larger meshing area ensures simultaneous operation of multiple teeth, allowing continued operation even if a single tooth fails. Compared to the previous generation 36-tooth flat gear, the 36-tooth helical gear offers greater redundancy, further improving operational stability and significantly reducing the risk of tooth breakage.

Compatible Models: GOLDIX 370 Series, 350 Series, 240 Series, R240SL Series, 310 Series, 180 Series, R180SL Series, 160 Series, DH350 Series!!!

Note: Please use GOLDX brand hubs for replacements! We are not responsible for any incompatibility issues caused by other brands of hubs!!!
