Hamgeek 10MHz-6GHz 60dB High Gain LNA Wideband Amplifier Low Noise Amplifier with SMA Female Connector for RF Signal Drive or RX

$119.24

Choose your option below. Each model or pack is sold separately. Check the selected photo and product details for the contents.

Qty Available: 10 Ships from our US warehouse.

Shipping, returns, and payments

Shipping:

Free Standard Shipping.

Located in: United States

Delivery:

Estimated between Tue, Oct 13 and Fri, Oct 16

Returns:

14 days returns.

Shop with confidence

Money Back Guarantee

Get the item you ordered or your money back.

Shipping and applicable taxes calculated at checkout. Shipping details · Return conditions · Ask a question

Description

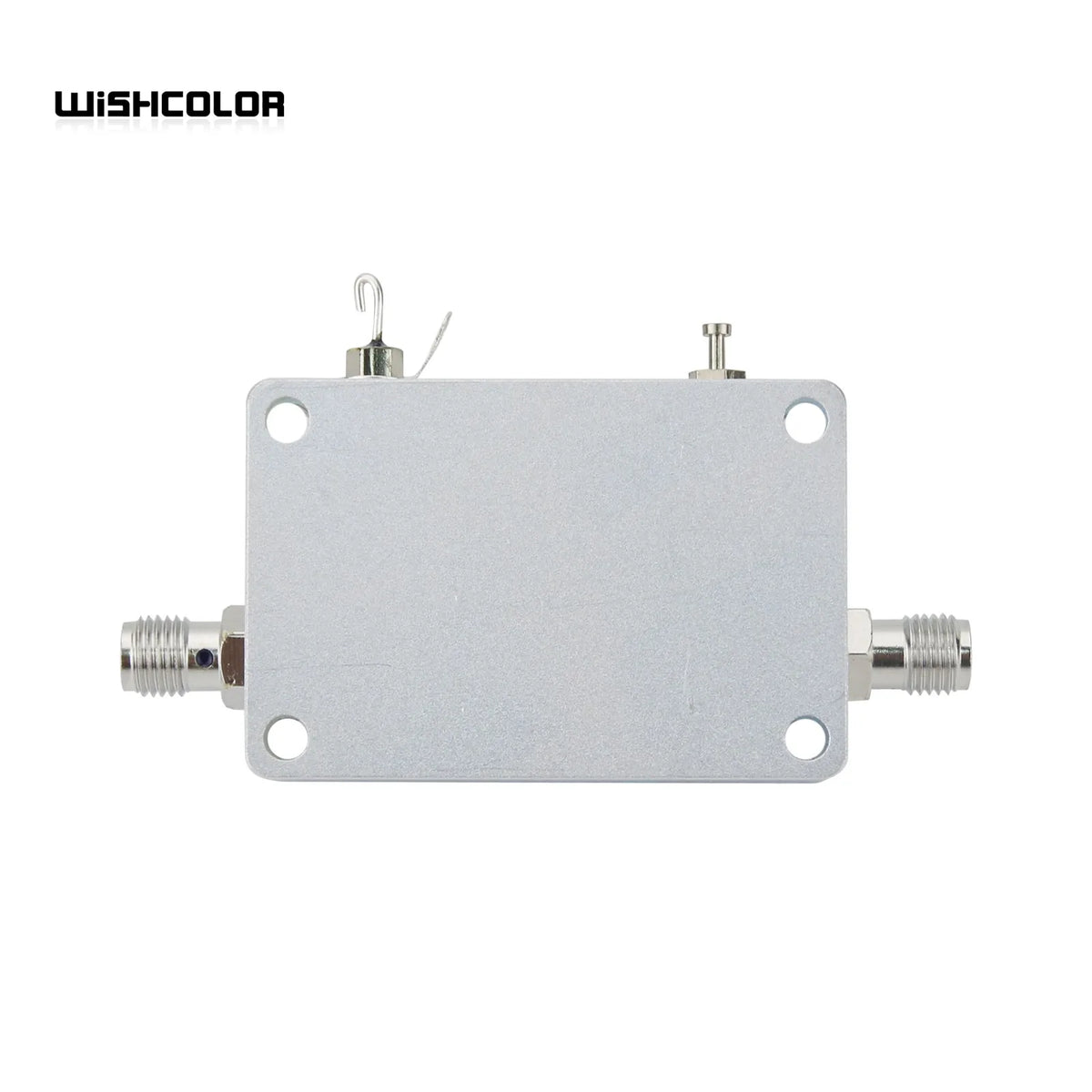

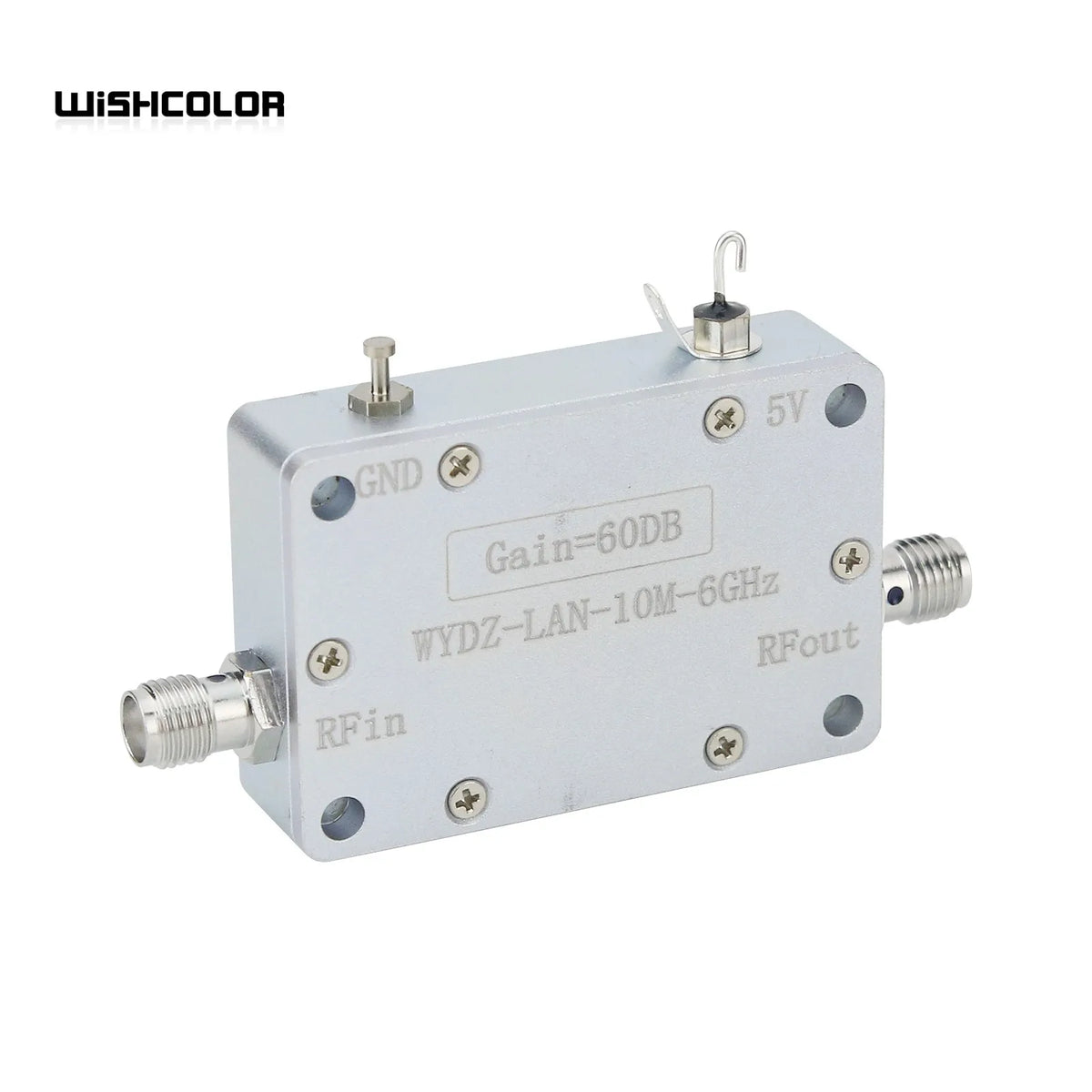

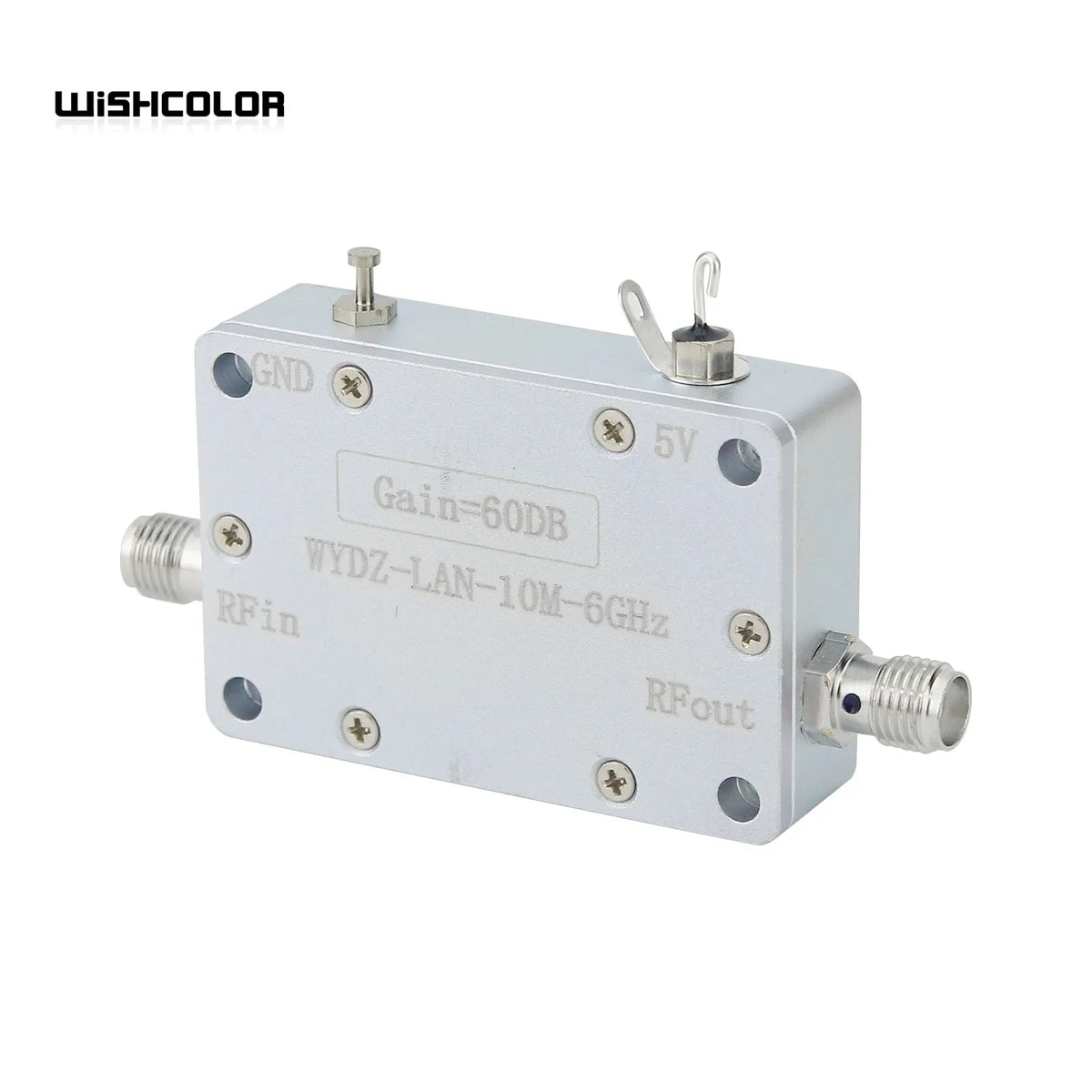

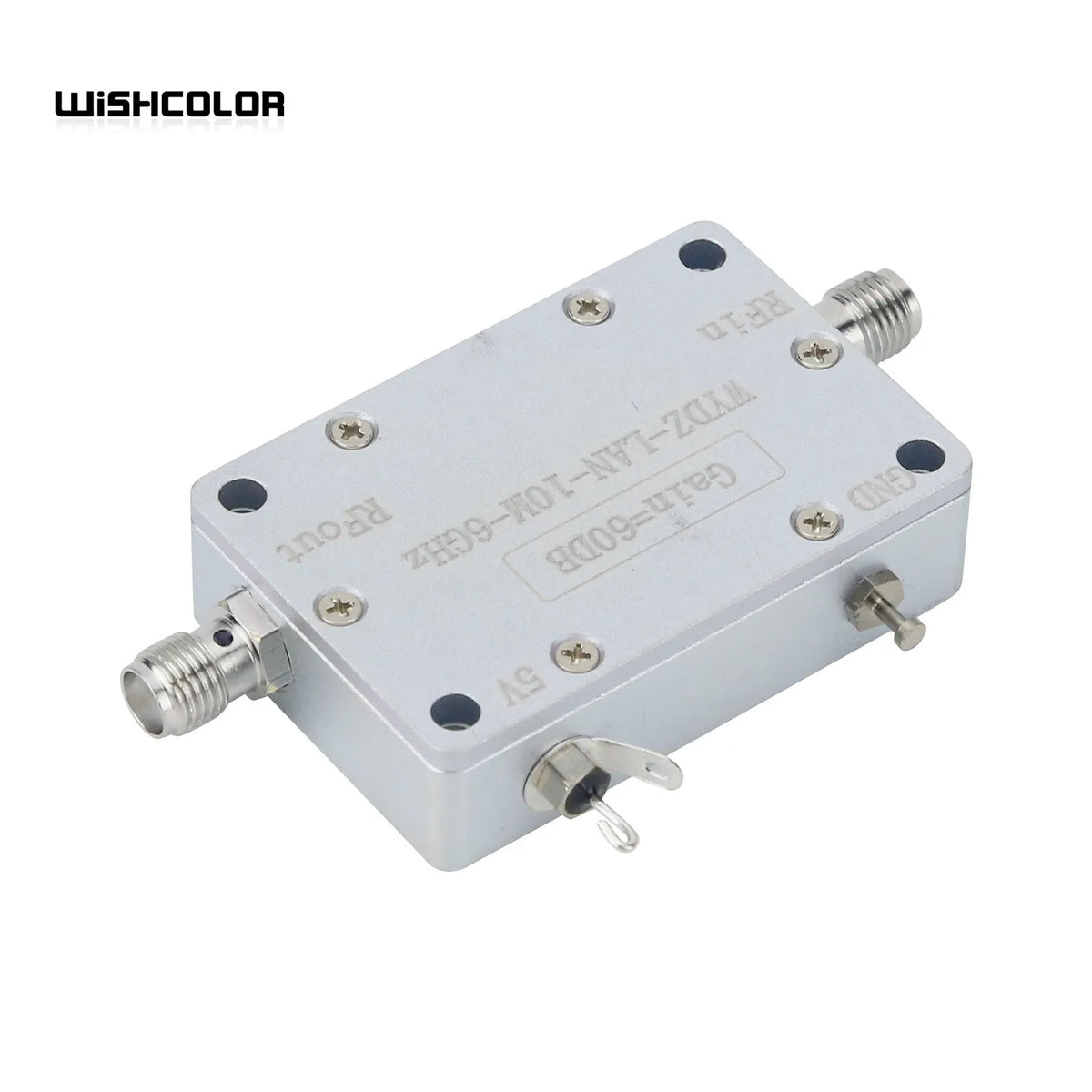

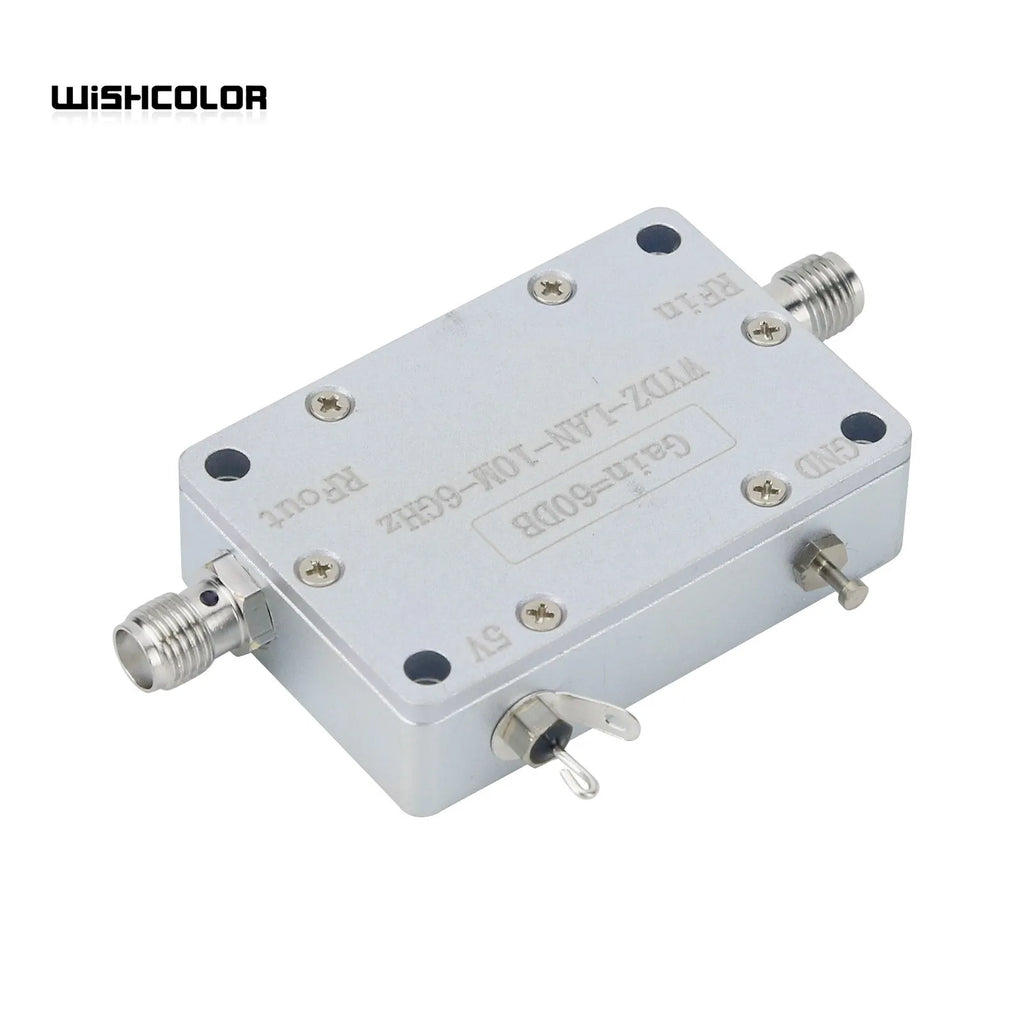

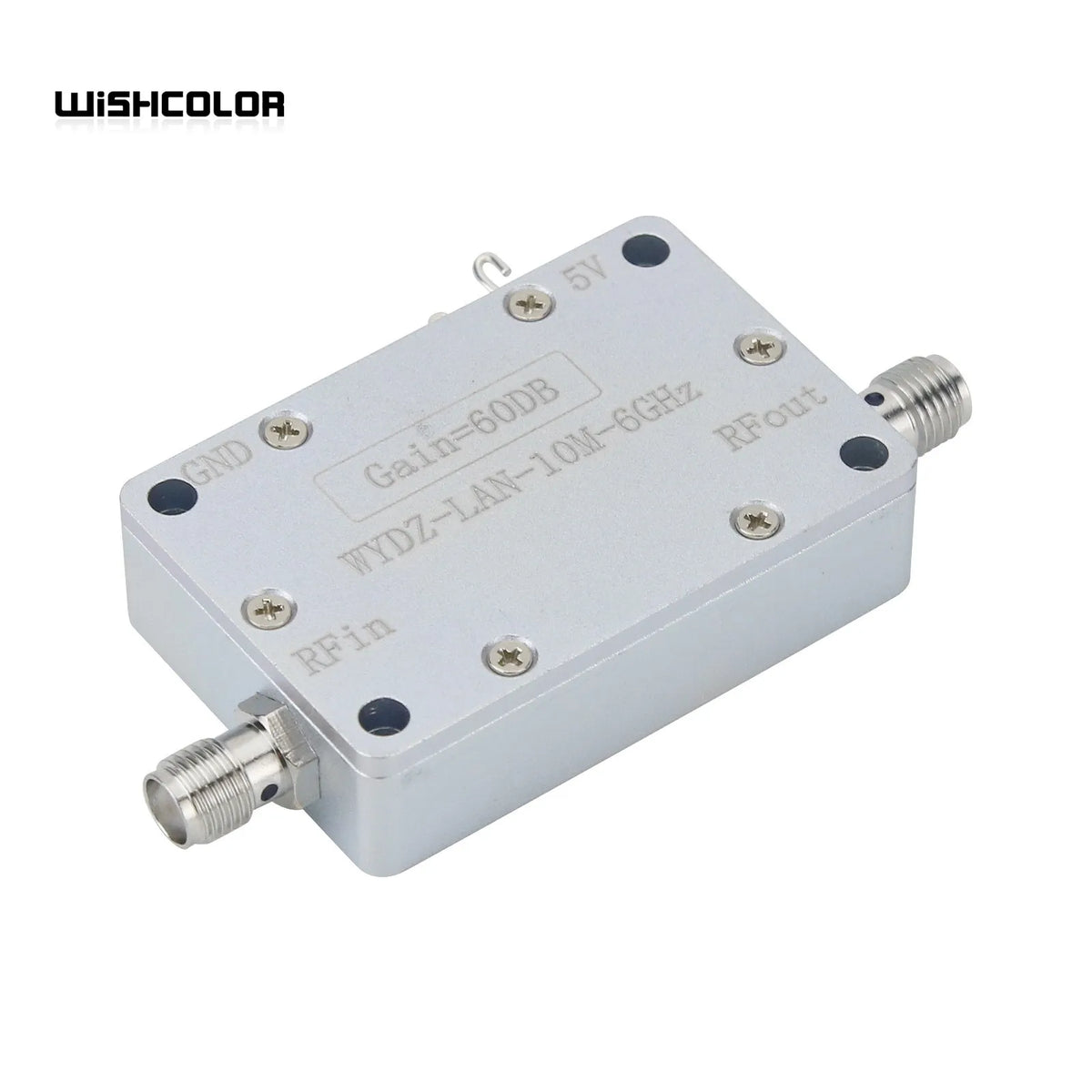

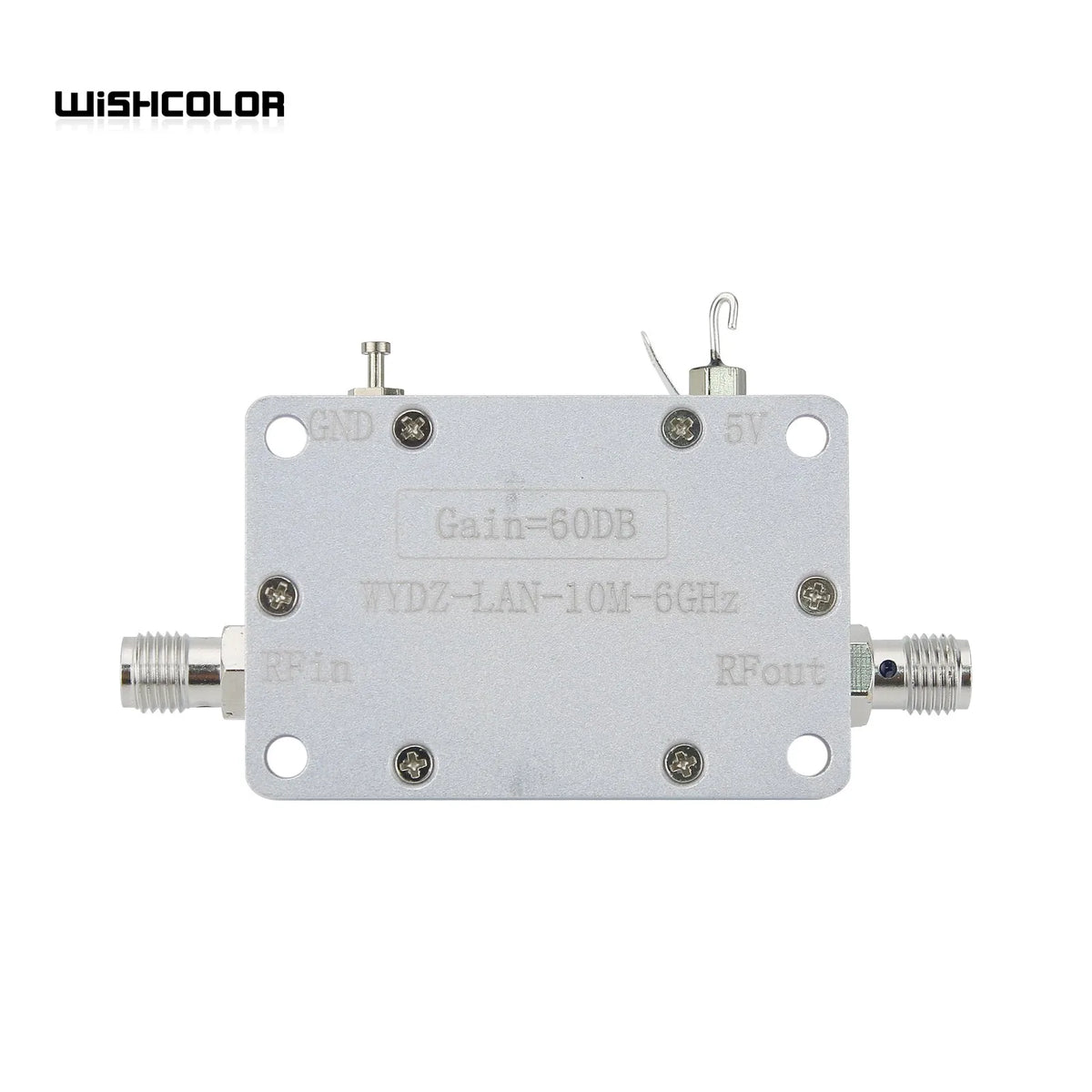

Hamgeek 10MHz-6GHz 60dB High Gain LNA Wideband Amplifier Low Noise Amplifier with SMA Female Connector for RF Signal Drive or RX

Application:
- for Beidou/GPS receiver
- RX system (FM radio RX, radar receiving, etc.)
- Electromagnetic compatibility receiving system
- SDR receiver

Specification:
- Power supply: feed through capacitor power supply 5V
- Module frequency range: 10MHz - 6GHz
- NF: 5dB
- Gain: 60dB
- Size: 4.5 x 3 x 1.4cm (excluding the SMA connector length)
- Weight: 66g
- Current: < 220mA
- P1dB = 18dBm at 2GHz, maximum input signal amplitude -35dBm, maximum output power < 100mW.
- Output connector: SMA female connector
- Input and output impedance: 50ohms

Packaging Included:
- 1 x Low Noise Amplifier

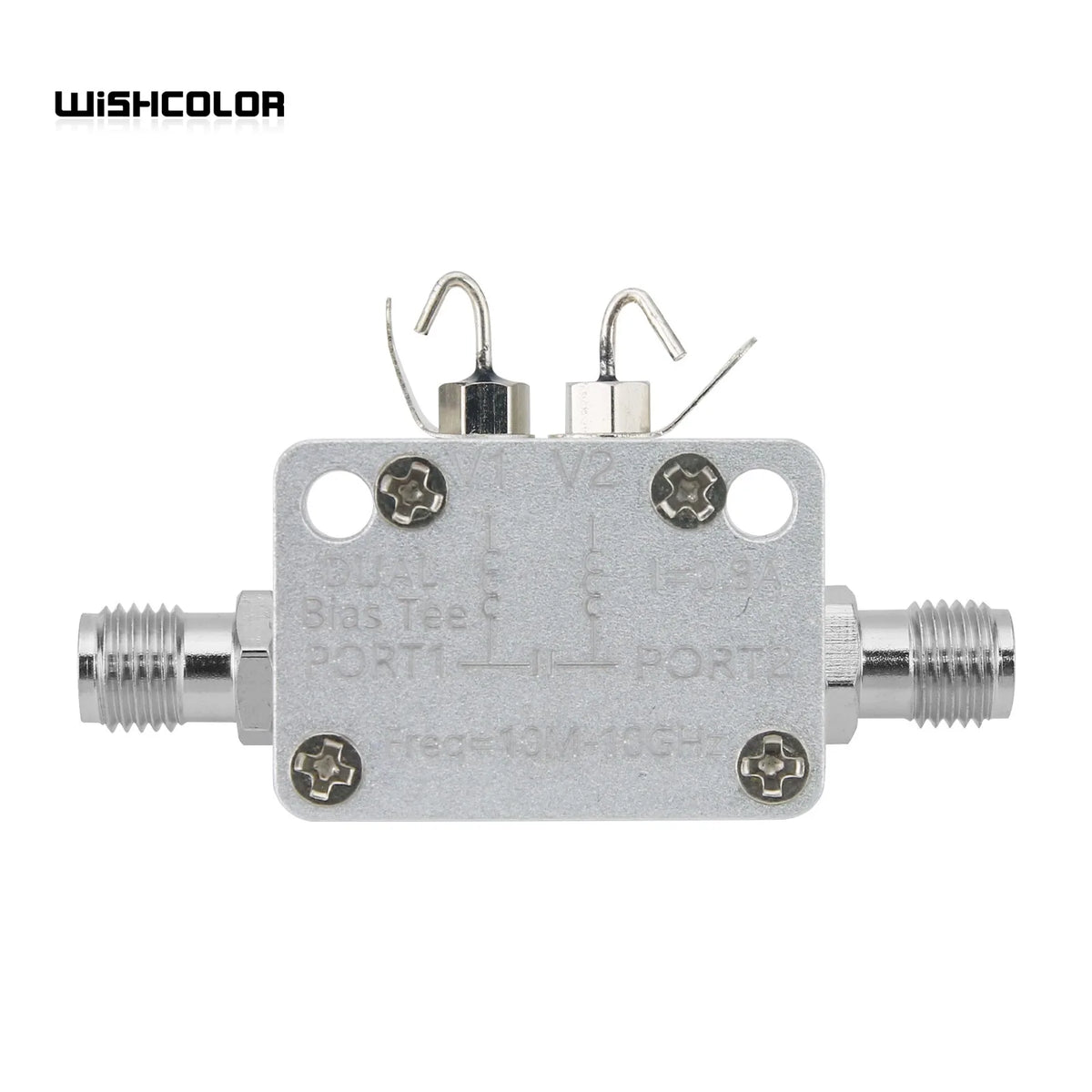

10M-10GHz RF Bias Tee DC50V Bidirectional Feed Coaxial Bias Tee with SMA Female Connector RF Accessory

Application:

- For broadband amplifier: it is applicable to some broadband amplifiers do not have DC blocking capacitors inside and require power supply at the output end; and some amplifiers have integrated capacitors internally, eliminating the need for additional bias tee.

- Fiber optic communication, laser driven: the driving current required for the laser diode is injected through the DC port of the bias tee; communication data is injected through the RF port.

Principle:

- The broadband amplifier feeding circuit is affected by parasitic capacitance parameters at high frequencies, resulting in a sharp decline in performance. Therefore, Bias Tee needs to be used for feeding.

- Bias Tee consists of ultra wideband, nearly idealized, high-frequency inductors and capacitors without resonance points.

- DC isolation capacitor: DC isolation to prevent DC voltage leakage to subsequent circuits or testing instruments.

- High frequency inductance: Isolates communication information and prevents high-frequency signals from leaking into the power supply system.

Specification:

- Working frequency: 10MHz - 10GHz

- Loss: 0.5dB at 6GHz, 1dB at 10GHz

- Voltage resistance: DC 50V

- Current: 0.8A max. (The module may be burned for current above 0.8A)

Package Included:

- 1 x Bias Tee
