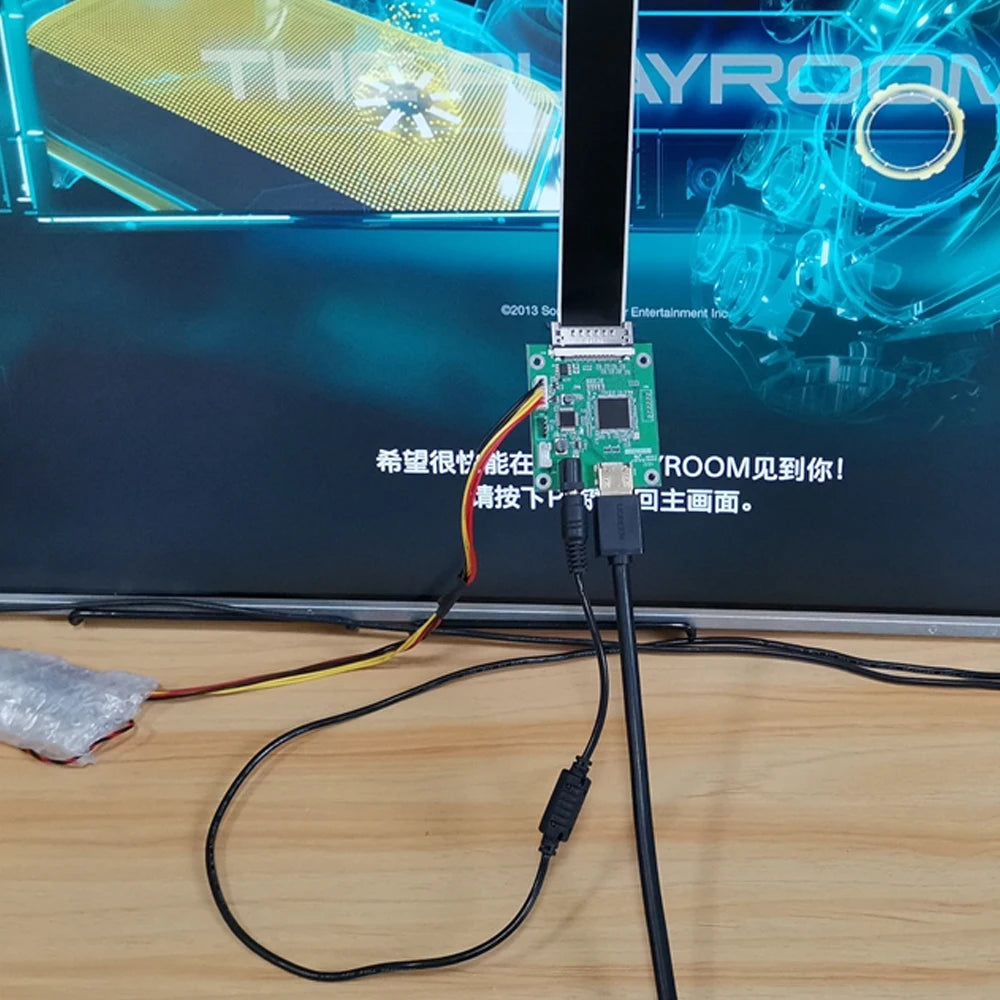

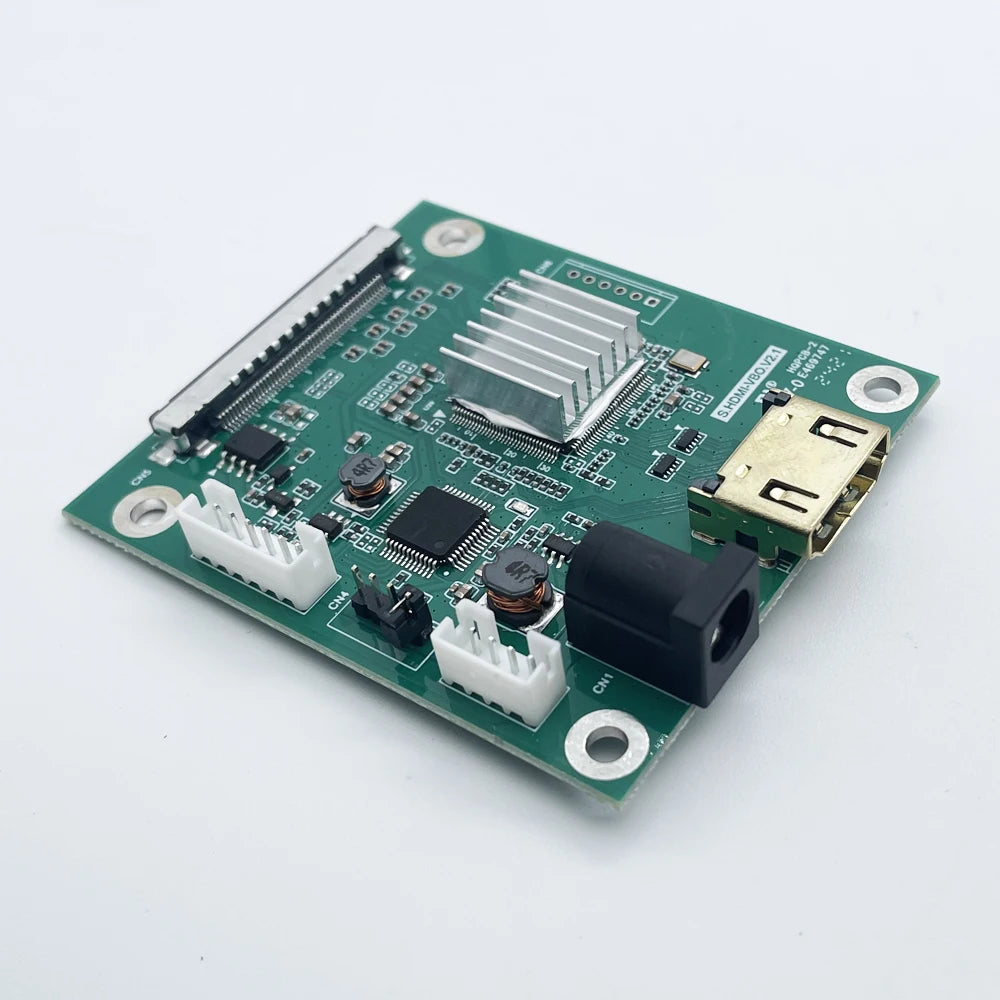

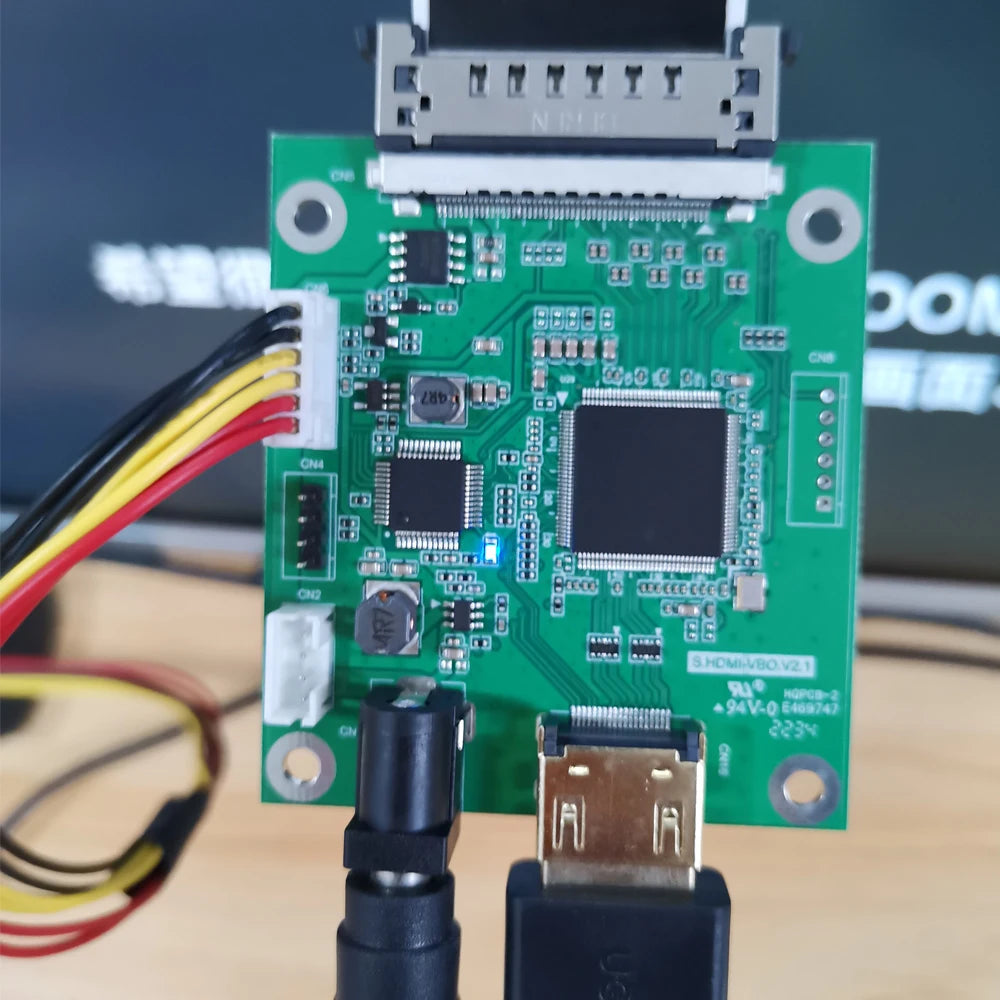

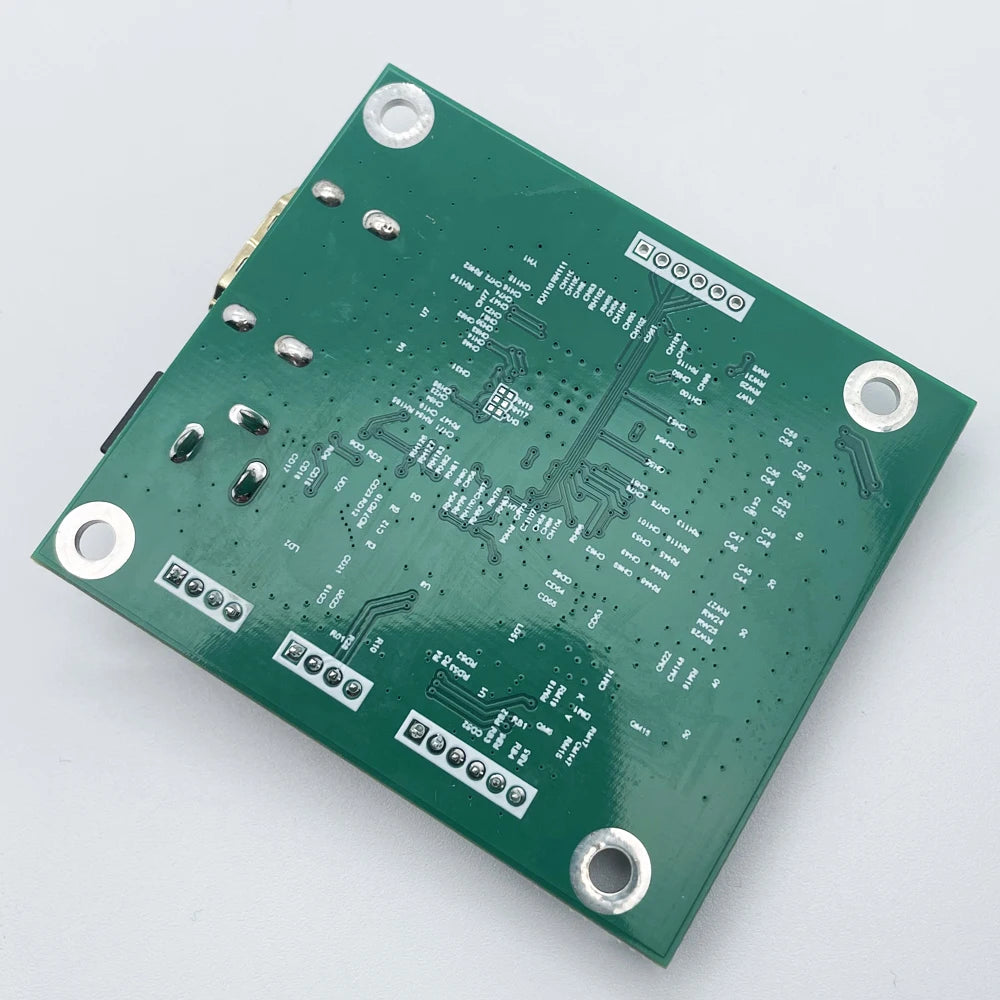

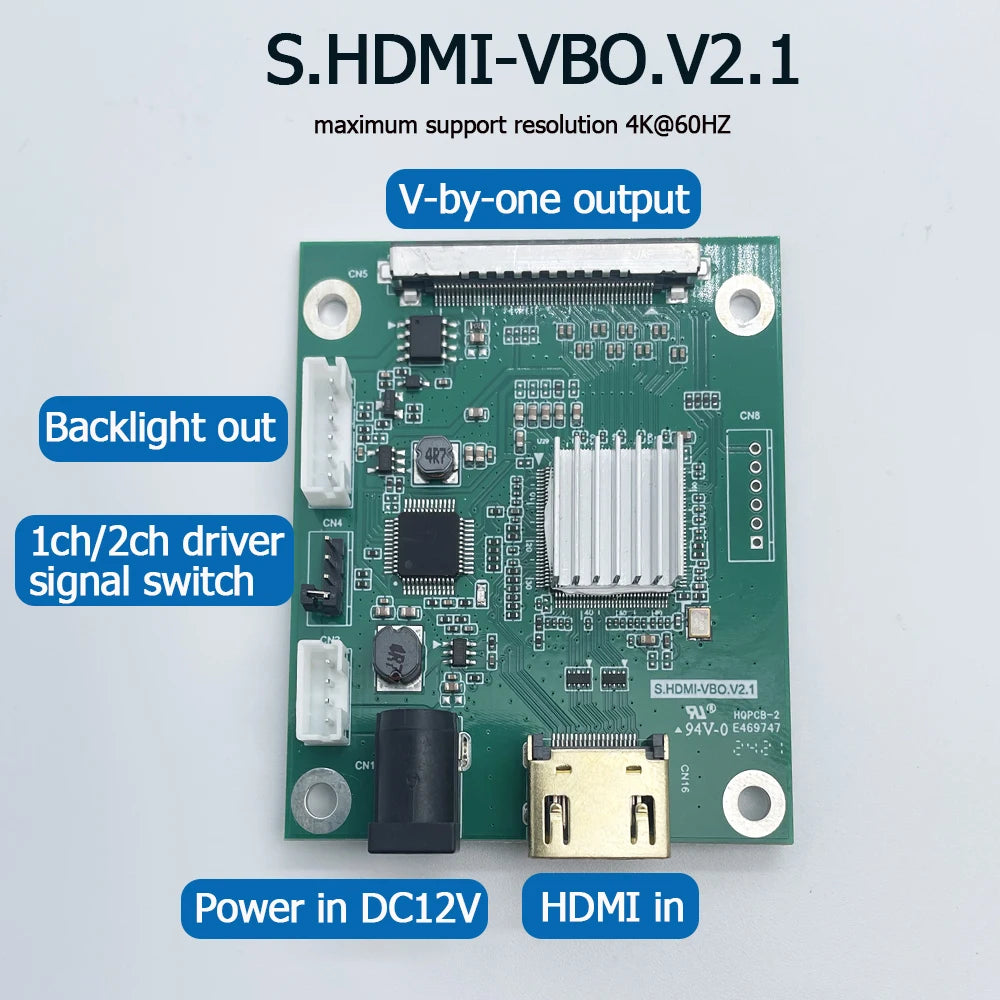

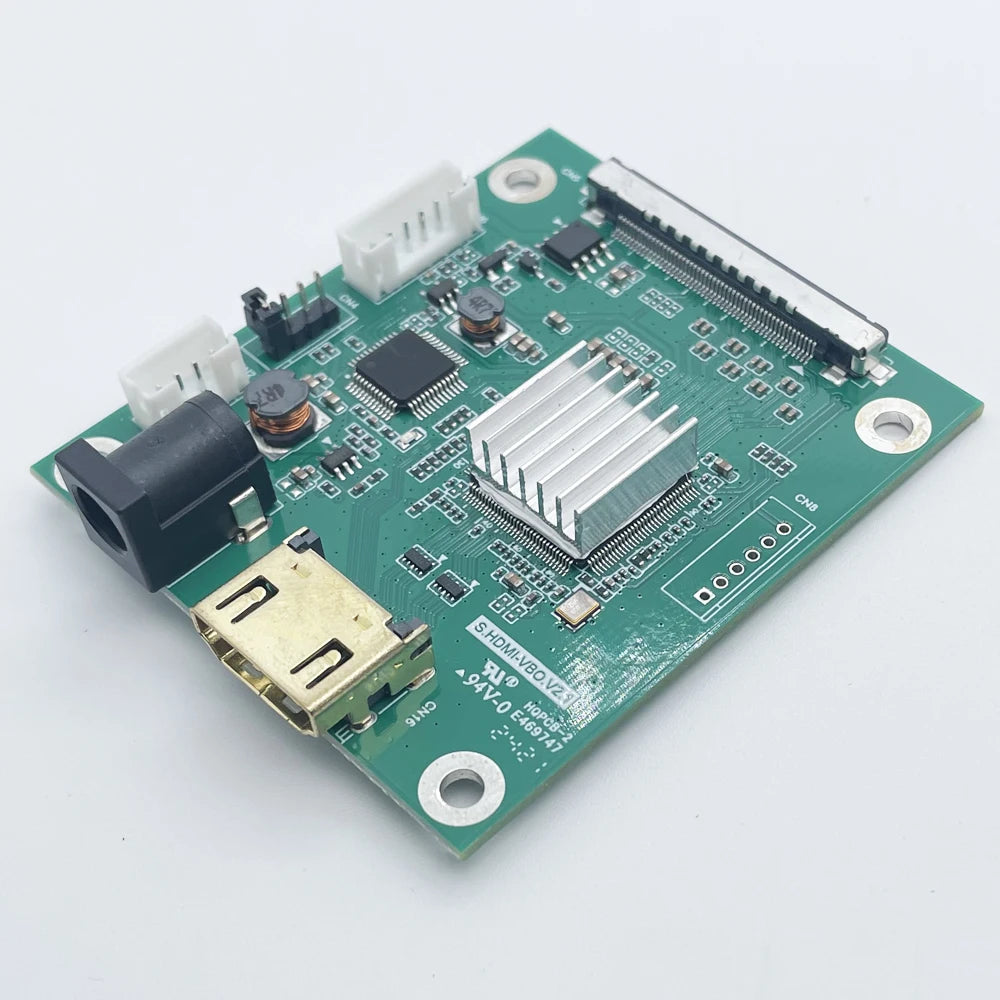

HDMI2.0 to V-by-One adapter board hdmi/4k60hz to VBO/Vbyone support 4K60HZ

HDMI 2.0 TO V-by-one, HDMI signal source must be 4K60HZ

1. Features

Dual port HDMI2.0b Receiver

Support 2 HDMI1.4/HDMI2.0b (18Gb/s) input ports (port-0, port-1)

Support HDMI1.4, HDMI2.0b/MHL2.2 dual mode on input port-0

Compliant with MHL2.2, HDMI1.4b, HDMI 2.0, HDCP1.4, HDCP 2.2 and DVI 1.0

specifications

Supporting link speeds of up to 6.0Gbps (link clock rate of 600MHz) for 4K2K@60hz or 1920x1200@120hz with deep color solution, and up to 1080p@60hz on MHL packed pixel mode

Supporting all the primary 3D formats which are compliant with the HDMI 1.4b 3D specification

Supporting 3D video up to1080P@50/59.95/60/120Hz,1080P@23.98/24/29.97/30Hz,1080i@50/59.94/60/Hz,720P@23.98/24/29.97/30Hz, 720P@50/59.94/60Hz

Supporting formats: Framing Packing, Side-by-Side (half), Top-and-Bottom

Support 3D frame packing convert to frame sequence mode

Support HDMI2.0b 3D feature

Frame packing mode up to 4Kx2K@23.98/24/30Hz and 1080P@59.94/60Hz

Top and Bottom up to 4Kx2K@59.94/60Hz

Side-by-Side (Half) up to 4Kx2K@59.94/60Hz

Side-by-Side (Full) up to 1080P@59.94/60Hz 

Support 3D frame packing convert to frame sequence mode

Digital audio output interface supporting

up to six I2S interface supporting maximum 12-channel 3D audio, with sample rates of 32~192 kHz and

sample sizes of 16~24 bits

S/PDIF interface supporting PCM, Dolby Digital, DTS digital audio at up to 192kHz frame rate

Support for high-bit-rate (HBR) audio such as DTS-HD and Dolby Trued through the four I2S interface or the S/PDIF interface, with frame rates as high as 1536kHz

Support maximum 8-channel 3D DSD audio through dedicated inputs

Compatible with IEC 60958 and IEC 61937

Support Multi-Stream and One Bit Multi-Stream audio packets

automatic audio error detection for programmable soft mute, preventing annoying harsh output sound due

to audio error or hot-unplug

Support 4Kx2K@60/50Hz 9Gb/s YCbCr 4:2:0 convert to 4Kx2K@60/50Hz 18Gb/s YCbCr4:4:4

Support YCbCr 4:2:0 to RGB 4:4:4 or YCbCr 4:4:4 or YCbCr 4:2:2 conversion

Support 4Kx2K@60/50Hz down scaling to 1080P@60/50Hz

Support Video format timing VIC(Video Identification ID Code) 96/106, scaling down to VIC 31/75

(3840x2160@50HZ scaling down to 1920x1080@50Hz)

Support video format timing VIC(Video Identification ID Code) 97/107, scaling down to VIC 16/76

(3840x2160@60HZ scaling down to 1920x1080@60Hz)

Support Video format timing VIC(Video Identification ID Code) 101, scaling down to 2048x1080@50hz

Support Video format timing VIC(Video Identification ID Code) 102, scaling down to 2048x1080@60hz

Support split single one 18Gb/s 4Kx2K@50/60Hz HDMI2.0b stream to two 9Gb/s 2Kx2K@50/60Hz
