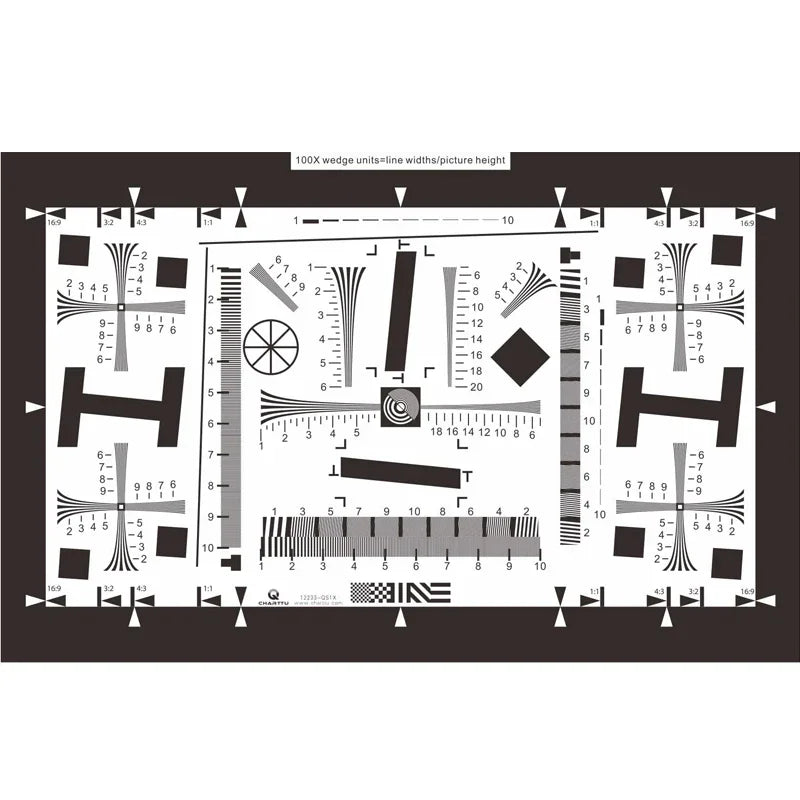

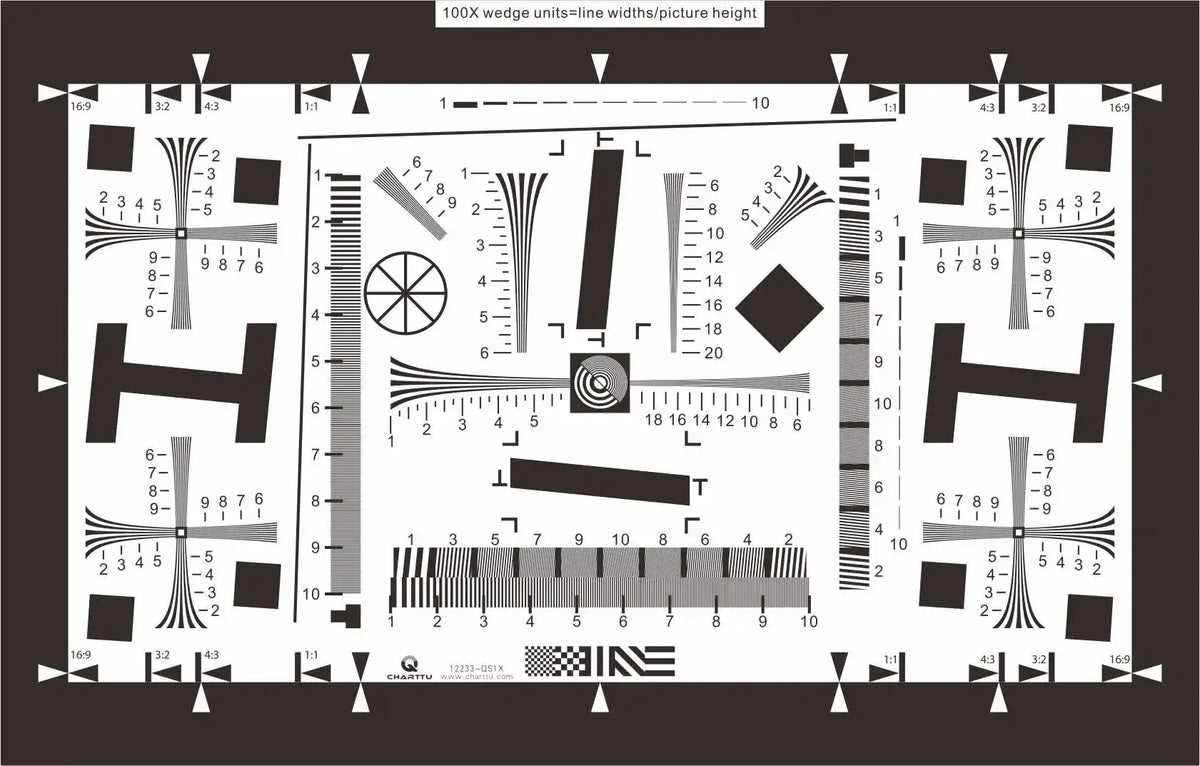

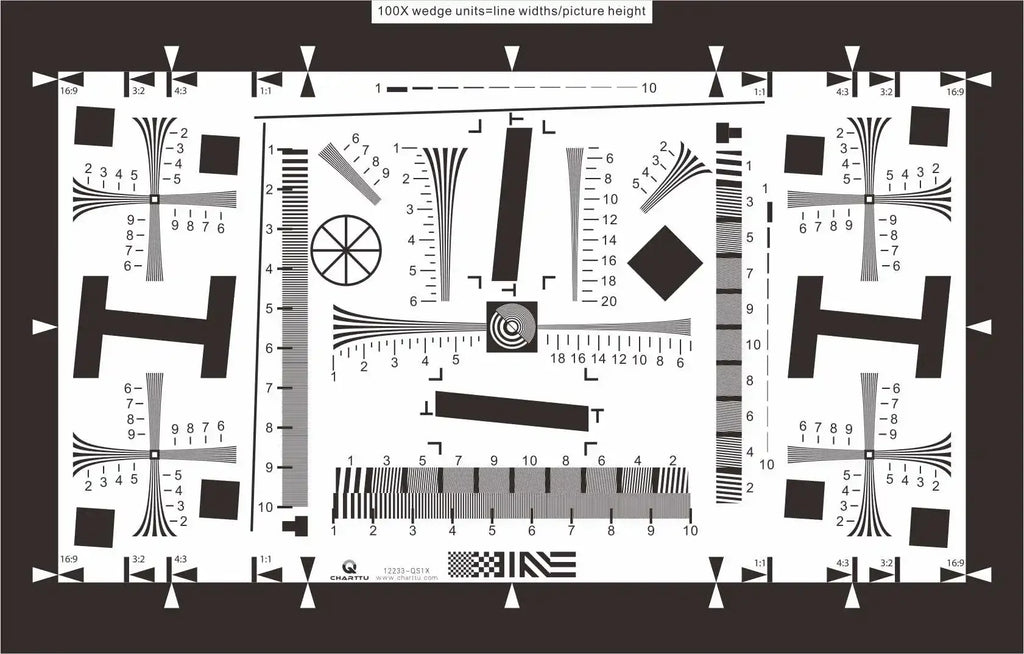

ISO12233 Resolution Test Chart Reflective Camera Webcam 2000 LW/PH 0.25mm, 711x400mm

$102.70

Choose your option below. Each model or pack is sold separately. Check the selected photo and product details for the contents.

Qty Available: 10 Ships from our US warehouse.

Shipping, returns, and payments

Shipping:

Free Standard Shipping.

Delivery:

Estimated between Sat, Nov 7 and Tue, Nov 10

Returns:

14 days returns.

Shop with confidence

Money Back Guarantee

Get the item you ordered or your money back.

Shipping and applicable taxes calculated at checkout. Shipping details · Return conditions · Ask a question

Description

Introduction:

The ISO12233 standard applies to civil still photo digital cameras (DSC), which are used for the clarity analysis of image and video acquisition equipment such as mobile phones, surveillance cameras, and machine vision.

This chart meets all the requirements of the ISO 12233 standard and can measure up to 2000LW/PH. The resolution in both the horizontal and vertical directions of the center and 0.7 field of view can be evaluated.

The chart includes SFR test, MTF test (frequency line test), TVLine visual resolution test (wedge line test).

Specification Table:

Resolution test card, camera test card, lens test card, image test card

All specifications default to 16:9 ratio, and 4:3 ratio is also available.

The 12233-QS highest resolution line can measure 2K LW/PH, and the highest resolution line can also be customized according to needs, such as up to 8K or 10K LW/PH.

It can also be customized by adding or subtracting test patterns as required. All specifications can be used as reflective version, 0.1-4 times specifications can be used as transmissive version, and other sizes can be used as transmissive version and contact us for consultation.
Size : 711X400X0.25mm
