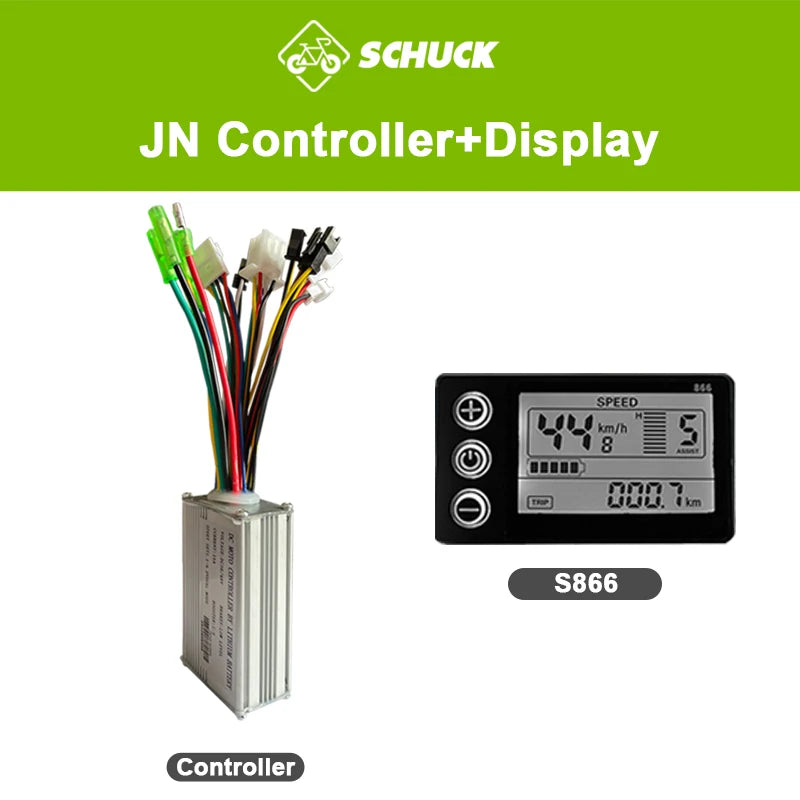

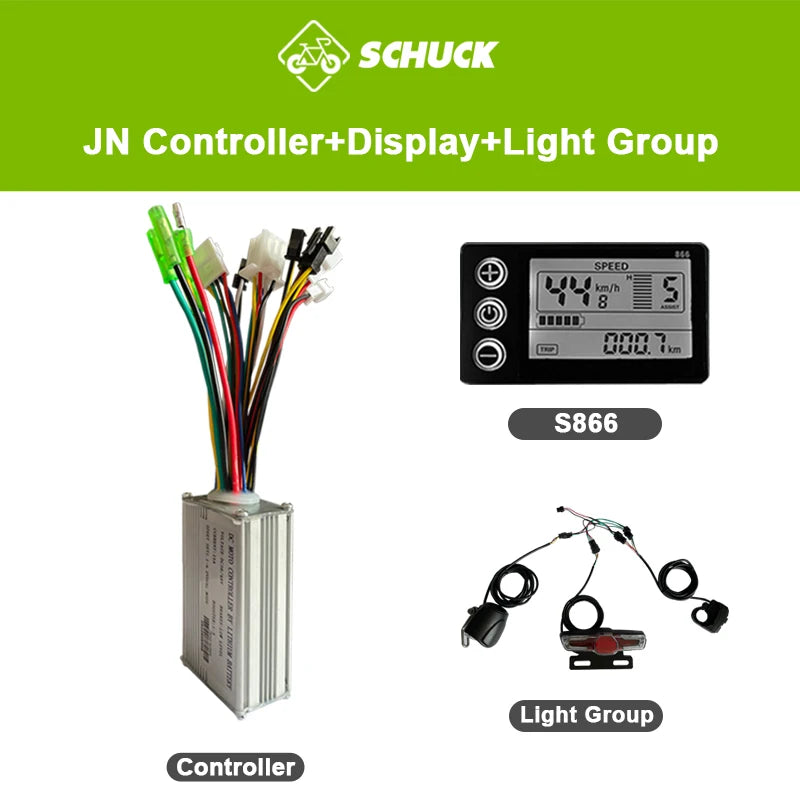

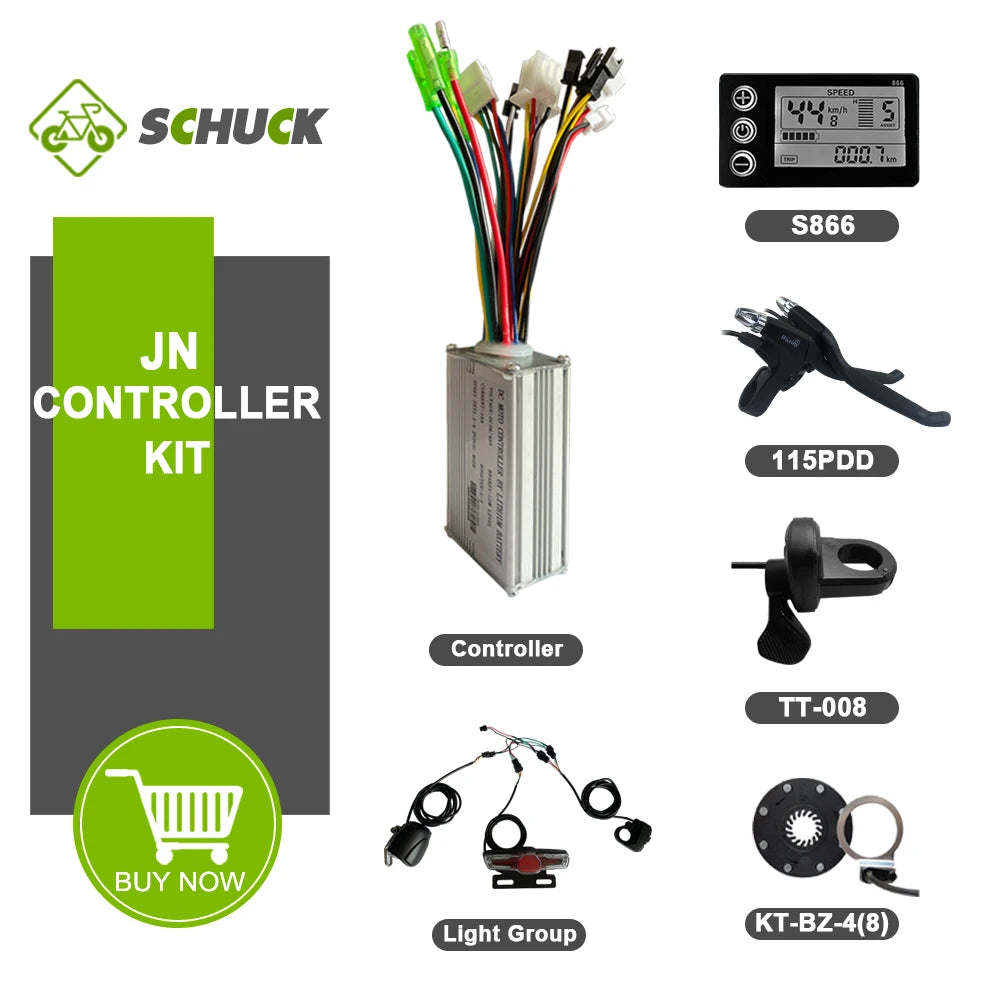

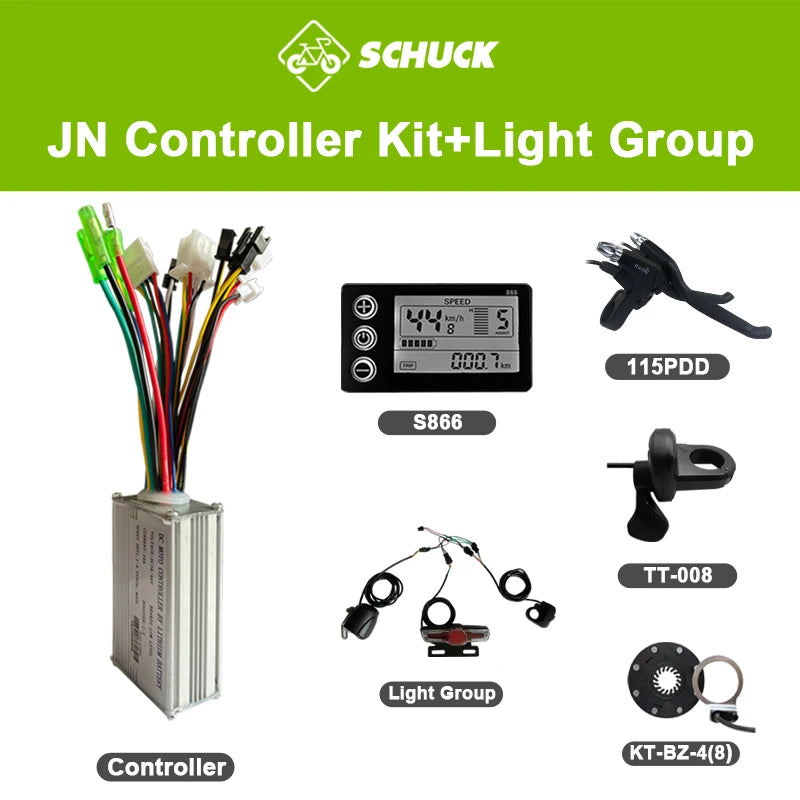

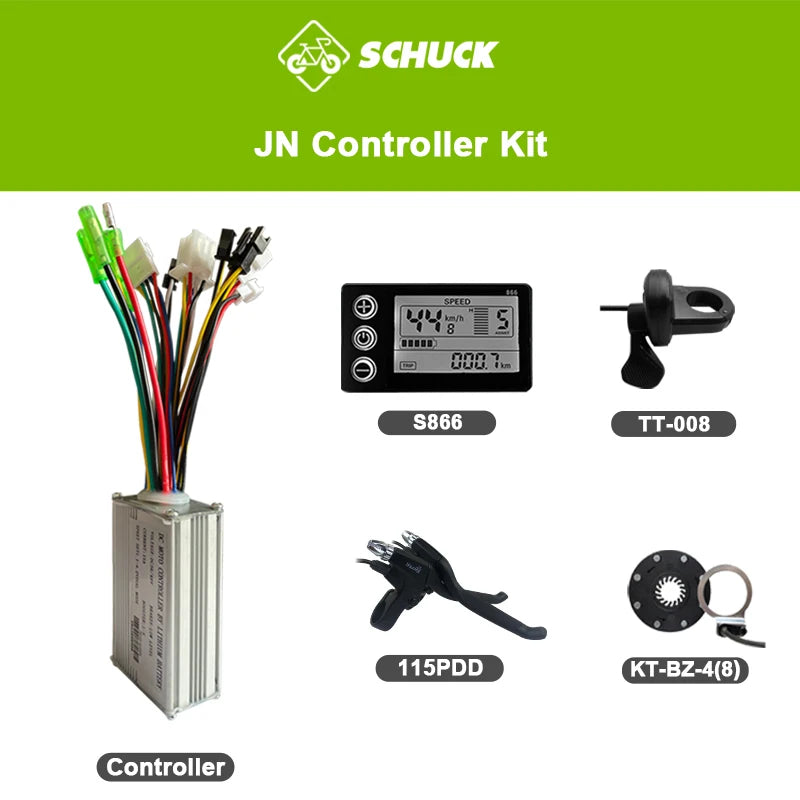

JN 36V/48V 15A 17A 22A 25A 30A 35A Ebike Controller Kit with Display Ebrake Throttle PAS Light Group for JN Electric Bike Parts

Description

JN 36V/48V 15A 17A 22A 25A 30A 35A accesorios para bicicletas with Display Ebrake Throttle PAS Light Group for JN Electric Bike Parts

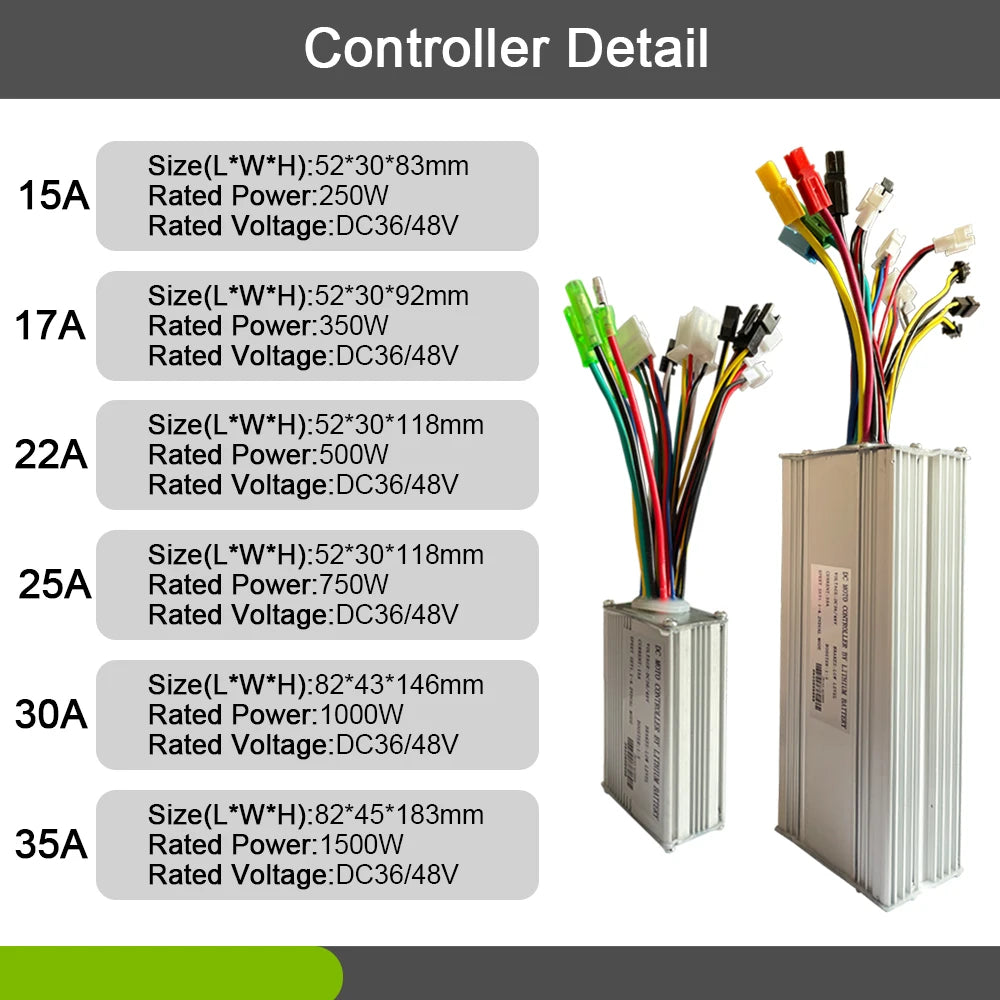

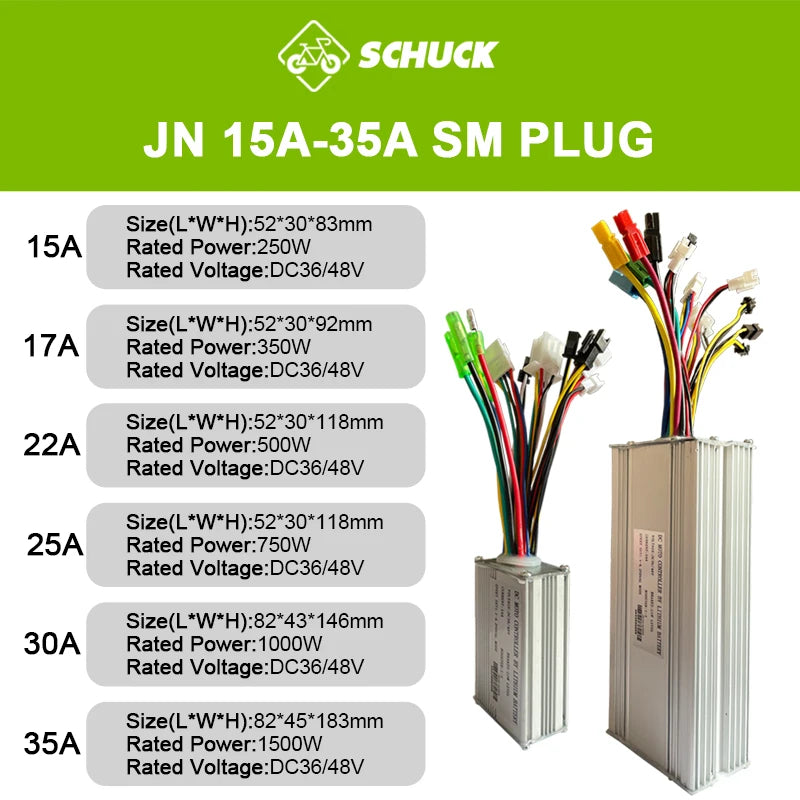

  15A Controller Parameter

Size(L*W*H):50*30*83mm

Rated Power:250W/350W

Speed Set:1.1-4.2V

Mosfet:6 Mosfet

Booster:1:5

Brakes: Low-L evel

Rated Voltage: DC36/48V

  17A Controller Parameter

Size(L*W*H):50*30*92mm

Rated Power: 250W/350W

Speed Set: 1.1-4.2V

Mosfet: 6 Mosfet

Booster:1:5

Brakes: Low-L evel

Rated Voltage:DC36/48V

  22A Controller Parameter

Size(L*W*H): 52*32*113mm

Rated Power: 500W

Speed Set:1.1-4.2V

Mosfet: 9 Mosfet

Booster:1:5

Brakes:Low-Level

Rated Voltage:DC36/48V

  25A Controller Parameter

Size(L*W*H):52*30*118mm

Rated Power: 750W

Speed Set:1.1-4.2V

Mosfet: 9 Mosfet

Booster:1:5

Brakes:Low-Level

Rated Voltage:DC36/48V

  30A Controller Parameter

Size(L*W*H): 82*43*146mm

Rated Power: 1000W

Speed Set:1.1-4.2V

Mosfet: 12 Mosfet

Booster:1:5

Brakes: Low-Level

Rated Voltage: DC36/48V

  35A Controller Parameter

Size(L*W*H): 82*45*183mm

Rated Power: 1500W

Speed Set: 1.1-4.2V

Mosfet: 12 Mosfet

Booster: 1:5

Brakes: Low-Level

Rated Voltage: DC36/48V

  Attention

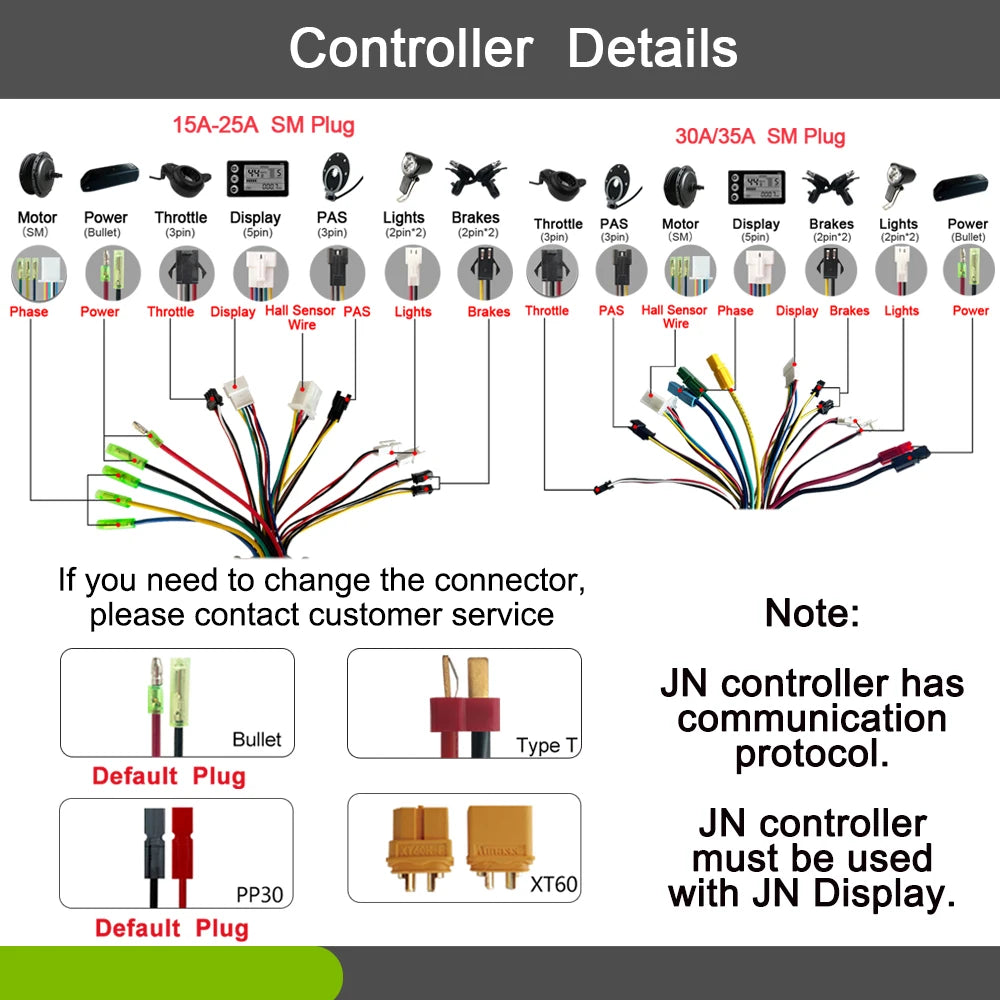

●Bullet Battery Connector,If you need to change the connector , please contact customer service

  Notice

●JN Controller only applies to JN system, please confirm whether you are using JN system, such as JN display.

●Please contact us if you are not sure which is right for you or have further questions by message.

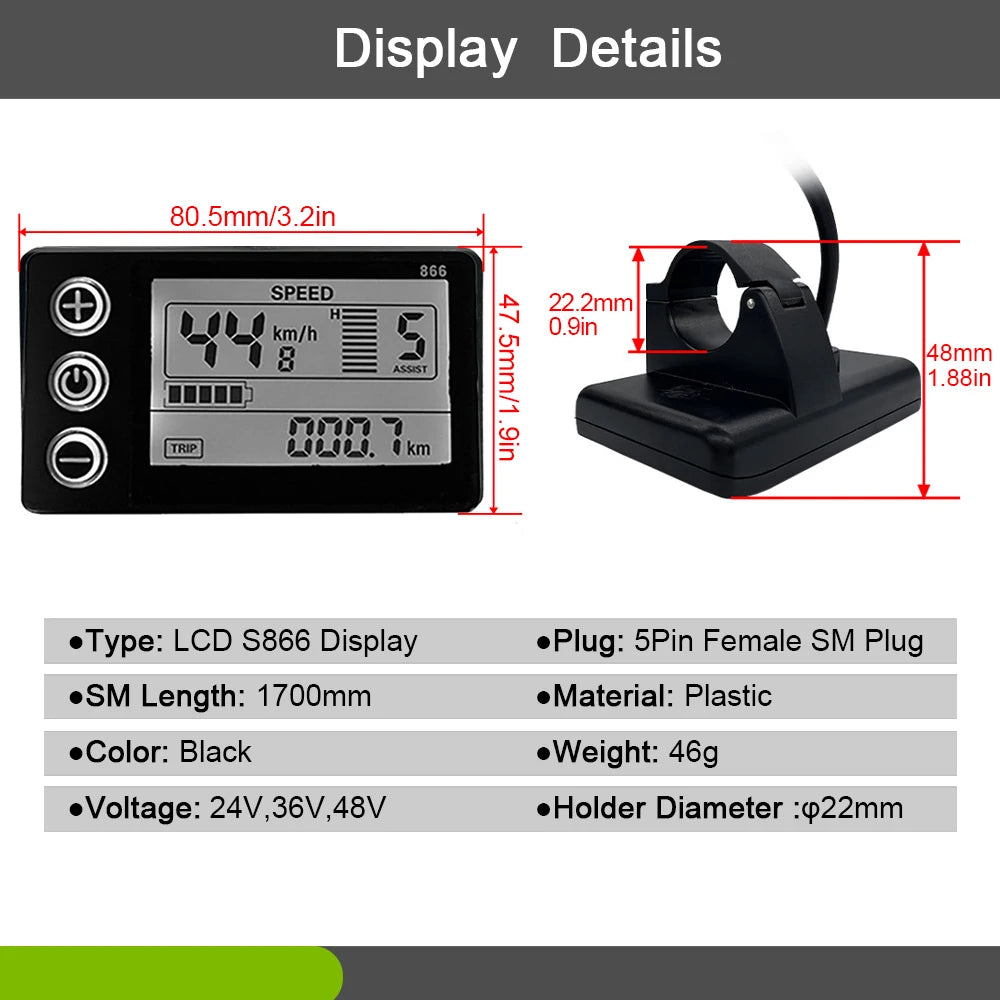

Type :LCD S866 Display

Voltage : 24V 36V 48V 60V

Plug : 5Pin Female SM Plug

Size:80.5*47.5*49.5(mm)

Cable Length: 170cm ( SM )

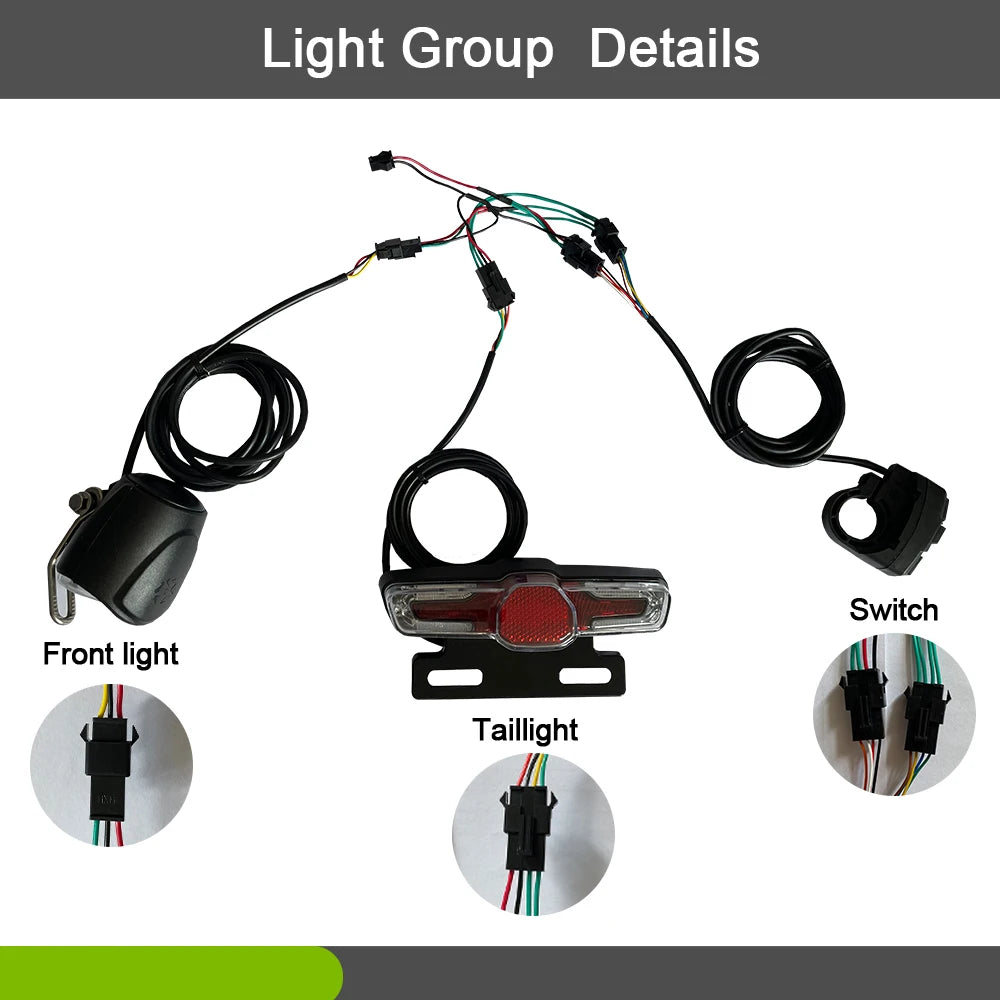

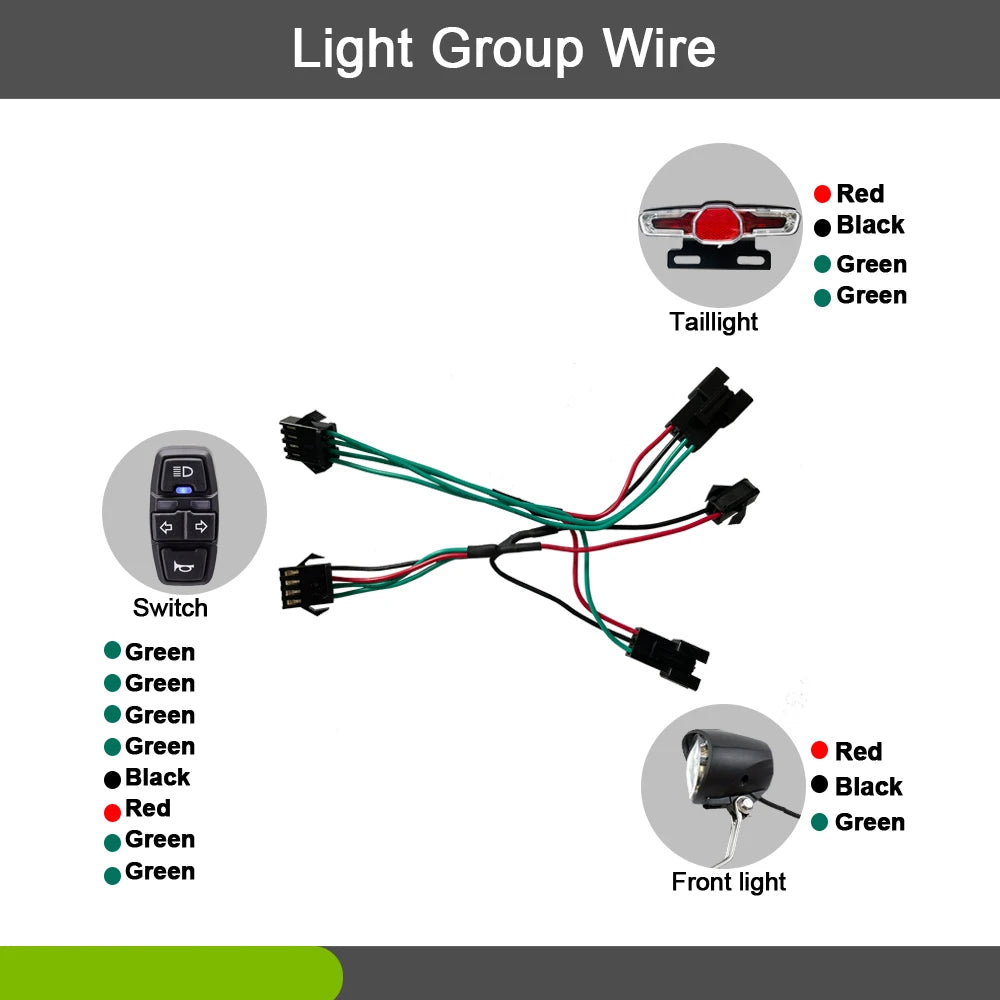

  Front Light
Material:PC ABS
Product Size:Approx65mmx52mmx45mm
Light Source:LED

Light Color:Black
Lighting Distance: 40-60meters at night

   Rear Light
Type:tail light

Model:D-05DC

Size:147*44*42mm

Applicable voltage:48V / 36V

Rear light current:48V/13mA, 36V/10mA

Material:ABS

Power:0.5W

Function:rear light, brake light, turn signal

Light brightness:15 LM

Outlet:four-core wire

Waterproof grade:IPX4

Installation location:the rear of the frame

  Wuxing Switch

Brand:WUXING

Model:DK336

Name:Light /Horn /Turn Switch

Voltage:12V-72V

Cable length:1500mm/59.06in

Weight:38.4g

Operating temperature:-20°C~60°C

Material:PP TPR

Wire pulling force:> 130N

Core: 8 Pins

Current:0.5A/12V DC

Waterproof:Waterproof:IPX4

Red button:Bicycle light

Green button:Bicycle Horn

Installation diameter:φ22.2mm

Function:Control horn and light ON/OFF
