LILYGO® TTGO Meshtastic T-Echo LoRa SX1262 Wireless Module 433/868/915MHz NRF52840 1.54 E-Paper GPS RTC NFC BME280 for Arduino

$100.58

Choose your option below. Each model or pack is sold separately. Check the selected photo and product details for the contents.

Style

Qty Available: 10 Ships from our US warehouse.

Shipping, returns, and payments

Shipping:

Free Standard Shipping.

Located in: United States

Delivery:

Estimated between Sat, Oct 10 and Tue, Oct 13

Returns:

14 days returns.

Shop with confidence

Money Back Guarantee

Get the item you ordered or your money back.

Shipping and applicable taxes calculated at checkout. Shipping details · Return conditions · Ask a question

Description

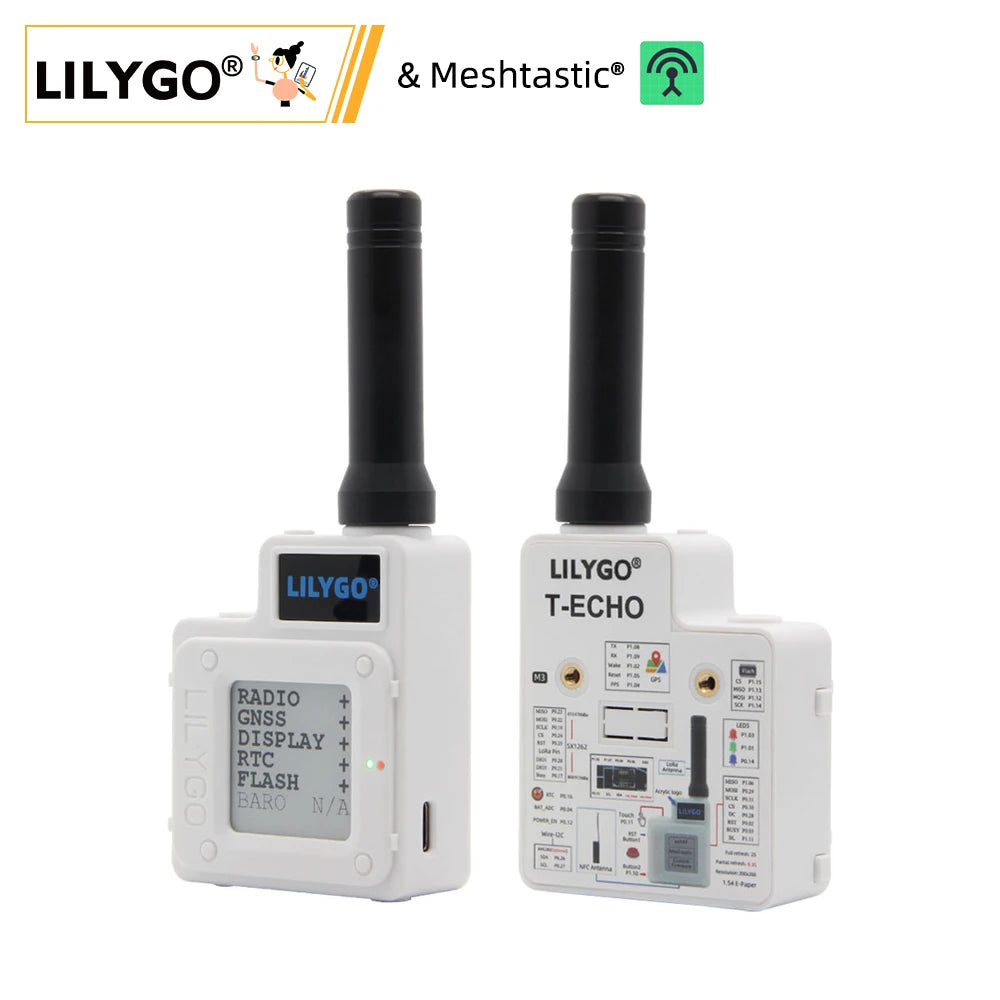

LILYGO® & Meshtastic T-Echo:

A evolved version of LILYGO T-BEAM, T-Echo is designed with a focus on Meshtastic compatibility, featuring Bluetooth and low power consumption.
It utilizes the NRF52840 SoC, supporting Bluetooth 5 / Threads / Zigbee multi-protocol.
The LORA function, inherited from T-BEAM, uses the LILYGO SX1262 version functional module with a Semtech SX1262 LORA RF transceiver chip.
Operating in the 433/868/915MHz ISM frequency band, it integrates a high stability TCXO 32MHz crystal oscillator, ensuring half-duplex transceiver functionality with a power of up to +22dBm and receiving sensitivity of -139dBm.
The module enables automatic transceiver switching, internal transmission and reception channel isolation, and employs advanced LORA spread spectrum communication technology for robust anti-interference and privacy. This facilitates long-distance wireless data transmission and reception.

Upgrade Content:

Upgraded from the fragile 3D printed shell to a more durable ABS material enclosure, aligning better with the product's positioning.

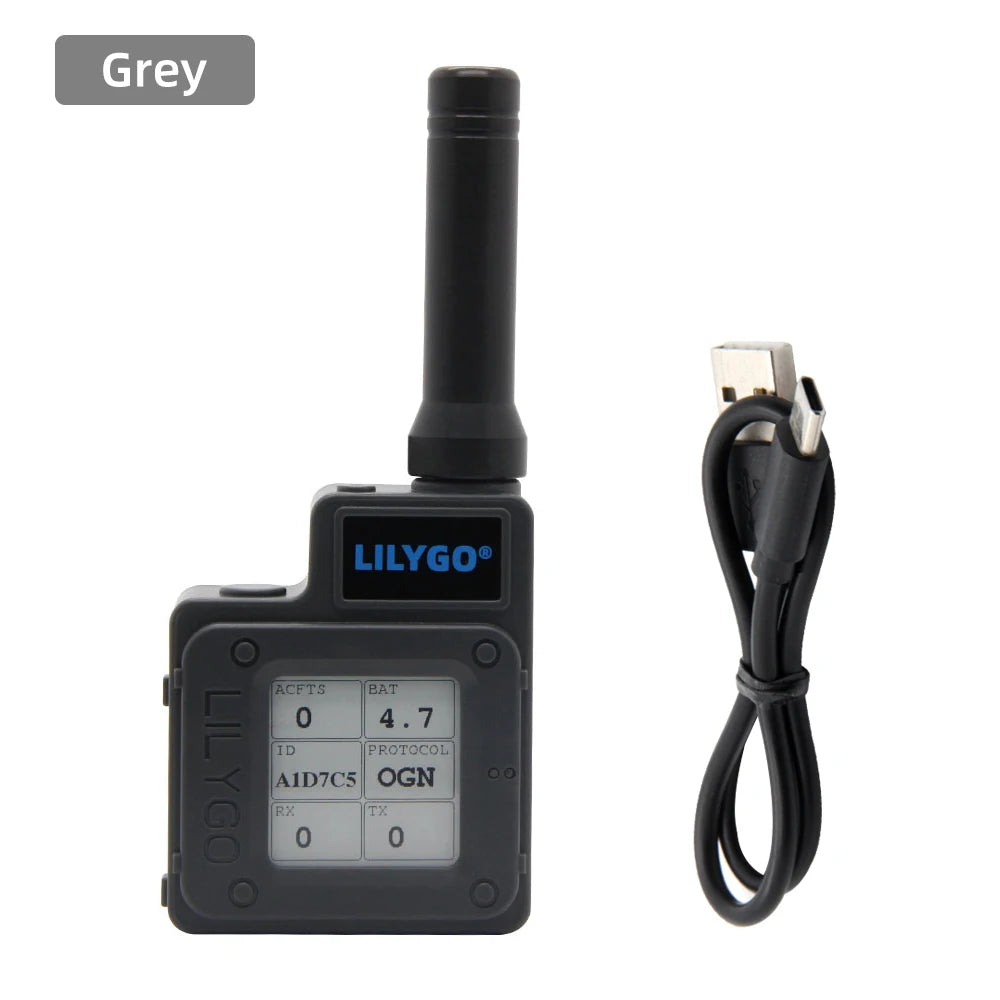

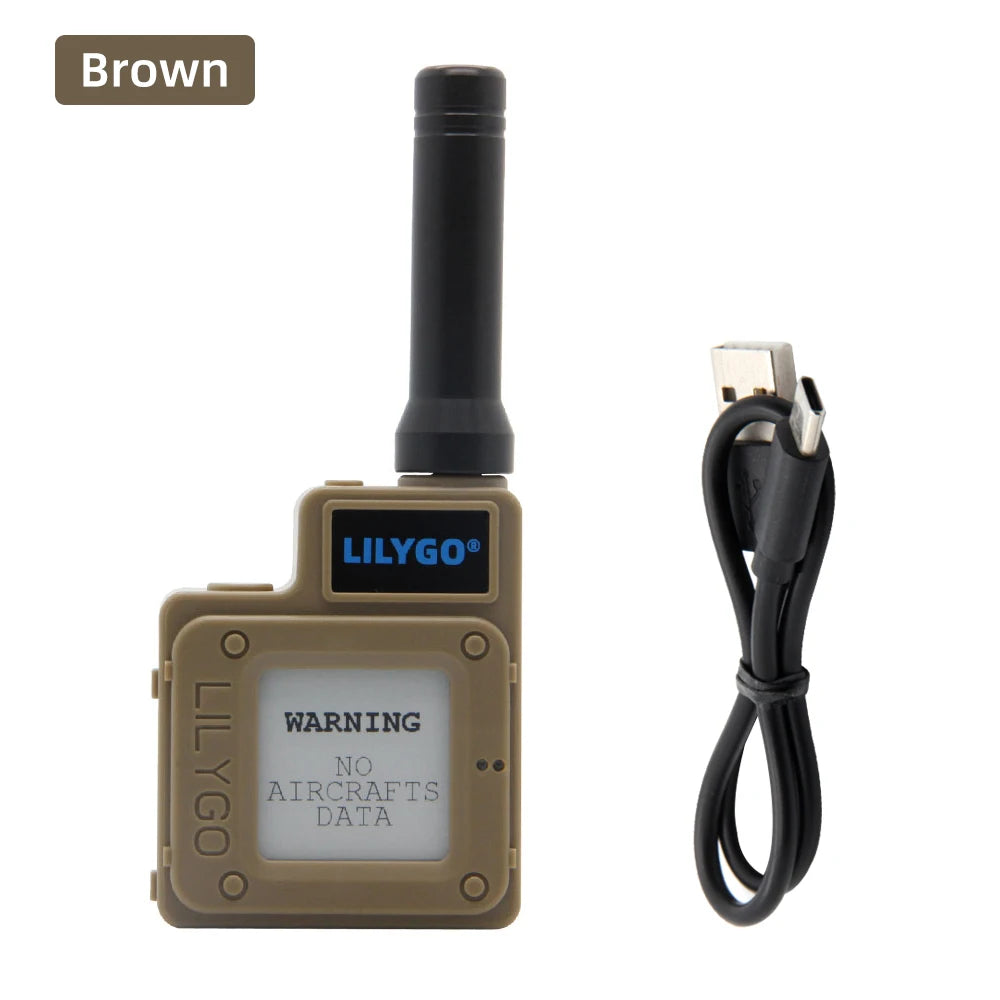

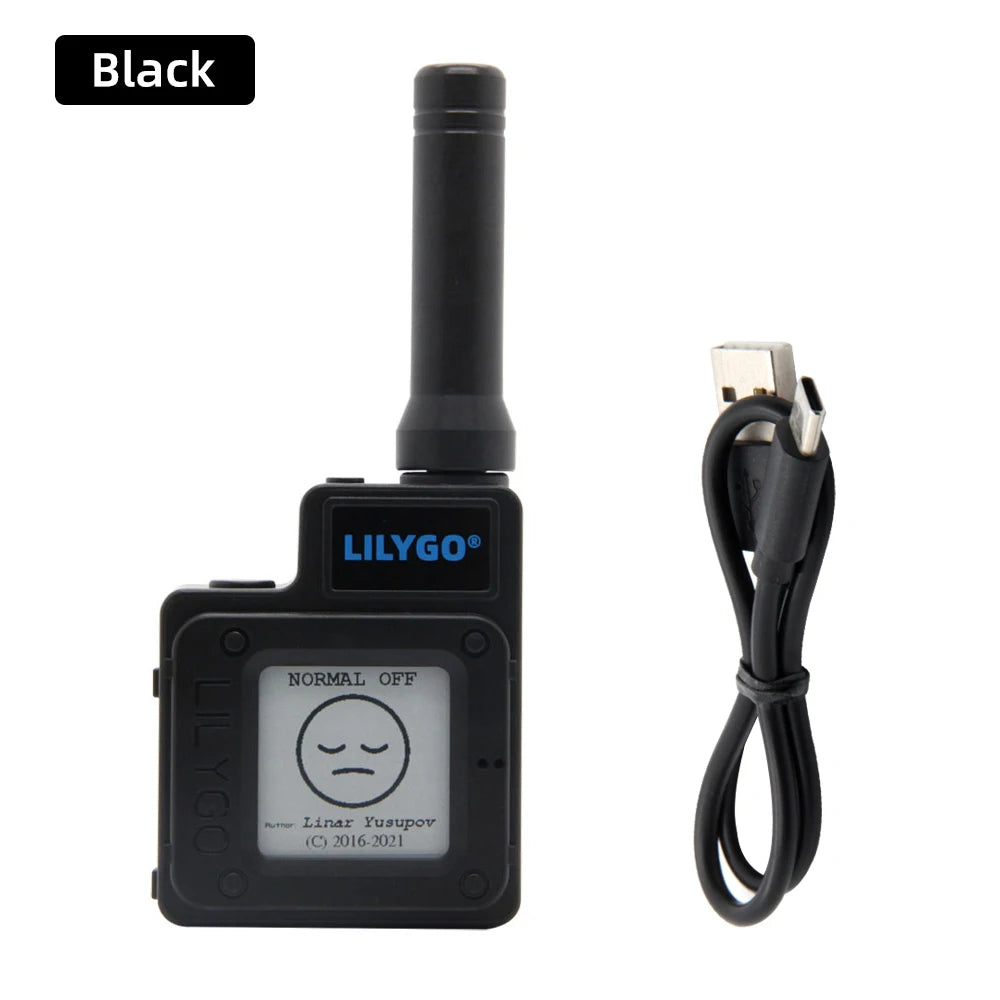

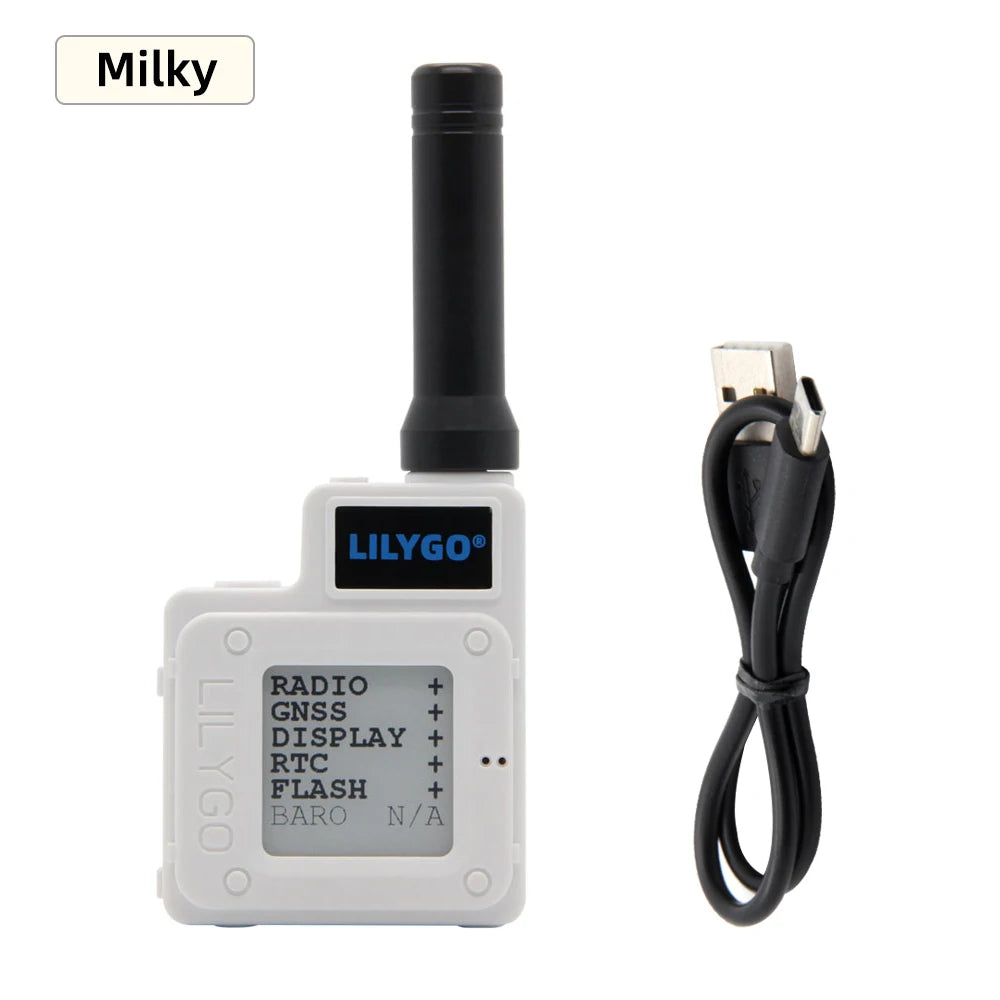

Color options have expanded to include white, black, gray, and brown, offering greater variety.

Update time: February 11, 2022

Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

Battery capacity: 850mAh

Application scenarios:

DIY creation
LoRa networking
GPS positioning
IOT terminal controlle
Stem education product

L76K Module Features:

The L76K module boasts a multi-satellite positioning system supporting GPS, BeiDou, GLONASS, and QZSS.
It allows both multi-system joint positioning and single-system independent positioning, featuring AGNSS support.
Equipped with a built-in low-noise amplifier and surface filter, this module ensures fast, accurate, and high-performance GNSS positioning.
Compared to a single GPS system, the multi-satellite system significantly enhances the number of visible and usable satellites, improving positioning accuracy, even in complex urban environments.
The AGNSS function reduces first positioning time, and the built-in low-noise amplifier ensures high sensitivity and precision in signal capture and tracking, even under weak signal conditions.
The integrated surface acoustic filter enhances anti-interference ability, and the module includes an active antenna detection and protection circuit for durability.

The display features a 1.54-inch electronic paper display with a front light, offering 200x200 resolution for clear visibility even in dark environments.
