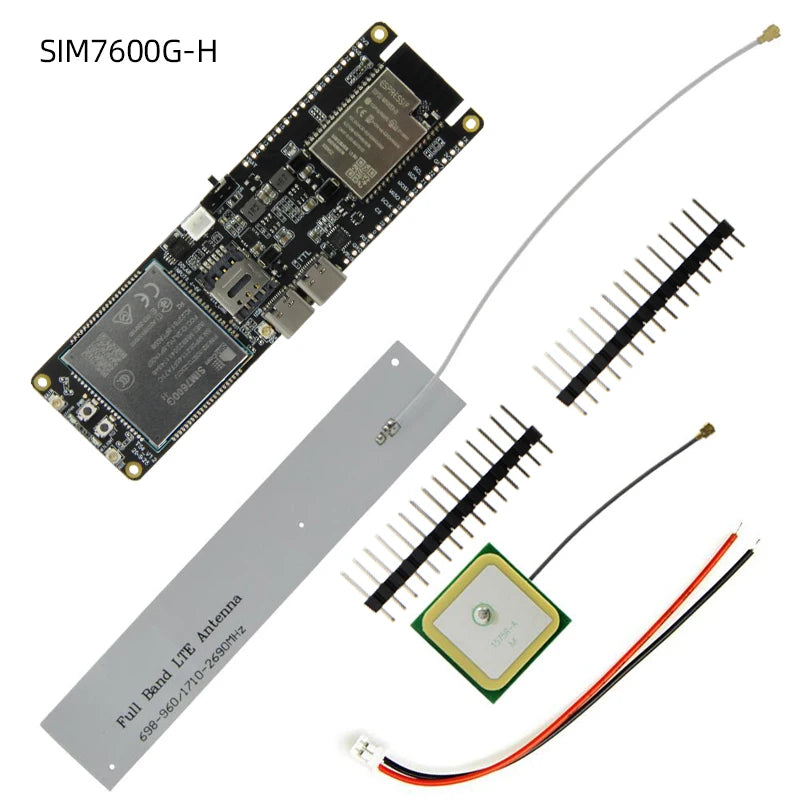

LILYGO TTGO T-SIM7600 ESP32 4G LTE Cat4/1 Development Board SIM7600 Module

$180.39

Choose your option below. Each model or pack is sold separately. Check the selected photo and product details for the contents.

Style

Qty Available: 8 Ships from our US warehouse.

Shipping, returns, and payments

Shipping:

Free Standard Shipping.

Delivery:

Estimated between Sat, Nov 7 and Tue, Nov 10

Returns:

14 days returns.

Shop with confidence

Money Back Guarantee

Get the item you ordered or your money back.

Shipping and applicable taxes calculated at checkout. Shipping details · Return conditions · Ask a question

Description

SIM7600 Series Introduction

The LILYGO® SIM7600 development board combines the power of the ESP32-WROVER and SIM7600 modules, enabling high-speed LTE connectivity for IoT and M2M applications.

It features an integrated 18650 battery holder and solar charging interface for added convenience.

The board also includes two T-type-c interfaces

For programming the main control chip
For connecting the SIM7600 USB dongle industrial network card to a computer via USB cable, allowing it to function as a wireless network card.

These features make the LILYGO® SIM7600 development board a versatile and user-friendly solution for various application scenarios.

LILYGO® April 8, 2022

Version update function:

The battery's positive and negative poles to avoid connected to the wrong protection, overcharge and over discharge protection.
GPS power control, reduce power consumption, the lowest reaches 300uA when sleeping.
Replacement of ordinary charging IC with solar charging IC.

Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

T-SIM7600X

Version Description
Version		Essential	Standard	Premium	Premium Plus Audio
Module		SIM7600X-L1C	SIM7600X	SIM7600X-H	SIM7600X-H With Audio
Data Transfer	LTE-FDD	10(DL)/5(UL)		150(DL)/50(UL)
	LTE-TDD	42(DL)/5.76(UL)
	WCDMA	384(DL)/384(UL)
	GSM	236.8(DL)/236.8(UL)
SIM Modules Firmware		USB	USB/FOTA

Supported Band References
Module		SIM7600G	SIM7600NA	SIM7600SA	SIM7600E
Regional Recommendations		Global	North America, Canada	South America, New Zealand, Australia	South America, Europe, Southeast Asia
Frequency Bands	LTE-FDD	B1/B2/B3/B4/B5/B7/ B8/B12/B13/B18/B19/ B20/B25/B26/ B28/B66	B2/B4/B5/B12/B13/B14/B25/B26/B66/B71	B1/B2/B3/B4/B5/B7/ B8/B28/B66	B1/B3/B5/B7/B8/B20
	LTE-TDD	B34/B38/B39/ B40/B41	B34/B38/B39/B40/B41	B40	B38/B40/B41
	WCDMA	B1/B2/B4/B5/ B6/B8/B19	B1/B2/B4/B5/ B6/B8/B19	B1/B2/B5/B8	B1//B5/B8
	GSM	850/900/1800/1900MHz			900/1800MHz

⚠️Notice:

This module is a development board designed for verification test experiments.
When purchasing, it must be used in compliance with local wireless management regulations, including the selection of frequencies that comply with local laws.
