M503 Magnetic Scale DRO Display Integrated Embedded Magnet Measurement System Magnetic Tape with Stain Belt Profile Woodworking

$102.70

Choose your option below. Each model or pack is sold separately. Check the selected photo and product details for the contents.

Style

Qty Available: 2 Ships from our US warehouse.

Shipping, returns, and payments

Shipping:

Free Standard Shipping.

Located in: United States

Delivery:

Estimated between Sat, Oct 10 and Tue, Oct 13

Returns:

14 days returns.

Shop with confidence

Money Back Guarantee

Get the item you ordered or your money back.

Shipping and applicable taxes calculated at checkout. Shipping details · Return conditions · Ask a question

Description

M503 Magnetic Scale Display Integrated Embedded Magnet Measurement System Magnetic Tape for Cutting Machine Woodworking

Package content

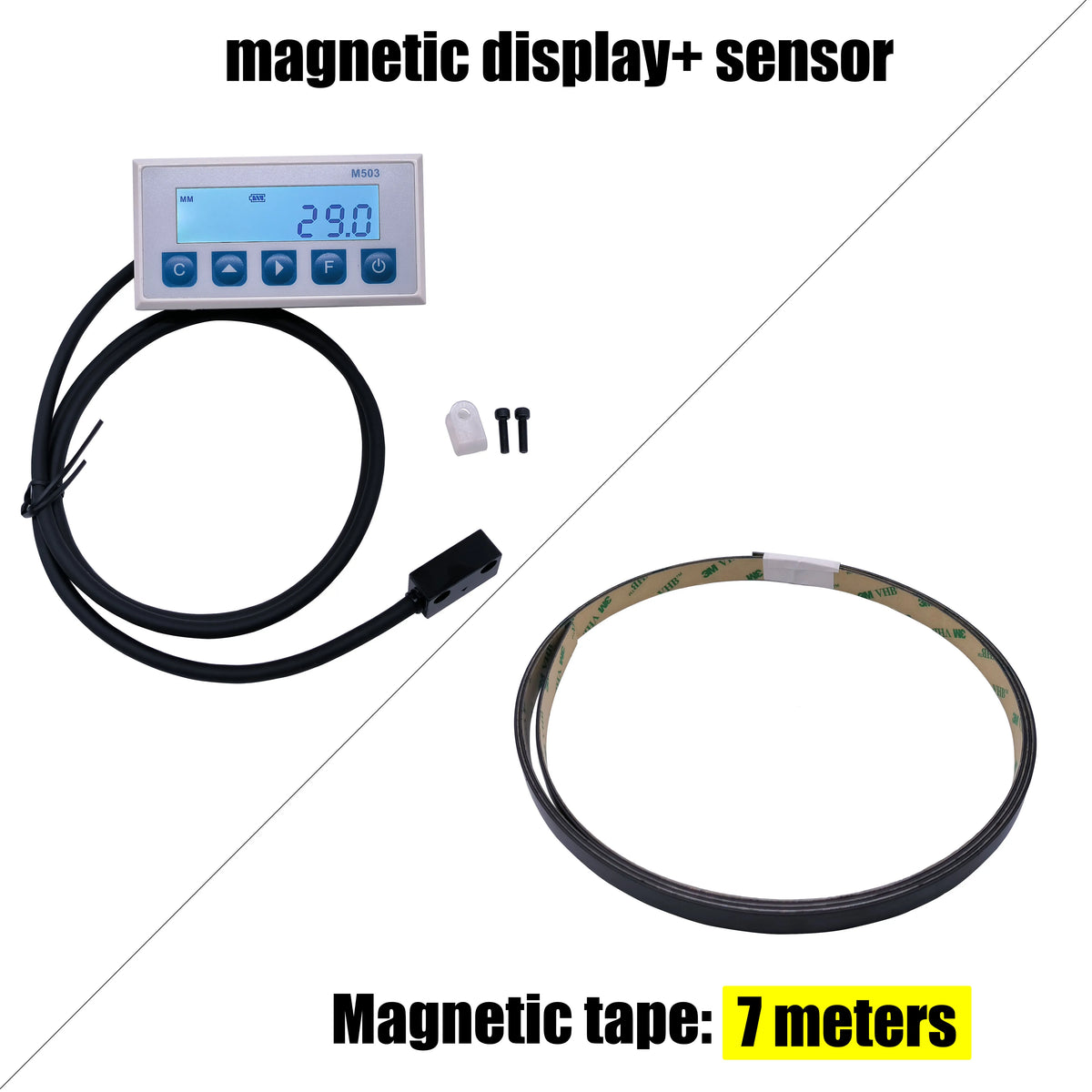

Option "Display only"
(M503 magnetic display with sensor )
If pay option "Display only", it will send a display and a magnetic sensor together, no magentic tape.

Option"Display with magnetic tape"
If need a complete set, display +sensor+tape. it need to pay both ( Display only + Magnetic tape).

Note: The display do not include battary, because it unable ship the battary by shipping company.

Please contact us if any question. thank you

Parameter

System accuracy: + (0.03+0.01*L) mm
Repeatability: Max. + 0.01mm
Display range: -1999999-9999999
Consumption current: Max.500UA (backlight not opened)
Power supply: two batteries No. 5 (AA)
Operating temperature: 0 degrees Celsius -60 degrees Celsius
Storage temperature: -10 degrees Celsius -70 degrees Celsius
Outline size: 100*52*30mm
Opening size: 92*42mm
Read line length: 1m customizable (2M 3M 5M 6M).
Mobile speed: Max.5m/s
Read gap: Max.2.5mm, recommended 1.5mm
Matching magnetic stripe: FT50
Waterproof grade: digital display IP40, read head IP60
Weight: Max.150g

Basic datasheet

Resolution: 0.01mm /0.1mm / 1mm
Display mode:MM / INCH
Measuring: Length / Angle
