M5Stack ATOMS3R Programmable Controller

Product Features

Developed based on ESP32-S3FN8
Comes with USB download function
Built-in 3-axis gyroscope and 3-axis accelerometer (MPU6886)
Programmable keys
0.85 inch LCD screen
Infrared emission function
Expandable pins and interfaces
Development platform: Arduino, UIFlow

Applications

IoT node
Microcontroller
Wearables

Package Includes

1x ATOMS3R

Specification

Specification Details

SoC: ESP32-S3-PICO-1-N8R8 @Dual-core Xtensa LX7 processor, up to 240MHz @USB-OTG

PSRAM: 8MB PSRAM

FLASH: 8MB FLASH

TFT Driver: GC9107

Color IPS Resolution: 128 x 128

Six-axis sensor (BMI270): Accuracy: 0.05% (acceleration), 0.05°/s (angular velocity), I2C address: 0x68

Three-axis geomagnetic sensor (BMM150): Accuracy: 0.3 μT

Mounted on BMI270, magnetometer data accessed via BMI270

IR: Infrared transmission range: 12.46m @ ∠180°, 1.45m @ ∠90°, 3.88m @ ∠45°

Sleep current: GPIO-5V power: DC5V @ 11.63 μA, Grove-5V power: DC5V @ 10.75 μA, USB-5V power: DC5V @ 92.50 μA

Bottom reserved GPIO pins: G5/G6/G7/G8/G38/G39

Operating temperature: 0°C ~ 40°C

Product dimensions: 24*24*12.9mm

Packaging dimensions: 85*65.5*13mm

Product weight: 6.7g

Packaging weight: 13.4g

Product Comparison

Product details

Schematics

Module Size

Product Description

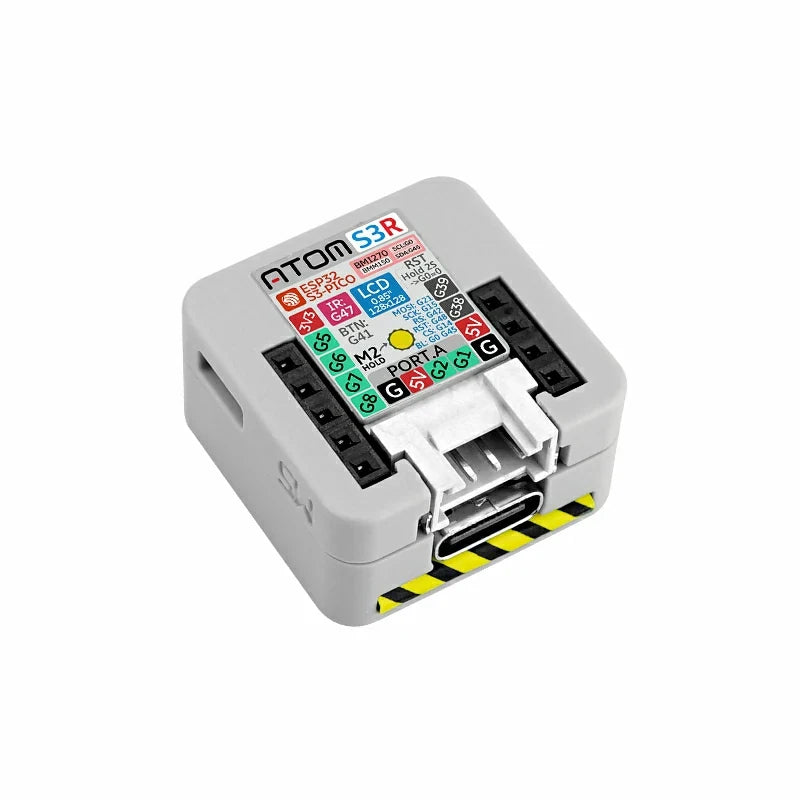

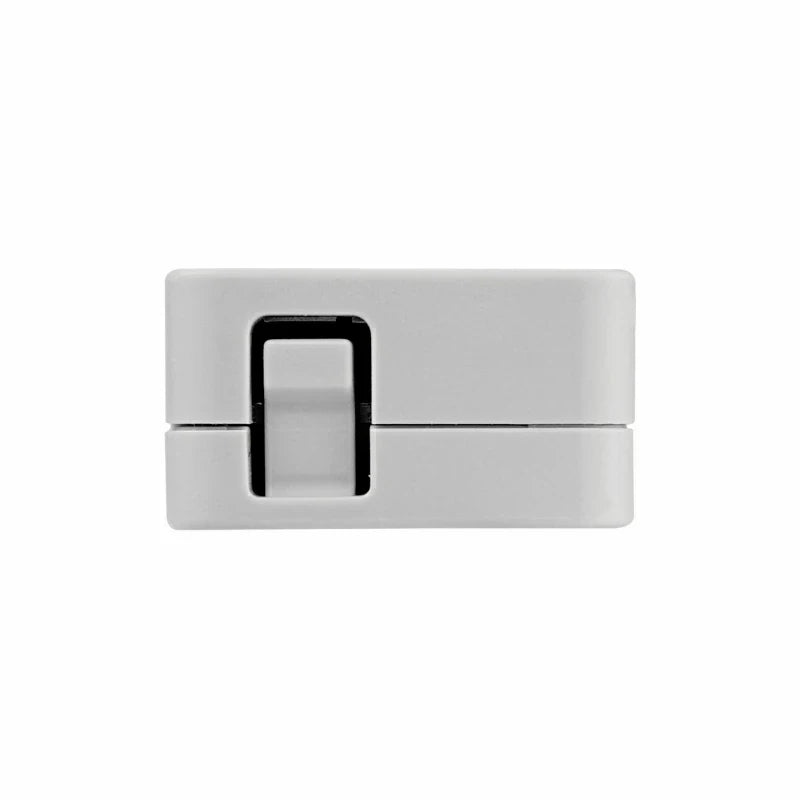

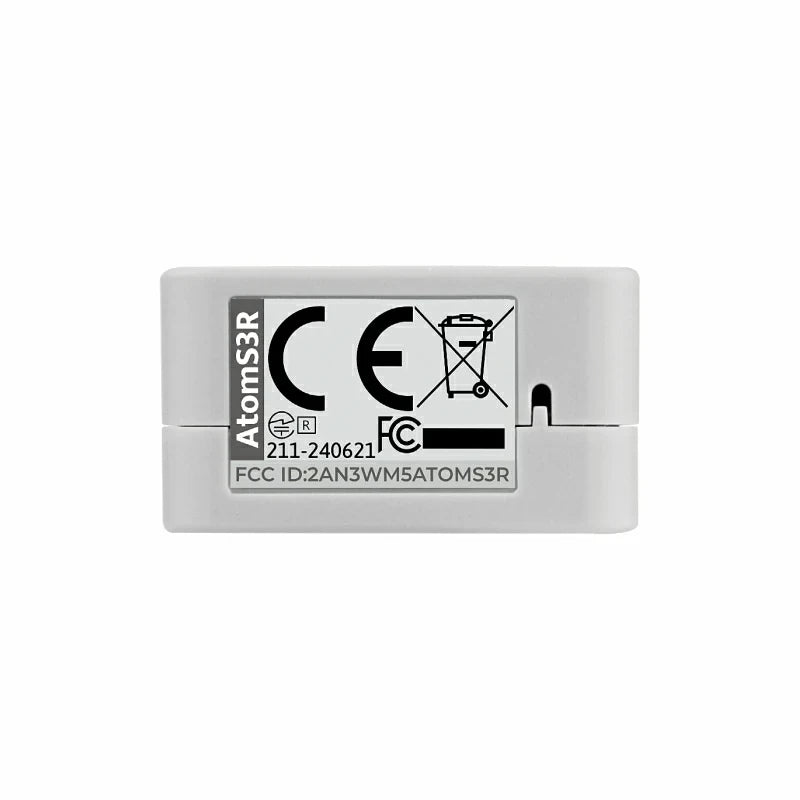

AtomS3R is a highly integrated programmable controller based on the ESP32-S3 main controller. It features the ESP32-S3-PICO-1-N8R8 main controller with built-in WiFi, 8MB onboard FLASH, and 8MB PSRAM. It comes with a 0.85-inch color IPS screen, with a programmable button beneath the screen. The device includes a 5V to 3.3V power circuit, a built-in three-axis BMM150 geomagnetic sensor, and a six-axis BMI270 attitude sensor. It also has a Type-C interface for power supply and firmware downloads, along with a HY2.0-4P expansion port. Six GPIO and power pins are reserved at the bottom for easy expansion. Compared to previous products, the 3D antenna of the AtomS3R has been enhanced, offering better performance and greater stability. The product measures only 24x24x12.9mm, making it suitable for various embedded smart device applications.

Download Mode

press and hold the reset button (about 2 seconds) until the internal green LED lights up, then release the firmware. At this time, the device has entered download mode, waiting for burning.

When controlling the LCD backlight, the PWM frequency is recommended to use 500Hz.
