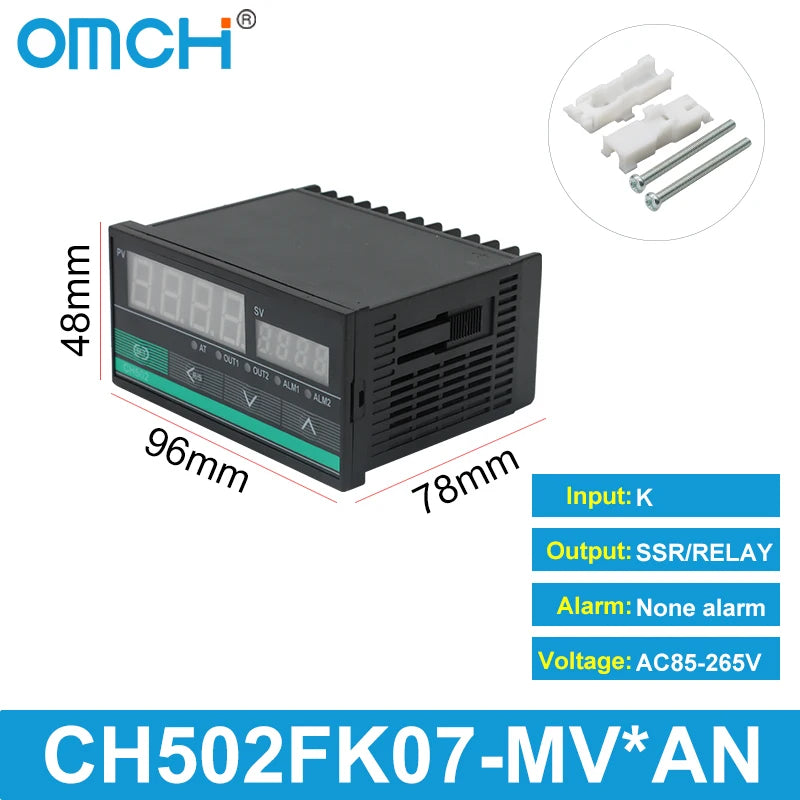

OMCH Digital PID Temperature Controller CH Series, K-Type Input, SSR/Relay Dual Output, 0-1300°C

$28.34

Choose your option below. Each model or pack is sold separately. Check the selected photo and product details for the contents.

Qty Available: 10 Ships from our US warehouse.

Shipping, returns, and payments

Shipping:

Free Standard Shipping.

Delivery:

Estimated between Sat, Nov 7 and Tue, Nov 10

Returns:

14 days returns.

Shop with confidence

Money Back Guarantee

Get the item you ordered or your money back.

Shipping and applicable taxes calculated at checkout. Shipping details · Return conditions · Ask a question

Description

Model number	CH-B series
Accuracy	±0.5% of full scale
Supply voltage	85-265Vac, 50/60 Hz
Input types-Thermocouple	K Default K 0-1300℃
Alarm quantity	1pcs
Output types	Electromagnetic relay / SSR (Pls choose the right output when ordering)
Power consumption	Less than 10 VA
Control method	PID Control (with auto-tuning) or Self-tuning, or ON/OFF
Temperature Mesurement Scope	0 to 999 ℃, default factory setting K02 input - 0 to 400 ℃ (adjustable)
Operating temperature	0 to 50 ℃ (32 to 122 ℉)
Operating humidity	30-85% RH max, non-condensing
Alias nam	CH-B pid temperature controller, intelligent temperature controller

C/CH Series Temperature Controller User Manual

Defore using this product, please carefuly read the instructions for the proper Pleaseread the operationmanual for the proper use of this product beforeusing)

Wiring warning

To prevent instrument damage or failure,the choice of the appropriate fuse protected power cord and input/output lines to prevent the current impact.

To prevent electric shock or instrument failure,power only after the completion of all the wiringwork.

To prevent the accident or instrument failure,non-altered instrument.

The main technical indicators

1.Measurement Precision:±0.5%FS

2.Cold junction Compensation error:±2℃(0-50 ℃C within the software correction)

3. Resolution:14bit

4. Sampling Period: 0.5 Sectetary

5.Power Supply:AC 85-265V 50Hz

6. Control Mode:Industrial-grade expert self-funing PID technology,compared with the raditional PID control with rapid temperature control,fast response,small overshoot,high precision control

7.Insulation Resistance:>500mΩ (500VDC)

8.Dielectric Strength:1500VCA/min

9.Powor Sonsumption:<10VA

10. Occasions Environment:0-50℃,30-85% RH non-corrosive gases

INSTALLATION

Precautions

1.instrumentation installed in the following environments

◇Atmospheric Pressure:86-106kpa.

Ambient Humidity:0-50℃Ambient temperature:45-86% RH.

2. Installation hould pay attention to thefollowing circumsfances:

Drastic changes in the ambient humiditymay cause condensatlon.

Direct vibration or shock theme structure.

◇Water,oll,chemicals,sroke or steam pollution.

◇Excessive dust,salt,or metal powders.

Air conditioning blowing straight.

Direct sunlight.

The accumulation ofheat radiation.

Product introduction:

1. CH-B thermostat: 0-999 ℃ measurement scope, default factory set is 0-400 ℃ K type input, you can adjust input type according to user manual.
[Purchase Instructions: We sell 4 types of temperature controllers corresponding to different input and output types, so please purchase according to your needs. Single input only supports the connection of K-type, J-type and E-type thermocouples.Only universal input can support connecting PT100.]

2. 1m k type M6 sensor: M6 screw type, support 0-600℃.

3. SSR-40DA: Control mode dc-ac, 3-32v/dc control voltage, 24-480v/ac load voltage, 40A output current, 5-20mA control current.

4. Base 10-40A: can be used for 10-40A ssr. Due to the high heat of solid-state relay, when the load current is higher than 10A, radiators must be used.

Packing List:

1PCS CH-B thermostat
