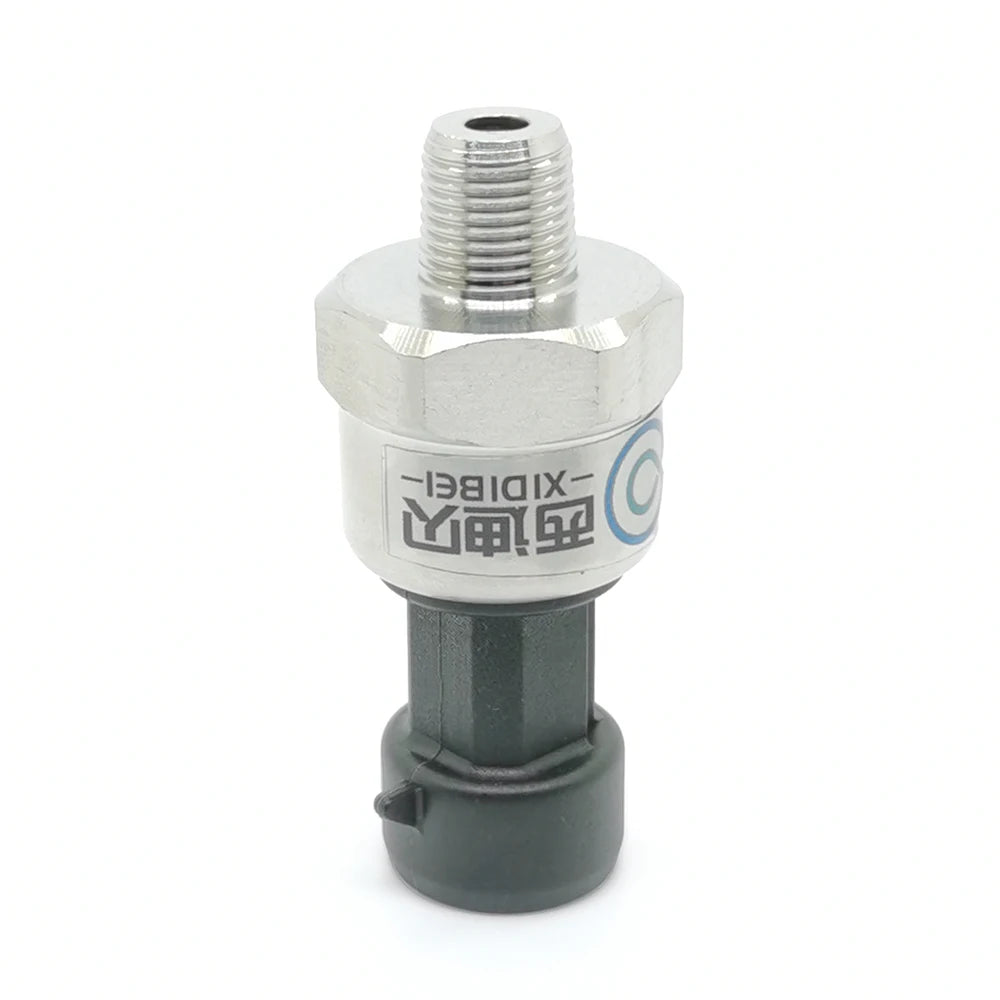

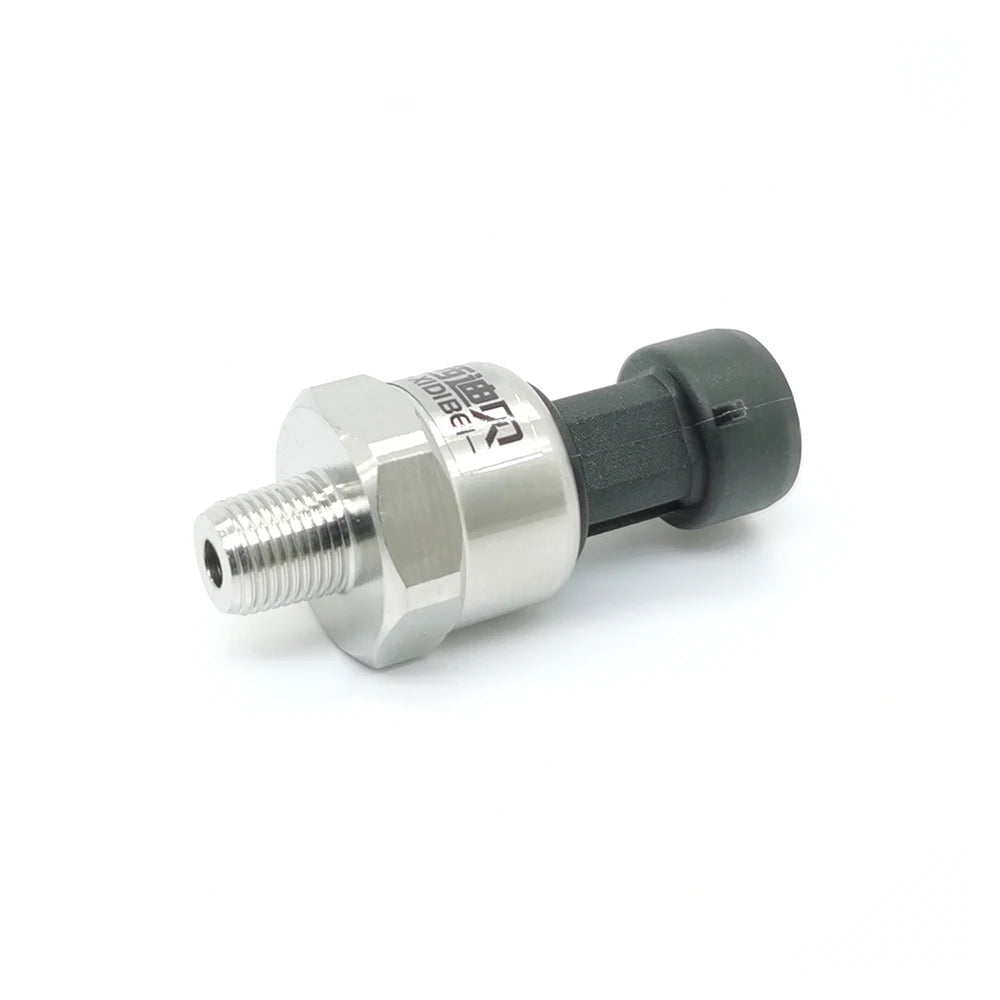

pressure sensor transducer transmitter for water oil fuel gas air 1/8NPT DC 5V ceramic sensor stainless steel 5-300psi optional

$36.16

Choose your option below. Each model or pack is sold separately. Check the selected photo and product details for the contents.

Ships From

Qty Available: 10 Ships from our US warehouse.

Shipping, returns, and payments

Shipping:

Free Standard Shipping.

Located in: United States

Delivery:

Estimated between Fri, Oct 16 and Mon, Oct 19

Returns:

14 days returns.

Shop with confidence

Money Back Guarantee

Get the item you ordered or your money back.

Shipping and applicable taxes calculated at checkout. Shipping details · Return conditions · Ask a question

Description

Descriptions

XDB401 series of pressure transmitters adopts ceramic pressure sensor core, all stainless steel package, suitable for most media, with good long-term stability, it can be used in various environments and climates, so it is widely used in various fields.

Features

◆ CE conformity
◆ Low cost and high quality
◆ All stainless steel integrated structure
◆ Small size, convenient to install and operate
◆ 0.5-4.5V, 0-5V, 1-5V, various voltage output
◆ Complete surge voltage protection function
◆ For applications such as air, water, oil
◆ Provide OEM, flexible customization

Applications

◆ Intelligent IoT constant pressure water
supply
◆ Engineering machinery, industrial process
control and monitoring
◆ Energy and water treatment systems
◆ Steel, light industry, environmental protection
◆ Medical, agricultural machinery, testing
equipment
◆ Flow measurement equipment
◆ Hydraulic and pneumatic control systems
◆ Air-conditioning unit and refrigeration
equipment
◆ Water pump, air compressor pressure
monitoring

Parameters

Measuring range: -14.5-30psi / 5-300psi gauge
pressure
Accuracy: ±1.0%FS
Output signal: 0.5-4.5V, 0-5V, 1-5V
Supply voltage: 5VDC, 12VDC, 3.3VDC
Operating temperature: -40～105℃
Compensation temperature: -20～80℃
Operating current: ≤3mA
Temperature drift (zero&sensitivity): ≤±0.03%FS/℃
Long-term stability: ≤±0.2%FS/year
Response time: ≤3ms
Overload pressure: 150%FS
Burst pressure: 300%FS
Cycle life: 500,000 times
Sensor core: Al2O3-96% ceramic sensor
Pressure medium: Non-corrosive liquid or gas
Pressure connection: 1/8”NPT, Other pressure connection is on request

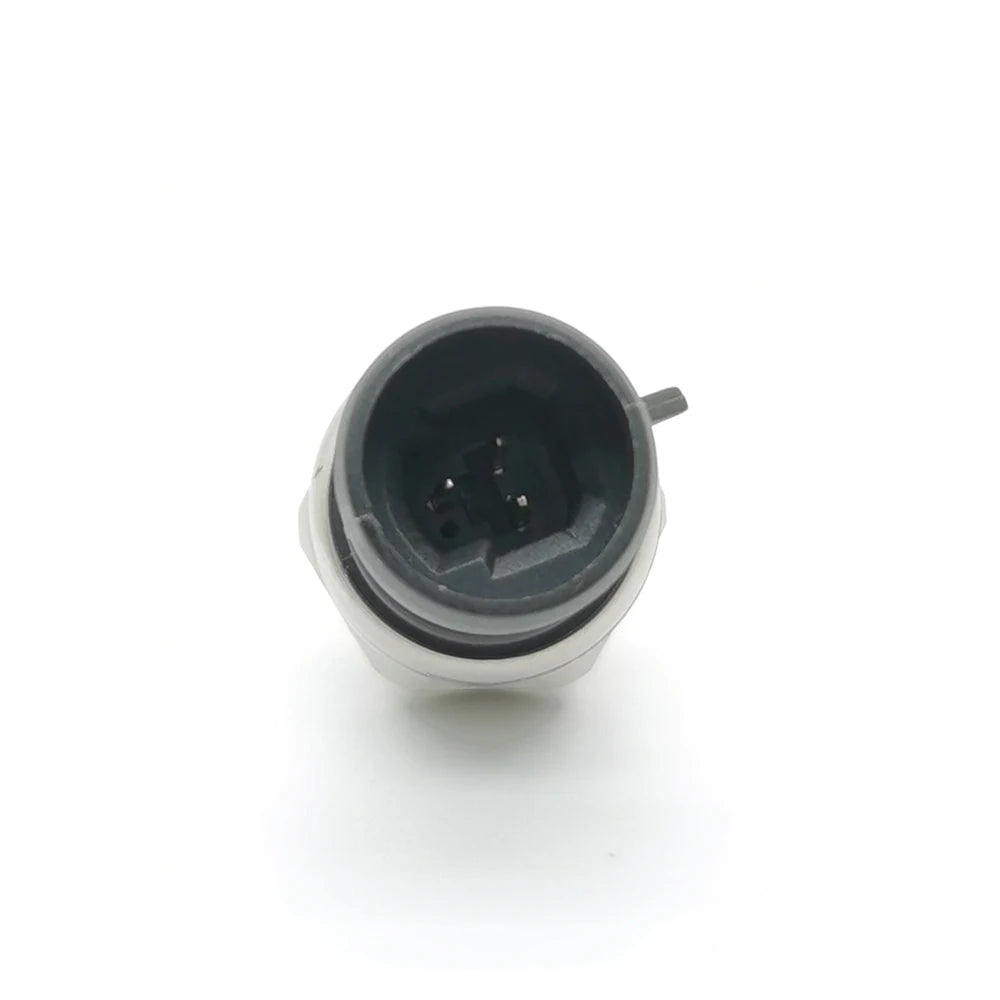

Electrical connection: Packard connection
Housing material: 304 Stainless Steel
Protection class: IP65
Explosion-proof class: ExiaⅡCT6
Weight: ≈0.080kg

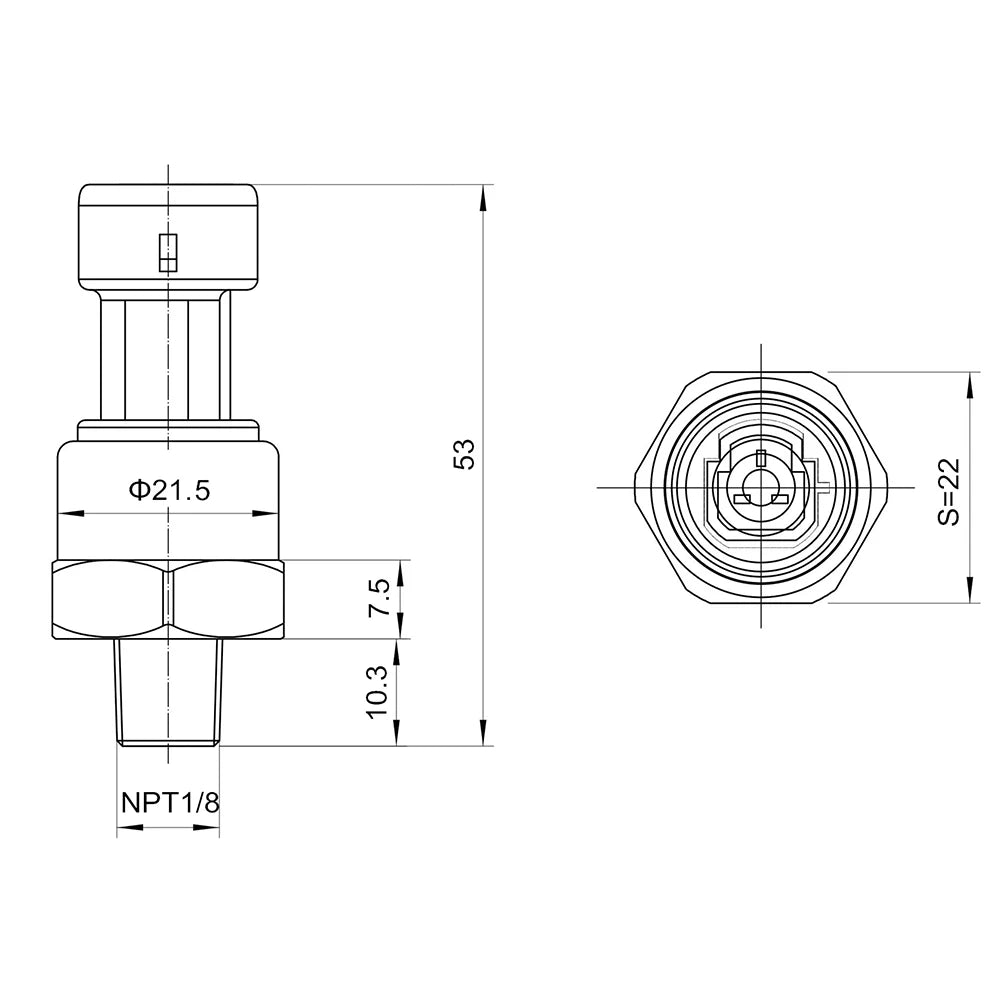

Dimension (unit:mm)

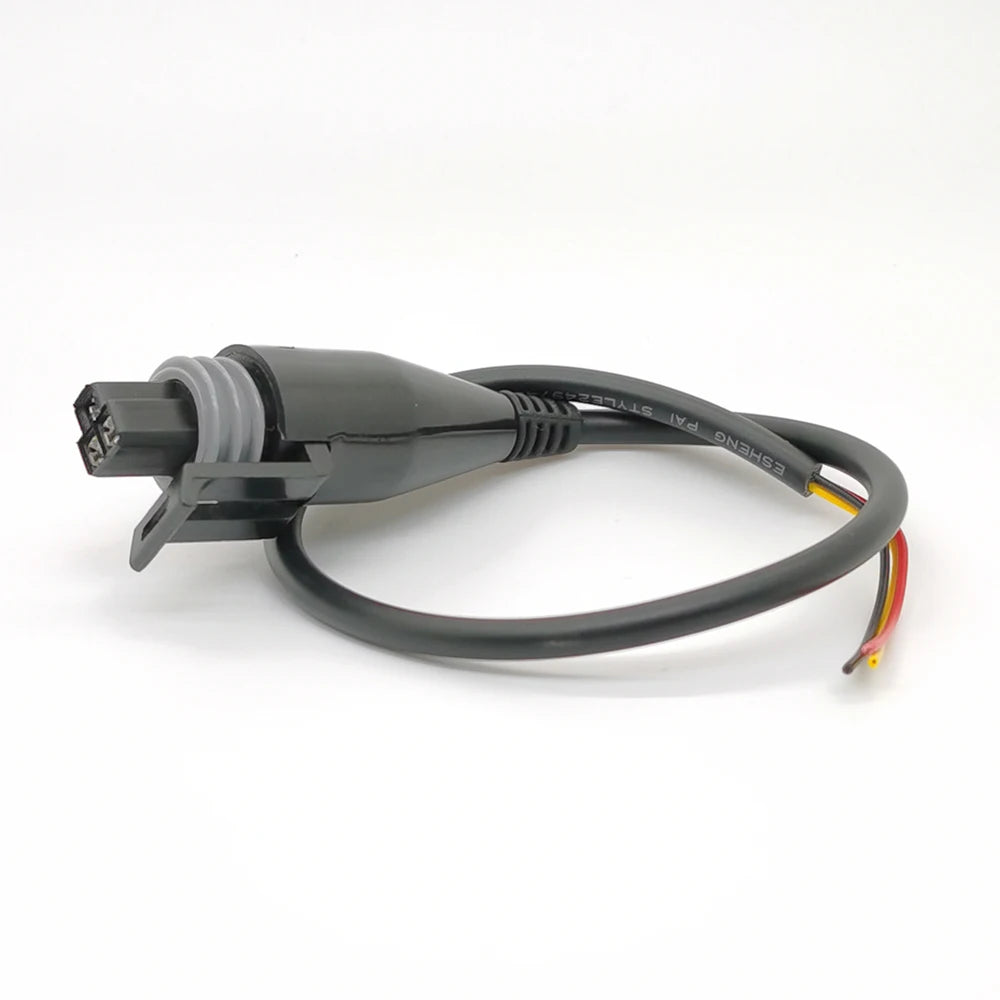

Electrical connection

Pin1: Supply + (Red)
Pin2: GND (Black)
Pin3: Output (Yellow/Green)

Ordering information

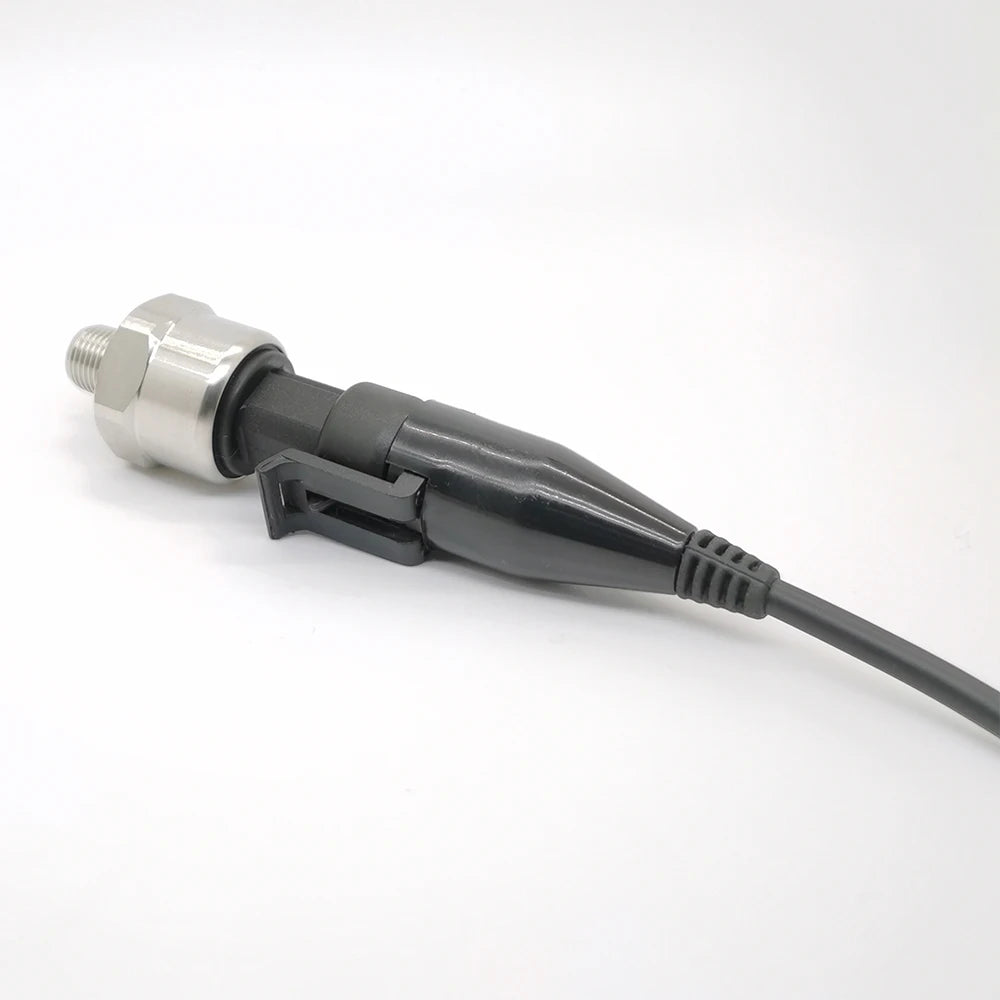

1. Default cable length: 0.3m / 11.8inch cable.
2. If you have other special requirements, please
contact us and note in the order.
3. Typical parameters you can choose, then
remark in your order.
