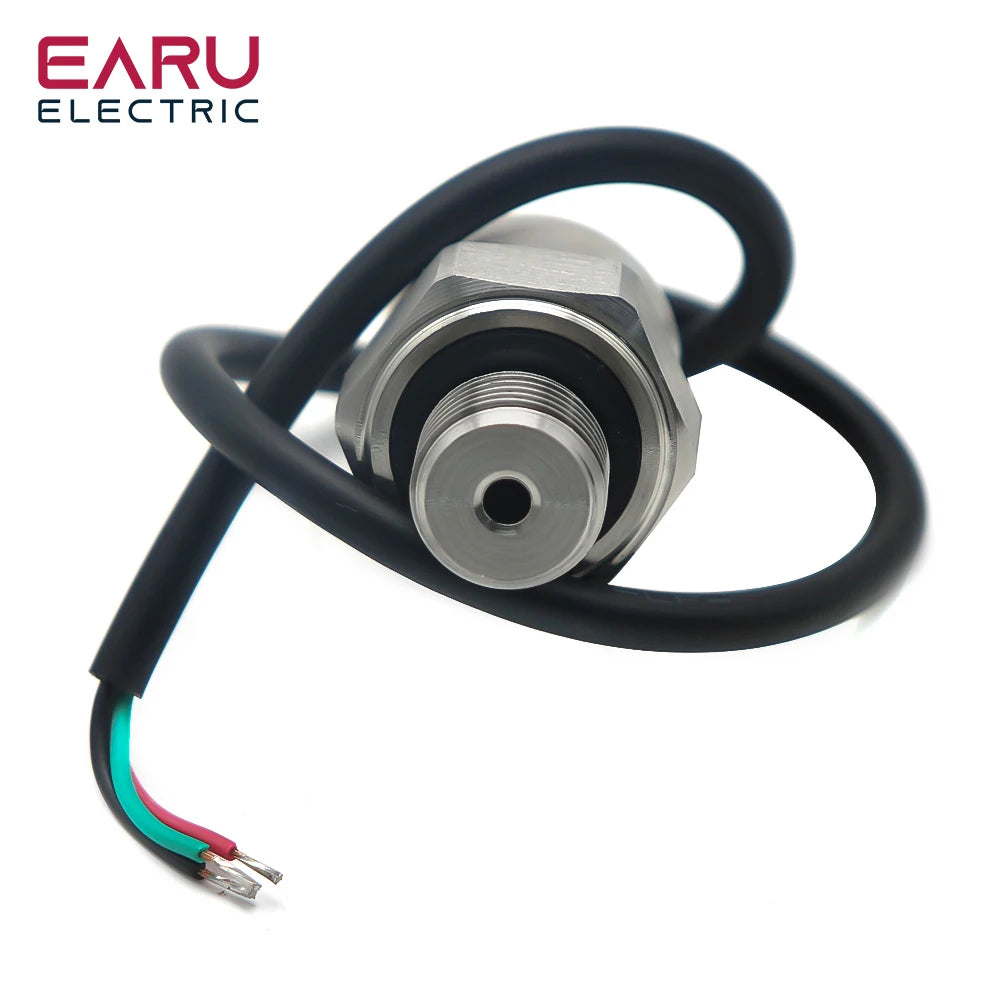

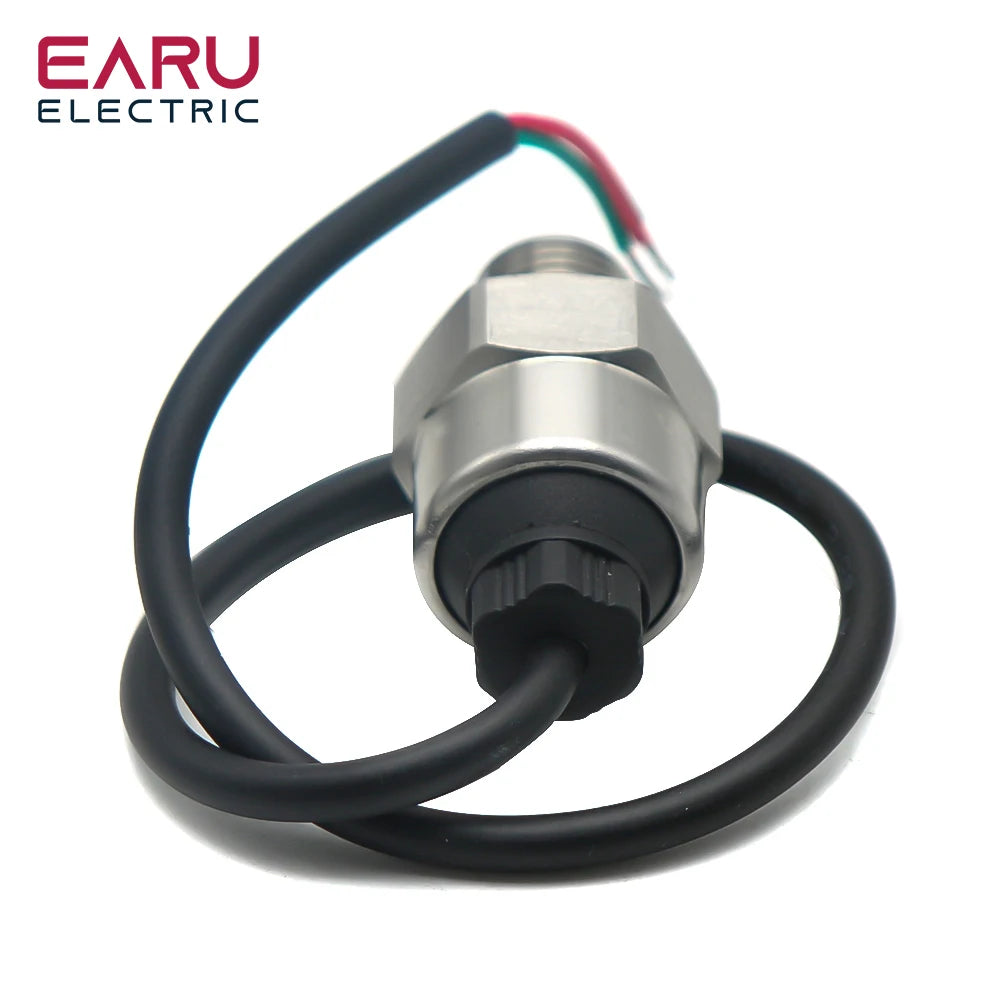

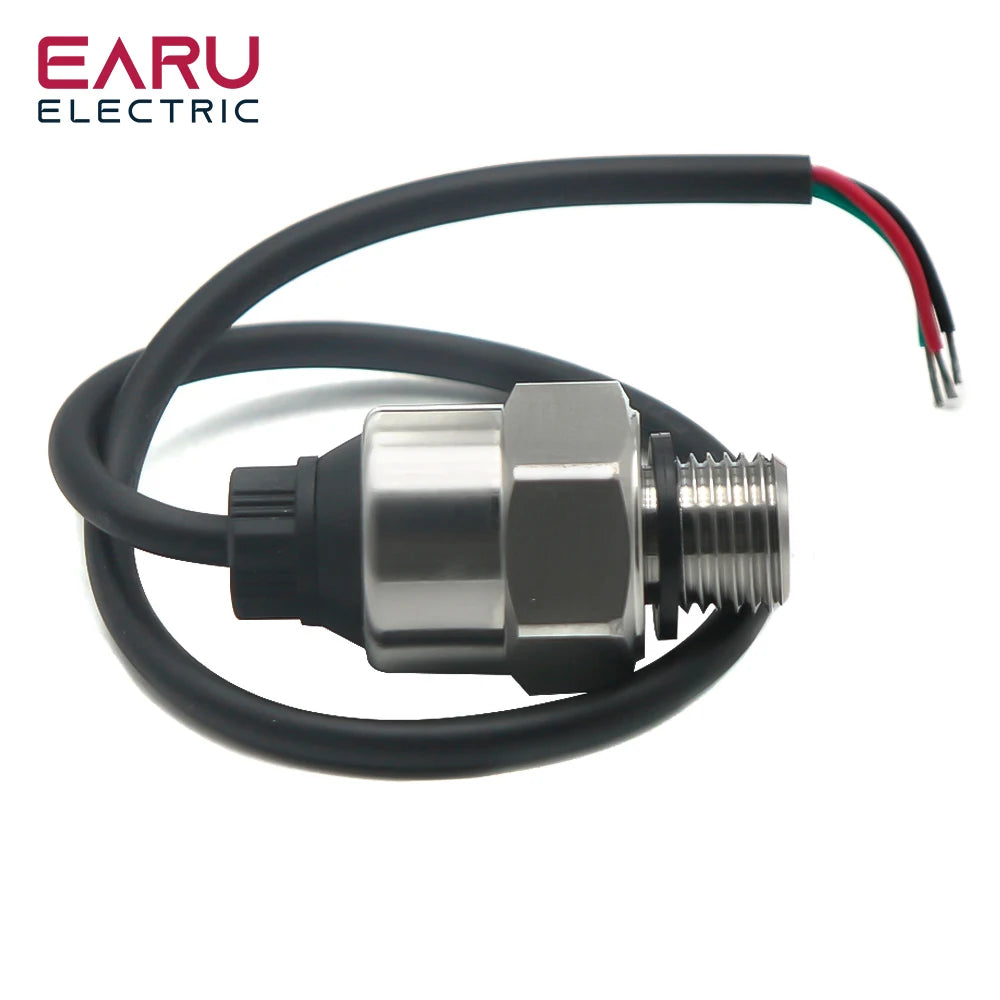

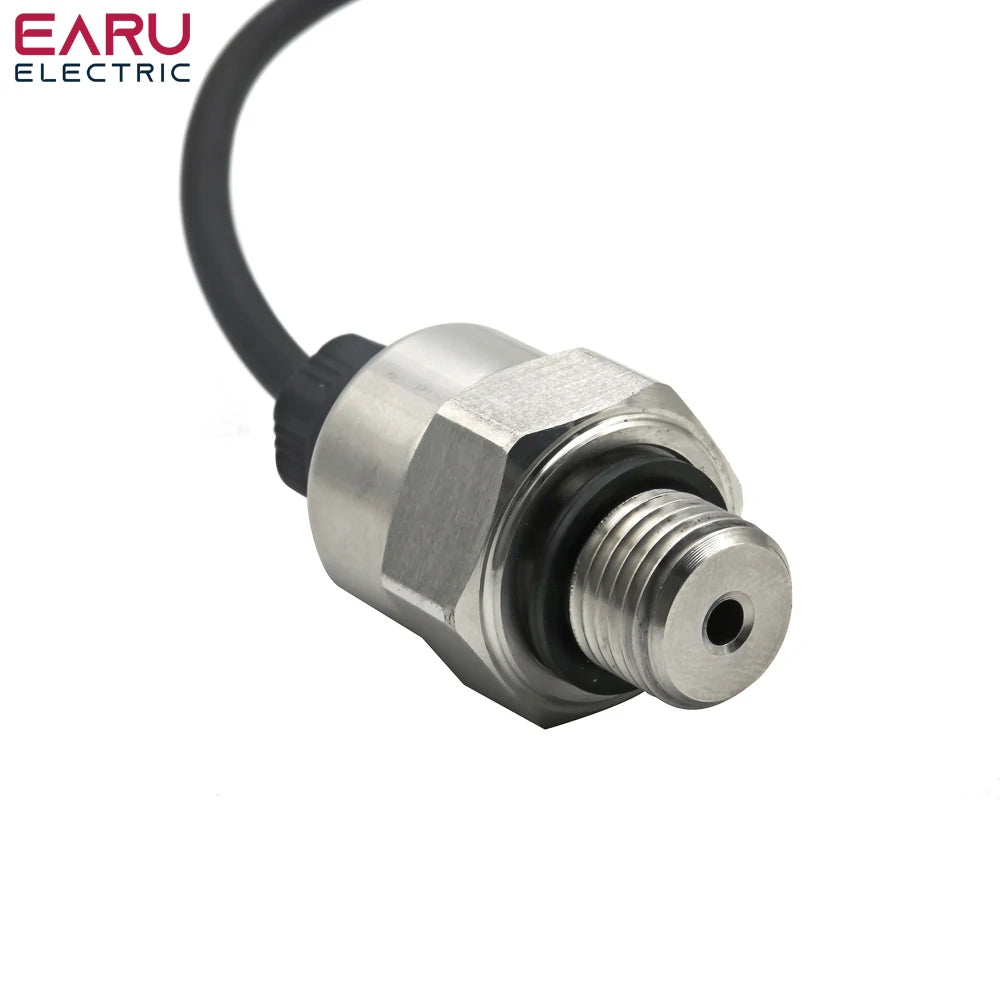

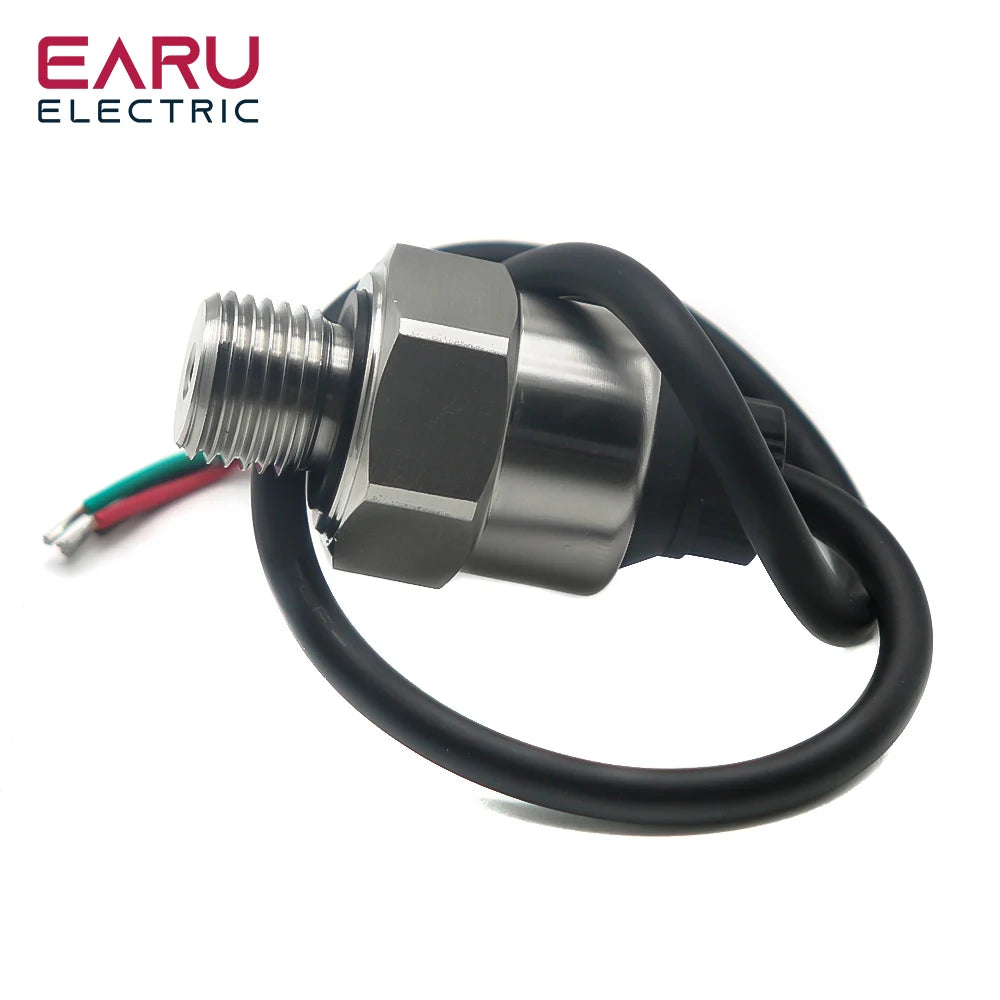

Pressure Sensor Transmitter For Water Oil Fuel Gas Air G1/4 5V Ceramic Sensor Stainless Steel 0.5Mpa 1.2Mpa Transducer

Features

◆ CE conformity

◆ Low cost and high quality

◆ All stainless steel integrated structure

◆ Small size, convenient to install and operate

◆ 0.5-4.5V, 0-5V, 1-5V, various voltage output

◆ Complete surge voltage protection function

◆ For applications such as air, water, oil

◆ Provide OEM, flexible customization

Applications

◆ Intelligent IoT constant pressure water supply

◆ Engineering machinery, industrial process control and monitoring

◆ Energy and water treatment systems

◆ Steel, light industry, environmental protection

◆ Medical, agricultural machinery, testing equipment

◆ Flow measurement equipment

◆ Hydraulic and pneumatic control systems

◆ Air-conditioning unit and refrigeration equipment

◆ Water pump, air compressor pressure monitoring

Parameters

Measuring range: 0-60Mpa gauge pressure

Accuracy: ±1.0%FS

Output signal: 0.5-4.5V, or other please tell us

Supply voltage: 5VDC or 12VDC

Operating temperature: -40～105℃

Compensation temperature: -20～80℃

Operating current: ≤3mA

Temperature drift (zero&sensitivity): ≤±0.03%FS/℃

Long-term stability: ≤±0.2%FS/year

Response time: ≤3ms

Overload pressure: 150%FS

Burst pressure: 300%FS

Cycle life: 500,000 times

Sensor core: Al2O3-96% ceramic sensor

Pressure medium: Non-corrosive liquid or gas

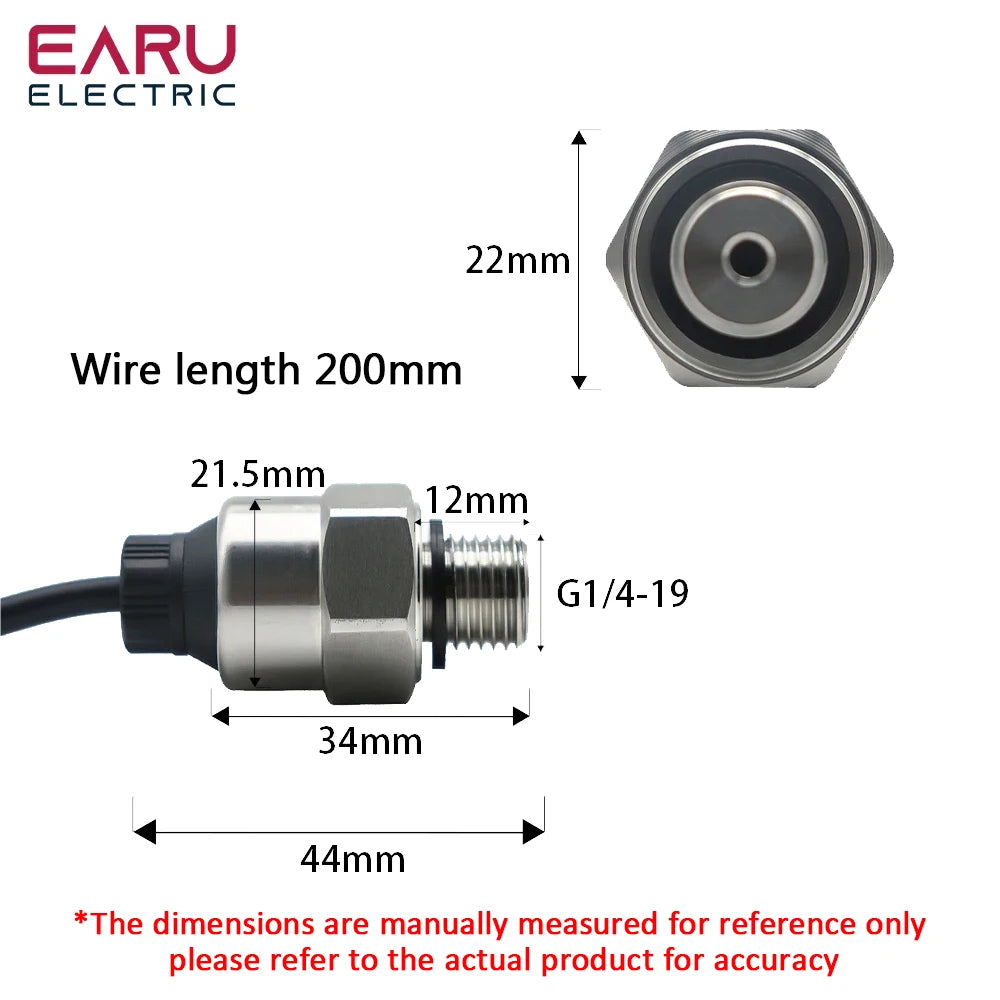

Pressure connection: G1/4, Other pressure connection is on request

Electrical connection: Direct cable

Housing material: 304 Stainless Steel

Weight: ≈0.080kg
