SIP 30W POE Public Address System Outdoor Speaker Network Speaker SIP With PoE Waterproof

Description

Hello，Dear buyer！Before purchasing, please carefully read the product's functional description, or download the corresponding software and user manual, or contact customer service to confirm whether the product meets your needs, in order to avoid unnecessary losses.

Three Main Functions (NO ONVIF, NOT SUPPORT NVR)

Only for the Items’ name beginning with SIP-

The First Main Function:Connect with PBX server

A.Can realize RTP multi-broadcast.

B.Support 2 SIP accounts.

C.Not Support RSTP (Currently upgrading).

The Second Main Function:

Used with IP Microphone SIP-600H to achieve offline operation without using a computer as a server. Set the IP

Microphone to server mode.

A. Play MP3 files from the microphone USB drive to all or specified IP speakers.

B. Can Page to all or designated speakers through microphone SIP-600H.

The Third Main Function：

Playing background music, paging, just need to install our free software into windows system.

A. Music timed partition playback, music fixed-point playback.

B. Partition and fixed-point playing music manually.

C. Connected with IP microphone with item No. SIP-600H can realize partitioning and fixed-point paging and

calling.

D. Connected with Firefighting equipment can realize Fire alarm.

SIP Speaker Feature

*Transmit excellent sound for music and announcement .

*Support web firware upgrade for easy maintenance.

*Standard SIP protocol to compatible with other SIP devices,

*48K OPUS Audio Codec enables exellent sound quality.

Decoding: OPUS 48 kHz,MP3 44.1kHz, G.722 ADPCM 16kHz,G.711 PCMU 8 kHz,G.711 PCMA 8kHz;

Network Protocol:SIP, HTTP, IPv4, DHCP, RTSP, RTP, TRCP, UDP, ARP, FTP, TFTP, NFS, NTP

Network Interface:10/100 Base-TX, RJ45

VoIP:Support SIP protocol for intergration with VoIP system ,intergrated with SIP/PBX.

Support SIP features:secondary /backend SIP server, IPv4(IPv6 futhur).

Support Codecs: OPUS, G711U, G711A, GSM, MP3, MAV

１．NOVIF is not supported.

２．It is recomemded that you consult with customer service regarding any software-related matters before order .

■Model:SIP-706WDC(POE)；

■Power Supply:POE or DC12-24V；

■Tated Power:30W；

■Constant resistance input:8Ω；

■Sensitivity:110dB；

■Frequency Response:300-8000Hz；

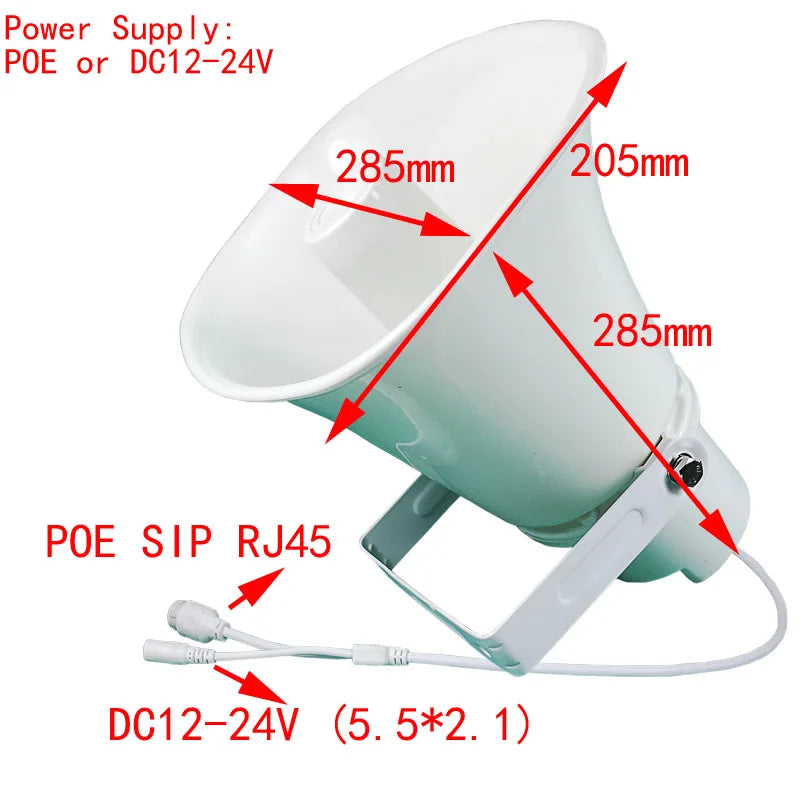

■Dimensionsl:Φ205*285*280mm；

■Materials:ABS；

■Package Dimensions (W×D×H mm):285×285×210；

■Machine Dimensions (W×D×H mm):285x285x205；

■Gross Weight:1.8kg；

■Net Weight:1.7kg；

Notes:

two series of speakers in our factory: one is SIP speaker,whose item No. begins with letters SIP- the other is IP speaker whose time No. begins with letter IP- This two kinds of speakers connect different softwares and not compatible.
