Instruction Manual for Cat & Rabbit Oral Mouth Gag

1. Product Overview

2. Specifications

• Material: Medical-grade stainless steel (main body) + Silicone/PTFE (tip protective pads)

• Sterilization Method: Autoclavable at 134°C (high-temperature high-pressure steam sterilization) / Ethylene oxide sterilization

• Structure: Spring-adjusted, stepless locking of opening size

3. Product Features

1. Stepless Spring Adjustment: Precisely and stably control the opening via the spring mechanism, with easy operation and stepless locking at any desired position.

2. Protective Tip Design: White soft protective pads at both ends prevent damage to the animal’s teeth, gums, and oral mucosa.

3. Corrosion-Resistant & Easy to Sterilize: All-stainless steel construction allows repeated autoclaving, suitable for high-frequency use in pet hospitals and laboratories.

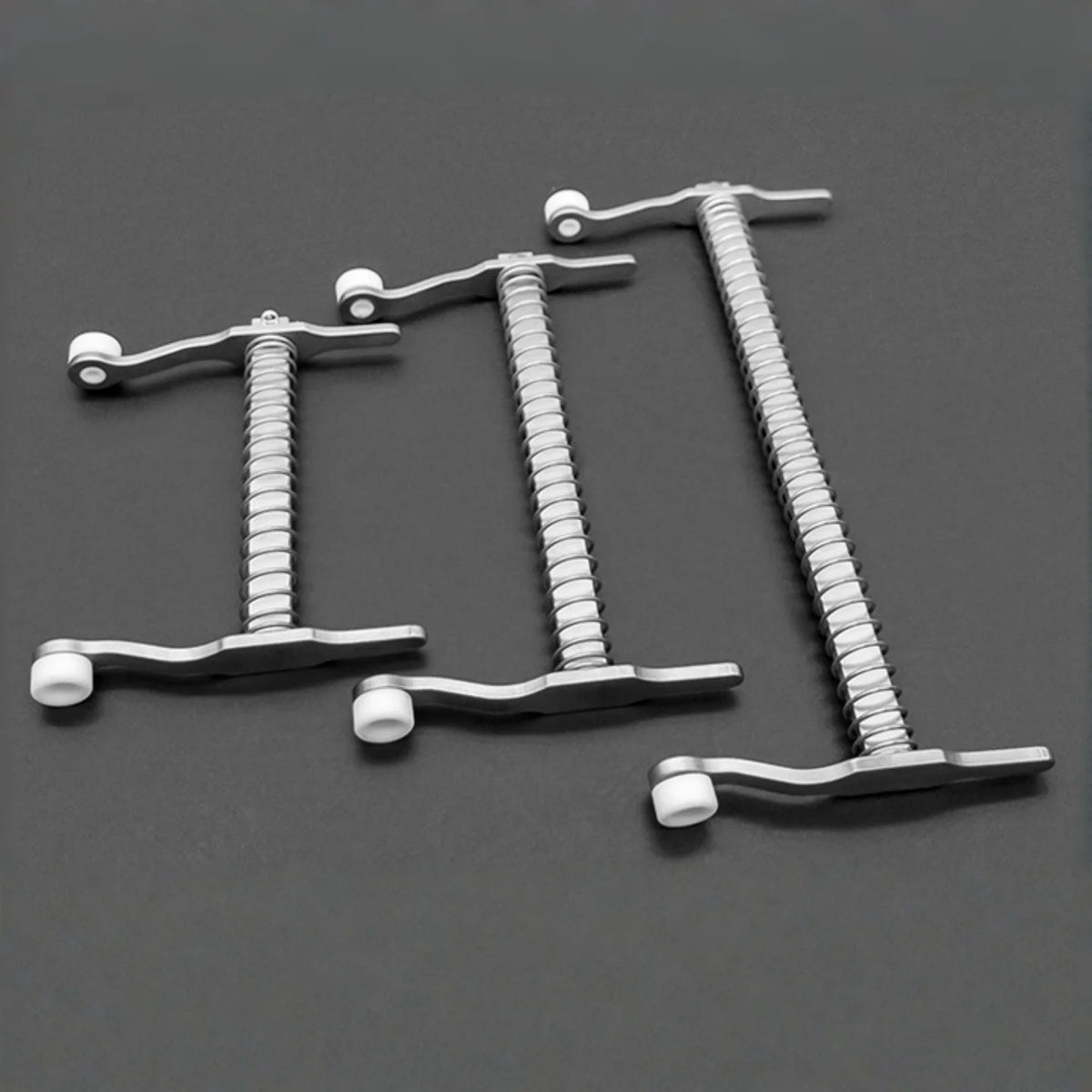

4. Multi-Size Compatibility: Three sizes (small/medium/large) cover cats, rabbits, and small animals of different body types.

5. Stable Structure: Ergonomic design ensures the gag stays firmly in place after opening, guaranteeing operational safety.

4. Instructions for Use

1. Pre-Operational Preparation

   • Confirm the animal is sedated/anesthetized and in a stable condition.

   • Select the appropriate size of mouth gag based on the animal’s oral size and surgical requirements.

   • Clean and sterilize the mouth gag to ensure sterility.

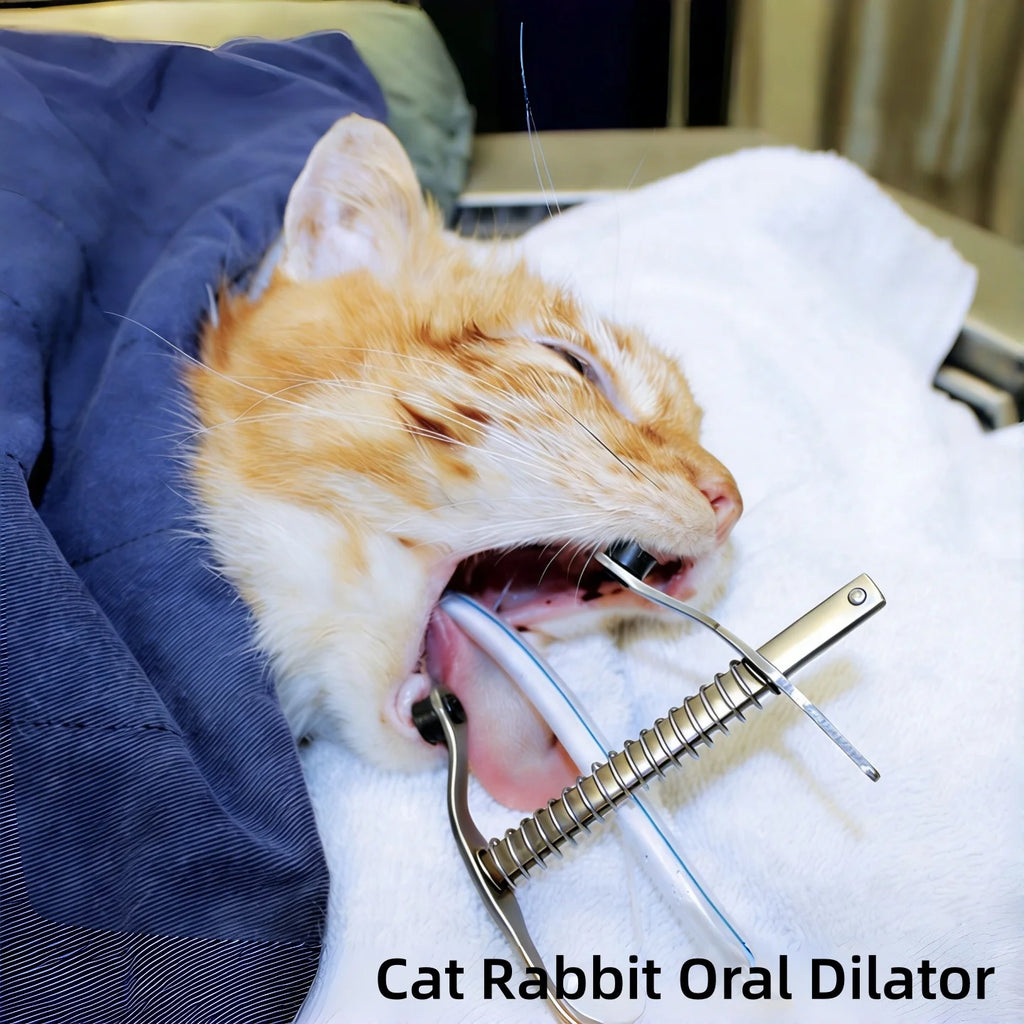

2. Placement Procedure

   • Position the protective pads of the mouth gag on the upper and lower molars of the animal (avoid contact with incisors to prevent damage).

   • Slowly adjust the spring to gradually open the oral cavity to the required angle and lock the position.

   • Verify the gag is secure and the animal shows no obvious discomfort before proceeding with examination/surgery.
3. Post-Operational Procedure

   • After completion, slowly release the spring and gently remove the mouth gag.

   • Clean any residual foreign matter from the oral cavity, then clean, sterilize, and store the mouth gag.

5. Precautions

• For use only on sedated/anesthetized animals. Do not use on awake or struggling animals to avoid stress or injury.

• Do not over-open the oral cavity, as this may cause mandibular joint dislocation or mucosal laceration.

• Replace protective pads immediately if cracked or worn to prevent hard components from contacting oral tissue directly.

• Thoroughly clean surface contaminants before sterilization to avoid organic residue affecting sterilization efficacy.

• This product is a veterinary-specific instrument; do not use on humans or large animals.

6. Maintenance & Care

1. After use, promptly clean with clean water or neutral detergent to remove blood, saliva, and other residues.

2. Sterilize via autoclaving (134°C, ≥15 min) or ethylene oxide, then air-dry and store in a sealed bag.

3. Regularly inspect spring elasticity and joint stability. Stop use immediately if jamming, deformation, or rust occurs.

4. Store in a dry, well-ventilated environment free of corrosive gases, and avoid mixing with sharp objects.

7. Troubleshooting

8. Disclaimer
