Soda Water Machine External Carbon Dioxide Cylinder TR21 Fill Adapter Kit Soda Maker CO2 Filling Station with Hose

$46.65

Choose your option below. Each model or pack is sold separately. Check the selected photo and product details for the contents.

Qty Available: 3 Ships from our US warehouse.

Shipping, returns, and payments

Shipping:

Free Standard Shipping.

Located in: United States

Delivery:

Estimated between Sat, Oct 10 and Tue, Oct 13

Returns:

14 days returns.

Shop with confidence

Money Back Guarantee

Get the item you ordered or your money back.

Shipping and applicable taxes calculated at checkout. Shipping details · Return conditions · Ask a question

Description

Soda Water Machine External CO2 Tank Adapter Kit Soda Maker Accessories with Quick Disconnect Connector W21.8-14 G3/4 CGA320

Product Features:

1. Safety and health are the most important, and all materials meet food safety requirements, allowing you to use them with confidence.

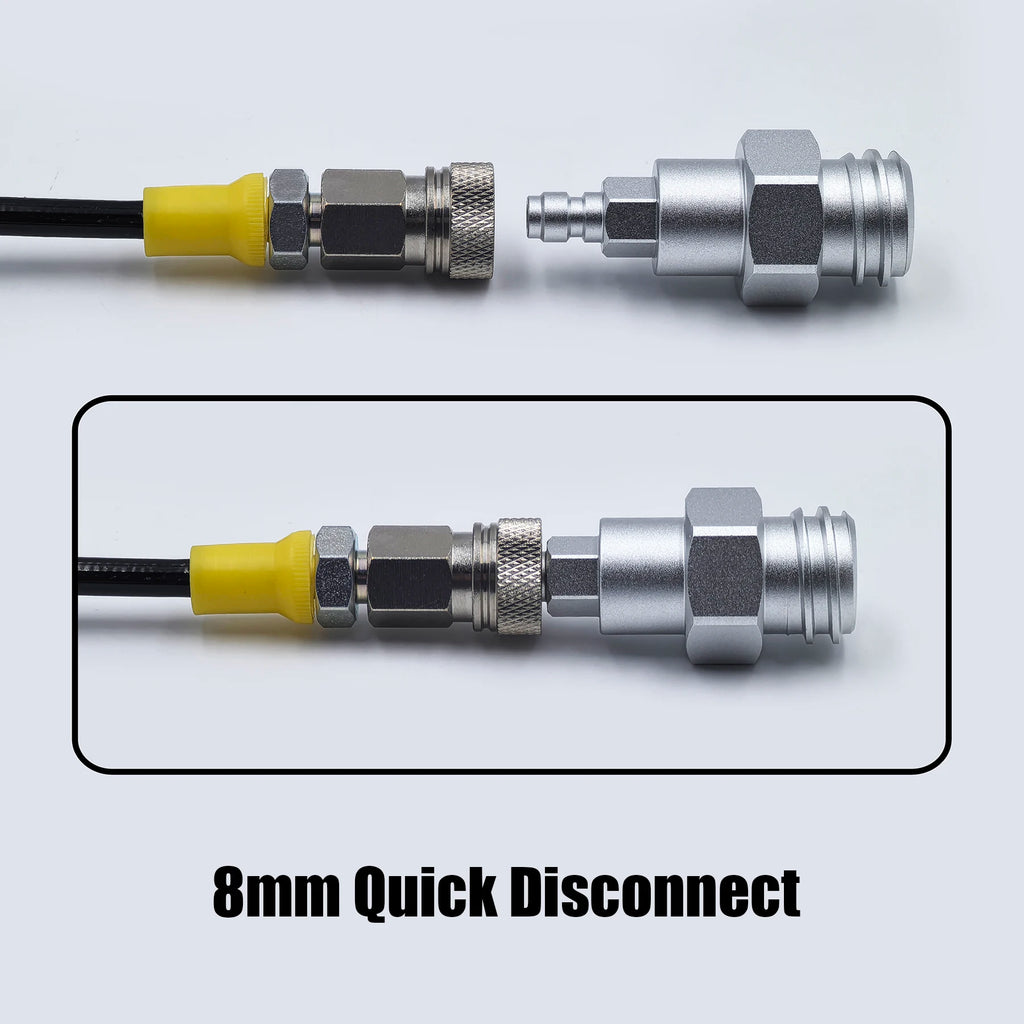

2. With quick disconnect connector. And fit all the sode machine with TR21-4 thread.

3. TR21-4 adapter has been optimized and designed to perfectly fit the soda water machine, making it easier to install without the need for tools, just tighten it by hand.

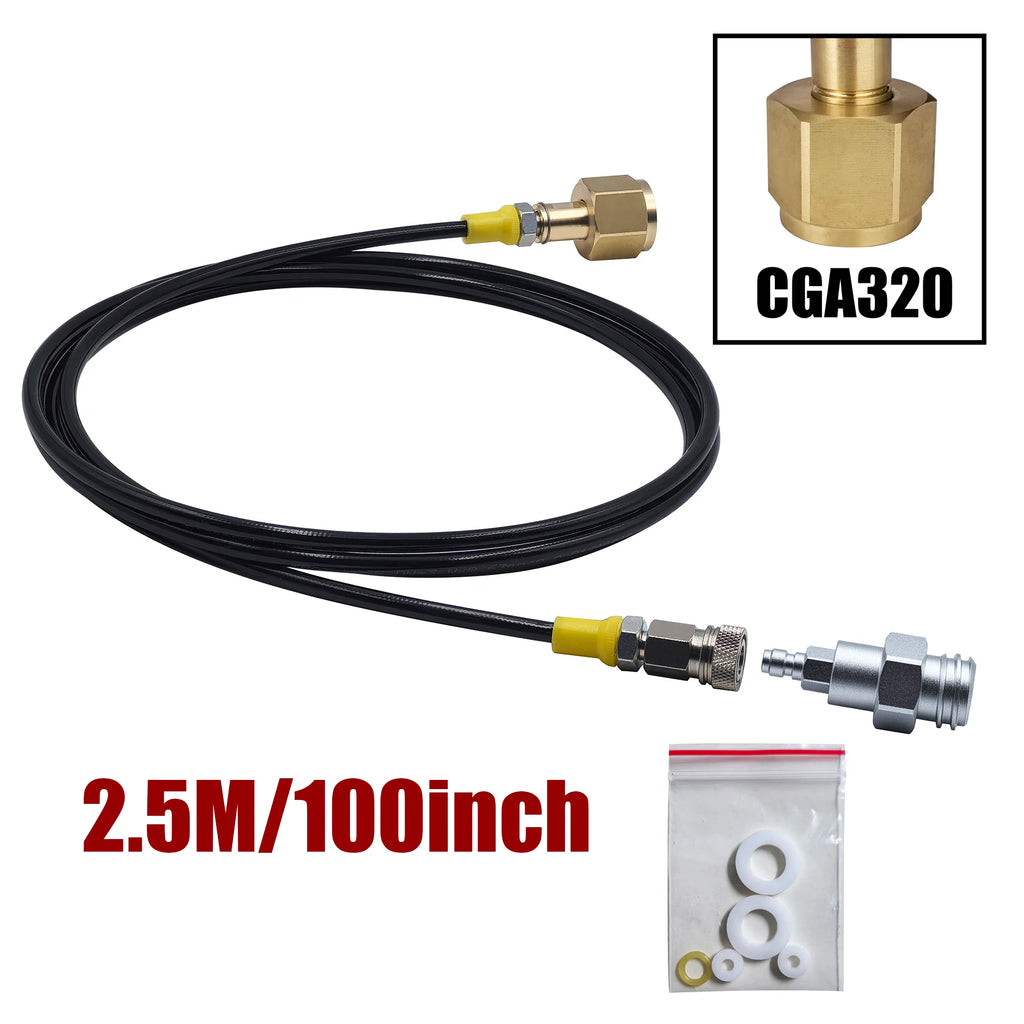

4. Hose length 250cm/100inches, soft and durable. Max working pressure is 9100psi/630bar, real high-pressure hose.

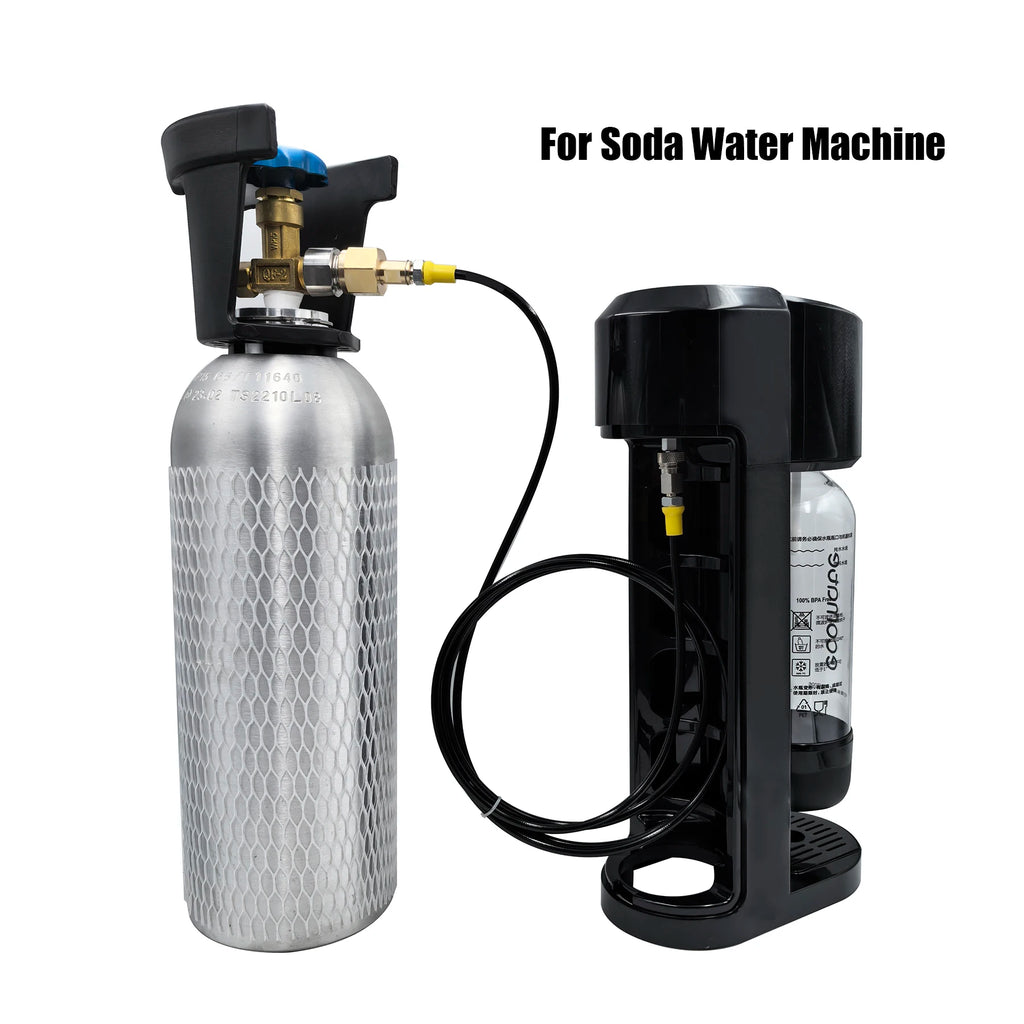

5. This item use for soda water machine/maker to external tank/cyclinder connect. Like 5LB, 20LB or 50LB commercial CO2 tanks. Allows external tank/cyclinder valve connector thread W21.8-14 or G3/4 or CGA320.

6. Comes with free backup o-rings and sealing gaskets.

How it works:

1. Screw pin valve into soda water machine
2. Screw the nut to CO2 tank and tighten it by wrench
3. Connect the quick coupler
4. Open the valve of the CO2 tank
5. Done, you can use your soda machine now

If you want to remove the product from the soda water machine:

1. Close valve of the CO2 tank
2. Press button of soda machine to drain residual CO2(if you don’t follow this guide to disconnect the coupler, the o-ring of quick coupler will be blowed out)
3. Disconnect the quick coupler
4. Unscrew pin valve from soda machine and unscrew nut from CO2 tank

How to choose the nut thread:

W21.8-14(Din 477)/JIS M22-14
Diameter=21.8mm
Generally applicable to UK, Germany, France, Poland, Japan, Korea, Norway, Switzerland, Russia, Ukraine, South Africa, Sweden, Chile, Czech Republic, Singapore, etc.

CGA320
Diameter=20.8mm
Generally applicable to USA, Canada, Brasil, Colombia, Philippines, etc.

G3/4
Diameter=26.4mm
Generally applicable to Russia, Lithuania, Belarus, Czech Republic, Slovakia, Kazakhstan, etc.
