Description
The original hardware design of this product is fully open-source. If needed, you may contact customer service to obtain electronic materials after receiving the goods.
Click here to view NFC Reader 3911 user manual
1. Introduction

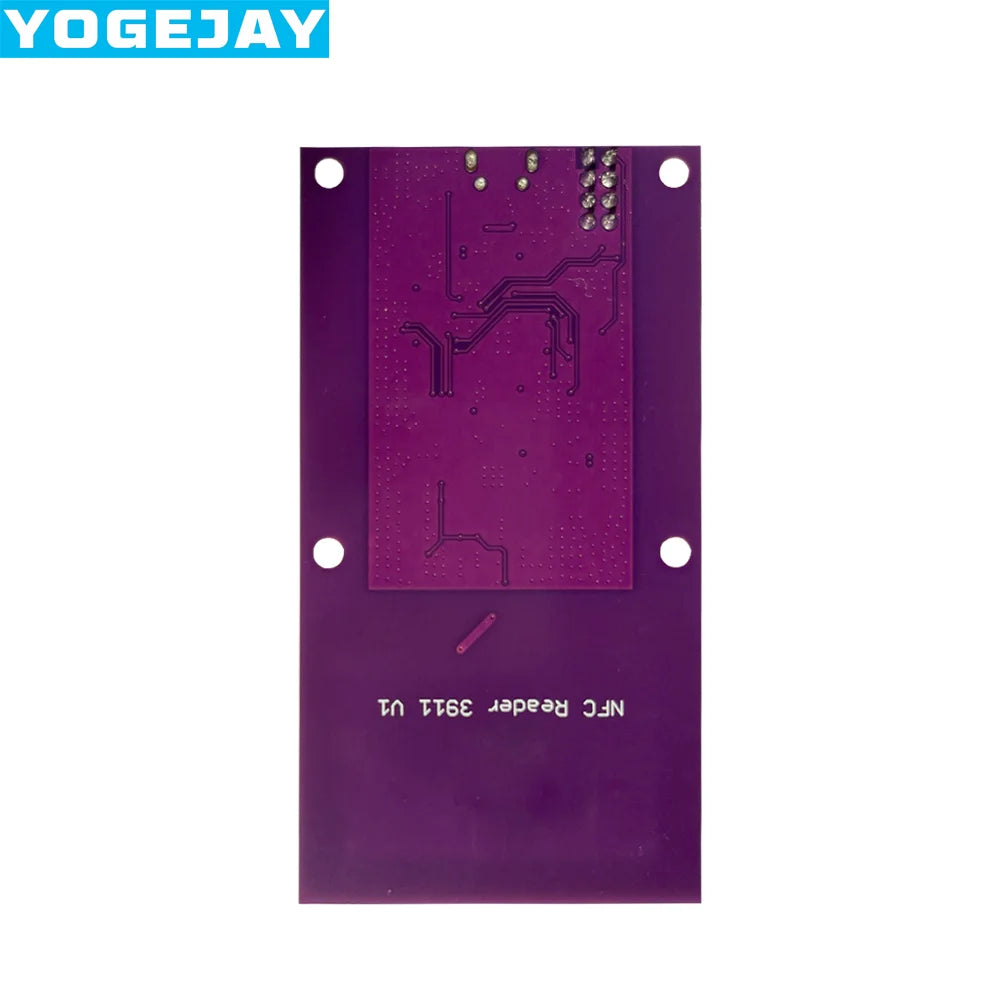

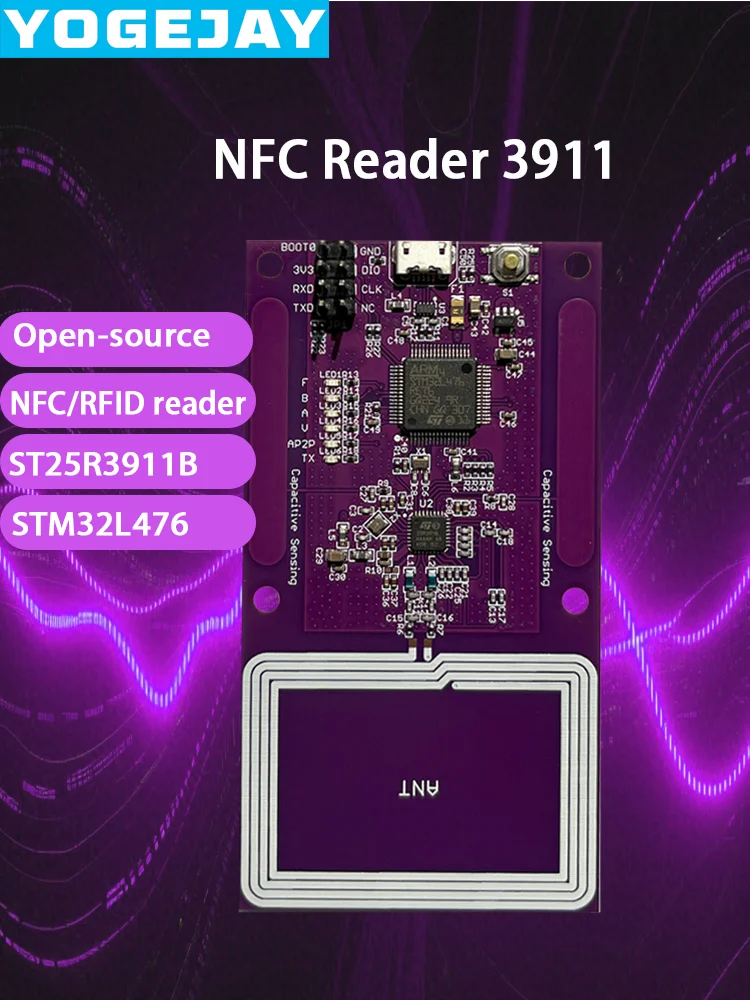

The NFC Reader 3911 is an open-source, ready-to-use development kit featuring the ST25R3911B, a highly integrated HF reader / NFC initiator IC.
It is especially suitable for communicating with ST25DV via mailbox to upgrade device firmware or read or set device configurations.
2. Key Features
• Support for STSW-ST25PC001 Windows® PC software, developed to demonstrate RF communication with all ST25 tags
• STM32L476RET6 32-bit microcontroller with 512 kB of Flash memory
• Based on ST25R3911B high-performance HF reader / NFC initiator.
• ISO 18092 (NFCIP-1) active P2P
• ISO14443A, ISO14443B and FeliCa™
• ISO15693
• Micro-USB connector for communication with the host PC and board powering
• Six LEDs indicating the presence of the RF field and of the protocol used to communicate
3. Package information
1 x NFC Reader 3911 development board.
1 x Micro USB with a length of 1m.

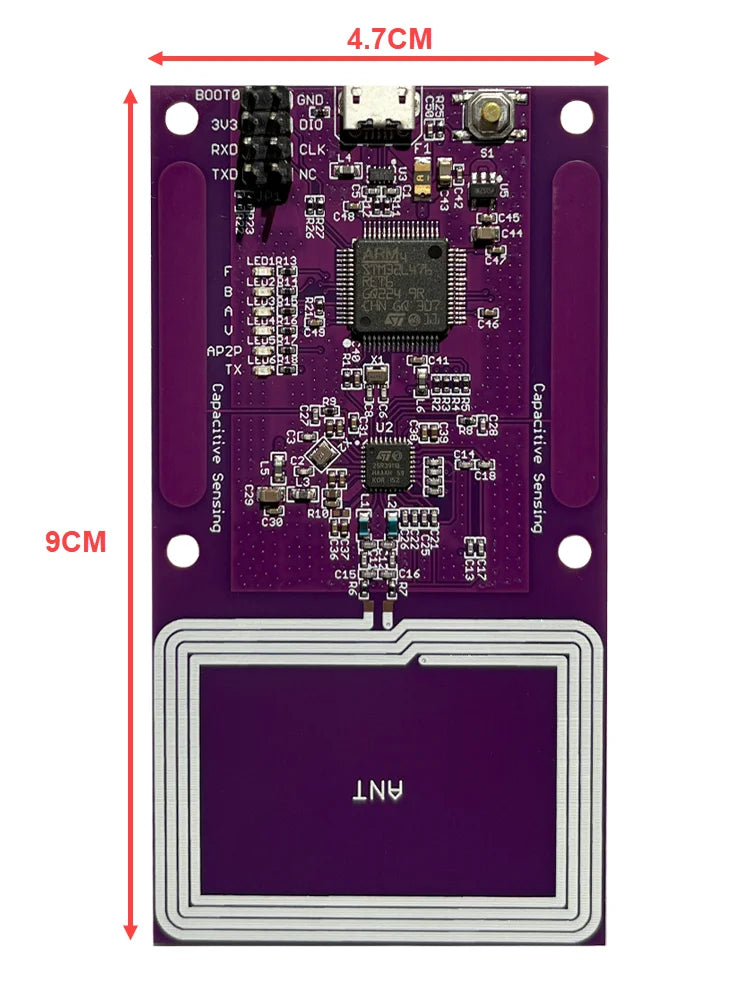

4. Dimension and weight
15 x 10 x 4 cm
90 g
