TZT A61 Analog to Digital Converter RCA to Optical & Coaxial Output ADC w/ 48KHz 96KHz & 192KHz Sample Rates

TZT A61 Analog to Digital Converter RCA to Optical & Coaxial Output ADC w/ 48KHz 96KHz & 192KHz Sample Rates

Description:
The ADC transforms analog signals into digital optical and coaxial output, enabling connection to DACs.

Specifications:
* Analog Input: RCA (L/R)
* Input Level: Max. 2Vrms (≈ 2.8V peak)
* Digital Output: Optical and Coaxial PCM, 0dBu level
* Sampling Rates: 48kHz, 96kHz and 192kHz
* Signal-to-Noise Ratio: 100dB
* THD: < 0.005% (20Hz–20kHz)
* Dimensions: 47mm × 80mm
* Coaxial Output Maximum Sample Rate: 192kHz/176.4kHz
* Optical Output Maximum Sample Rate: 96kHz/88.2kHz

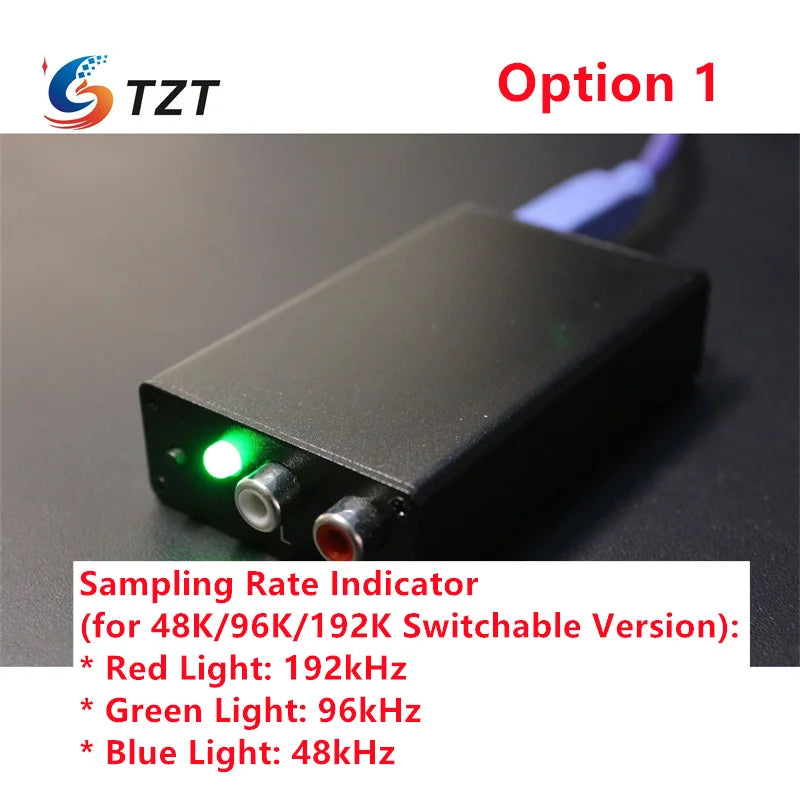

Sampling Rate Indicator (for 48K/96K/192K Switchable Version):
* Red Light: 192kHz
* Green Light: 96kHz
* Blue Light: 48kHz

A61 Analog to Digital Converter RCA to Optical & Coaxial Output ADC w/ 44.1KHz 88.2KHz & 176.4KHz

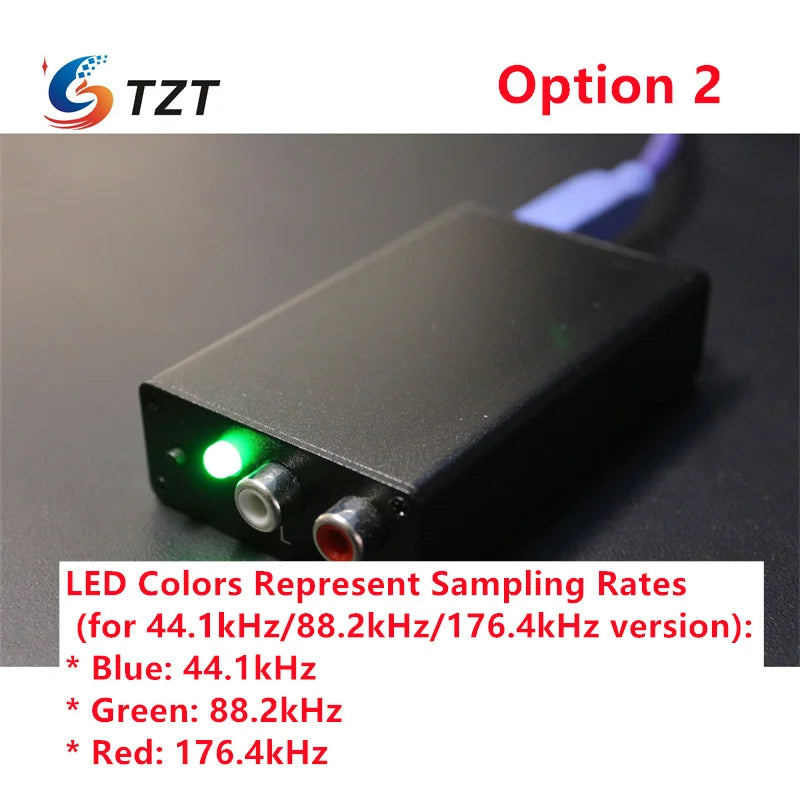

LED Colors Represent Sampling Rates (for 44.1kHz/88.2kHz/176.4kHz version):
* Blue: 44.1kHz
* Green: 88.2kHz
* Red: 176.4kHz

A61 Analog to Digital Converter RCA to Optical & Coaxial Output ADC with 44.1KHz-192KHz Sample Rates

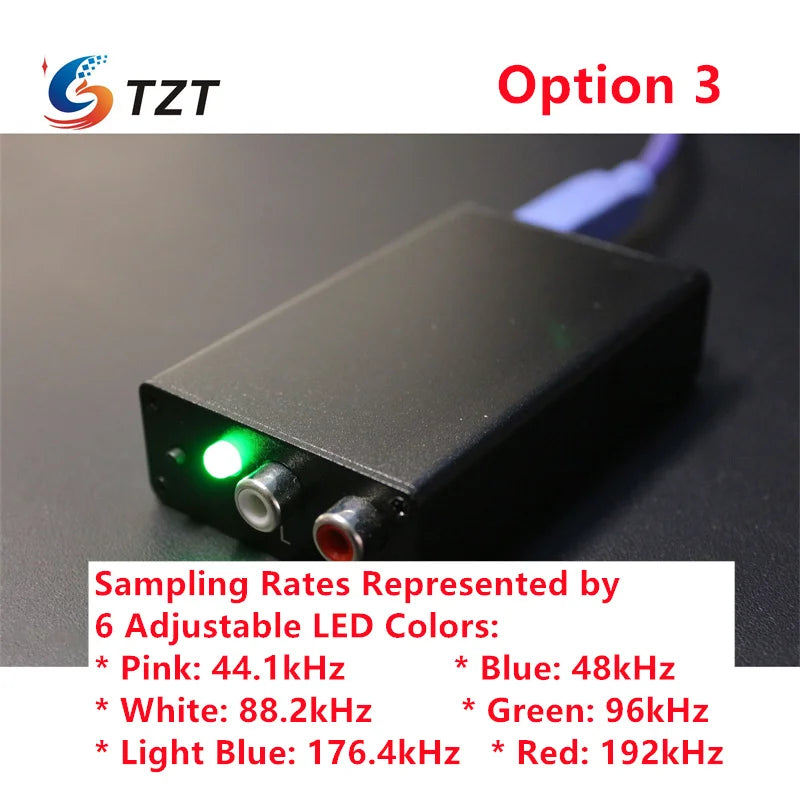

Sampling Rates Represented by 6 Adjustable LED Colors:
* Pink: 44.1kHz
* Blue: 48kHz
* White: 88.2kHz
* Green: 96kHz
* Light Blue: 176.4kHz
* Red: 192kHz

Packing List:
* 1 × ADC
* 1 × USB Cable (for 5V power adapter)

Packaging Details:
* Weight: 0.3kg

Note:
* Power adapter is not included. The USB cable is compatible with standard 5V/1A USB phone chargers.
