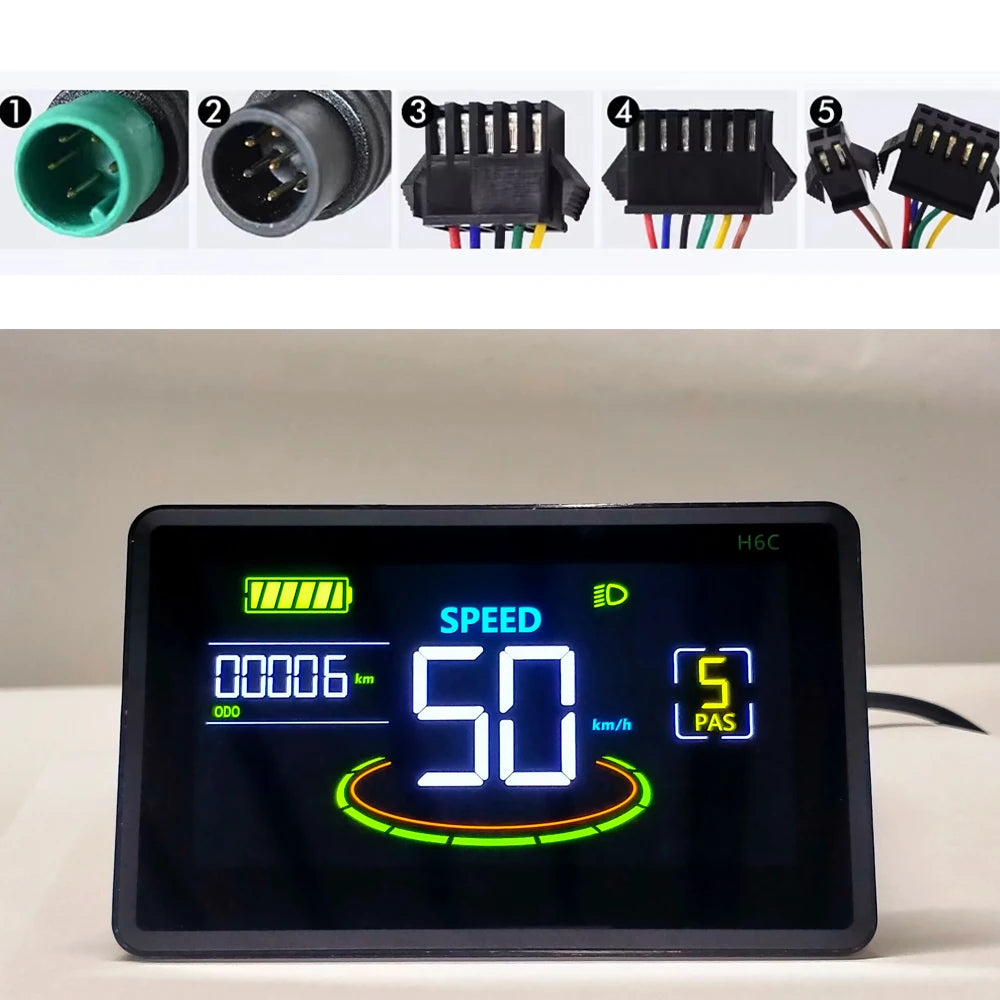

UART2 H6C Electric Bike LCD Display Speedometer Meter 24V-60V, 5/6 Pin Plug Options

SM5 2 / China Mainland
$78.24
Skip to product information
SM5 2 / China Mainland
  • SM5 2 / China Mainland
  • UART2 H6C Electric Bike LCD Display Speedometer Meter 24V-60V, 5/6 Pin Plug Options
  • UART2 H6C Electric Bike LCD Display Speedometer Meter 24V-60V, 5/6 Pin Plug Options
  • UART2 H6C Electric Bike LCD Display Speedometer Meter 24V-60V, 5/6 Pin Plug Options
  • UART2 H6C Electric Bike LCD Display Speedometer Meter 24V-60V, 5/6 Pin Plug Options
  • UART2 H6C Electric Bike LCD Display Speedometer Meter 24V-60V, 5/6 Pin Plug Options
  • UART2 H6C Electric Bike LCD Display Speedometer Meter 24V-60V, 5/6 Pin Plug Options
  • UART2 H6C Electric Bike LCD Display Speedometer Meter 24V-60V, 5/6 Pin Plug Options
  • UART2 H6C Electric Bike LCD Display Speedometer Meter 24V-60V, 5/6 Pin Plug Options
  • UART2 H6C Electric Bike LCD Display Speedometer Meter 24V-60V, 5/6 Pin Plug Options
  • UART2 H6C Electric Bike LCD Display Speedometer Meter 24V-60V, 5/6 Pin Plug Options
  • UART2 H6C Electric Bike LCD Display Speedometer Meter 24V-60V, 5/6 Pin Plug Options
  • UART2 H6C Electric Bike LCD Display Speedometer Meter 24V-60V, 5/6 Pin Plug Options
UART2 H6C Electric Bike LCD Display Speedometer Meter 24V-60V, 5/6 Pin Plug Options

UART2 H6C Electric Bike LCD Display Speedometer Meter 24V-60V, 5/6 Pin Plug Options

$78.24

Choose your option below. Each model or pack is sold separately. Check the selected photo and product details for the contents.

 Qty Available: 10 Ships from our US warehouse.

Shipping, returns, and payments

Shipping:

Free Standard Shipping.

Delivery:

Estimated between Fri, Nov 6 and Mon, Nov 9

Returns:

14 days returns.

Shop with confidence

Money Back Guarantee

Get the item you ordered or your money back.

Shipping and applicable taxes calculated at checkout. Shipping details · Return conditions · Ask a question

Description



Q: What kind of car is suitable?
A: Sorry, due to the different internal parts of the vehicles, we cannot determine which model is suitable. We only apply the UART2 protocol controller.
Q: I don't know the agreement. How can I check it?
A: You can look for it from the appearance of the controller, the manual of the controller or the old display screen, and the seller of the controller or the old display screen.
Q: Can the UART protocol be used?
A: No, there are many protocols in UART, such as bafang, kds, etc. UART2 is just one of them
Q: May I ask if the speed limit can be lifted?
A: It depends on whether your car is limited by the controller or the display screen. If the controller limits the speed, there is no way to lift the speed limit. If the display screen limits the speed, the speed limit can be lifted
Q: Can I try out this product? If it doesn't suit me, can I return it?
A: No, no returns or exchanges for non-quality issues.
Q: What voltage range does your display screen support?
A: Our display supports 24V/36V/48V/60V.(The S810 only supports 36v.)
Q: How to change the speed?
A: You can enter the menu by long pressing the + and - keys, and then short press the power button to switch to P08. After entering P08, use the + key to set the desired speed. After adjusting, long press the + and - keys to save and exit the menu.
Q: Is an immediate speed limit of 25 kilometers supported?
A: The specially customized version can support a fast speed limit of 25 kilometers per hour, while the regular version does not.

Tips: The protocol of this product is UART2. If it does not match the protocol of the controller, it may not work properly!


The default speed of our product is unlimited (100). If your controller has a speed limit, our display can only display the corresponding speed.


Note:




Product is No. 2 communication protocol, need to be used with No. 2 communication


protocol controller, otherwise it is not compatible


Questions & Answers


Q:After connecting the instrument, the instrument interface displays E10



A:① The communication protocol used in the instrument and controller does not

match, and the two cannot communicate;


② The original condition of the entire vehicle is already in poor condition. One of the

three devices, namely the booster, rotary knob, and motor, not only breaks down but

also has a short circuit. At this time, the controller not only cannot detect it, but also

causes the controller to not work, resulting in communication failure between the

instrument panel and the controller;
