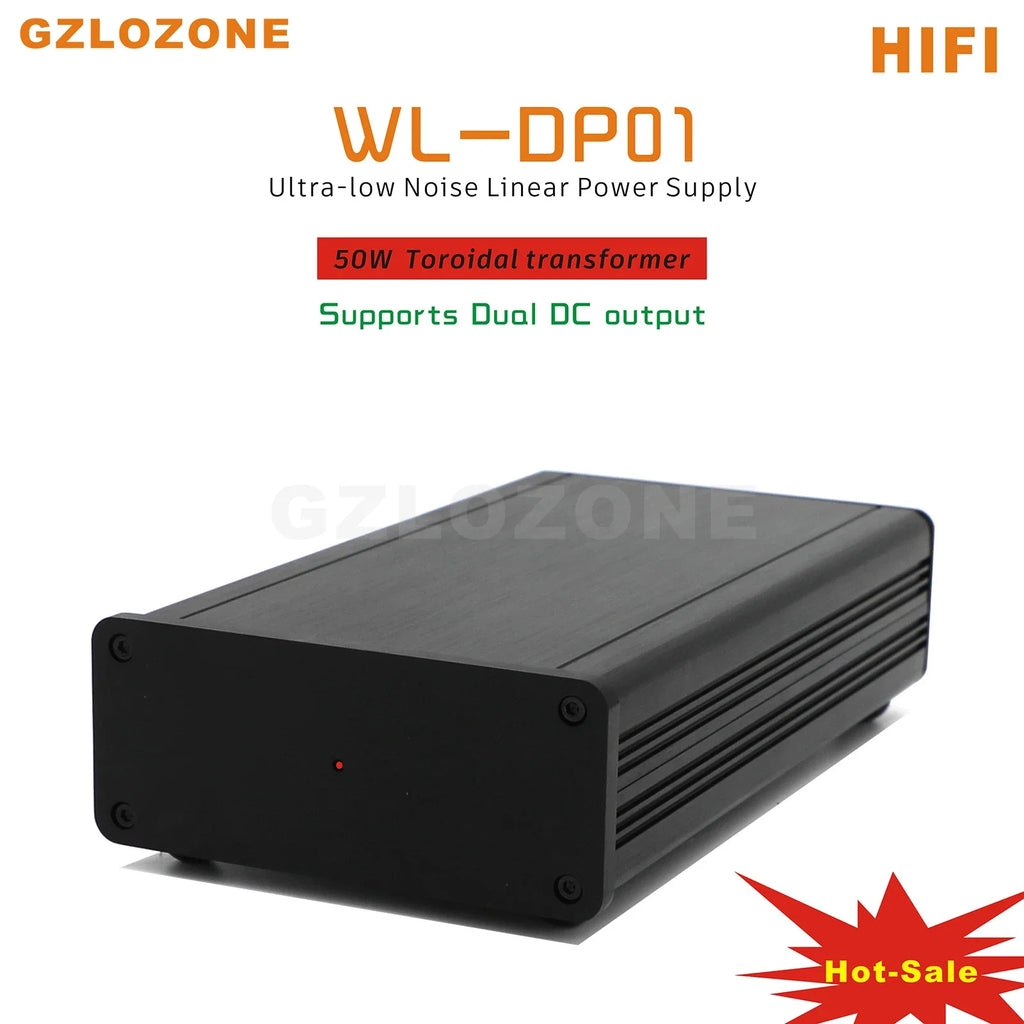

WL-DP01 50VA HIFI Ultra-low noise Linear power supply DC 5V/9V/12V/15V/16V/18V/19V/24V LPS

$210.14

Choose your option below. Each model or pack is sold separately. Check the selected photo and product details for the contents.

Style

Qty Available: 10 Ships from our US warehouse.

Shipping, returns, and payments

Shipping:

Free Standard Shipping.

Located in: United States

Delivery:

Estimated between Sat, Oct 10 and Tue, Oct 13

Returns:

14 days returns.

Shop with confidence

Money Back Guarantee

Get the item you ordered or your money back.

Shipping and applicable taxes calculated at checkout. Shipping details · Return conditions · Ask a question

Description

Introduction:

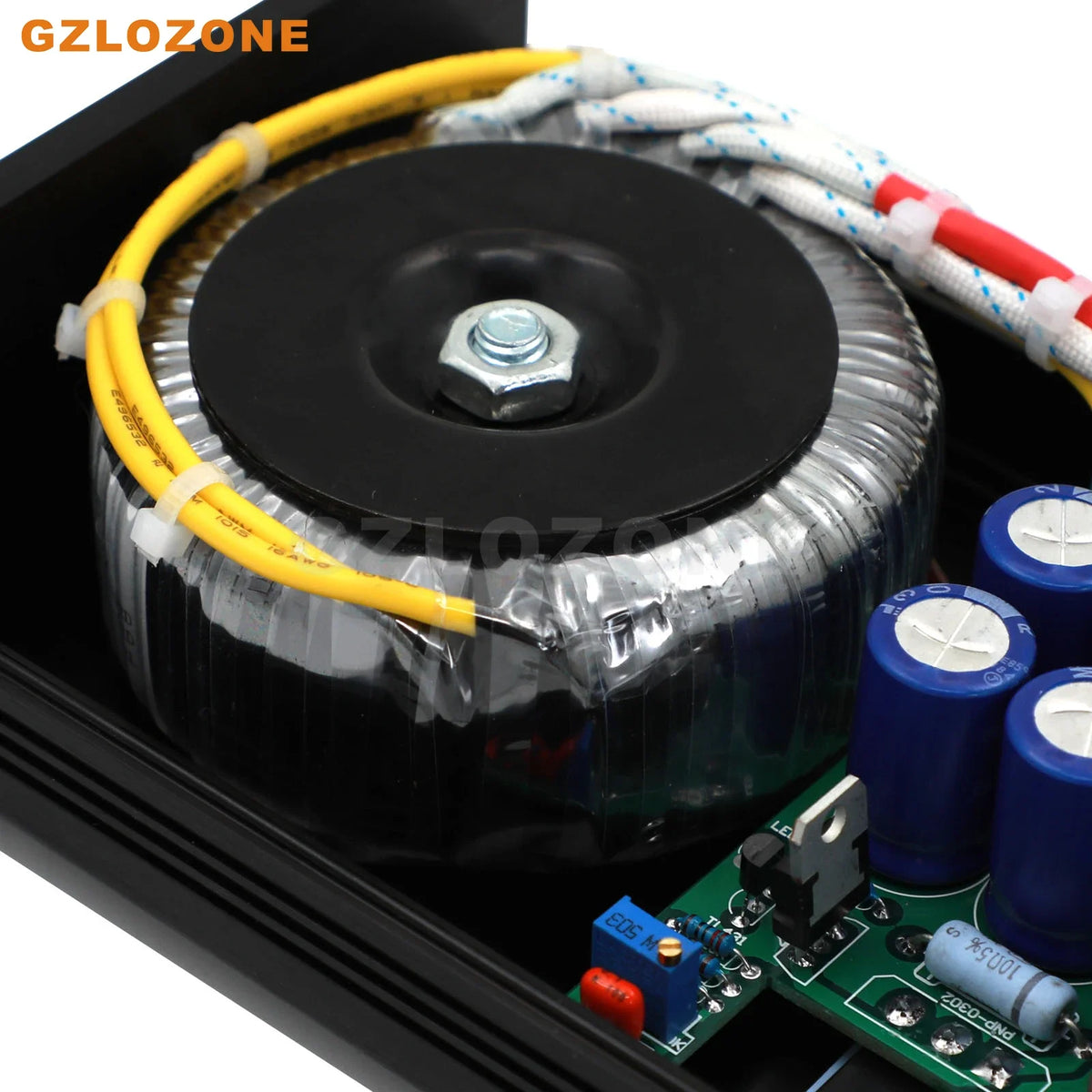

WL-DP01 has excellent performance, ultra-low noise TL431+ high-power transistor discrete voltage regulator circuit, and high-speed low-resistance array capacitor layout.

It adopts 3-Level filtering, first-level EMI, second-level capacitor array, and third-level CLC to reduce the output ripple to the lower limit of the instrument test.

This linear power supply is used to upgrade various audio equipment, digital equipment, NAS hard disk box, mobile hard disk box, various CAS, wireless router, optical fiber module, set-top box, MAC mini, PC HiFi, Thinkpad HP Asus and other portable computers.

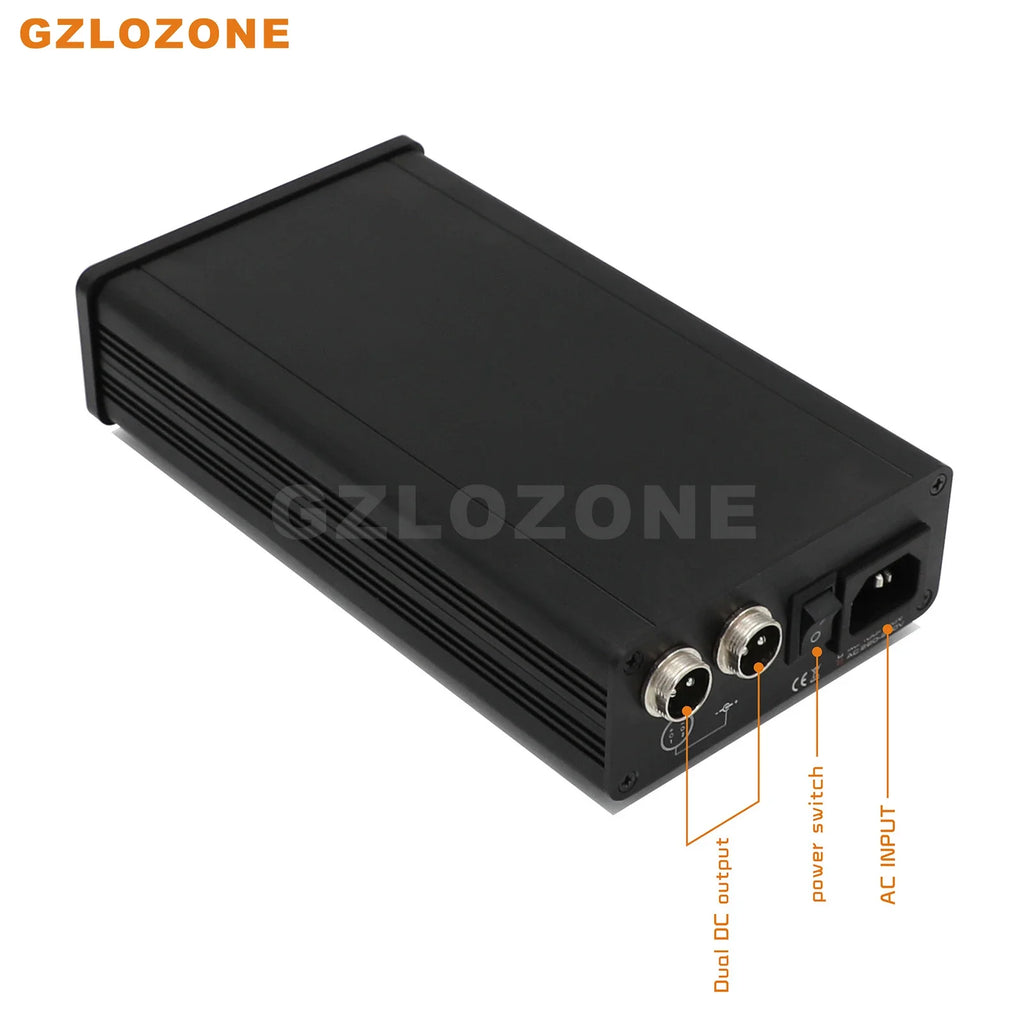

With dual output DC voltages, Two DC output voltages are the same, and they share the same output voltage. Therefore,Their output current is the total output current, not independent output current. Please see the detailed description below for the corresponding current of different DC output voltages.

Parameter:

Input voltage: AC 115V or 230V (Optional)

(Default send 115V version address: United States, Canada, Japan, Taiwan, Mexico, Brazil . Default send 230V version address: Hong Kong , South Korea , Malaysia, Vietnam，Germany, France, Spain, Greece, Belgium and other European countries If you has any special requirements, please send a message for communication and confirmation.)

Output voltage/current: (Optional)

◆ DC 5V / 3.5A

◆ DC 9V / 3.5A

◆ DC 12V / 4A

◆ DC 15V / 3.3A

◆ DC 16V / 3.1A

◆ DC 18V / 2.7A

◆ DC 19V / 2.6A

◆ DC 24V / 2A

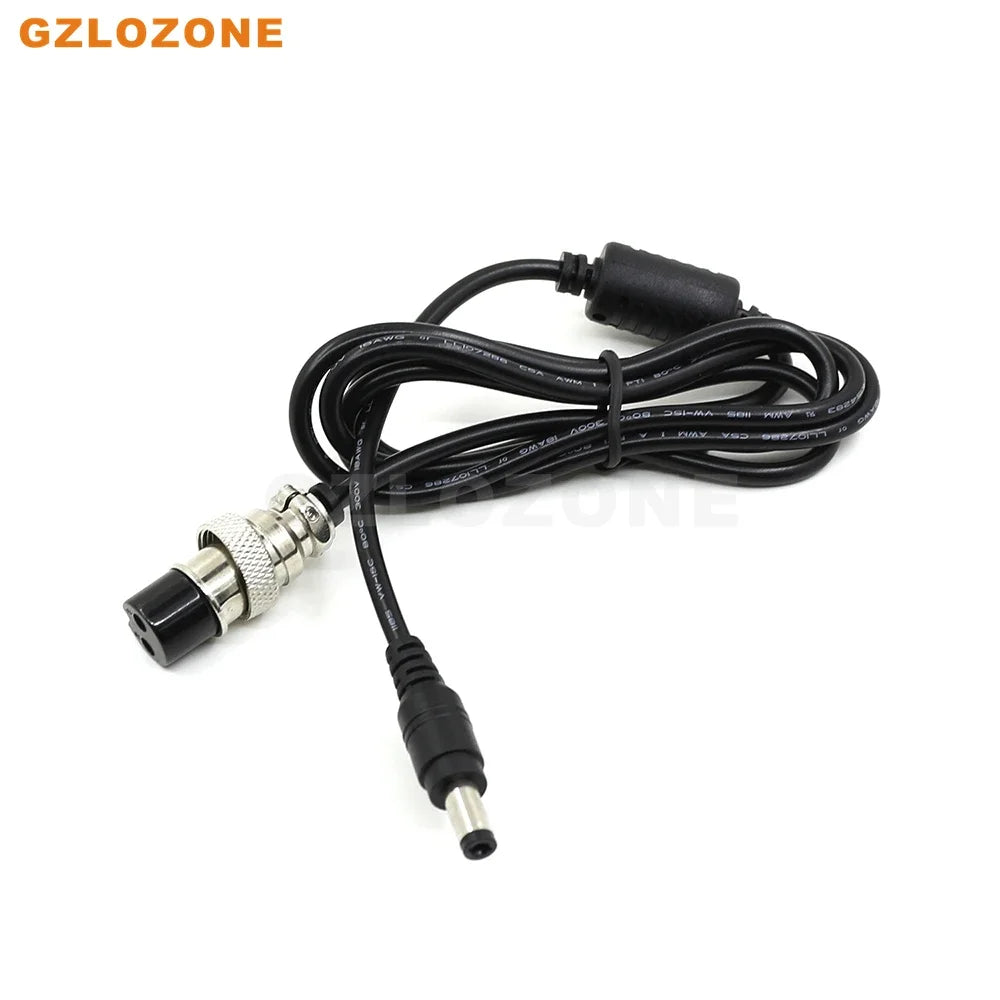

GX16-2 PIN socket Polarity: 1+ (Positive polarity), 2- (Negative polarity)

DC plug polarity: Internal + , External-

DC Plug size: 5.5*2.5mm (It can be compatible with 2.1mmm, If you need other DC plug sizes, please contact us)

Size: 118mm*50mm*221mm (W*H*D)
